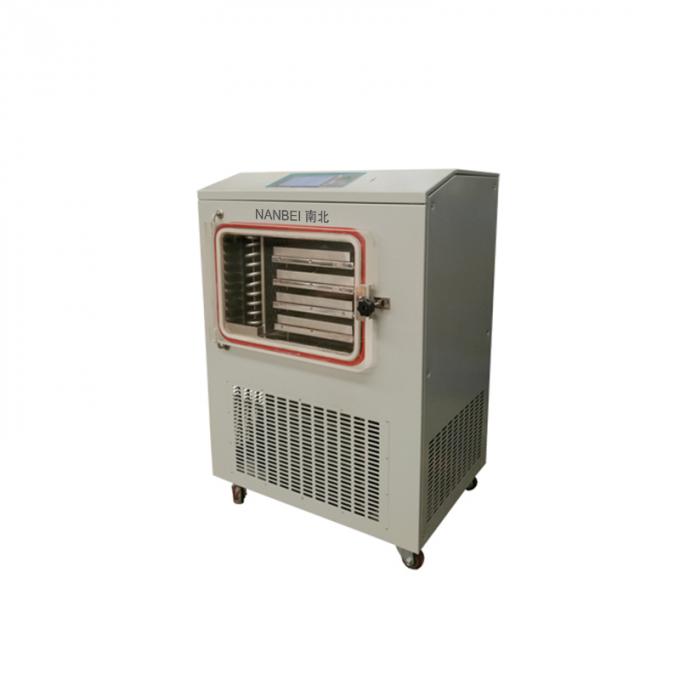

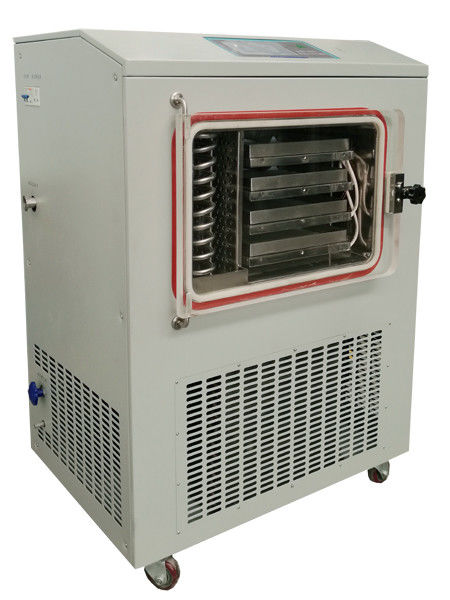

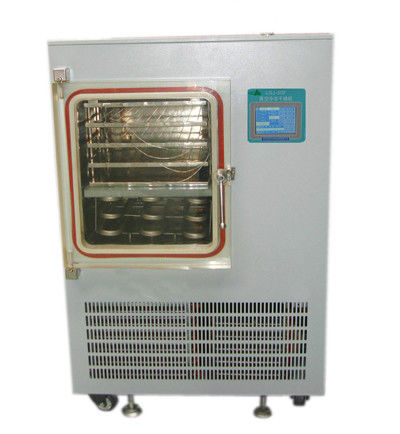

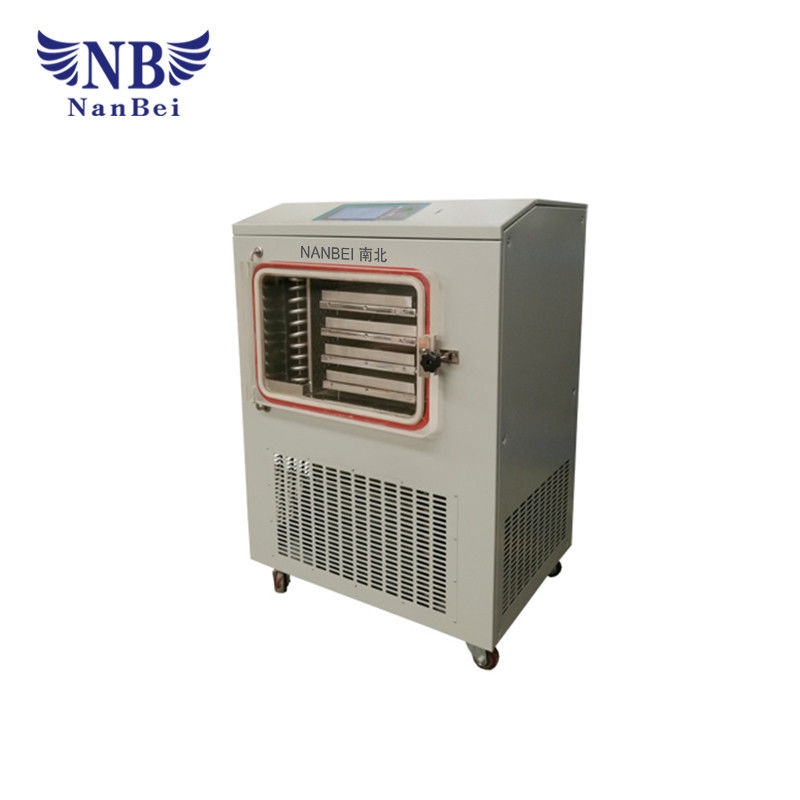

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
General Introduction for Lab Freeze Dryer
This series is one of our patent products. This series of dryers with heating shelf,
freezing and drying process are finished in the same place. It changes traditional
complicated operation and prevents the product from pollution.
Application for Lab Freeze Dryer
LGJ-30F Freeze Dryer is suitable for pilot scale or small scale production.
Main features for Lab Freeze Dryer
1. With heating shelf and PID control standard, with programmable function
2. Freeze and drying process are completed on shelves
3. 32 groups program can be stored, each program can be set up 36 segments
4. With organic glass observation window, whole process is easy to see
5. Silicon oil fills hollow shelves, with most uniform shelf temp., consistent and repeatable drying

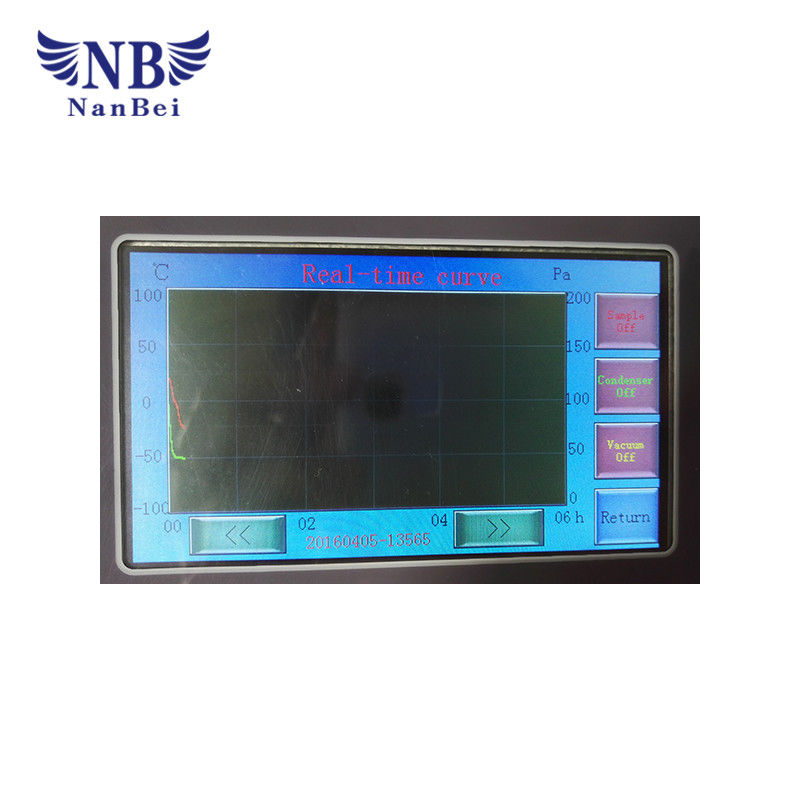

6. Big touch screen LCD display drying curves
7. Internal surface of rectangular chamber and product tray are constructed of stainless steel
8. Air-let-in valve with nitrogen is available
9. Eutectic point test device is optional
| Freeze drying area | 0.4㎡ |
| Condenser capacity | 6 kg /24h |
| Condenser temperature | Min. ≤-70℃ |
| Vacuum degree | ≤10 Pa |
| shelf temperature | -50℃----+70℃ |
| Shelf layers | 4+1 layers; 50mm spacing |
| Shelf size | 300x340x15mm |
| Bulk capacity | 4 L, 10mm thickness |
| Vial capacity Φ12mm | 2600 pcs |
| Vial capacity Φ16mm | 1440 pcs |
| Vial capacity Φ22mm | 728 pcs |
| Electric defrosting | N/A |
| Cooling | Air,draughty,ambient temperature≤25℃ |
| Voltage | 220V, 50Hz |
| Host dimension | 880x735x1310mm |
| Weight | 300 kg |
| Power | 3.5 KW |
