Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	LGJ-12-3

Minimum Order Quantity:	1set
Price:	USD2450-USD2950/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Freeze drying area:	0.12㎡	Condenser capacity:	3-4 L /24h
Condenser temperature:	-55℃ (-80 ℃ Optional)	Type:	Freeze Drying Equipment,Vacuum Drying Equipment,freeze Dryer Lyophilizer
Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts	Certification:	CE ISO
High Light:	research lab equipment , small spray dryer

Product Description

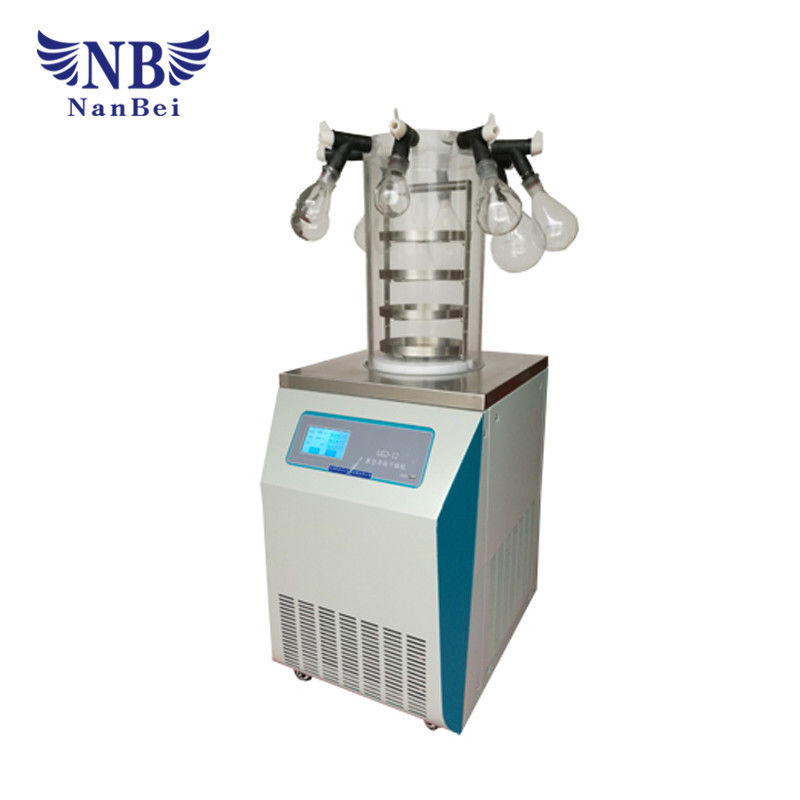

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty 0

General Introduction for Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Freeze Dryer

LGJ-12 vertical vacuum freeze dryer is suitable for experiment in laboratory

Main features for Freeze Dryer

CFC Free refrigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency, long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty 1

Freeze drying area	0.12㎡
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optional)
Vacuum degree	< 10 Pa
Material tray	Ф200mm , 4 layers
Bulk capacity	1.2L, 10mm thickness
Vial capacity Φ12mm	920 pcs
Vial capacity Φ16mm	480 pcs
Vial capacity Φ22mm	260 pcs
Manifold	with 8 ports
Flask	1000ml,500ml ,250ml ,100ml
Cooling	Air,draughty,ambient temperature≤25℃
Voltage	220V, 50Hz
Host dimension	556×460×(720+465) mm
Power	750W
Host weight	62 kg
