Lab Freeze Dryer - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	LGJ-12-1

Minimum Order Quantity:	1set
Price:	USD1850-USD2350/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Drying Area:	0.12m2	Cold Trap Temperature:	-55c
Vacuum Degree:	<10PA	Material Tray Size:	200mm
Tray Layer:	4PCS	Bulk Capacity:	1.2L
Voltage:	AC220V, 50Hz/110V;60Hz	Power:	700 W
Appearance Of Dried Sample:	Bulk
High Light:	freeze drying machine , small spray dryer

Product Description

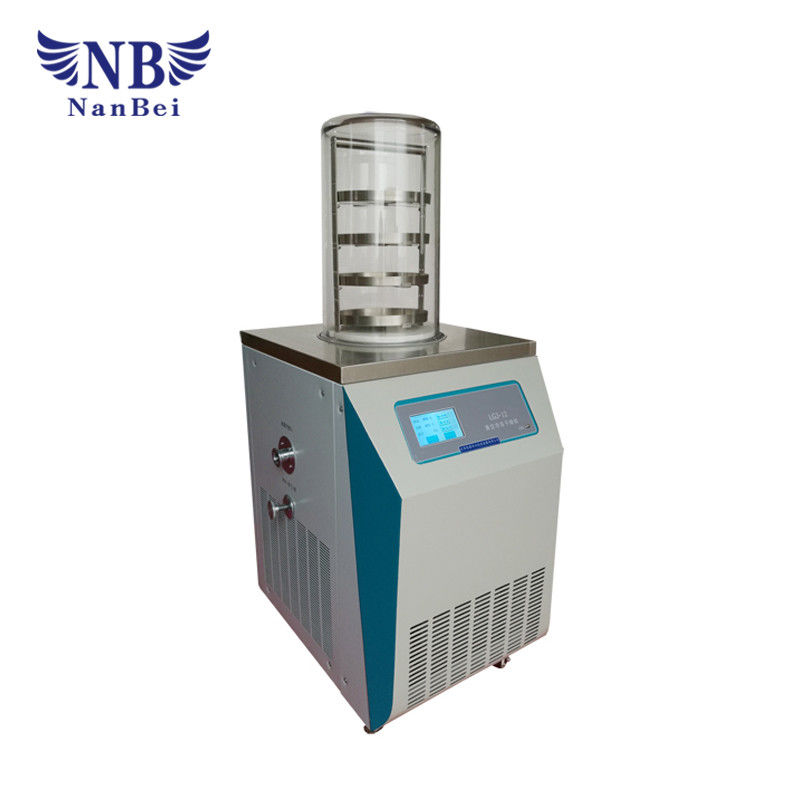

Mini Freeze Drying Machine , Vertical Type Freeze Dryer LGJ-12-1

LGJ-12-1 1.2L Mini Freeze Drying Machine,Vertical Type Freeze Dryer with CE/ISO 0

General Introduction for Freeze Drying Machine

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Freeze Drying Machine

LGJ-12 standard type vacuum freeze dryer is suitable for experiment in laboratory.

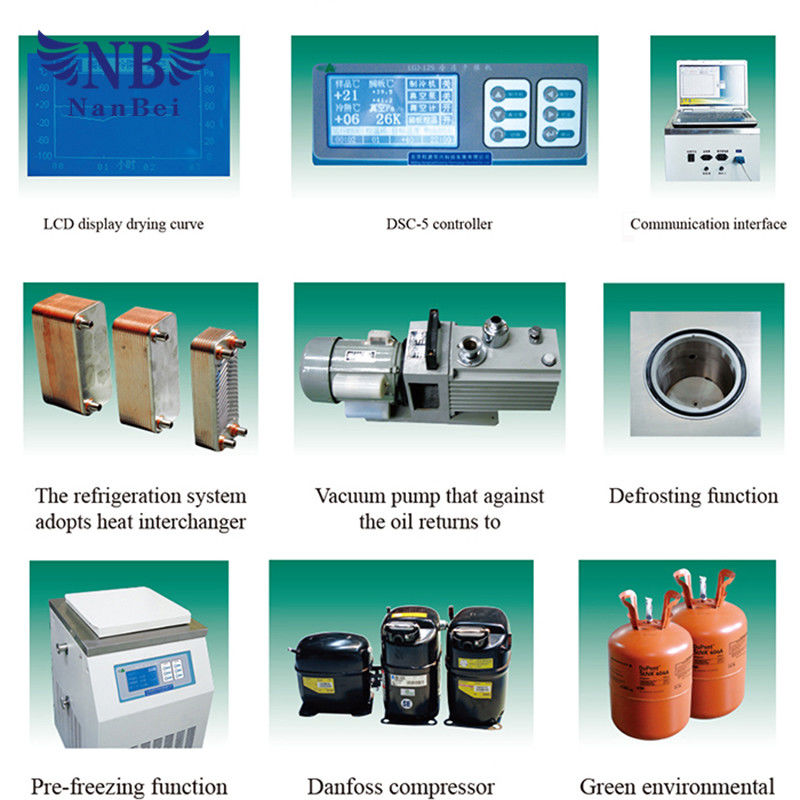

Main features for Freeze Drying Machine

CFC Free refrigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency, long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

LGJ-12-1 1.2L Mini Freeze Drying Machine,Vertical Type Freeze Dryer with CE/ISO 1

Freeze drying area	0.12㎡
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optional )
Vacuum degree	< 10 Pa
Material tray	Ф200mm , 4 layers
Bulk capacity	1.2L, 10mm thickness
Vial capacity Φ12mm	920 pcs
Vial capacity Φ16mm	480 pcs
Vial capacity Φ22mm	260 pcs
Cooling	Air, draughty, ambient temperature≤25℃
Voltage	220V, 50Hz
Host dimension	556×460×(720+430) mm
Power	750W
Host weight	62 kg
