Lab Freeze Dryer - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	LGJ-10-2

Minimum Order Quantity:	1set
Price:	USD1990-USD2400/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Features:	LCD Display Drying Curves, English Interface	Freeze Drying Area:	0.12 Square
Condenser Capacity:	3-4 L /24h	Vacuum Degree:	< 10 PA
Dimension:	460625(370+430) Mm	Vial Capacity12mm Diameter:	920 PCS
Vial Capacity 16mm Diameter:	480 PCS	Vial Capacity 22 Mm Diameter:	260 PCS
Bulk Capacity:	1.2L, 10mm Thickness	Voltage:	220V ,50 Hz; 110V, 50Hz; 110V, 60Hz
High Light:	research lab equipment , small spray dryer

Product Description

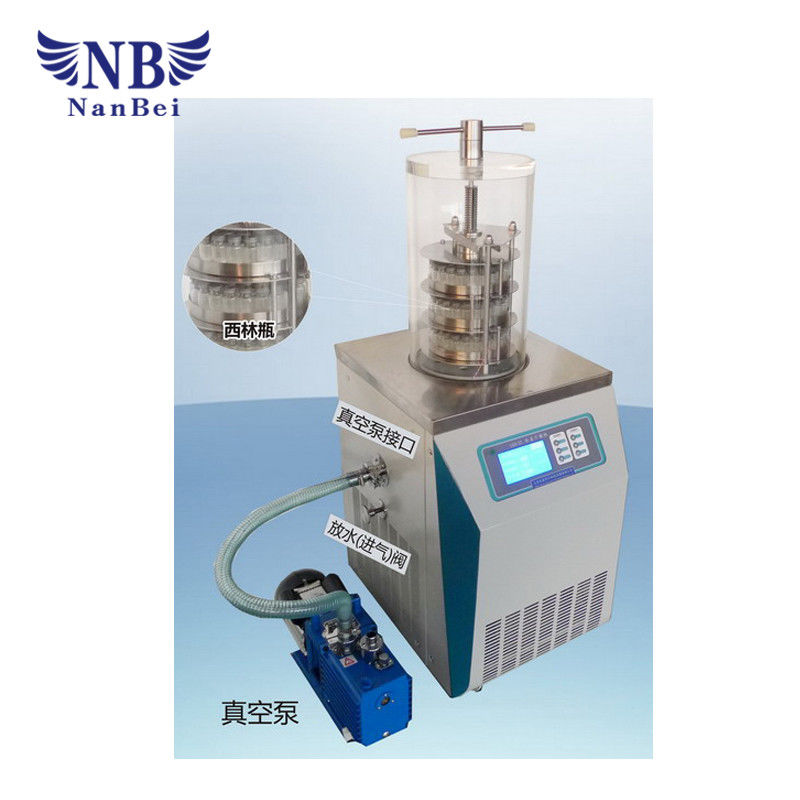

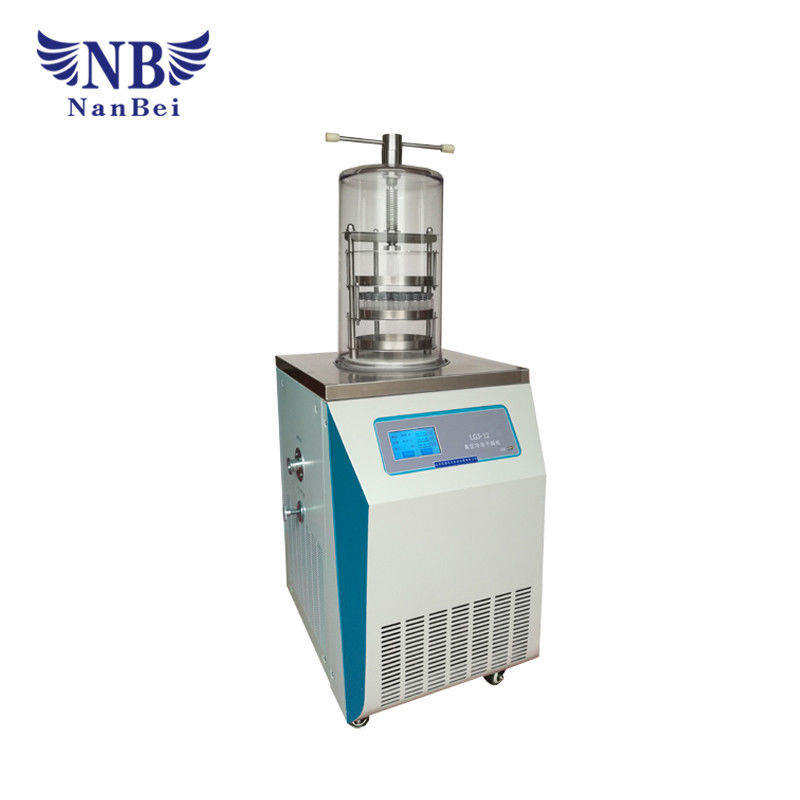

Press Mini Freeze Dryer , Laboratory Freeze Drying Machine 220V 50 Hz

Press Mini Freeze Dryer 920 PCS Vial Capacity12mm Diameter 220V 50 Hz 0

General Introduction for Mini Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Mini Freeze Dryer

LGJ-10 Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top equipment.

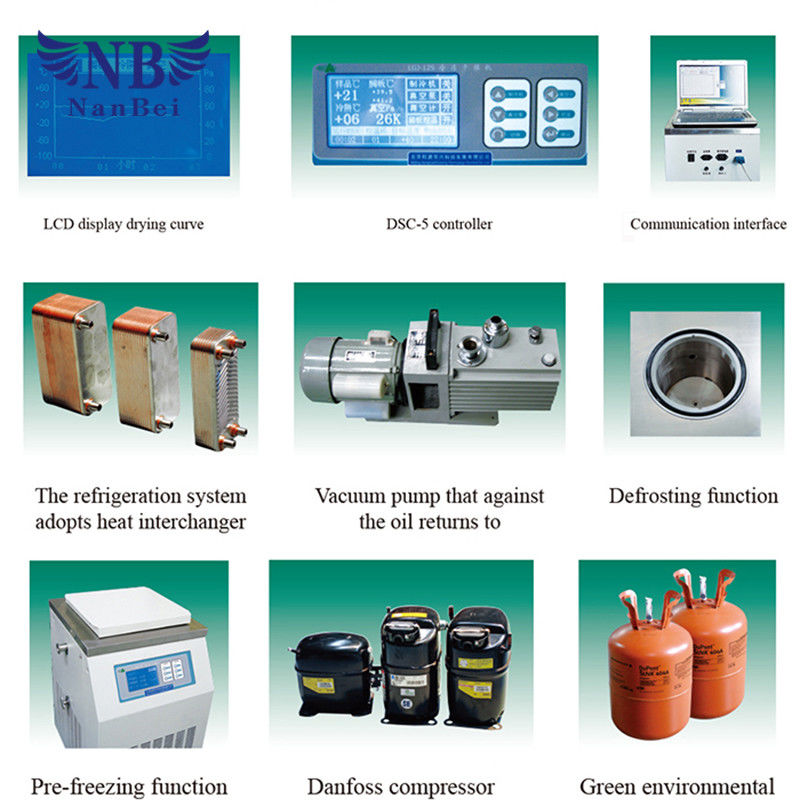

Main features for Mini Freeze Dryer

CFC Free refrigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency, long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

Press Mini Freeze Dryer 920 PCS Vial Capacity12mm Diameter 220V 50 Hz 1

Freeze drying area	0.08㎡
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optional )
Vacuum degree	< 10 Pa
Material tray	ф180mm, 3 layers
Bulk capacity	0.8 L, 10mm thickness
Vial capacity Φ12mm	560 pcs
Vial capacity Φ16mm	285 pcs
Vial capacity Φ22mm	165 pcs
Style of press	By hand
Cooling	Air,draughty, ambient temperature≤25℃
Voltage	220V ,50 Hz; 110V, 50Hz; 110V, 60Hz
Power	700W
Host dimension	460×625×(370+430) mm
Host weight	41kg
