Chemical Lab Freeze Dryer Cold Trap Temperature -55degree CE Certification

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	LGJ-12-2

Minimum Order Quantity:	1set
Price:	USD2000-USD2500/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Name:	Freeze Drying Machine	Usage:	Vial Bottle Freeze Drying
Freeze-Drying Area:	0.08m2	Cold Trap Temperature:	-55degree
Optional Cold Trap Temperature:	-80c	Vacuum Degree:	<5PA
Water-Capture Capacity:	3-4kg/24h	Material Tray:	180mm*3PCS
Power:	970W	Material:	0.7L
Pumping Speed:	2L/S	Warranty:	1 Year
High Light:	freeze drying machine , small spray dryer

Product Description

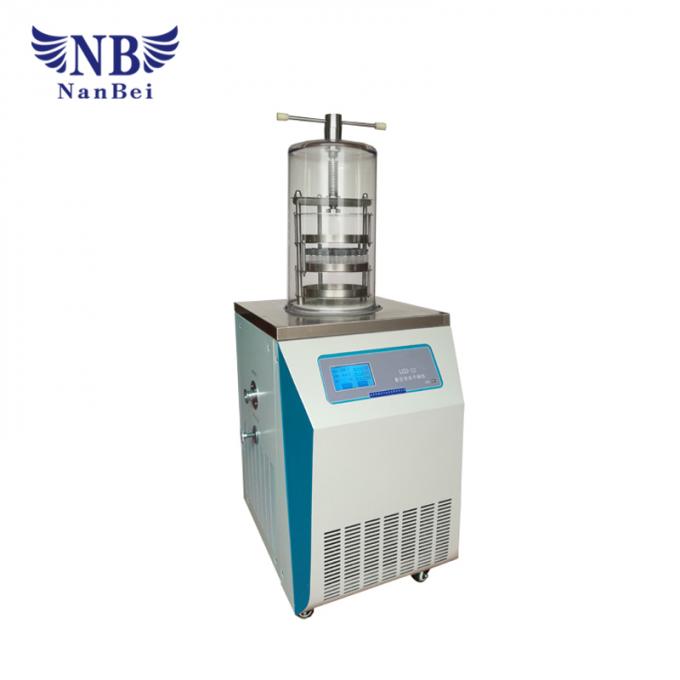

Chemical Lab Freeze Dryer Cold Trap Temperature -55degree CE Certification

Chemical Lab Freeze Dryer Cold Trap Temperature -55degree CE Certification 0

General Introduction for Lab Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Lab Freeze Dryer

LGJ-12 top press type vacuum freeze dryer is suitable for experiment in laboratory.

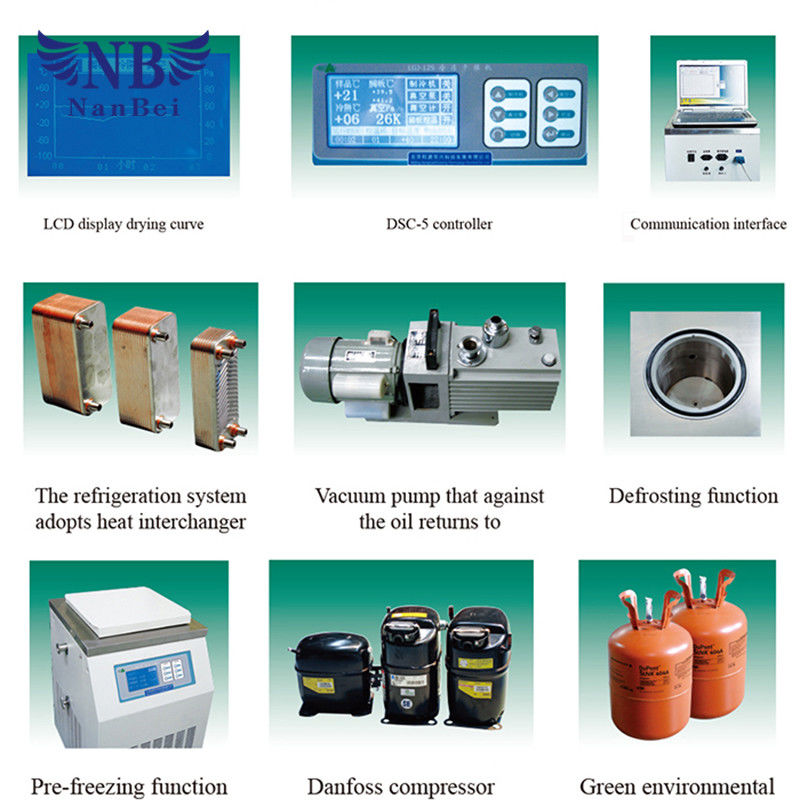

Main features for Lab Freeze Dryer

CFC Free refrigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency, long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

Chemical Lab Freeze Dryer Cold Trap Temperature -55degree CE Certification 1

Technical parameter (LGJ-12 top press type)
Freeze drying area	0.08㎡
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optional)
Vacuum degree	< 10 Pa
Material tray	ф180mm, 3 layers
Bulk capacity	0.8 L, 10mm thickness
Vial capacity Φ12mm	560 pcs
Vial capacity Φ16mm	285 pcs
Vial capacity Φ22mm	165 pcs
Style of press	By hand
Cooling	Air,draughty, ambient temperature≤25℃
Voltage	220V, 50Hz
Host dimension	556×460×(720+430) mm
Power	750W
Host weight	62 kg
