Multi Pipe Lab Freeze Dryer Top Press , Lab Scale Equipment LGJ-12-4

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	LGJ-12-4

Minimum Order Quantity:	1set
Price:	USD2580-USD3300/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Name:	Vacuum Freeze Dryer,Freeze Dryer Machine/Vacuum Freeze Drying Machine,food Freeze Dryer	Model:	LGJ-12-4
Freeze drying area:	0.08m2	Condenser capacity:	3-4 L /24h
Vacuum degree:	< 10 Pa	Type:	Freeze Drying Equipment,Vacuum Drying Equipment,freeze Dryer Lyophilizer
Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts	Certification:	CE ISO
High Light:	research lab equipment , small spray dryer

Product Description

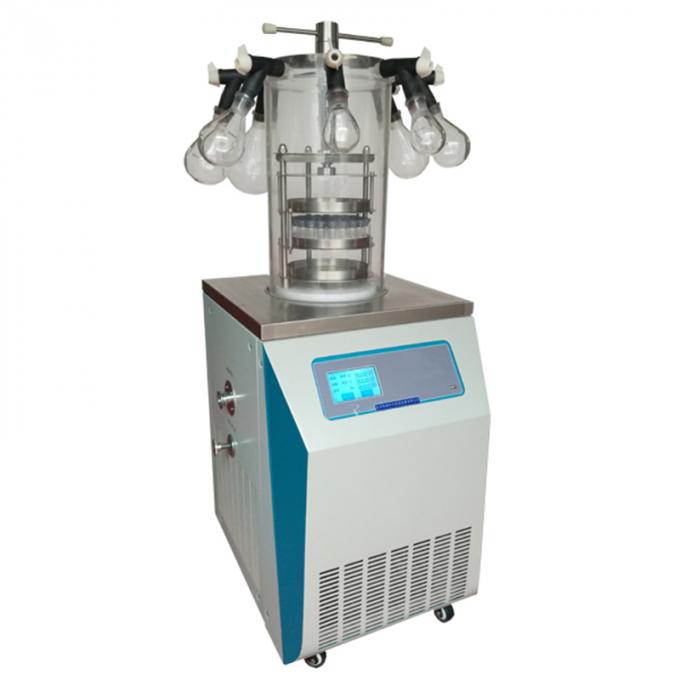

Multi Pipe Lab Freeze Dryer Top Press , Lab Scale Equipment LGJ-12-4

Multi Pipe Lab Freeze Dryer Top Press , Lab Scale Equipment LGJ-12-4 0

General Introduction of Lab Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application of Lab Freeze Dryer

LGJ-12 manifold top press type vacuum freeze dryer is suitable for experiment in laboratory.

Main features of Lab Freeze Dryer

CFC Free refrigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency, long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

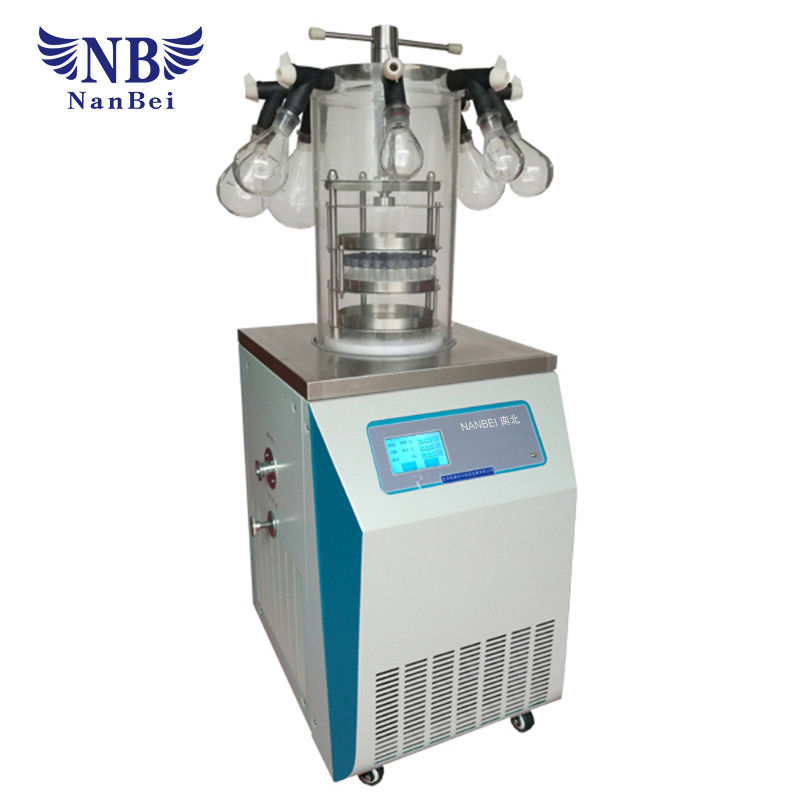

Multi Pipe Lab Freeze Dryer Top Press , Lab Scale Equipment LGJ-12-4 1

Model	LGJ-12-4
Freeze drying area	0.08m2
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optional)
Vacuum degree	< 10 Pa
Material tray	¢180mm, 3 layers
Bulk capacity	0.8L, 10mm thickness
Vial capacity Φ12mm	560 pcs
Vial capacity Φ16mm	285 pcs
Vial capacity Φ22mm	165 pcs
Style of press	By hand
Manifold	with 8 ports
Flask	1000ml, 500ml, 250ml, 100ml
Cooling	Air, draughty, ambient temperature≤25℃
Voltage	220V, 50Hz
Power	750W
Host dimension	556460(720+465) mm
Host weight	62 kg
