Manifold Press Freeze Dryer , Freeze Dryer Equipment ISO Certification

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	LGJ-10-4

Minimum Order Quantity:	1set
Price:	USD2600-USD2900
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Name:	Freeze Dryer	Drying Area:	0.18m2
Cold Trap Temperature:	-55c	Vacuum Degree:	<10PA
Material Tray Size:	240mm	Tray Layer:	4PCS
Bulk Capacity:	6L	Cooling Type:	Air Cooling
Voltage:	AC220V, 50Hz/110V;60Hz	Power:	700 W
Type:	Freeze Dryer Lyophilizer	Condition:	New
Warranty:	1 Year	After-sales Service Provided:	Free Spare Parts
Certification:	CE ISO
High Light:	freeze drying machine , small spray dryer

Product Description

Manifold Press Freeze Dryer , Freeze Dryer Equipment ISO Certification

General Introduction for Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Freeze Dryer

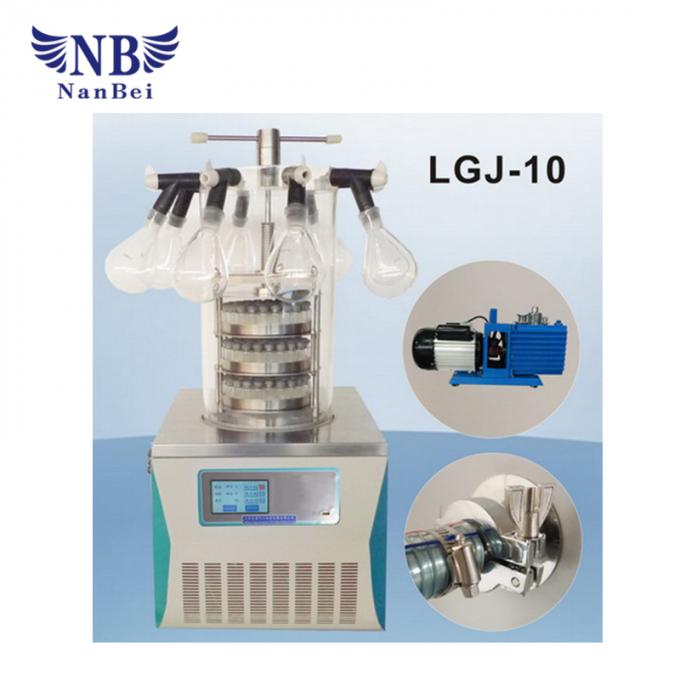

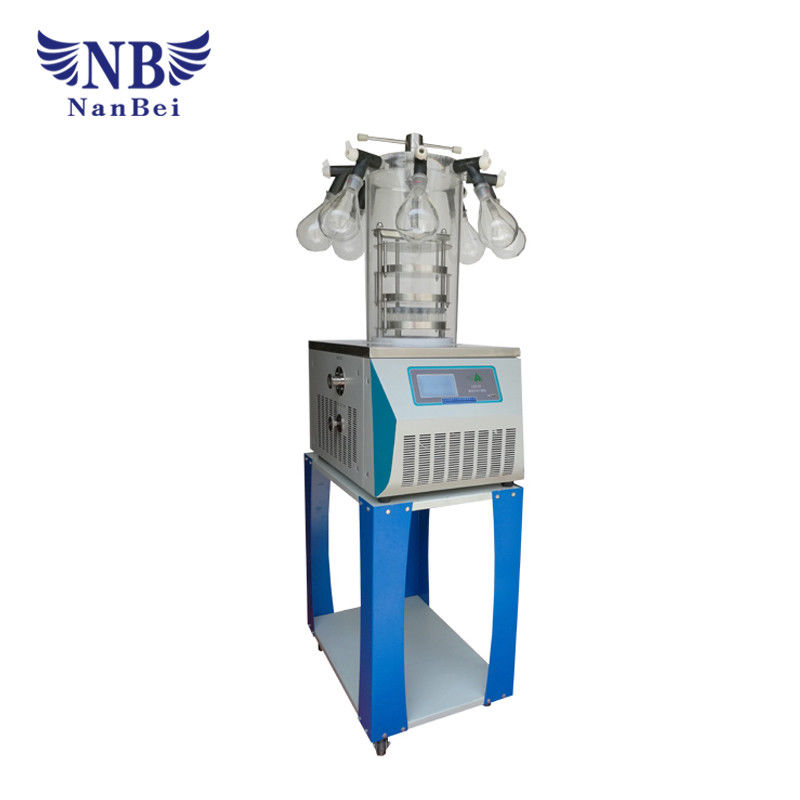

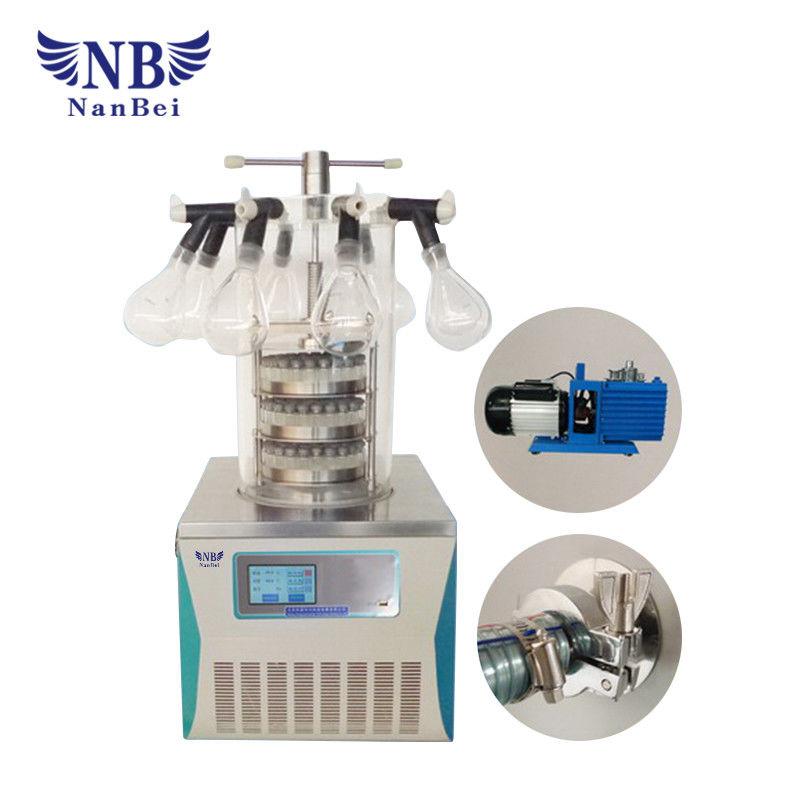

LGJ-10 Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top equipment.

Main features for Freeze Dryer

CFC Free re frigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency, long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional
Cascade refrigeration is optional , applied for -80℃ device

Manifold Press Freeze Dryer , Freeze Dryer Equipment ISO Certification 0

Freeze drying area	0.08㎡
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optioanl)
Vacuum degree	< 10 Pa
Material tray	ф180mm, 3 layers
Bulk capacity	0.8 L, 10mm thickness
Vial capacity Φ12mm	560 pcs
Vial capacity Φ16mm	285 pcs
Vial capacity Φ22mm	165 pcs
Style of press	By hand
Manifold	with 8 ports
Flask	1000ml, 500ml, 250ml, 100ml
Cooling	Air,draughty,ambient temperature ≤25℃
Voltage	220V ,50 Hz; 110V, 50Hz; 110V, 60Hz
Power	700W
Host dimension	460×625×(370+465) mm
Host weight	41 kg
