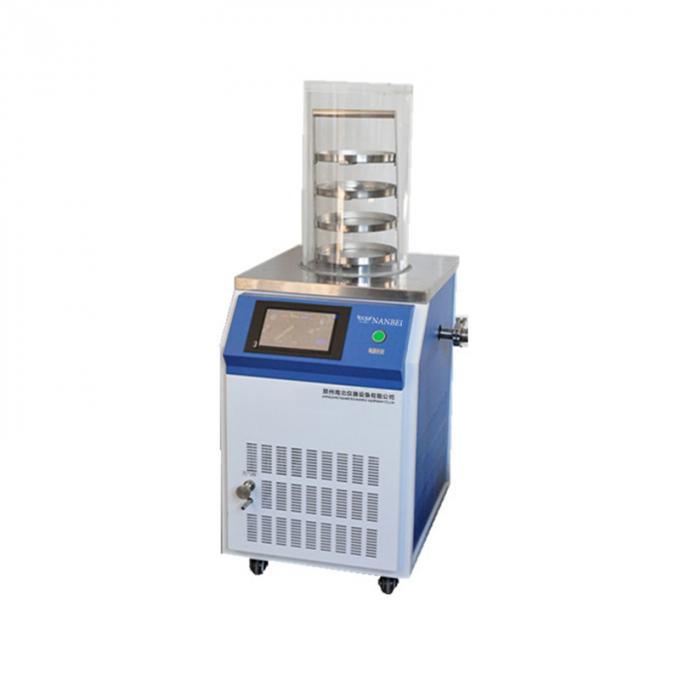

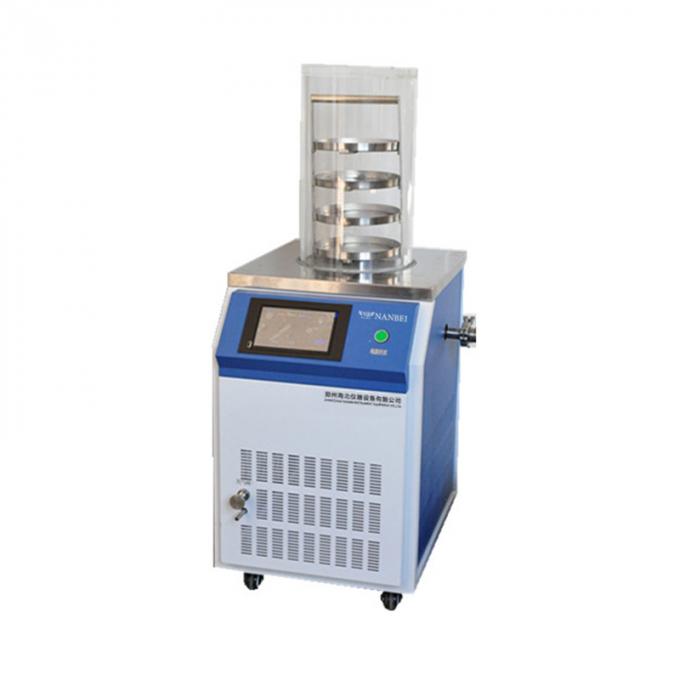

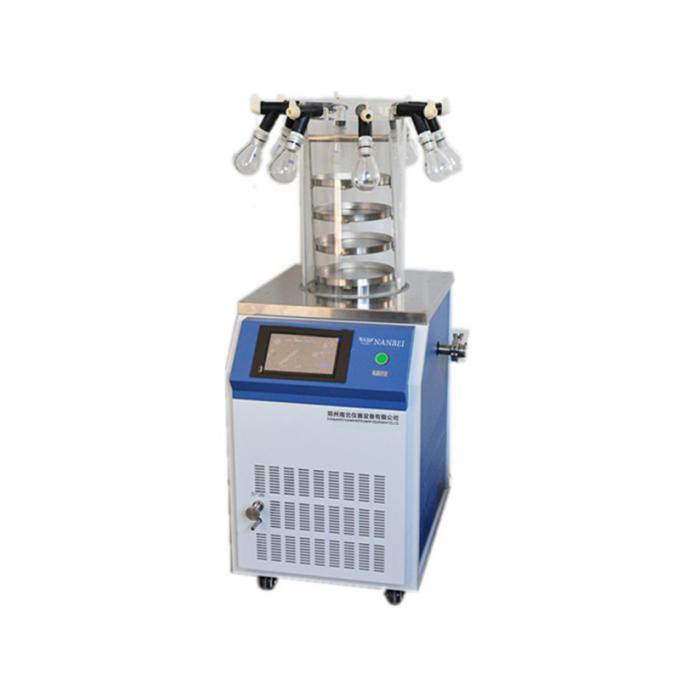

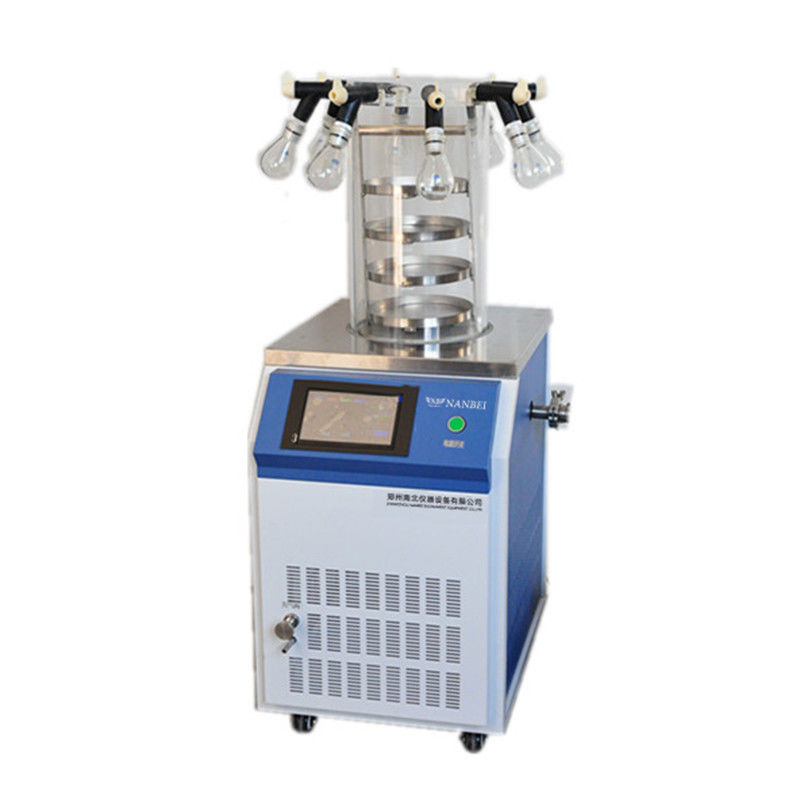

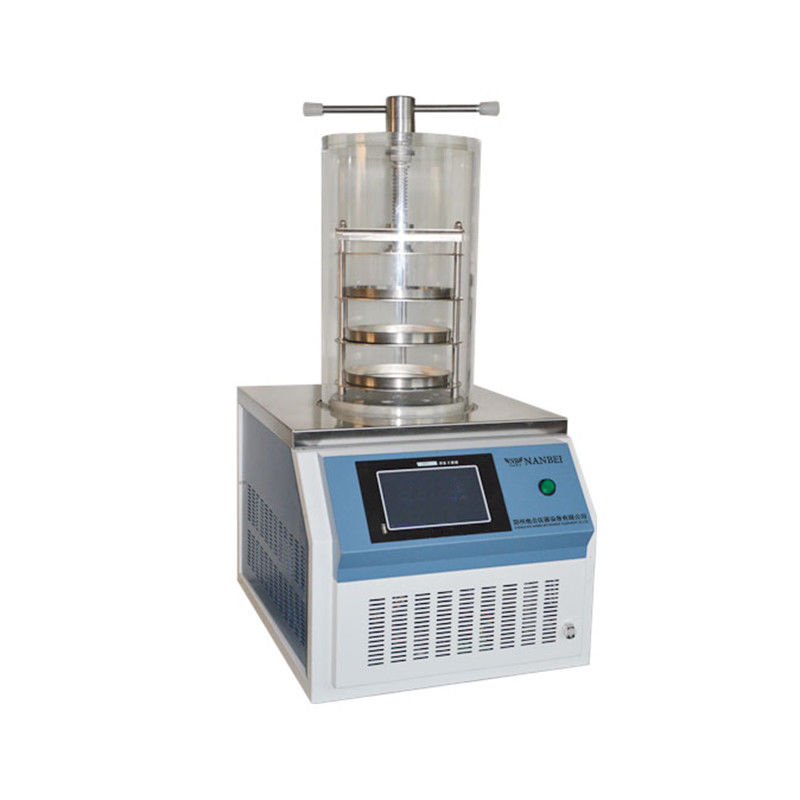

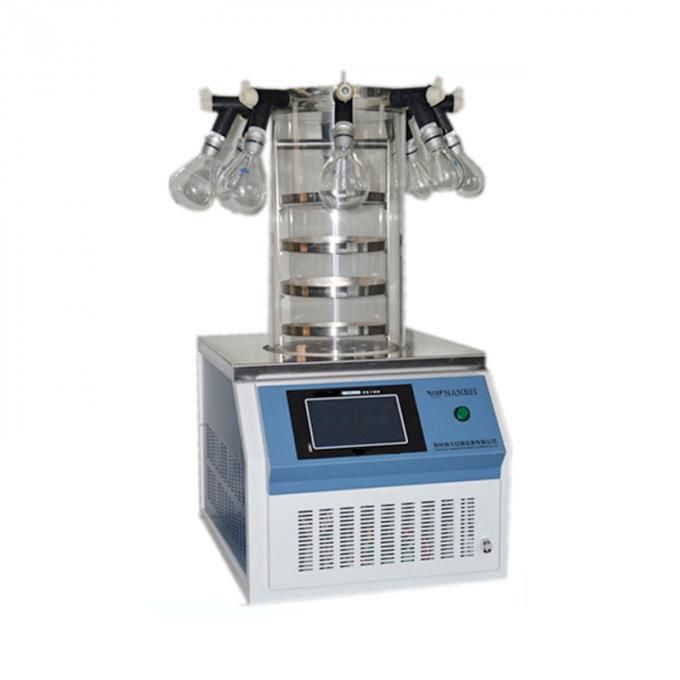

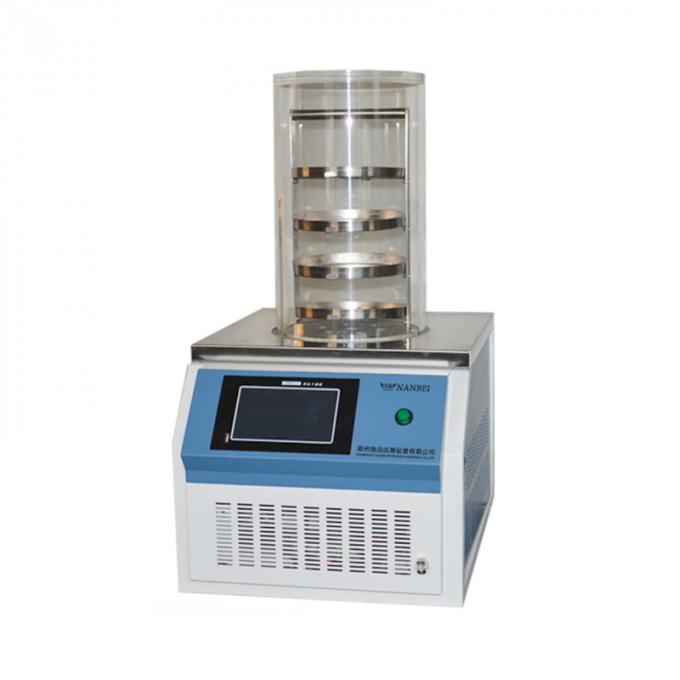

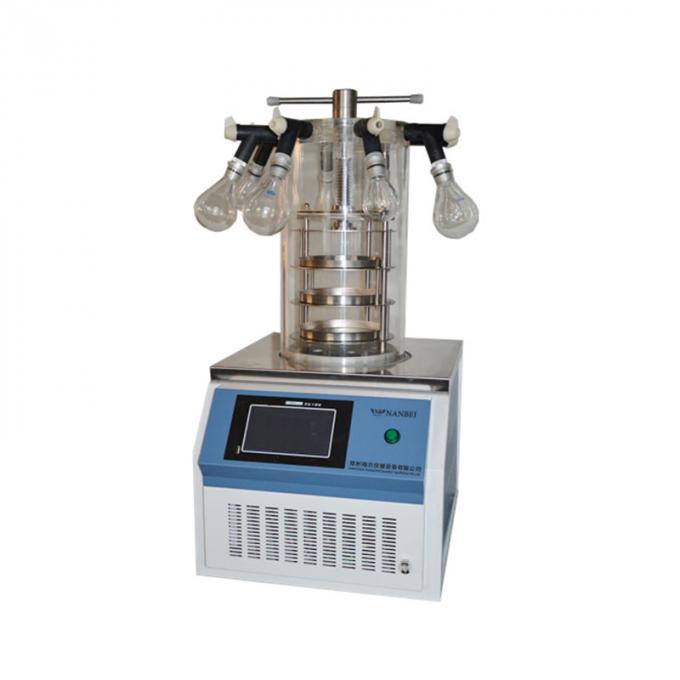

Electrical Heating LCD Display Vacuum Freeze Dryer Lyophilizer Machine

Characteristics of Vacuum Freeze Dryer

●Accord with international standards of Green environmental friendly

●7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;

● U disk Can storage lyophilized data;

● Upload software can print curve;

● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;

● Large opening trap, no coil inside, with samples pre-freeze function

● Imported refrigeration compressor, low noise

● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean

● Transparent Bell type drying room, secure and ocular

● Stainless steel sample holder, common sample plate spacing adjustable

● Small size and easy to operate

● Nitrogen inflation valve within

Main Technical Parameters:

NB-10ND Electric Heating Freeze-Drying Machine

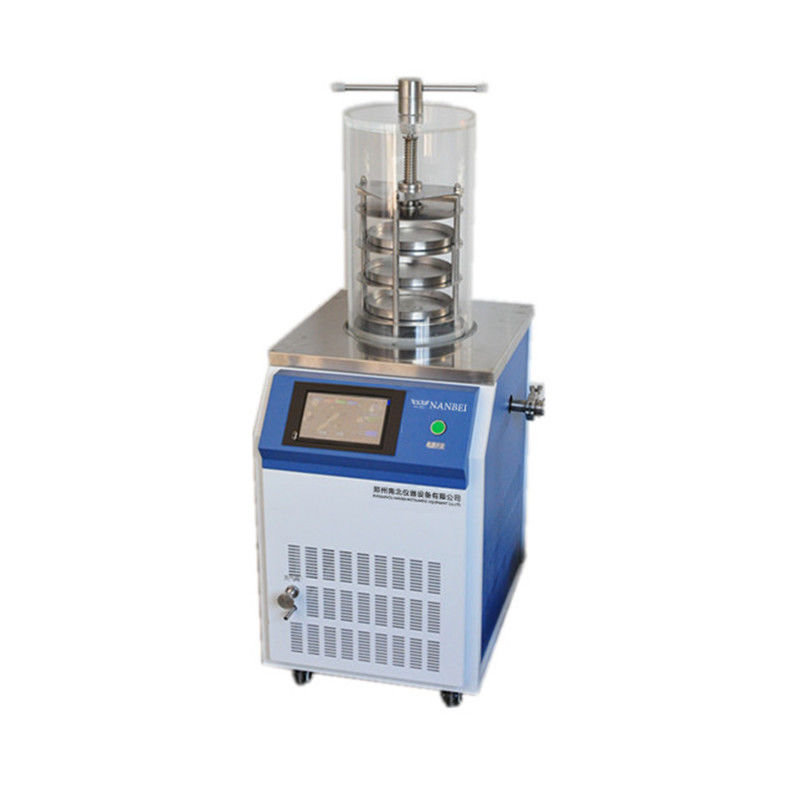

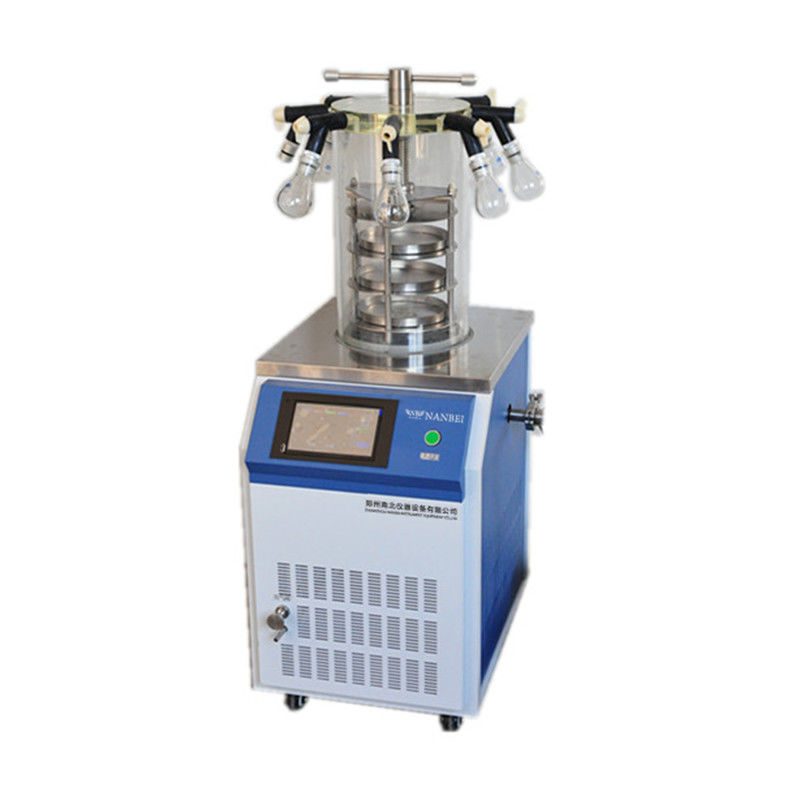

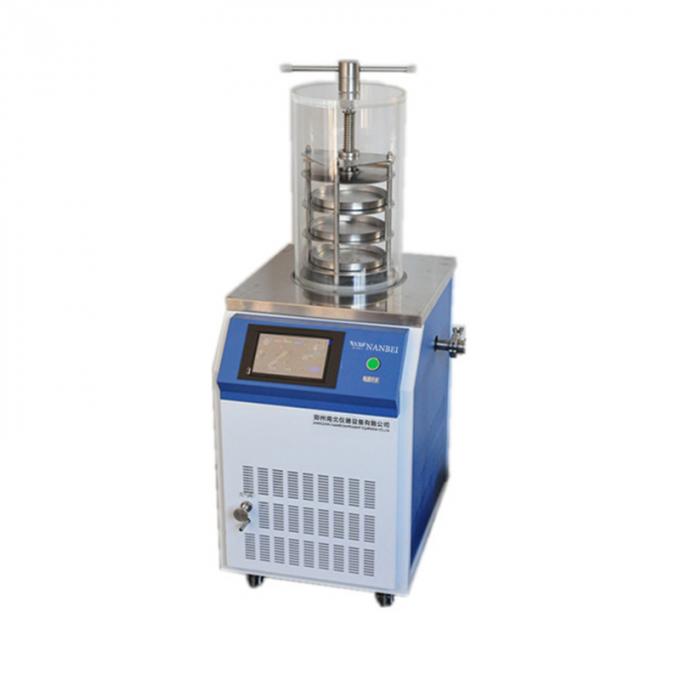

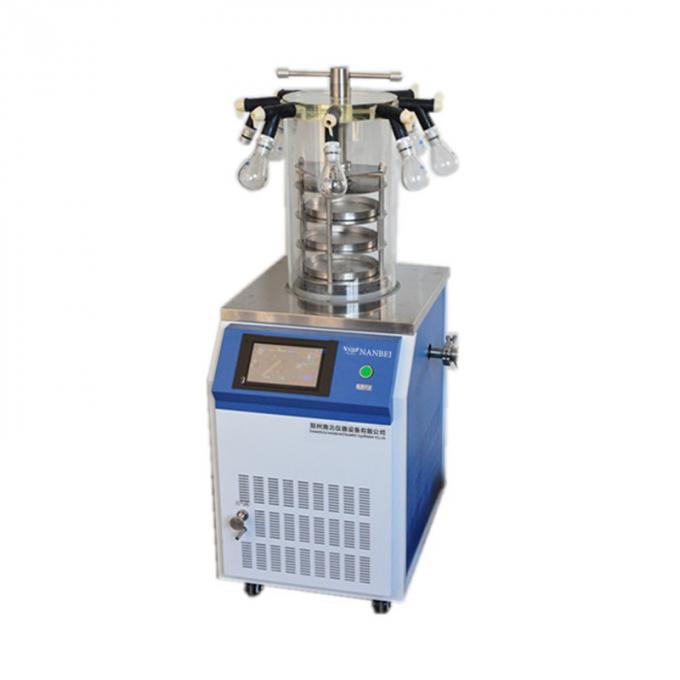

NB-10ND	Ordinary	Top-Press	Ordinary Multi-Manifolds	Top-Press Multi-Manifolds
No-load Temperature	<-56℃	<-56℃	<-56℃	<-56℃
Freeze Area	0.12 m2	0.076 m2	0.12 m2	0.076 m2
Plate Load Capacity	1.5 L	1 L	1.5 L	1 L
Ability to Capture Water	3Kg	3 Kg	3 Kg	3 Kg
Vacuum Degree	<10Pa	<10Pa	<10Pa	<10Pa
Machine Dimension	W450×D580×H(380+450)mm	W450×D580×H(380+450)mm	W450×D580×H(380+450)mm	W450×D580×H(380+450)mm
Sample Tray Size	4×Φ200mm	Ø 3×180 mm	4×Φ200mm	Ø 3×180 mm
Power	950W	950W	950W	950W
Power Supply	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
interlayer spacing	70 mm	70 mm	70 mm	70 mm
Cold trap size	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm
The number of Schering bottles	Ø22: 260	Ø22: 165	Ø22: 260	Ø22: 165
	Ø16: 480	Ø16: 285	Ø16: 480	Ø16: 285
	Ø12: 920	Ø12: 560	Ø12: 920	Ø12: 560

NB-12ND Electric Heating Freeze-Drying Machine

NB-12ND	Ordinary	Top-Press	Ordinary Multi-Manifolds	Top-Press Multi-Manifolds
No-load Temperature	<-56℃	<-56℃	<-56℃	<-56℃
Freeze Area	0.12 m2	0.076 m2	0.12 m2	0.076 m2
Plate Load Capacity	1.5 L	1 L	1.5 L	1 L
Ability to Capture Water	4Kg	4Kg	4Kg	4Kg
Vacuum Degree	<10Pa	<10Pa	<10Pa	<10Pa
Machine Dimension	W600×D460×H(730+450)mm	W600×D460×H(730+450)mm	W600×D460×H(730+450)mm	W600×D460×H(730+450)mm
Sample Tray Size	4×Φ200mm	Ø 3×180 mm	4×Φ200mm	Ø 3×180 mm
Power	950W	950W	950W	950W
Power Supply	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
interlayer spacing	70 mm	70 mm	70 mm	70 mm
Cold trap size	Ø215×160 mm	Ø215×160 mm	Ø215×216 mm	Ø215×216 mm
The number of Schering bottles	Ø22: 260	Ø22: 165	Ø22: 260	Ø22: 165
	Ø16: 480	Ø16: 285	Ø16: 480	Ø16: 285
	Ø12: 920	Ø12: 560	Ø12: 920	Ø12: 560

NB-18ND Electric Heating Freeze-Drying Machine

NB-18ND	Ordinary	Top-Press	Ordinary Multi-Manifolds	Top-Press Multi-Manifolds
No-load Temperature	<-56℃	<-56℃	<-56℃	<-56℃
Freeze Area	0.18 m2	0.09 m2	0.18 m2	0.09 m2
Plate Load Capacity	2 L	1 L	2 L	1 L
Ability to Capture Water	6Kg	6Kg	6Kg	6Kg
Vacuum Degree	<10Pa	<10Pa	<10Pa	<10Pa
Machine Dimension	W700×D560×H(960+450)mm	W700×D560×H(960+450)mm	W700×D560×H(960+450)mm	W700×D560×H(960+450)mm
Sample Tray Size	4×Φ240mm	Ø 3×200 mm	4×Φ240mm	Ø 3×200 mm
Power	1300W	1300W	1300W	1300W
Power Supply	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
interlayer spacing	70 mm	70 mm	70 mm	70 mm
Cold trap size	Ø270×410 mm	Ø270×410 mm	Ø270×410 mm	Ø270×410 mm
The number of Schering bottles	Ø22: 360	Ø22: 270	Ø22: 360	Ø22: 270
	Ø16: 740	Ø16: 560	Ø16: 740	Ø16: 560
	Ø12: 1320	Ø12: 990	Ø12: 1320	Ø12: 990
