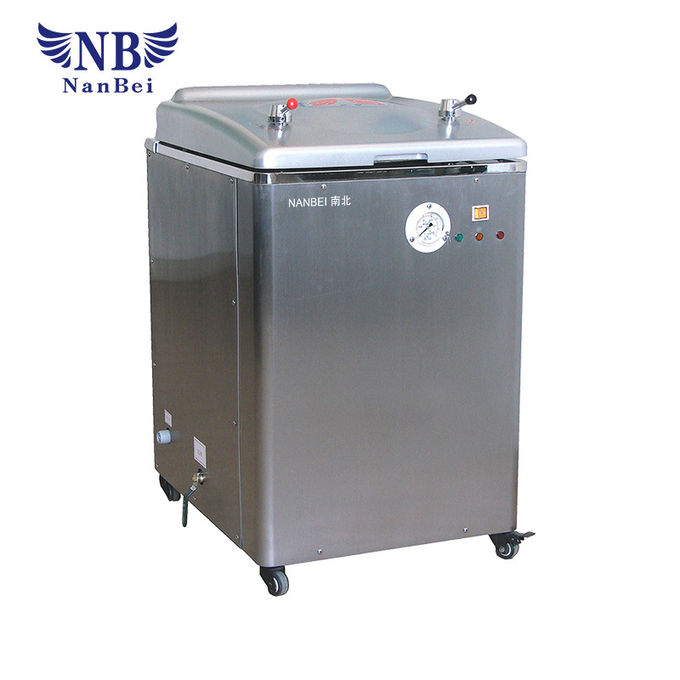

B Type Water Control 0.165Mpa Vertical Autoclave Machine

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE/ISO/SGS
Model Number: 30B/50B/75B
Minimum Order Quantity: 1/set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 set/per day
Detail Information
Name: Vertical Pressure Steam Sterilizer Power: 220V/50Hz
Frequency(kW): 3 Volume (L): 30/50/75
Water Pressure(MPa): ≥0.2≤0.4 Working Pressure (MPa): 0.14~0.165, 0.1~0.12(Optional)
High Light:

0.165Mpa Vertical Autoclave Machine

,

B Type Vertical Autoclave Machine

,

0.165Mpa high pressure steam sterilizer


Product Description

B type Vertical pressure steam sterilizer (Non-medical automatic water control type)

Characters of B type Vertical pressure steam sterilizer

1. Made of stainless steel, durable;

2. Lightly open the flip structure for effortless effort;

3. Low water level automatic water replenishment function, and sound and light alarm system, automatic reheating after replenishment;

4.Design of gravity exhaust method, pure steam environment in the cavity, reliable sterilization effect;

5.Radial self-expanding silicone rubber sealing ring, good sealing effect and long service life;

6.Intermittent exhaust of safety valve, pressure and temperature in automatic controller;

7.The pressure gauge displays the pressure and temperature in the barrel at the same time, which is clear and clear;

8.Drain valve can discharge concentrated water in the bucket to prevent scaling;

9.Swivel casters with brakes are easy to move and easy to locate;

10Immersion electric heating tube, high thermal efficiency.

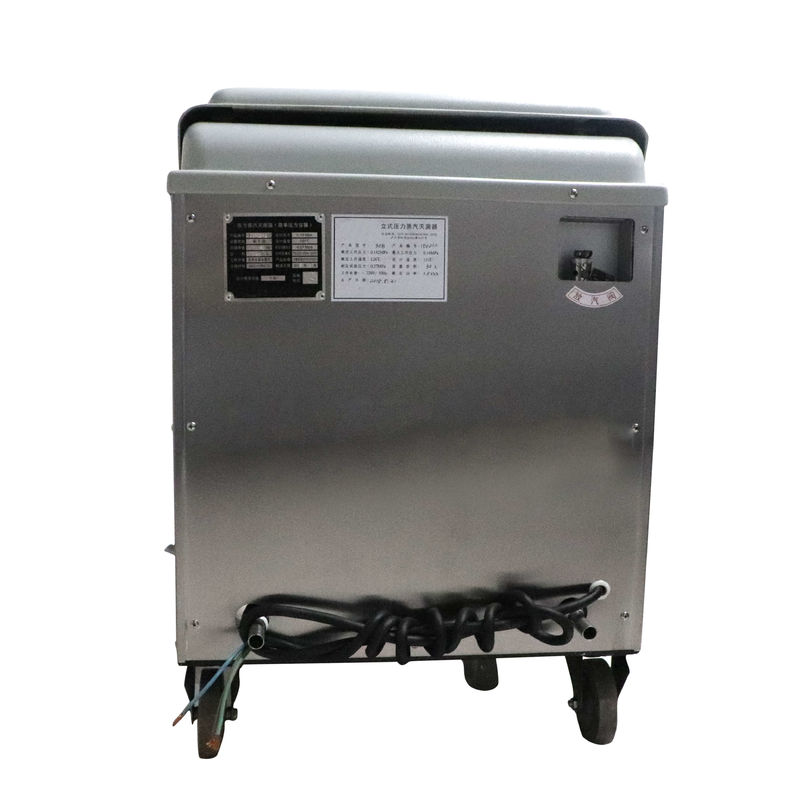

B Type Water Control 0.165Mpa Vertical Autoclave Machine 0

Main Technical Data of B type Vertical pressure steam sterilizer

Model 30B 50B 75B
Power ~ 220V/50Hz
Frequency(kW) 3
Volume (L) 30 50 75
Water pressure(MPa) ≥0.2≤0.4
Working pressure (MPa) 0.14~0.165, 0.1~0.12(Optional)
Working temperature (℃) 126(conventional) 121(Optional)
Temperature average(℃) <2
Outside size (cm) 70×51×73 70×51×82 70×51×93
Packing size (Wood)(cm) 77×65×82 77×65×96 77×65×106



Company Introduction of steam sterilizer

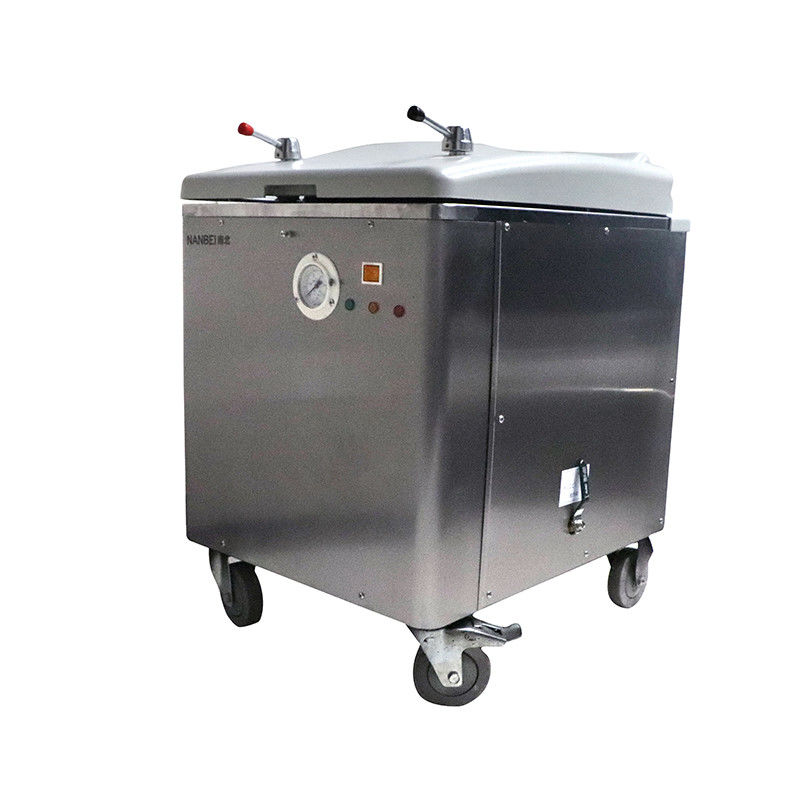

B Type Water Control 0.165Mpa Vertical Autoclave Machine 1
Factory Show of
steam sterilizer

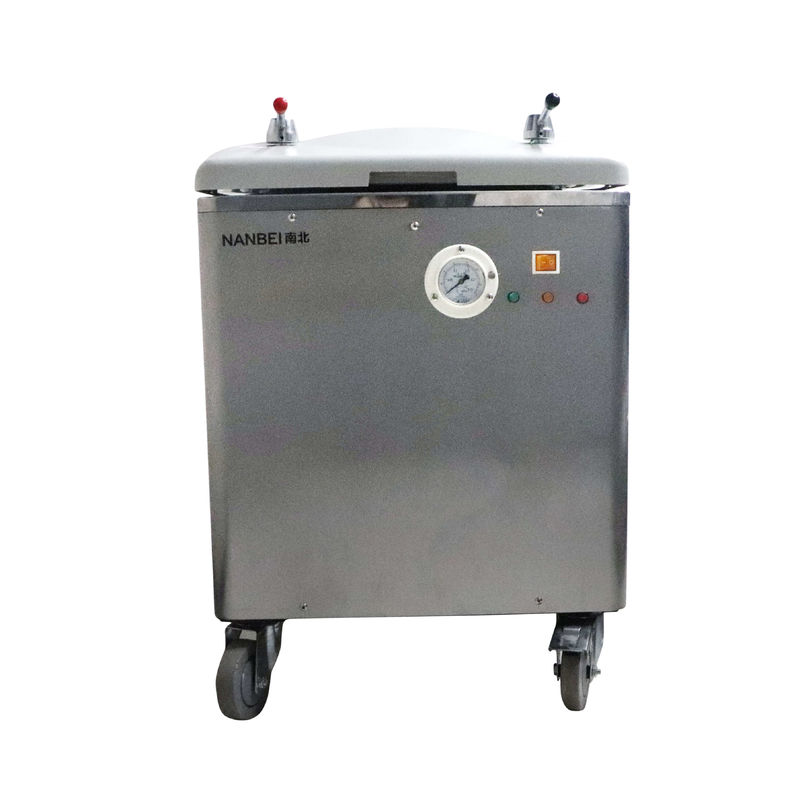

B Type Water Control 0.165Mpa Vertical Autoclave Machine 2
Certificate of
steam sterilizer

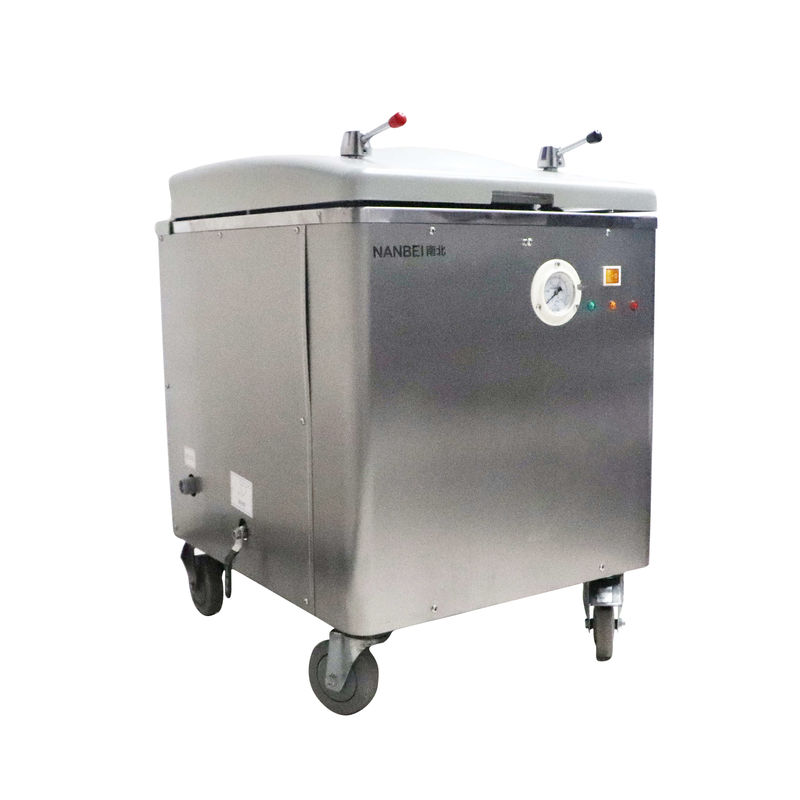

B Type Water Control 0.165Mpa Vertical Autoclave Machine 3
Our Services of
steam sterilizer

B Type Water Control 0.165Mpa Vertical Autoclave Machine 4
