Portable Dry Fogging System Hydrogen peroxide sterilizer
Portable Dry Fogging System
Dry Fogging system applies the Venturi effect to spray the liquid Hydrogen Peroxide into dry fog by high speed airflow, and disperses it into the enclosed space according to Brownian motion.
It could work and disinfect on the materials surfaces and whole clean room. Its sterilization efficacy can achieve 4 Log-6Log reductions of infectious organisms.
It is a fast, safe and eco-friendly decontamination system.
Features of Hydrogen peroxide sterilizer

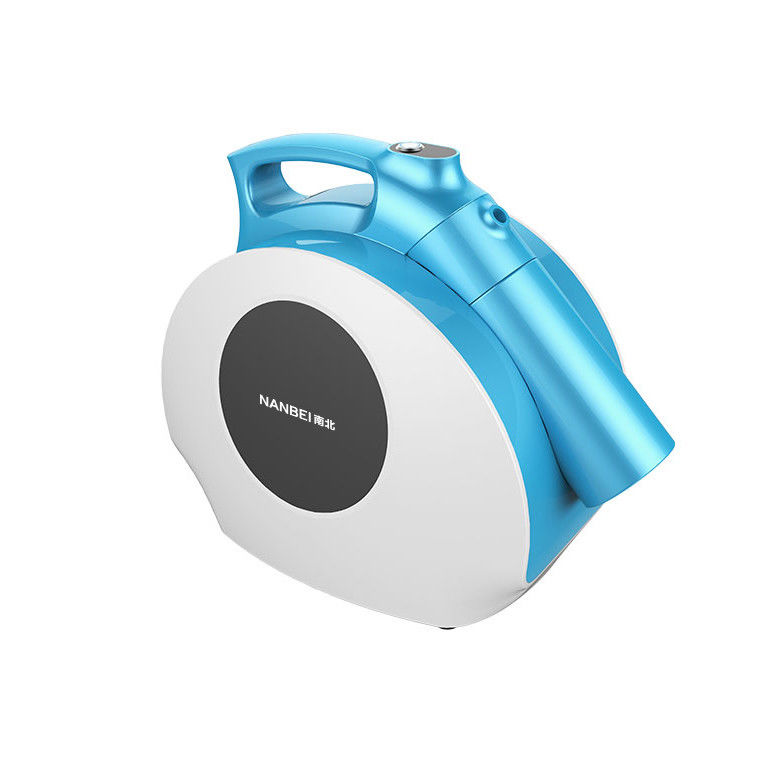

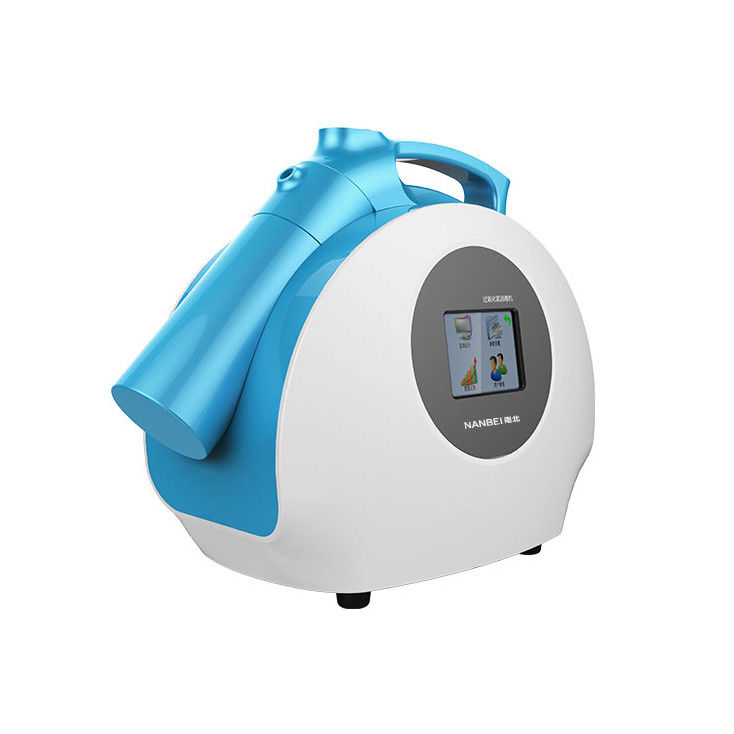

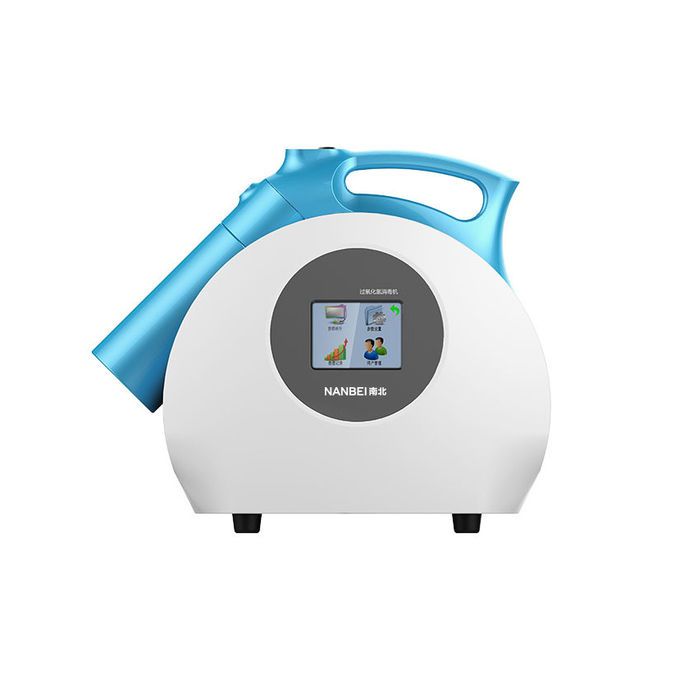

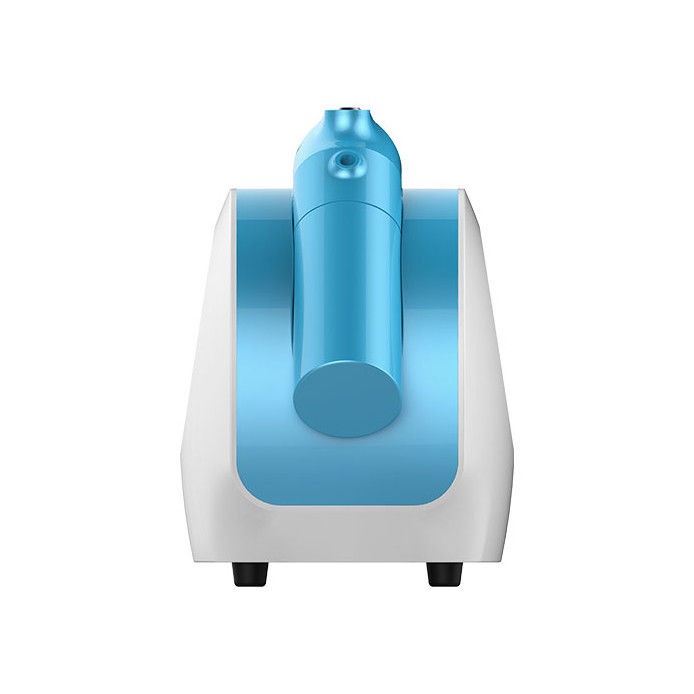

Figure 1 FHP3 Portable Dry Fogging System
Broad-spectrum disinfectio:n
It is effective to bacteria (vegetative and spores, viruses and fungi.
The dry fogging system could apparently low the spread possibility of hospital bacteria.
Even Distribution.
The H2O2 concentration i≤s 8% with good compatibility
PLC control, Sound and Light alarm. Automatically running, one button start and stop Recipes storage and modify
Remote Control
3-Level password access control
Delay start and Appointment start function.
Ambient humidity ,temperature and H2O2 concentration monitor (Optional)
Parameters of Hydrogen peroxide sterilizer
| Injection Rate | ≥25g/min | Power Consumption | 1200W |
H2O2 Bottle Volume | 1 Liter | Continuous Working Ti | m 3 Hours |
| Control Mode | PLC +4.3” Touch Screen | Power Supply | 220 V |
| Delay Start | 30 S | Disinfection Capacity | 100 m3-300m3 (depends on room layout) |
| Alarm | Sound and Light | Sterilant | 8%-10% food grade H2O2 solution |
| WIFI Control | Yes (within 50-300meter | ) Monitoring System | RH, Temperature, H2O2 concentration (Optional) |
Cable Remote Control | Yes | Overall Dimensions | 380mm*380mm*260mm |
Data Record and Print | Yes | Ambient Environment Monitor | Integrated RH and temperature sensor (Optiona |
| Access Control | 3 levels | Net Weight | 10 Kgs |
Application of Hydrogen peroxide sterilizer
Hospital ward, infection department, operating room, negative pressure ward, fever clinic, ambulance, medical examination vehicle, blood donation vehicle, etc.
sterile clean room, sterility test lab, biological safety lab, animal room; school, kindergarten, rehabilitation center.
Company Introduction
Factory Show
Certificate

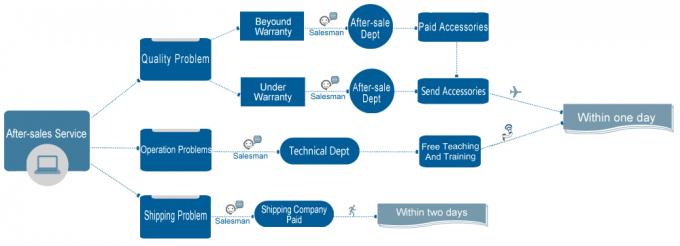

Our Services
