Flip Structure 75L 100L Steam Autoclave Machine

Basic Information
Place of Origin:China
Brand Name:NANBEI
Certification:CE/ISO/SGS/TUV
Model Number:YM30/YM50/YM75/YM100
Minimum Order Quantity:1/set
Packaging Details:Wooden cases and cartons
Delivery Time:7-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:500 set/per day
Detail Information
Name:Vertical Pressure Steam SterilizerPower:220V/50Hz
Frequency (kW):30/50/75/100Water Pressure(MPa):≥0.2≤0.4
Working Pressure (MPa):With Temperature
High Light:

100L Steam Autoclave Machine

,

75L Steam Autoclave Machine

,

75L fully automatic vertical autoclave


Product Description

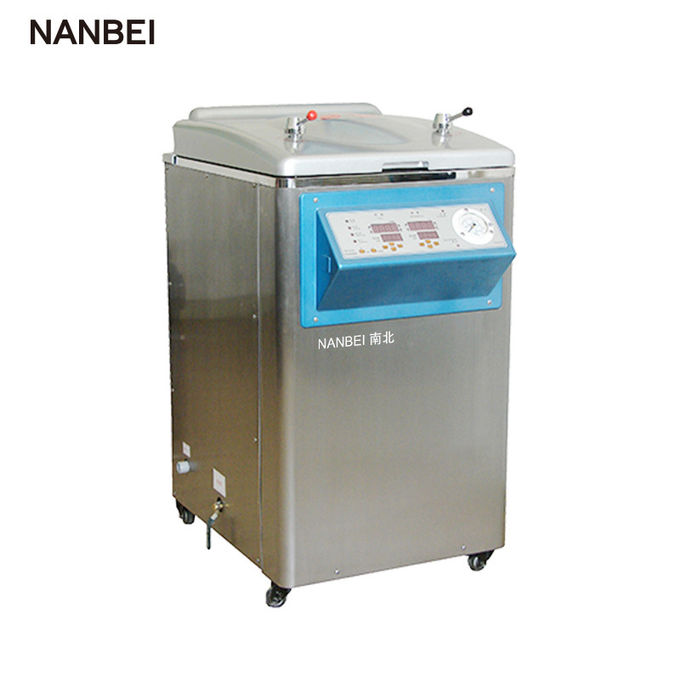

YM Series intelligent control vertical pressure steam sterilizer

Characters of vertical pressure steam sterilizer

  • Made of stainless steel, durable;
  • Lightly open the flip structure, easy, labor-saving and space-saving;
  • Tilt design of control panel for easy observation and operation;
  • Microcomputer program controls the heating and timing processes in the sterilization program;
  • LED digital tube and indicator, dynamic display equipment operating status;
  • The computer board has a PID function, and the heating parameters can be corrected by self-tuning to prevent the temperature from rushing. Temperature control accuracy is within ± 0.5 ℃;
  • Low-water level automatic water replenishment (anti-dry-burn) function, and an audible and visual alarm system, which automatically resumes heating after replenishing water;
  • Design of gravity exhaust method, pure steam environment in the cavity, reliable sterilization effect;
  • Radial self-expanding silicone rubber sealing ring, good sealing effect and long service life;
  • If the temperature exceeds 2 ℃, the heating will be stopped automatically, and the sound and light alarm will be given.
  • Overpressure to 0.17MPa safety valve automatically release steam to protect equipment;
  • Drain valve can discharge concentrated water in the bucket to prevent scaling;
  • Swivel casters with brakes are easy to move and easy to locate;
  • Immersion electric heating tube, high thermal efficiency.

Flip Structure 75L 100L Steam Autoclave Machine 0

Main Technical Data of vertical pressure steam sterilizer

ModelYM30YM50YM75YM100
Power~220V/50Hz
Frequency (kW)33.8
Volume (L)305075100
Water pressure(MPa)≥0.2≤0.4
Working pressure (MPa)With temperature
Working temperature (℃)Room +5~126
Sterilization time1~99.59min/h
Temperature average(℃)<1
Outside size (cm)70*×51×7370×51×8270×51×9370×51×104
Packing size (wood)(cm)77×65×8277×65×9677×65×10677×65×116
