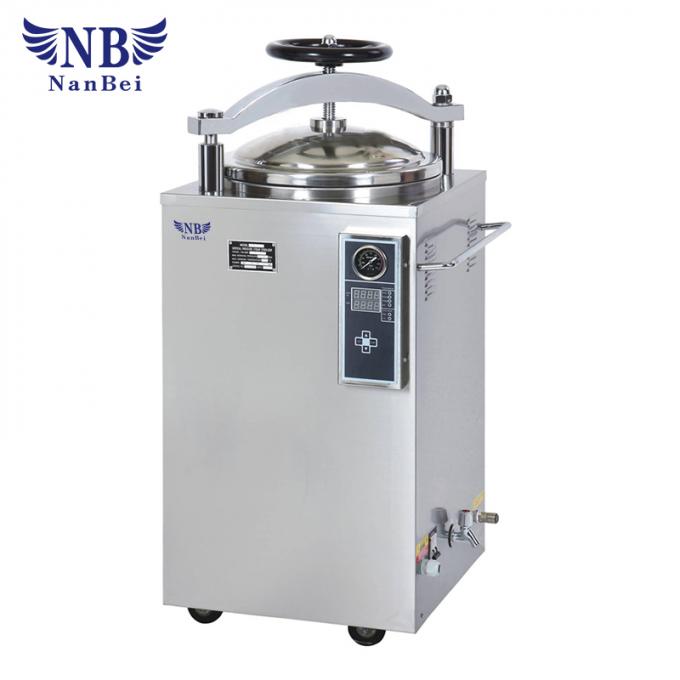

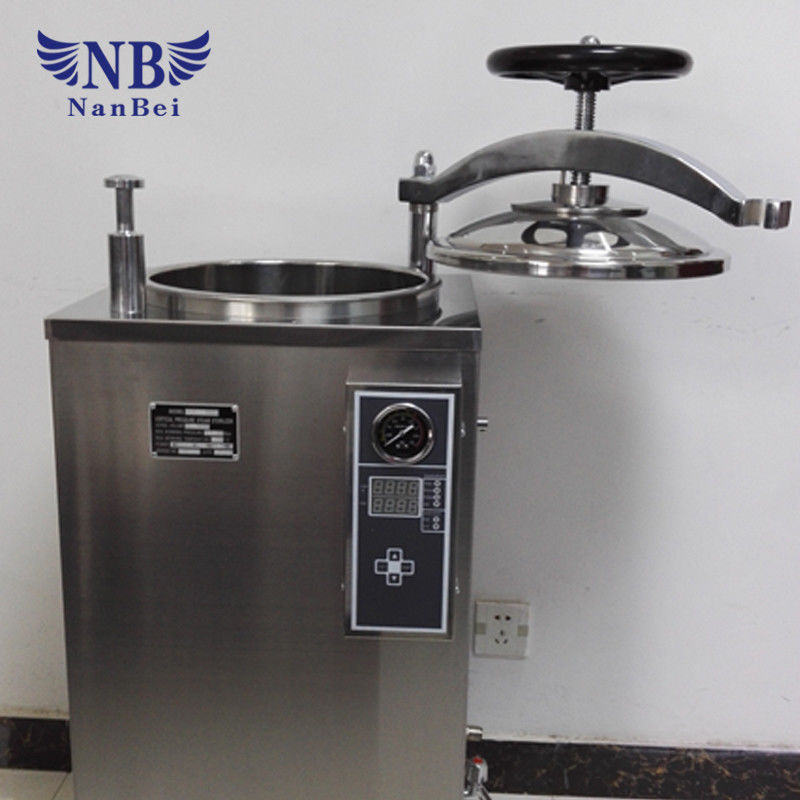

Hospital Autoclave Steam Sterilizer , Vertical Steam Sterilizer With CE Confirmed
Brief introduction of steam sterilizer:
The vertical steam sterilizer is a safe, reliable, and automatic controlling sterilizing equipment, which is equipped with heater, disinfection tube, container tube, safety valve, releasing steam valve, pressure temperature indicator, and sterilization end alarm, and the device of automatically cutting off the power ect. The container has the advantages of reliable disinfection and sterilization, easy operation, safe use, energy saving and excellent price. It is the ideal equipment for disinfection and sterilization of surgical instruments, dressings, utensils and medium for medical and health research.
Features of Steam sterilizer:
l. Fully stainless steel structure
2. Hand wheel type of quick-open door structure
3. Door safety lock system
4. Digital display of working status,touch of key
5. Auto discharge the cool air,and steam discharging automatically after sterilization
6. Over temperature&over pressure auto-protection
7. Safe protection of water lacking
8. Self-inflating type seal
9. Automatically shut off with beep reminding after sterilization
10. Used for sterilization of medical instruments, medical cotton products.
11. Fully stainless steel SUS304/AISI 304 -3mm
12. 24 months warranty
13. Possible to install drying system according request.
| Model technical data |
LS-35HD(automatic) |
LS-50HD(automatic) |
LS-75HD(automatic) |
LS-100HD(automatic) |
| Chamber volume |
35L(φ318×450)mm |
50L(φ340×550) mm |
75L(φ400×600) mm |
100L(φ440×650) mm |
| working pressure |
0.22MPa
|
0.14 MPa
|
| Working temperature |
134℃
|
126℃
|
| Max working pressure |
0.23 Mpa
|
0.165 Mpa
|
| Heat average |
≤±1℃ |
| Timer |
0～99min or 0～99hour59min |
| Adjustment of temperature |
105～134℃
|
105~126℃
|
| Power |
2.5Kw/AC220V.50Hz |
3Kw/AC220V.50Hz |
4.5Kw/AC220V.50Hz |
| Overall dimension |
450×450×1010(mm) |
510×470×1130(mm) |
560×560×1120 (mm) |
540×560×1250 (mm) |
| Transport dimension |
570×550×1150(mm) |
590×590×1280(mm) |
650×630×1280(mm) |
680×630×1370(mm) |
| G.W/N.W |
72Kg/56Kg |
88Kg/68Kg |
100Kg/80Kg |
110Kg/85Kg |
