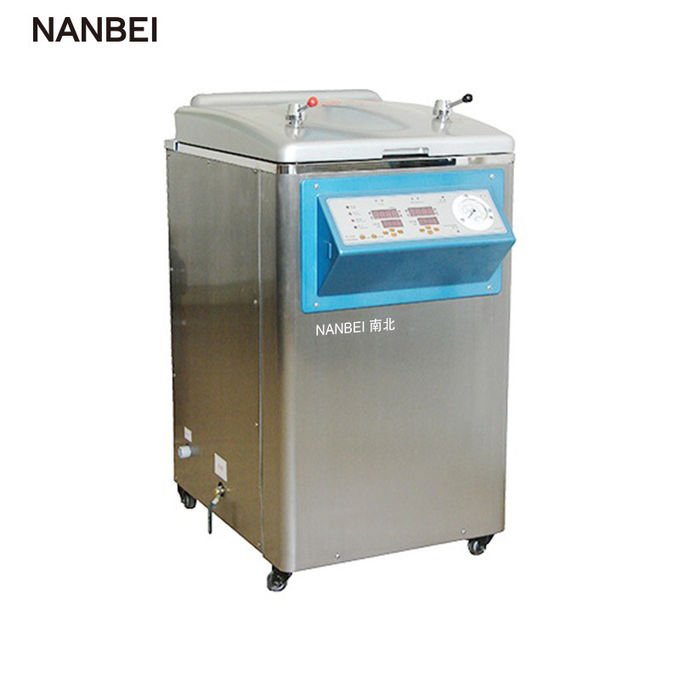

YM Series intelligent control vertical pressure steam sterilizer

Characters of vertical pressure steam sterilizer

• Durable, High quality stainless steel
• Slightly open the flip structure, the upper cover automatically pops up, saving effort easily;
• The beveled design of the control panel facilitates observation and operation;
• Microcomputer program controls the methods of venting cold air, heating, holding timing and pressure relief in the sterilization program;
• LED digital tube and indicator, dynamic display equipment operating status;
• The computer board has a PID function. The heating parameters can be corrected by self-tuning, which can prevent the temperature from rushing, and the temperature control accuracy is within ± 0.5 ℃
• Low water level control function, automatically stop heating and indicate when the water level is insufficient;
• With "internal circulation" function, no steam release into the room;
• With drying function, it can improve the humidity of the surface of the cloth bag;
• If the temperature exceeds 2 ° C, the heating will be stopped automatically, and the sound and light alarm will be given;
• Overpressure to 0.17MPa safety valve automatically release steam to protect equipment;
• There are safety measures in the sterilizer cavity to prevent the lid from opening;
• The lid is not closed in place and is not heated;
• The LED lights indicate the safety status of the pressure in the machine.
• Low water level control function, automatically stop heating and indicate when the water level is insufficient;
• Drain valve can discharge concentrated water in the bucket to prevent scaling;
• Swivel casters with brakes are easy to move and easy to locate;
• Immersion electric heating tube, high thermal efficiency.

Main Technical Data of vertical pressure steam sterilizer

Company Introduction of steam sterilizer

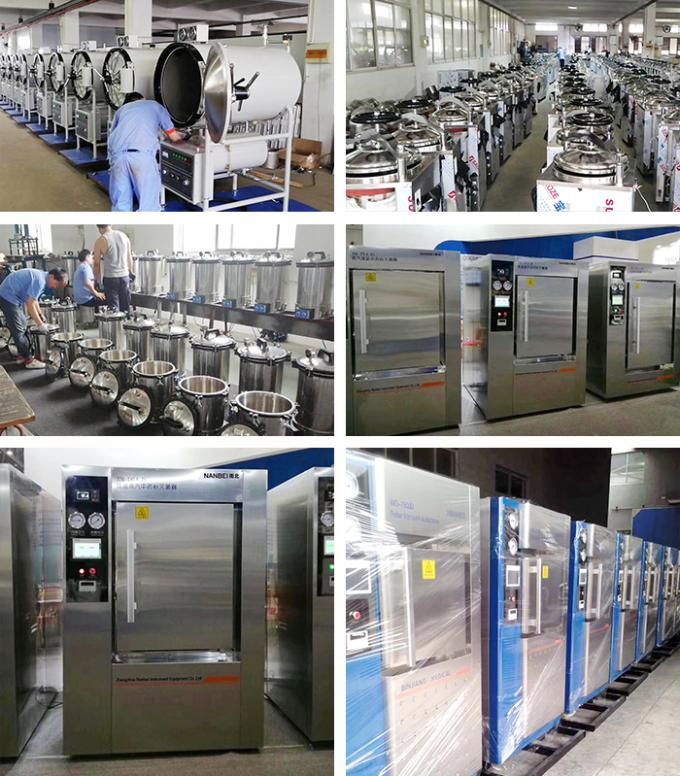

Factory Show of steam sterilizer

Certificate of steam sterilizer

Our Services of steam sterilizer
