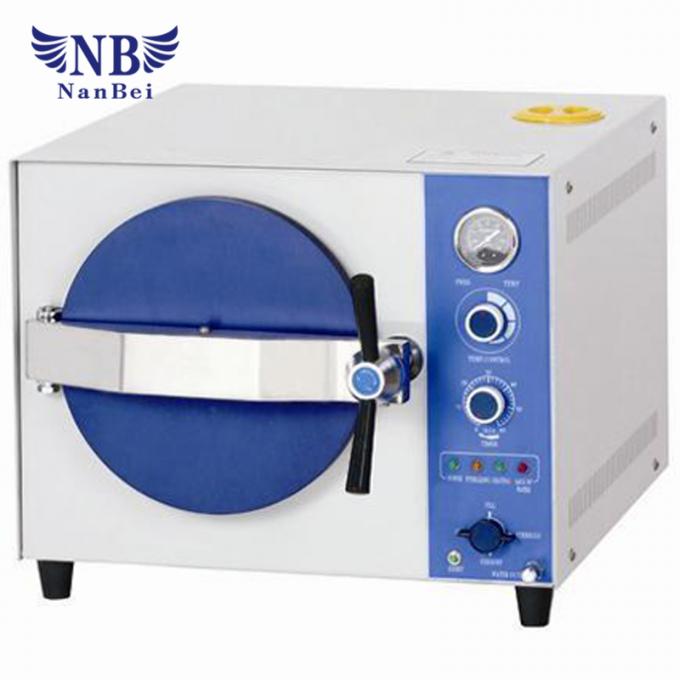

NBTM-XB24J Steam Sterilizer Automatic Control Table Type 0.22Mpa
Brief introduction of Steam Sterilizer
The steam sterilizer is a kind of safe, reliable and automatic controlling mini quick table sterilizing equipment, which apply to medical hygiene, Pharmaceuticals and Scientific research ect. It can quick sterilize for those things which can resistant to saturated steam:surgery, dental, dentistry, Ophthalmic instruments,glassware, medicine, Medium,
fabric dressing and food.
Characteristics of Steam Sterilizer
1. Indicator light indicates working state.
2. For 4~6 minutes rapidly sterilizing.
3. Sterilizing temperature and time can be preset.
4. Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5. Over temperature & over pressure auto-protection.
6. Safe protection of water lacking.
7. Exhaust the cool air automatically.

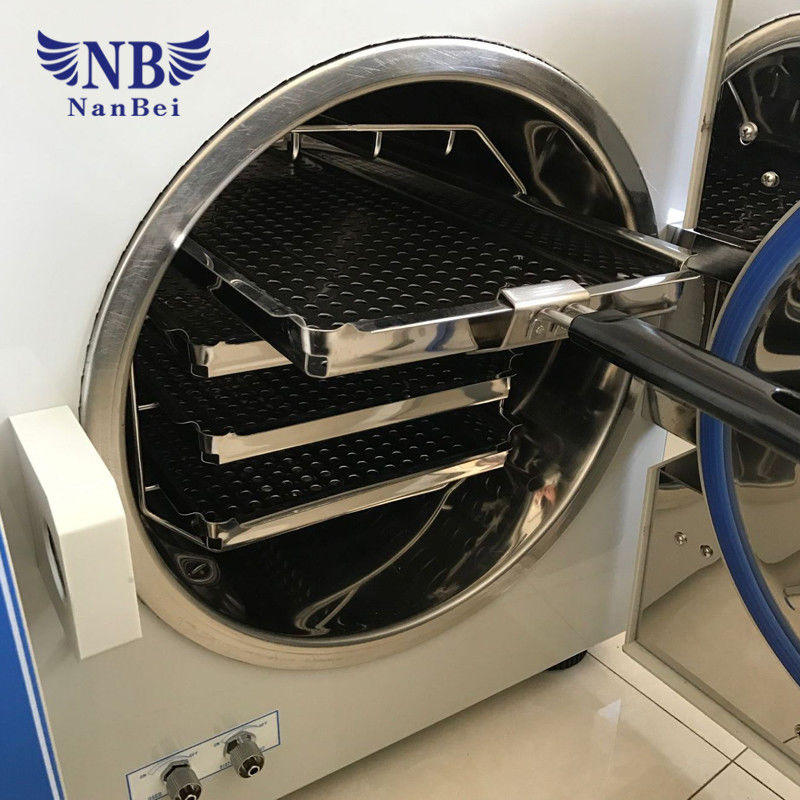

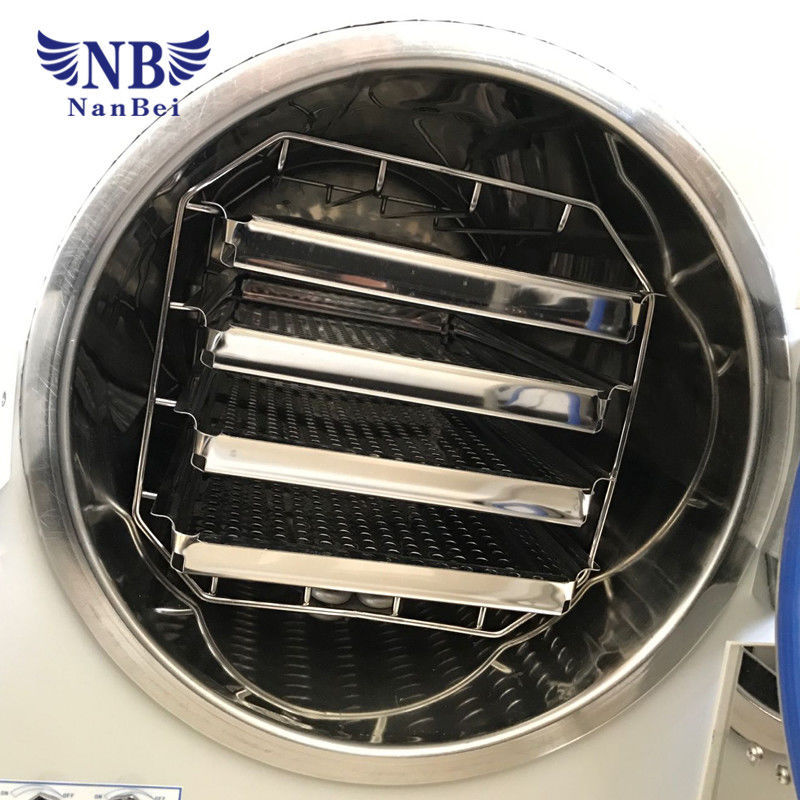

8. With three stainless steel sterilizing plates.
9. The chamber of the sterilizer is made of stainless steel.
10. Automatically shut off with beep reminding after sterilization.
| MODEL TECHNICAL DATA |
TM-XB20J |
TM-XB24J |
| Sterilizing chamber volume |
20L(φ250×420 mm) |
24L(φ250×520 mm) |
| Maximum working pressure |
0.22Mpa |
| Maximum working temperature |
134℃ |
| Adjustment of temperature |
105-134℃ |
| Timer |
0-60 min |
| Chamber temperature equal |
≤ ± 1℃ |
| Source power |
1.5KW/AC 220V 50Hz (AC110V 60HZ) |
| Sterilizing plate |
340×200×30 mm (3 piece) |
400×200×30 mm (3 piece) |
| Dimension |
480×480×384 mm |
580×480×384 mm |
| Package dimension |
700×580×500 mm |
800×580×500 mm |
| G. W/N.W |
44/40 kg |
50/45 kg |
