Steam Autoclave Machine / Dental Steam Sterilizer With Drying Function
Brief introduction of Steam Autoclave Machine
The steam sterilizer is a kind of safe, reliable and automatic controlling mini quick table sterilizing equipment, which apply to medical hygiene, Pharmaceuticals and Scientific research ect. It can quick sterilize for those things which can resistant to saturated steam:surgery, dental, dentistry, Ophthalmic instruments,glassware, medicine, Medium,
fabric dressing and food.
Characteristics of Steam Autoclave Machine
1. For 4~6 minutes rapidly sterilizing.
2. Digital display of working status,touch type key.
3. With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.
4. Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5. Exhaust the cool air automatically.
6. Safe protection of water lacking.
7. Door safety lock system.

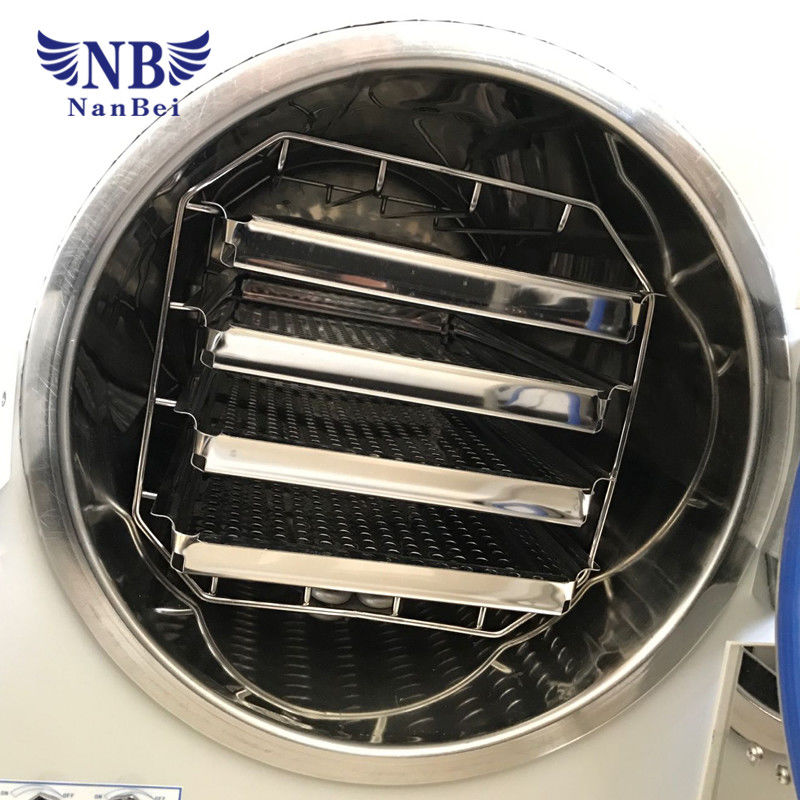

8. With three stainless steel sterilizing plates.

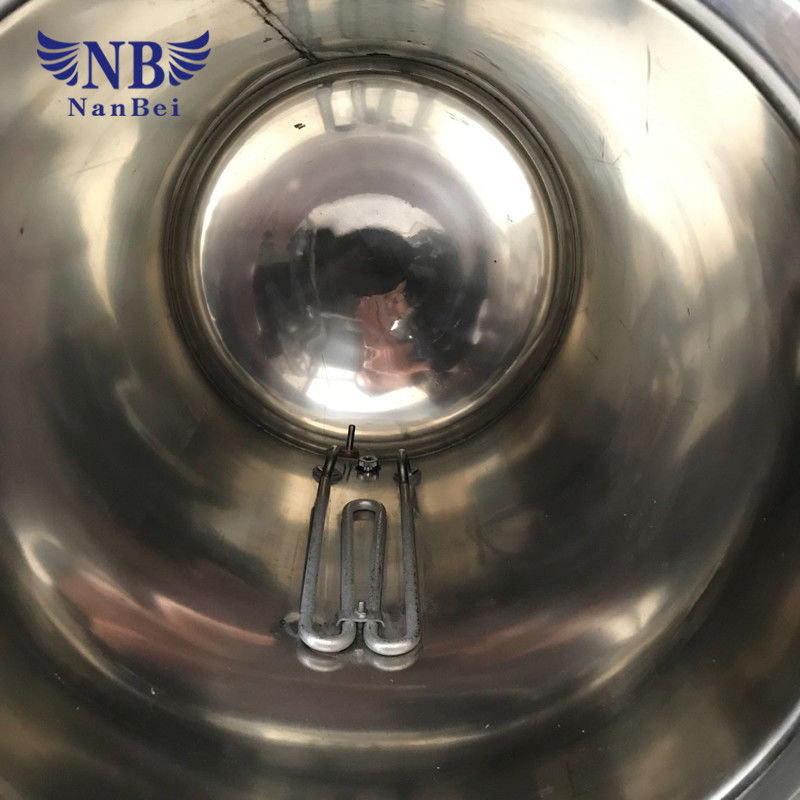

9. The chamber of the sterilizer is made of stainless steel.
10. Automatically shut off with beep reminding after sterilization.
11. With drying function.
| MODEL TECHNICAL DATA |
TM-XA20D |
TM-XA24D |
| Sterilizing chamber volume |
20L(φ250×420 mm) |
24L(φ250×520 mm) |
| Maximum working pressure |
0.22Mpa |
| Maximum working temperature |
134℃ |
| Adjustment of temperature |
105-134℃ |
| Timer |
0-99min |
| Chamber temperature equal |
≤ ± 1℃ |
| Source power |
1.5KW / AC220V 50Hz |
| Sterilizing plate |
340×200×30 mm (3 piece) |
400×200×30 mm (3 piece) |
| Dimension |
480×480×384 mm |
580×480×384 mm |
| Package dimension |
700×580×500 mm |
800×580×500 mm |
| G. W/N.W |
43/40 kg |
50/45 kg |
