Place of Origin: | China |
---|---|
Brand Name: | NANBEI |
Certification: | CE,ISO |
Model Number: | NBWS-280YDB |
Minimum Order Quantity: | 1set |
Price: | USD6276-USD6800/set |
Packaging Details: | Wooden cases and cartons |
Delivery Time: | 7-10days |
Payment Terms: | TT, LC, Paypal, Western Union, MoneyGram… |
Supply Ability: | 500 set/per day |
Sterilizing chamber volume: | 150L φ440×1000mm | Working Pressure: | 0.22 MPa |
---|---|---|---|
Working temperature: | 134℃ | Adjustment Of Temperature: | 40℃ - 134℃ |
Time Of Sterilization: | 0-99 Min | Time Of Drying: | 0-99 Min |
Heat Average: | ≤± 2℃ | Power: | 9KW/380V 50Hz |
High Light: |
vertical steam sterilizer,steam autoclave machine |

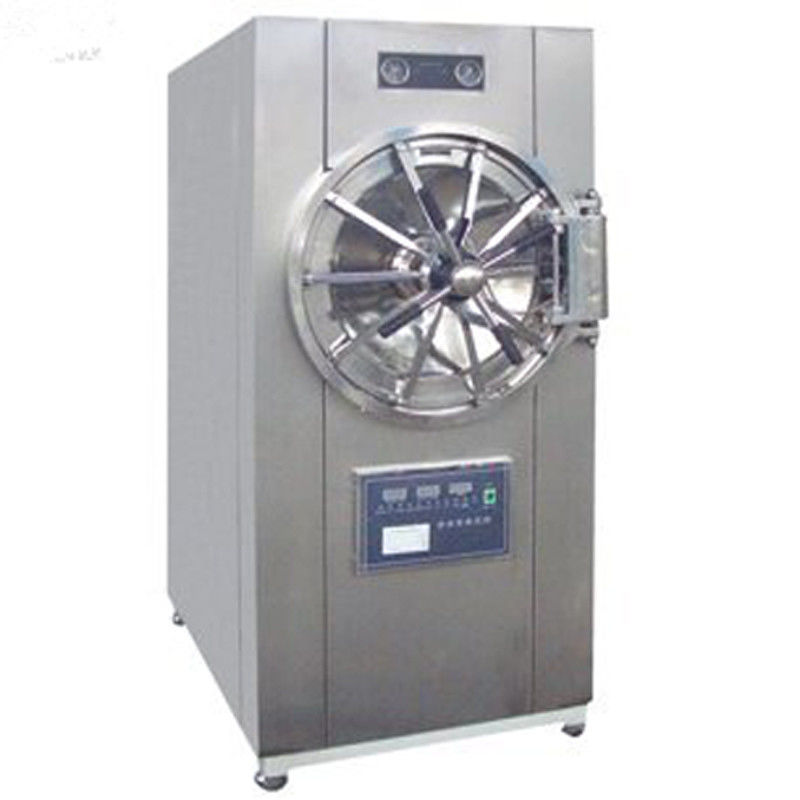

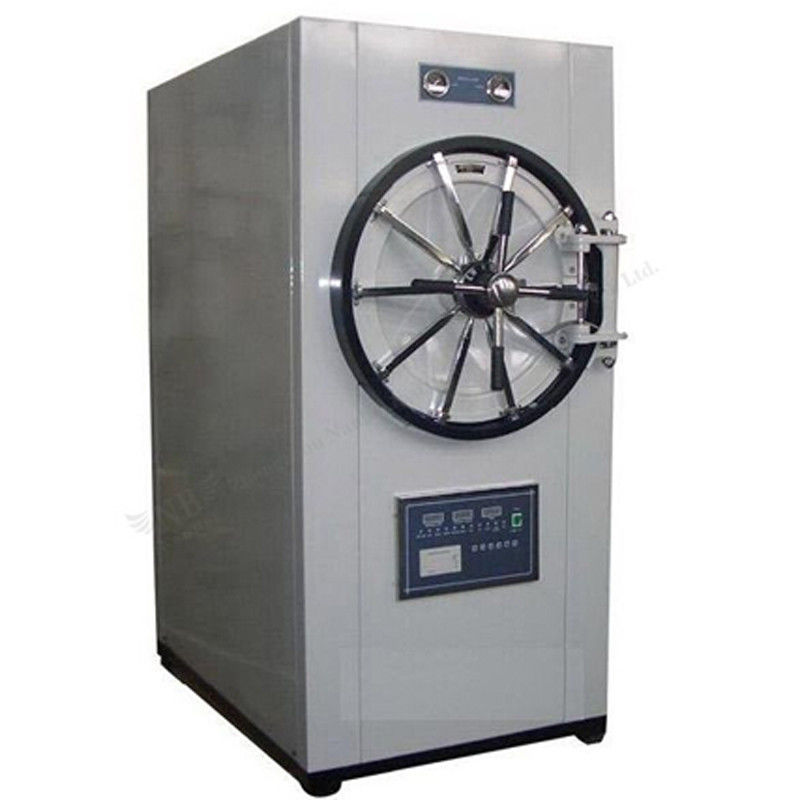

NANBEI Steam Autoclave Machine With Over Pressure Auto Protect Device
Brief introduction of Autoclave:
This horizontal steam sterilizer apply gravity replacement to remove the cold air of inner chamber, which reduce the steam cold air and make sterilizing reliable. At the same time, during the sterilizing process, the control system of the equipment can automatically adjust the steam inlet and outlet according to the internal temperature. This equipment is used for sterilization of medical and experimental cloth articles, surgical instruments and utensils in hospital supply room, operating room, pharmaceutical factory and R&D institution laboratory.
Features of Autoclave:
1. Sterilizing course automatic sterilization controlled by computer, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8. With printer.
Technical data | WS-150YDB | WS-200YDB | WS-280YDB |
Sterilizing chamber volume |
150L φ440×1000mm |
200L φ515×1000mm |
280L φ600×1000mm |
working pressure | 0.22 MPa | ||
working temperature | 134℃ | ||
Adjustment of temperature | 40℃ - 134℃ | ||
Time of sterilization | 0-99 min | ||
Time of drying | 0-99 min | ||
Heat average | ≤± 2℃ | ||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
Dimension | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
Transport dimension | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |
