50L Single Wall Chemical Glass Reactor Glass Tank Reacters

Basic Information
Place of Origin:China
Brand Name:NANBEI
Certification:CE,ISO
Model Number:NBF-50L
Minimum Order Quantity:1set
Price:USD1850-USD2400
Packaging Details:Wooden cases and cartons
Delivery Time:7-10days
Payment Terms:TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:500 set/per day
Detail Information
Volume:1L~100LGlass Material:High Borosilicate Glass
Rector Type:Single Glass Reactor, Reaction VesselApplication Areas:Pharmacy,Biological,Lab,Chemical
Function:Stirring Mixing,Vacuum,Distillation And Reflux,CoMaterial Of Agitated Stirrer:PTFE
Optional Type:Heater, Chiller, Vacuum And Ex-ProofWarranty:1year
High Light:

stirred tank reactor

,

jacketed glass reactor


Product Description

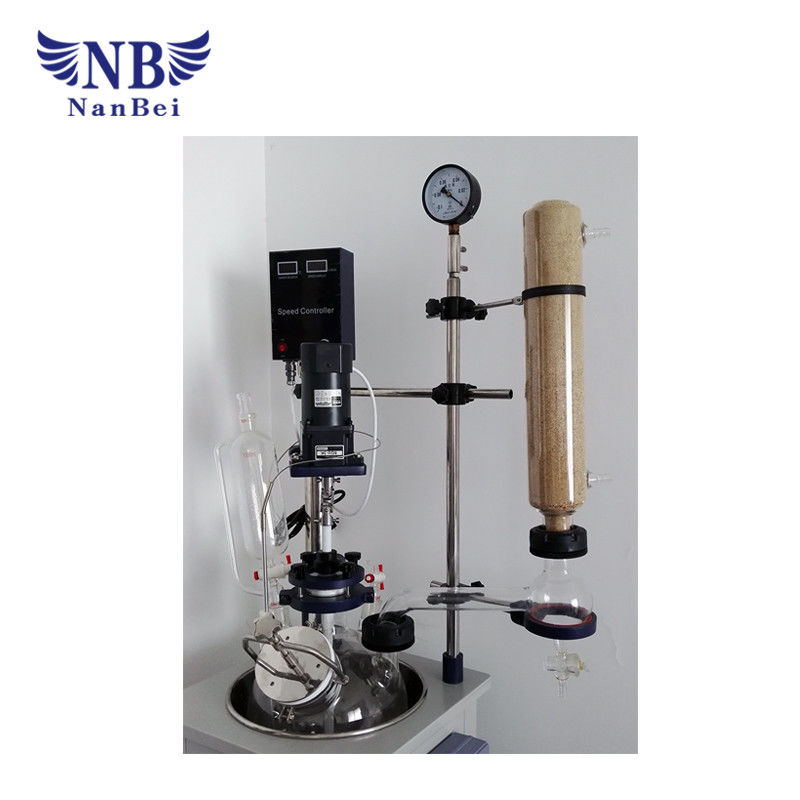

50L Single Wall Chemical Glass Reactor , Glass Tank Reaction With Heating





Brief Introduction of 50L Single Wall Chemical Glass Reactor

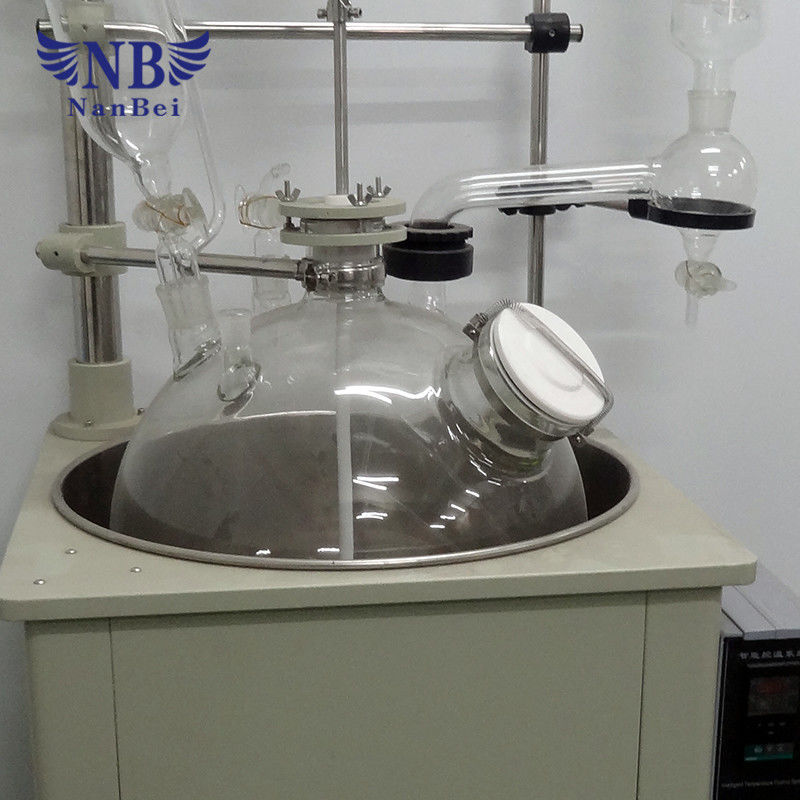

Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.





Working principle of 50L Single Wall Chemical Glass Reactor

Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.



Product Features of 50L Single Wall Chemical Glass Reactor

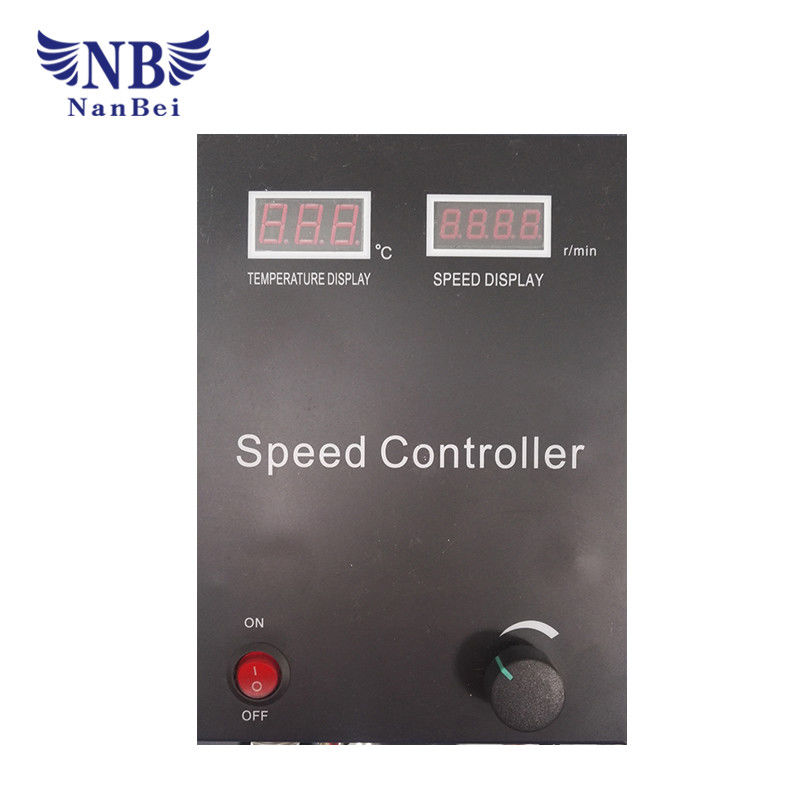

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;

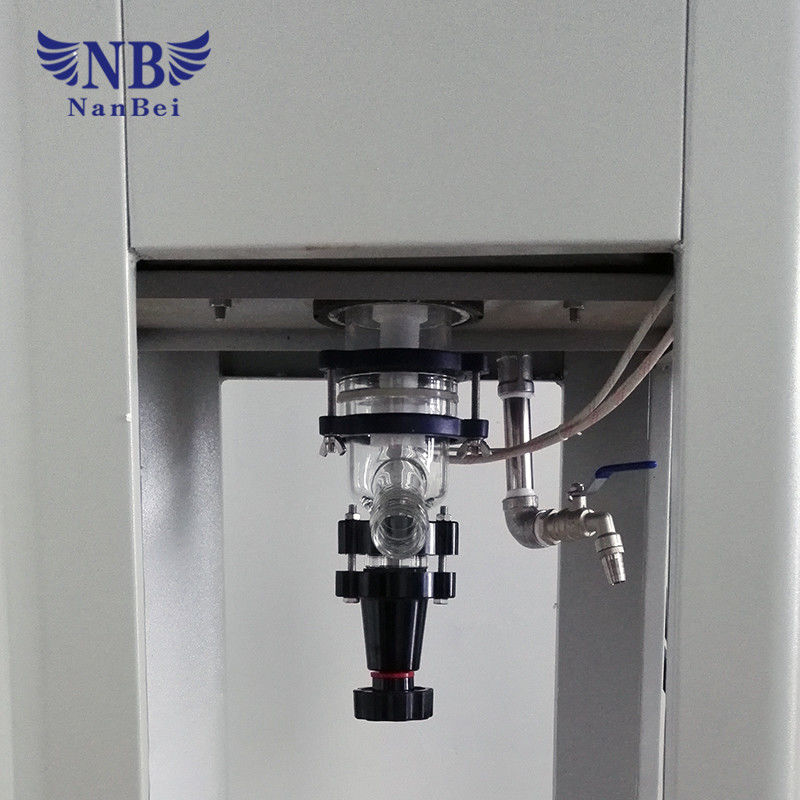

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)

50L Single Wall Chemical Glass Reactor Glass Tank Reacters 0

NameNBF-50L
Glass materialGG-17
pot shell materialSpraying antiseptic shell 740*640*960mm
Inner port materialstainless steel 550*320mm
Moving modeBrake type universal corner wheel
VolumeBall type 50L
Port No. of reactor cover7
Distance between discharge to floor450mm
Temperature range.-80 to 250degree
Vacuum0.098Mpa
Stirring speed0-450rpm
Stir rod diameter12mm
Stir power and voltage120W1/3 220V/50Hz
Heating power and voltage8KW 380V/50Hz
Overall size (mm*mm*mm)800*640*2200
Package size (mm*mm*mm)1440*720*890 0.93CBM
Gross weight(KG)90
