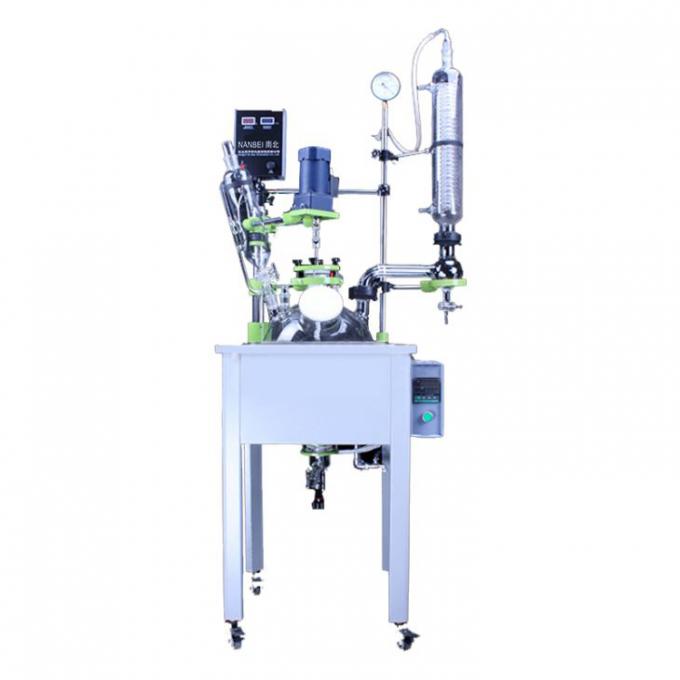

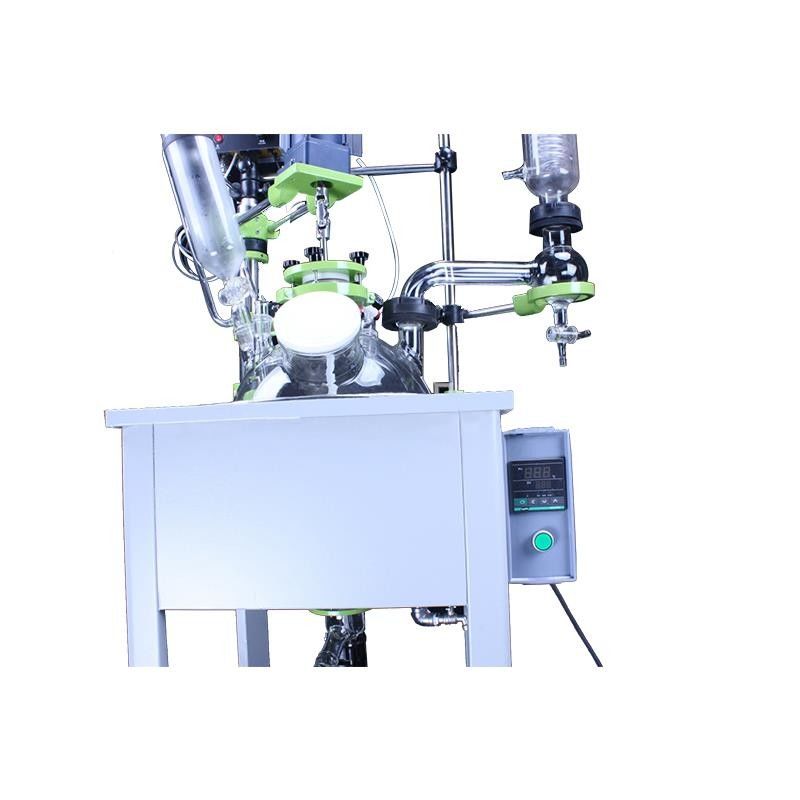

20L Biological Chemical Glass Reactor NBF-20L Stirring Mixing Function

Description of 20L Biological Chemical Glass Reactor

Single-layer glass reactors are mainly used in the testing and production of pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant temperature heating and constant speed stirring to uniformly stir the raw materials, so that the materials can fully react, evaporate, separate, and recover the solvent in the kettle body, and all the parts in contact with the materials are resistant. High temperature, corrosion resistant borosilicate glass and PTFE materials are especially suitable for the reaction of easily decomposing denatured biological products, and are not easy to react with various materials.

Working principle of 20L Biological Chemical Glass Reactor

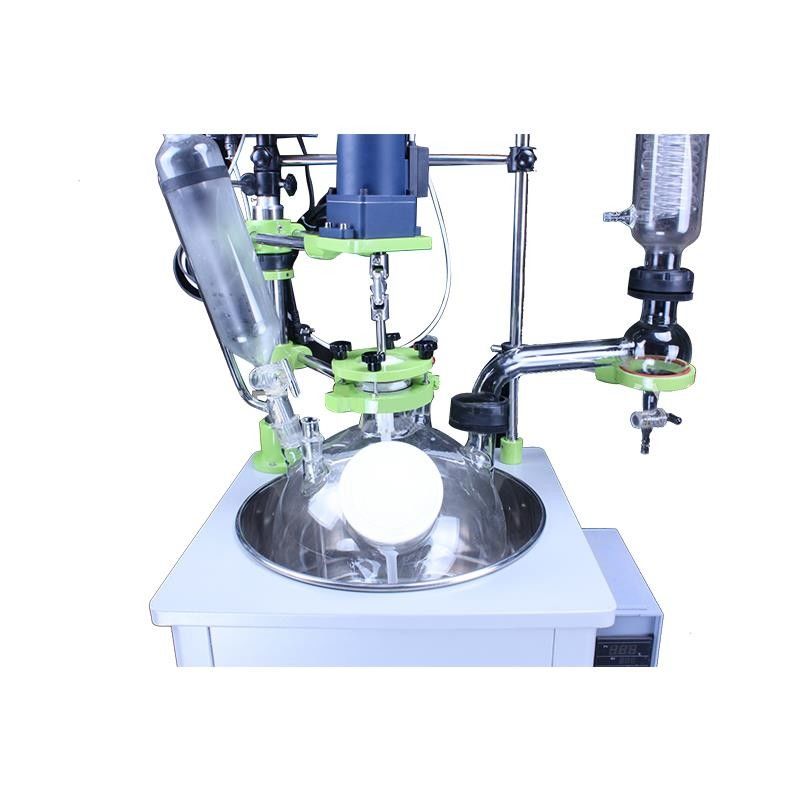

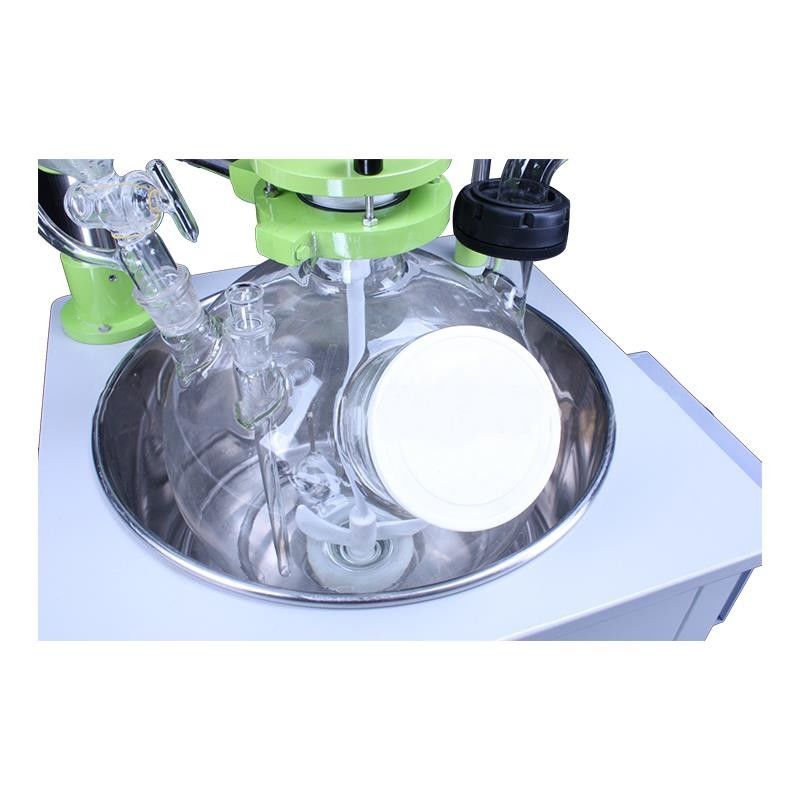

Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the material in the kettle is uniformly heated and evaporated at high speed by the intelligent constant temperature water (oil) bath. The solvent vapor produced in the solution is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser.

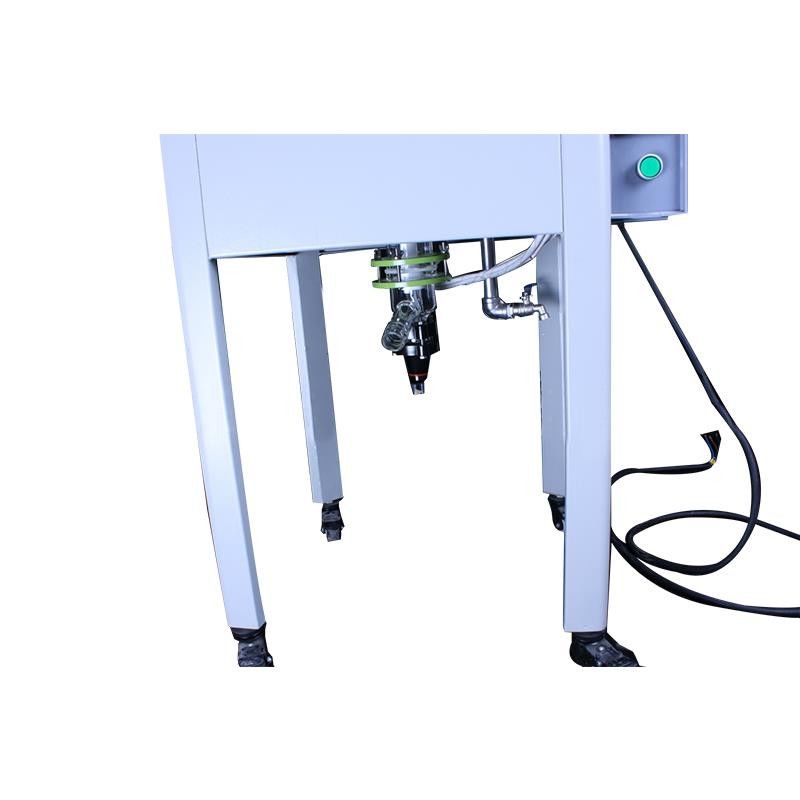

The single-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L,10 to 10 liters are equipped with universal casters for easy movement, and have a lower discharge function and a kettle. Temperature display function.

This product can be used together with the vacuum pump to improve work efficiency; it can be used together with the low-temperature coolant circulating pump to improve the recycling efficiency. Customers are advised to purchase matching equipment.

Technical parameters of 20L Biological Chemical Glass Reactor
