Glass Material: | GG-17 | Frame Material: | 304 Stainless Steel |
---|---|---|---|
Moves: | Brake Caster | Reaction Bottle Capacity: | 10L |
Jacketed Capacity: | 6L | Name: | Lab Jacketed Glass Reactor |
High Light: | stirred tank reactor,jacketed glass reactor |

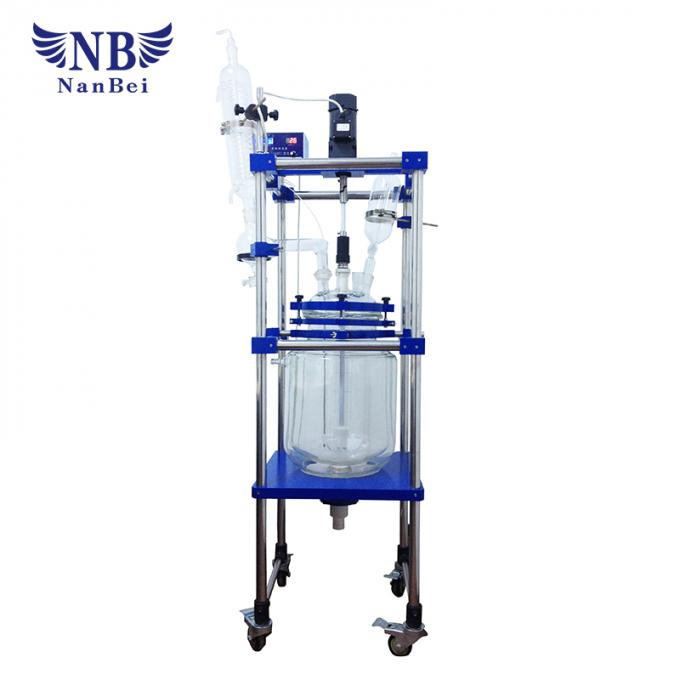

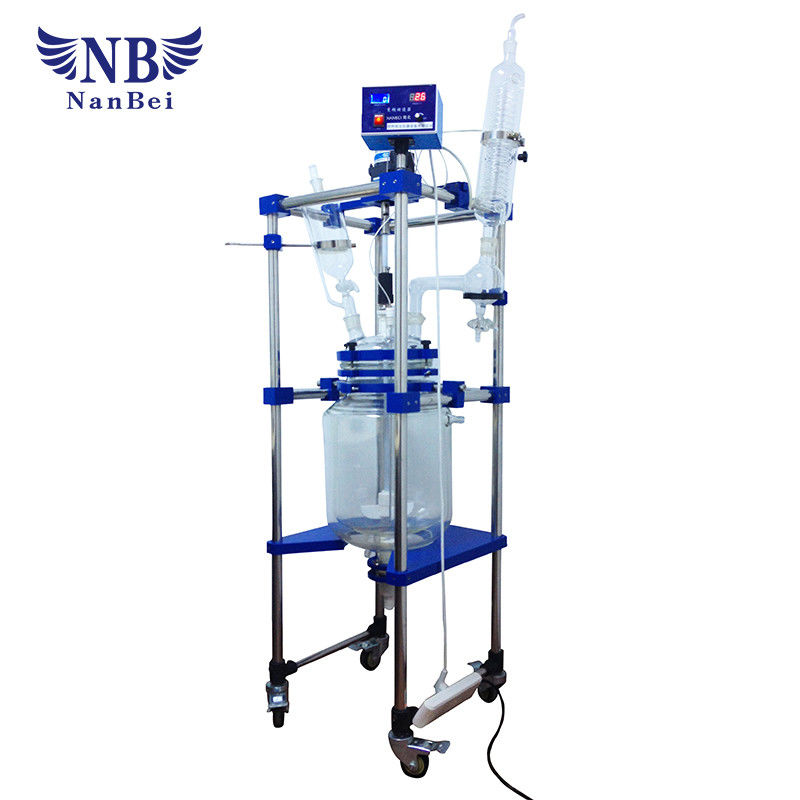

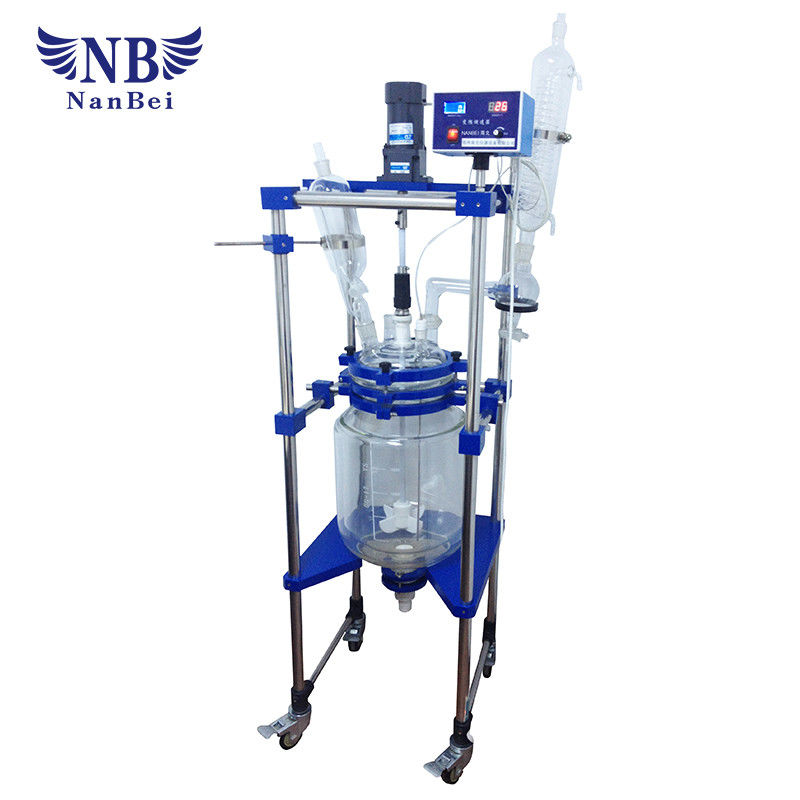

Double Glass Type Glass Reactor Vessel , Lab Jacketed Glass Reactor Anti Explosion
Features about glass reactor:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250ºC for high temperature experiments, and limit temperature of -60ºC for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous wor.k.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a PTFE value, aluminum parts flange fixed container no dead ends.
Model | NB-10L | NB-20 | NB-25L | NB-30L |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Fittings Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moves | Brake Caster | Brake Caster | Brake Caster | Brake Caster |
Reaction bottle capacity | 10L | 20L | 25L | 30L |
Jacketed Capacity | 6L | 8L | 8L | 10L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | Six port | Six port | Six port | Six port |
Discharger port distance to ground | 450mm | 450mm | 450mm | 450mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 12mm | 12mm | 12mm |
Stirring power | 90W1/3 | 120W1/3 | 120W1/3 | 120W1/3 |
Coltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 520*520*2000 | 560*560*2100 | 560*560*2300 | 760*560*2300 |
Packing size(mm) | 1370*590*800 | 1480*660*810 | 1670*670*860 | 1720*680*850 |
Packign weight(KG) | 68kg | 80kg | 88kg | 88 |
Company Introduction

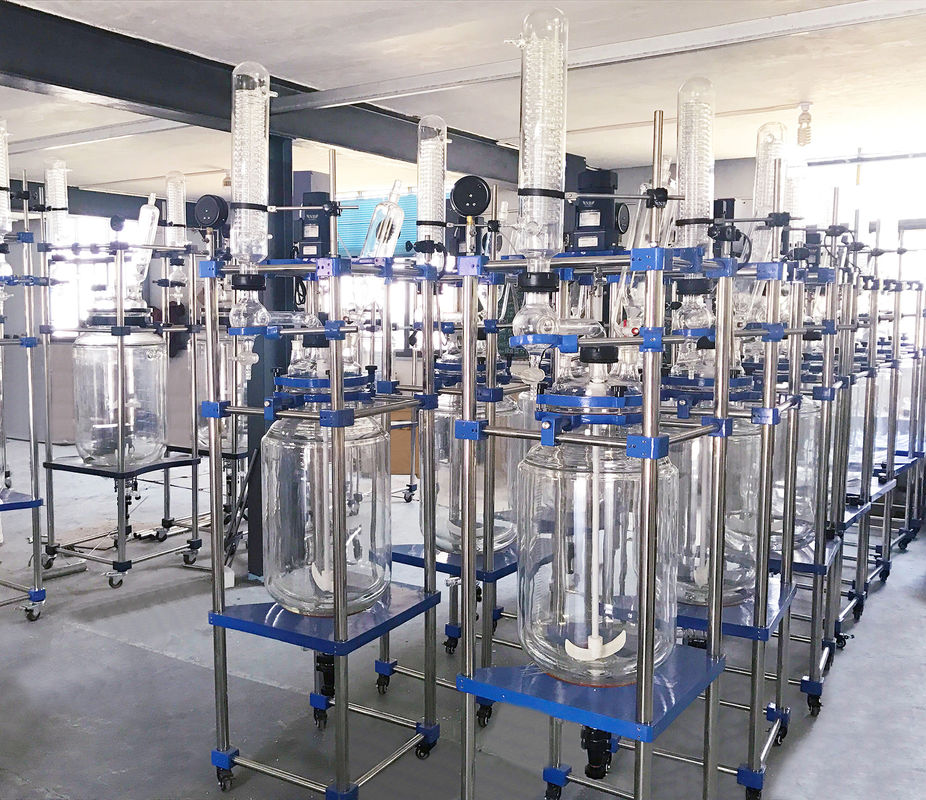

Factory Show
