1~5 Liters Double Type Chemical Glass Reactor

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NB-1
Minimum Order Quantity: 1set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Glass Material: GG-17 Frame Material: 304 SUS
Reaction Bottle Capacity: 1L Jacketed Capacity: 0.4L
Flanged Out Of The Oil Circulation Port: Low Feed High Outlet Reaction Bottle Cover: 5
Discharger Port Distance To Ground: 30mm Temp. Range: -80-250℃
Vacuum Degreee: 0.098Mpa
High Light:

lab chemical reactor


jacketed glass reactor

Product Description


1~5 liters Chemical Glass Reactor , Double Glass Type Glass Reaction Vessel



5L jacketed glass reactor

Brief of 5L jacketed glass reactor

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.

Features of 5L jacketed glass reactor

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

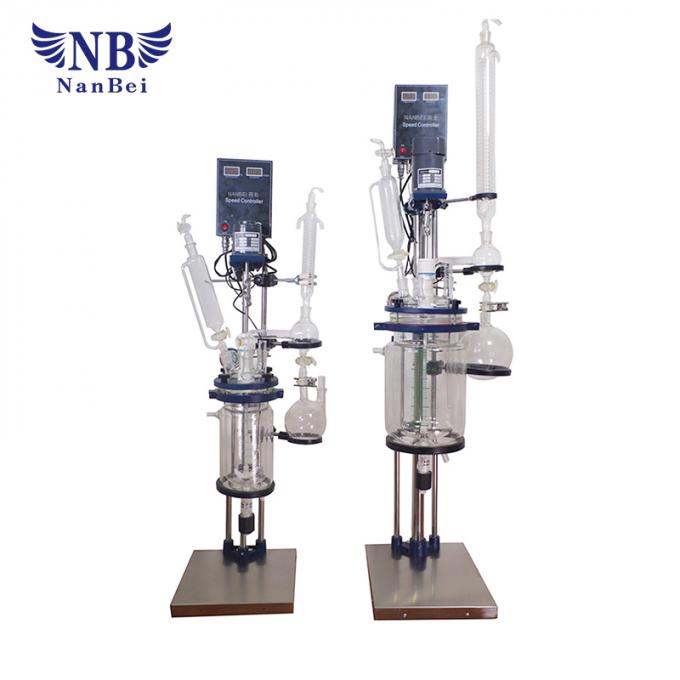

1~5 Liters Double Type Chemical Glass Reactor 0

Technical parameter of 5L jacketed glass reactor

Model NB-1 NB-2 NB-3 NB-5
Glass Material GG-17 GG-17 GG-17 GG-17
Frame Material 304 SUS 304 SUS 304 SUS 304 SUS
Reaction bottle capacity 1L 2L 3L 5L
Jacketed Capacity 0.4L 0.5L 0.6L 0.8L

Flanged out of the oil

circulation port

Low feed high outlet Low feed high outlet Low feed high outlet Low feed high outlet
Reaction bottle cover 5 5 5 5

Discharger port distance

to ground

30mm 30mm 30mm 30mm
Temp. range -80-250℃ -80-250℃ -80-250℃ -80-250℃
Vacuum degreee 0.098Mpa 0.098Mpa 0.098Mpa 0.098Mpa
Stirring speed 0-800rpm 0-800rpm 0-800rpm 0-800rpm
Stirring diameter 8mm 8mm 8mm 8mm
Stirring power 40W 40W 90W 90W
Coltage(V/Hz) 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ
Dimension(mm) 350*345*1000 350*345*1000 350*410*1250 350*410*1250
Plate size(mm) 325*345 325*345 325*410 325*410
Packign size(mm) 1200*480*400 1200*480*400 1380*500*400 1380*500*400
Packign weight(KG) 32 32 38 38


Company Introduction

1~5 Liters Double Type Chemical Glass Reactor 1

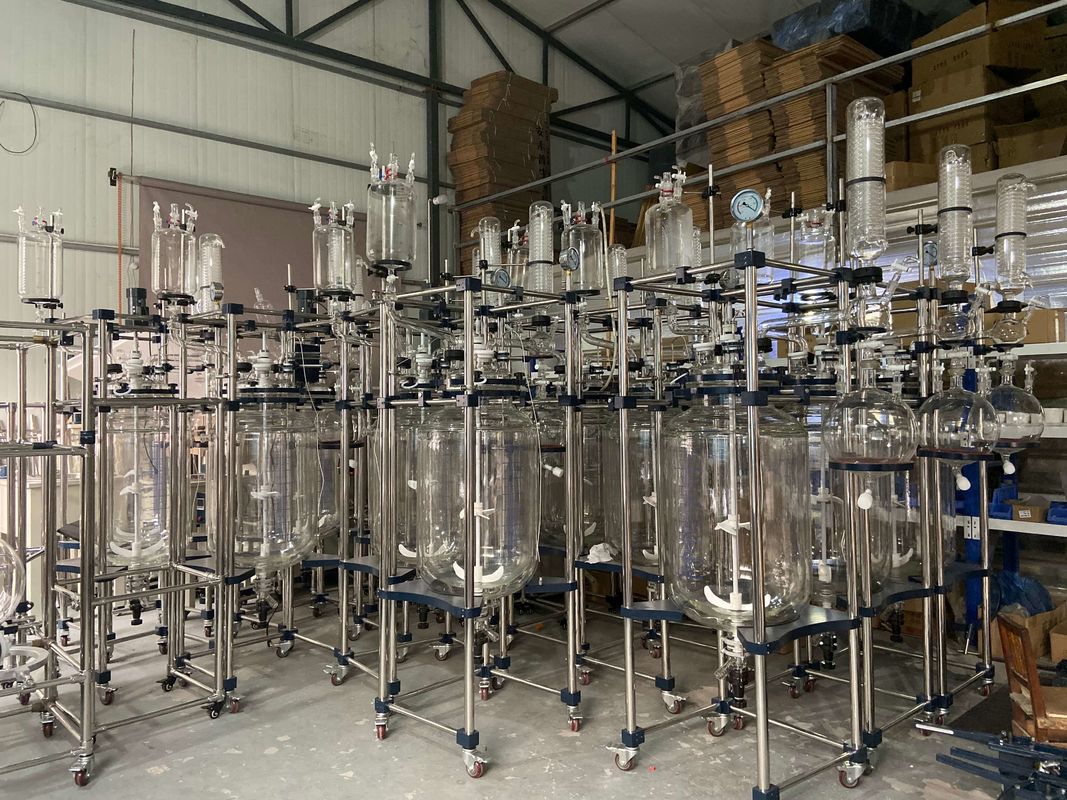

Factory Show

1~5 Liters Double Type Chemical Glass Reactor 2
Certificate of
5L jacketed glass reactor


1~5 Liters Double Type Chemical Glass Reactor 3

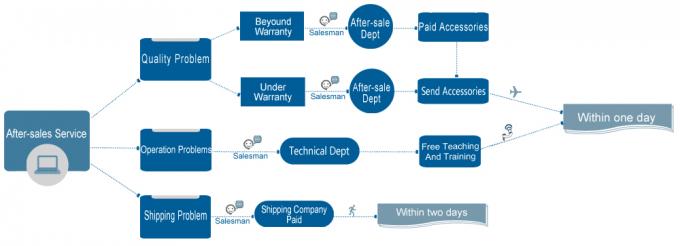

Our Services
