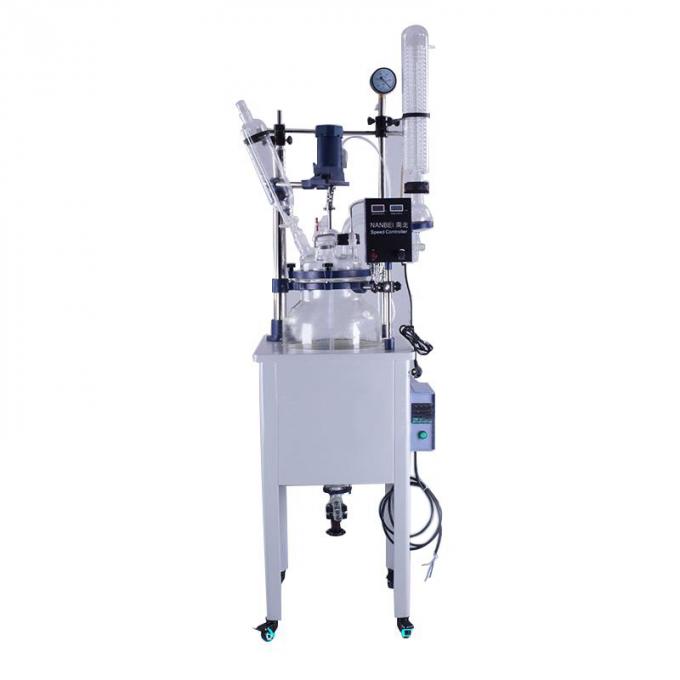

Chemical Laboratory 50L Single Glass Reactors

Basic Information
Place of Origin:China
Brand Name:NANBEI
Certification:CE,ISO
Model Number:NBF-50L
Minimum Order Quantity:1set
Packaging Details:Wooden cases and cartons
Delivery Time:7-10days
Payment Terms:TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:500 set/per day
Detail Information
Volume:1L~200LGlass Material:High Borosilicate Glass
Rector Type:Single Glass Reactor, Reaction VesselApplication Areas:Pharmacy,Biological,Lab,Chemical
Function:Stirring Mixing,Vacuum,Distillation And Reflux,CoMaterial Of Agitated Stirrer:PTFE
Optional Type:Heater, Chiller, Vacuum And Ex-ProofWarranty:1year
High Light:

stirred tank reactor

,

lab chemical reactor


Product Description



Chemical Laboratory 50L Single Glass Reactor -80 To 250 Degree Temperature Range





Description Of Single Glass Reactor
Single-layer glass reactors are mainly used in the testing and production of pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant temperature heating and constant speed stirring to uniformly stir the raw materials, so that the materials can fully react, evaporate, separate, and recover the solvent in the kettle body, and all the parts in contact with the materials are resistant. High temperature, corrosion resistant borosilicate glass and PTFE materials are especially suitable for the reaction of easily decomposing denatured biological products, and are not easy to react with various materials.

Working principle Of Single Glass Reactor

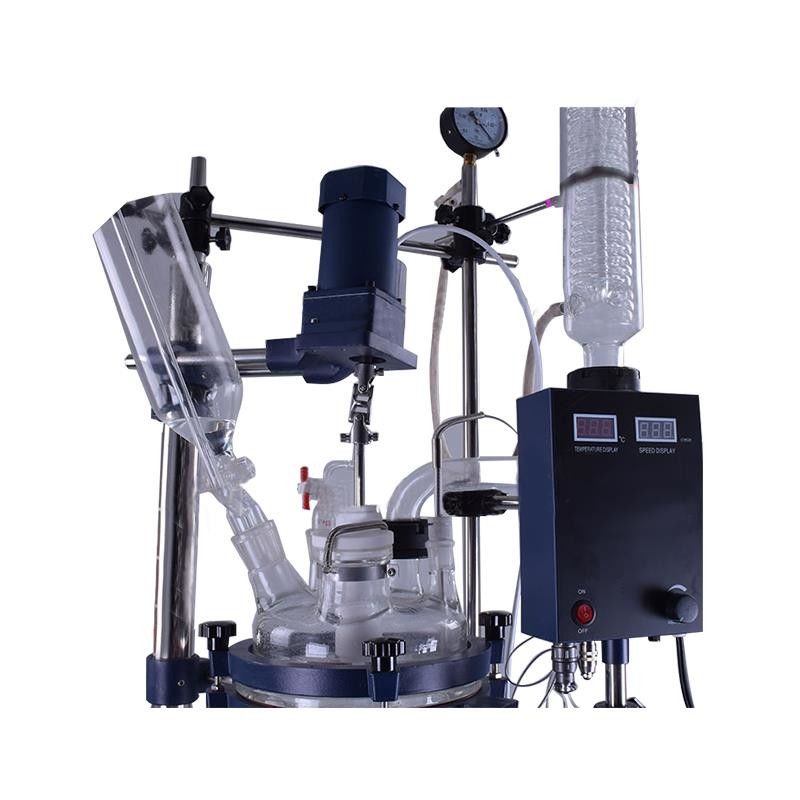

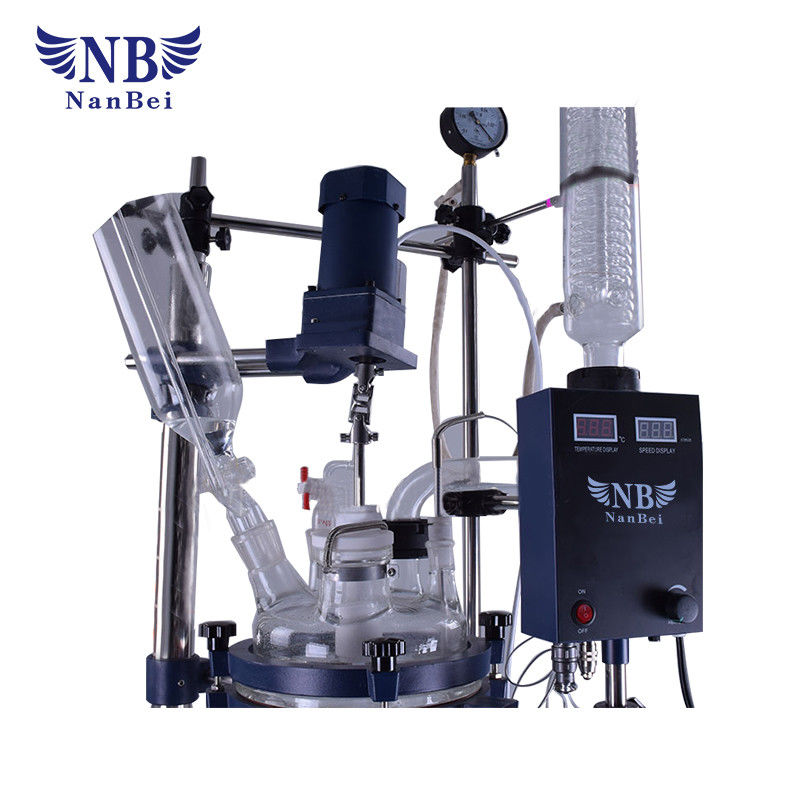

Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the material in the kettle is uniformly heated and evaporated at high speed by the intelligent constant temperature water (oil) bath. The solvent vapor produced in the solution is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser.

The single-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L 10 to 10 liters are equipped with universal casters for easy movement, and have a lower discharge function and a kettle. Temperature display function.

This product can be used together with the vacuum pump to improve work efficiency; it can be used together with the low-temperature coolant circulating pump to improve the recycling efficiency. Customers are advised to purchase matching equipment.

Chemical Laboratory 50L Single Glass Reactors 0

Basic specification Of Single Glass Reactor

NameSingle layer glass reactor
Volume10L20L30L50L100L
Glass materialGG-17
pot shell materialSpraying antiseptic shell
Pot shell size(mm)540*440*860640*540*890690*590*920740*640*960640*640*1200
Inner port materialStainless steel
Inner port size(mm)350*220450*250500*280550*320550*650
Moving modeBrake type universal corner wheel
Shape of reactor bodyBall typeCylindrical type
Port No. of reactor cover76
Distance between discharge to floor450mm
Temperature range.-80 to 250degree
Vacuum0.098Mpa
Stirring speed0-450rpm
Stir rod diameter15mm
Stir motor90W1/3120W1/3250W1/3
Heating power3KW5KW8KW
Overall size (mm*mm*mm)600*440*1900700*540*1950750*590*2160800*640*2200730*630*2600
Package size (mm*mm*mm)1100*620*7901220*620*7901220*660*8601440*720*8901900*780*870
Gross weight(KG)63708090120

Configuration list

MotorLow speed booster motor, speed ratio 3: 1
Speed display modeLCD digital display
Temperature displaydigital display
Seal¢70 flange stir port¢60 flange stir port
Condenser100*600mm120*600mm
Reflux (distillation) deviceReturn bend with feeding switch, 50# ball mill port
Drop adding device1L /34 standard2L/ 34standard2L /40standard
Pressure release devicestandard 34# pressure release valve
Temperature tubestandard 24#
Solid adding (cleaning) port¢120 flange port with PTFE cover¢80 flange port

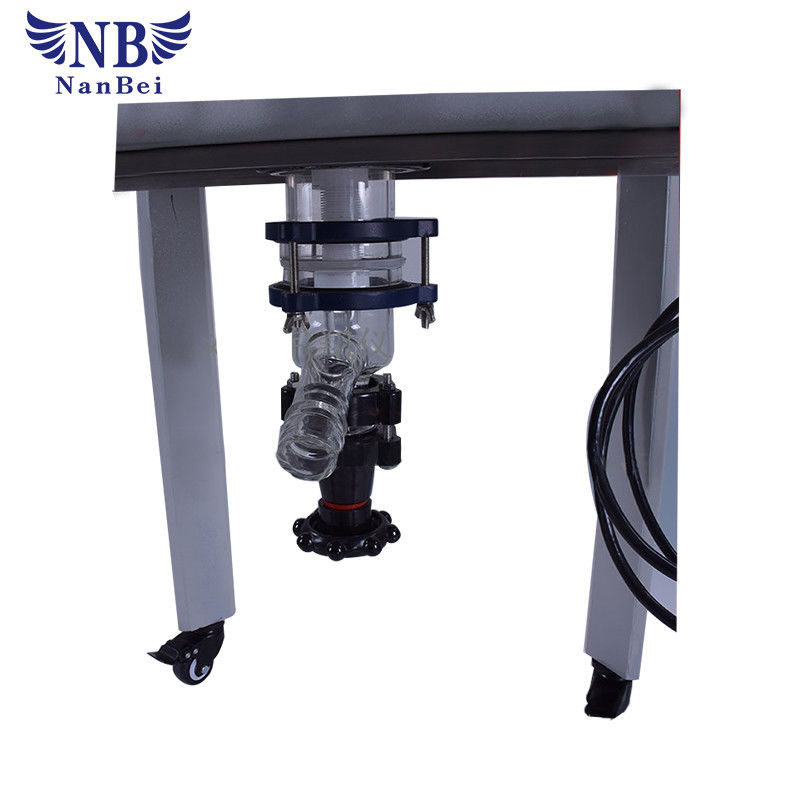

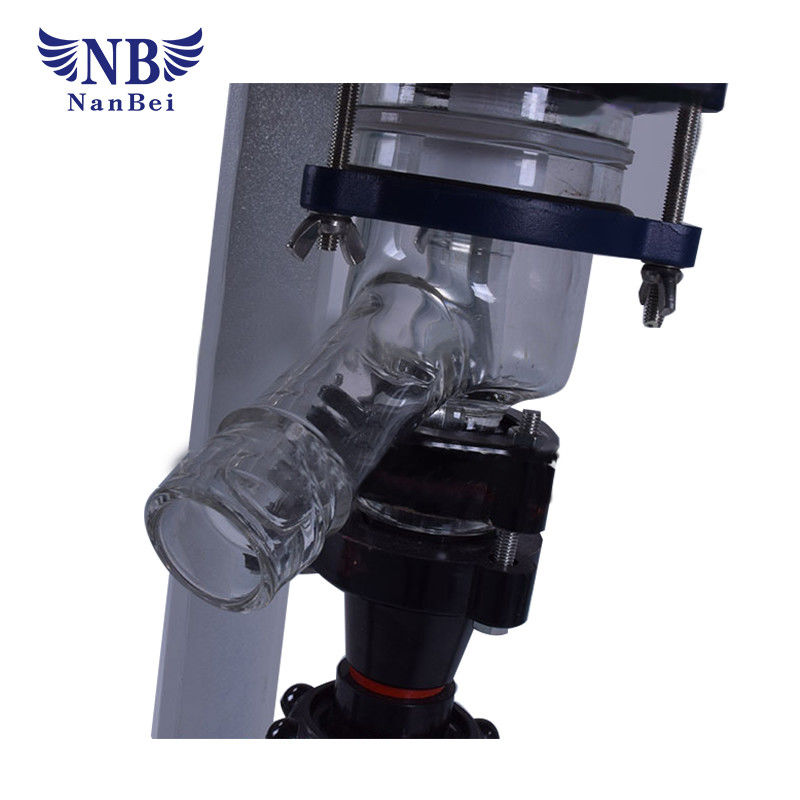

Dischargeglass discharge valve, ¢80 flange port
Vacuum display modeVacuum gauge
Mixing connectionuniversal joint link
Stir rodAnchor type, Stainless steel rod with PTFE



Company Introduction

Chemical Laboratory 50L Single Glass Reactors 1

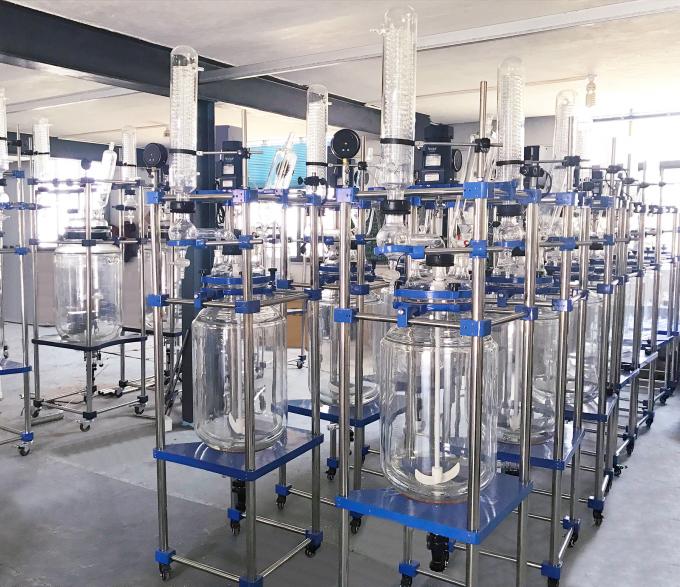

Factory Show

Chemical Laboratory 50L Single Glass Reactors 2
Certificate

Chemical Laboratory 50L Single Glass Reactors 3

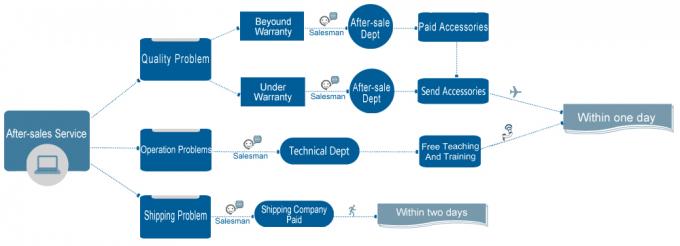

Our Services
