Medical Lab Mini Jacketed 5L Glass Reactor Vessel

Basic Information
Place of Origin: Zhengzhou
Brand Name: NANBEI
Certification: CE,ISO,SGS
Model Number: NB-10SL
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SET PER MONTH
Detail Information
Glass Material: GG-17 Frame Material: 304 Stainless Steel
Fittings Material: 304 Stainless Steel Moves: Brake Caster
Temp. Range: -80~250 Vacuum Degreee: 0.098Mpa
High Light:

Lab 5L Glass Reactor Vessel

,

Jacketed 5L Glass Reactor Vessel

,

5L jacketed glass reactor vessel


Product Description

5L Mecical Chemical Glass Reactor



Introduction:

The kettle body is designed by a double-layer glass reaction kettle. Put the inner layer into the reaction solution for reaction, and stir to get the middle layer to enter the cold and heat source type cyclic heating or cooling reaction. It can also be used for high temperature, low temperature or vacuum. Experiment with reflux and distillation of the reaction liquid. It is an ideal equipment for primary and secondary schools in modern chemistry experiments, biopharmaceuticals and new material synthesis.



Feature:

1. A full set of glassware, made of GG3.3 borosilicate glass, with good chemical and physical properties
2. The limit temperature of high temperature experiment is 250°C, and the limit temperature of low temperature experiment is -60°C.
3. Titanium ring, new type titanium alloy mechanical seal, sealing 0.098Mpa.
4. The temperature of PT100 is a liquid crystal display. Temperature measurement is more accurate and more convenient.

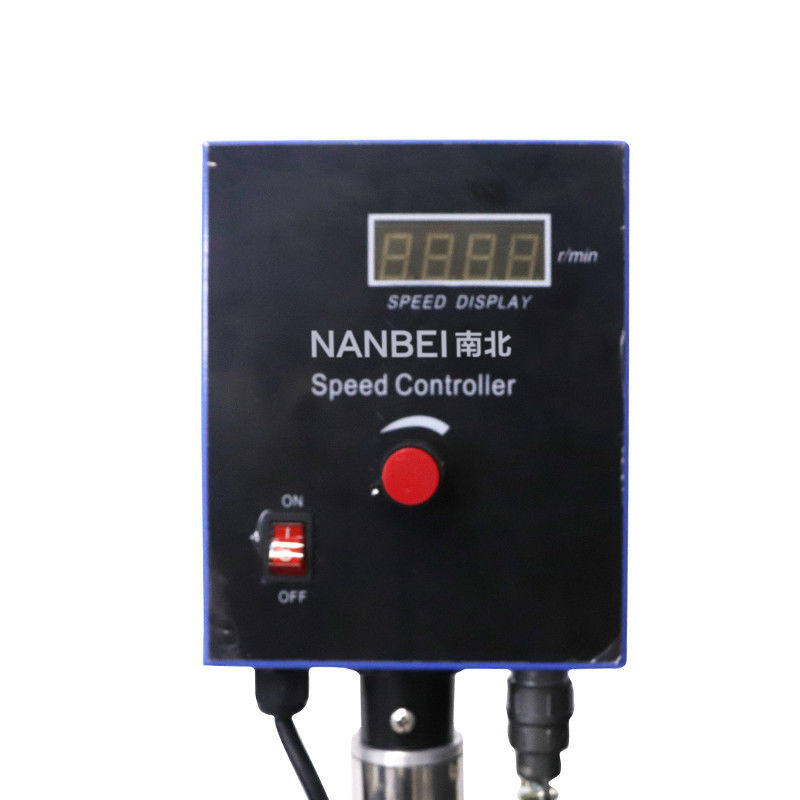

5. Frequency conversion speed regulation, AC induction motor. Constant speed, brushless, no spark, safe and stable, continuous work.
6. High-quality 304 stainless steel all-inclusive PTFE stirring rod and three-blade propeller structure.

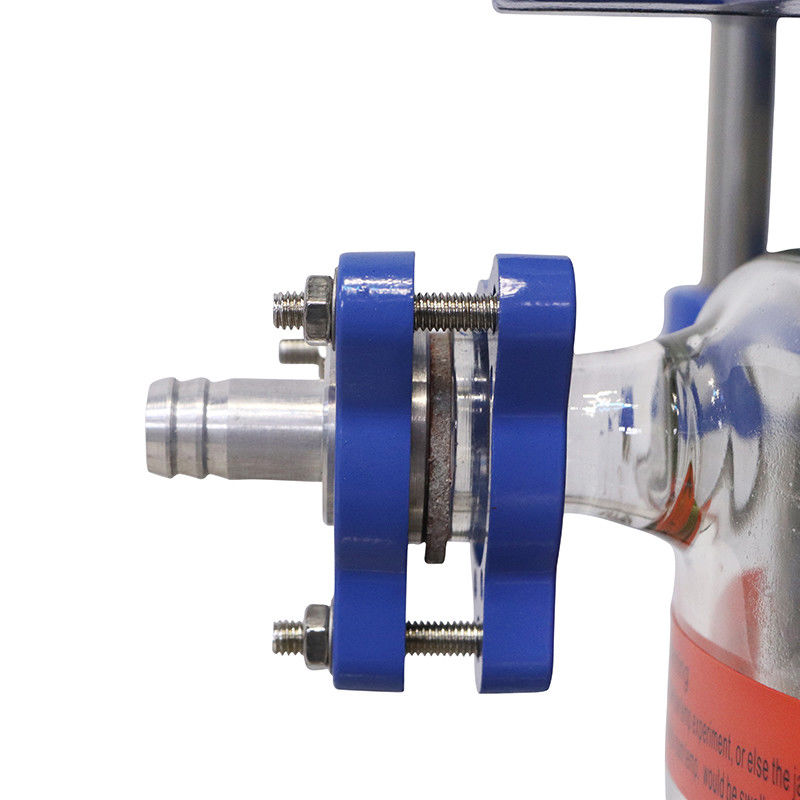

7. The outlet with flange at the bottom has Teflon value, and the container is fixed by the flange with aluminum parts, and there is no dead corner.

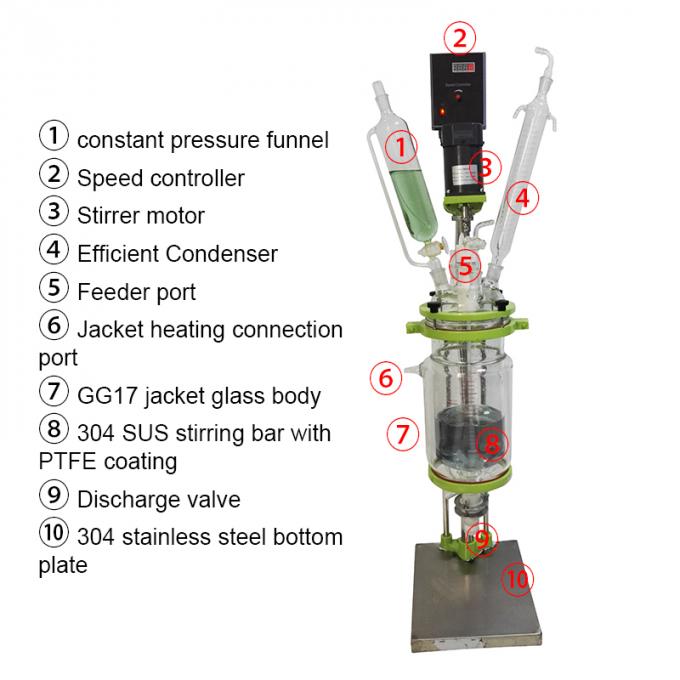

Details:

10-100L glass reactor with wheels, easy to move

Picture in below matched with cooling liquid circulating pump (left one) and high temperature circulation (right one)



Model NB-5
Glass Material GG-17
Frame Material 304 SUS
Reaction bottle capacity 5L
Jacketed Capacity 0.8L

Flanged out of the

oil circulation port

Low feed high outlet
Reaction bottle cover 5

Discharger port distance

to ground

30mm
Temp. range -80-250℃

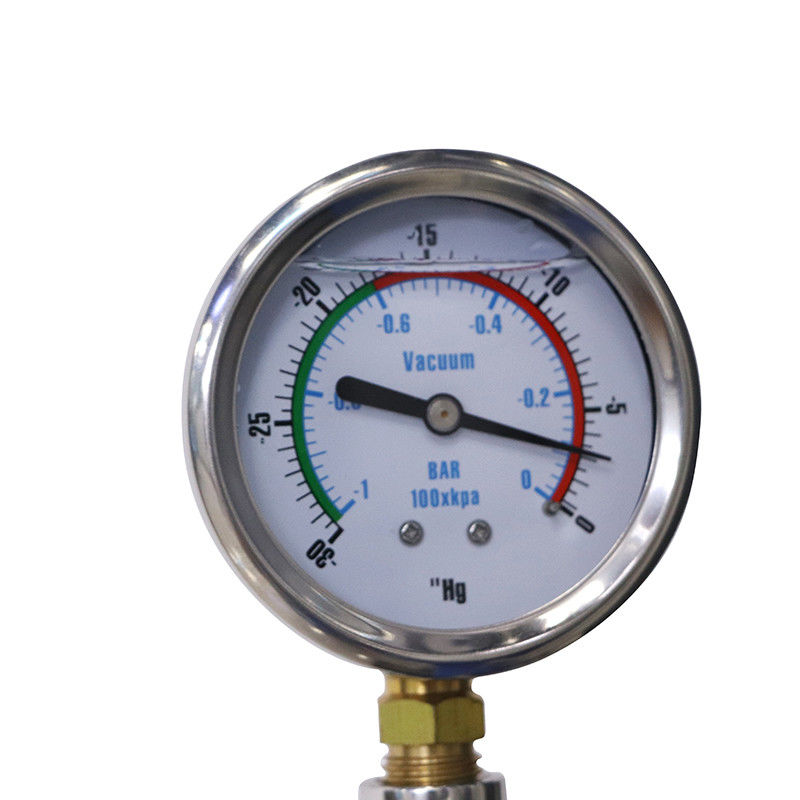

Vacuum degreee 0.098Mpa
Stirring speed 0-1100rpm
Stirring diameter 8mm
Stirring power 90W
Coltage(V/Hz) 220V/50HZ
Dimension(mm) 350*410*1250
Plate size(mm) 325*410
Packign size(mm) 1380*500*400
Packign weight(KG) 38
