NBCS-380 Gloss Meter Multi Angles High Precision 20 Degree Test Angle

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBCS-380
Minimum Order Quantity: 1set
Price: USD818-USD1052/set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Test Angle: 20degree; 60degree; 85degree; Test Light Spot: 20degree:10 X10 60degree:9X15 85degree:5 X38
Test Range: 20degree, 0-2000gu; 60degree, 0-1000gu; Resolution: 0.1gu
Test Modes: Simple Mode, Standard Mode And Sample Testing Mode Repeatability: 0-100gu, 0.2gu; 100-2000gu, 0.2%Gu
Accuracy: Conform To Jjg 696 Standard For First Class Gloss
High Light:

chemical analysis instrument

,

tabletop spectrophotometer


Product Description

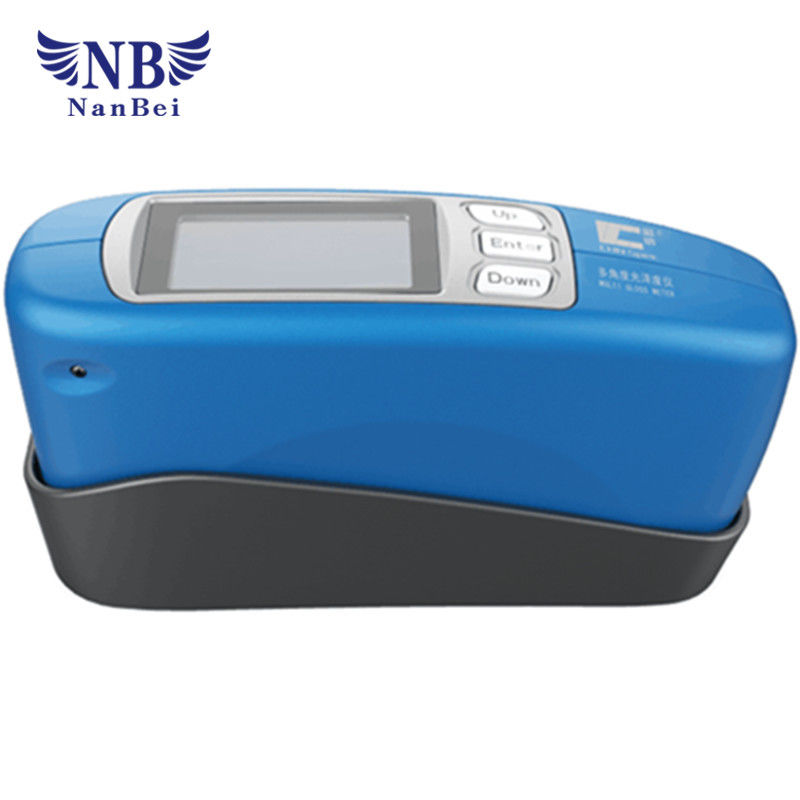

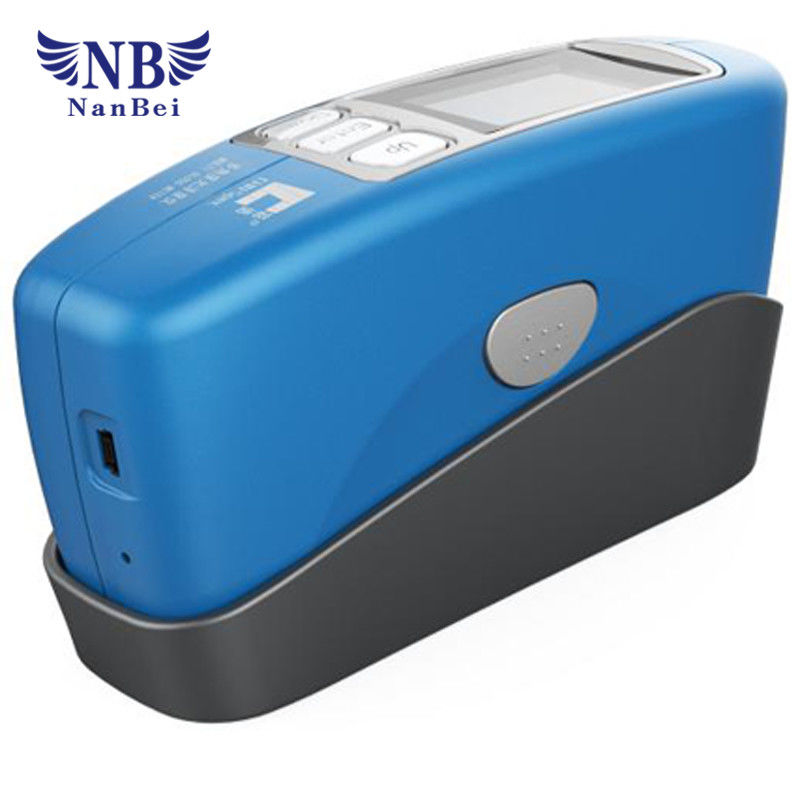

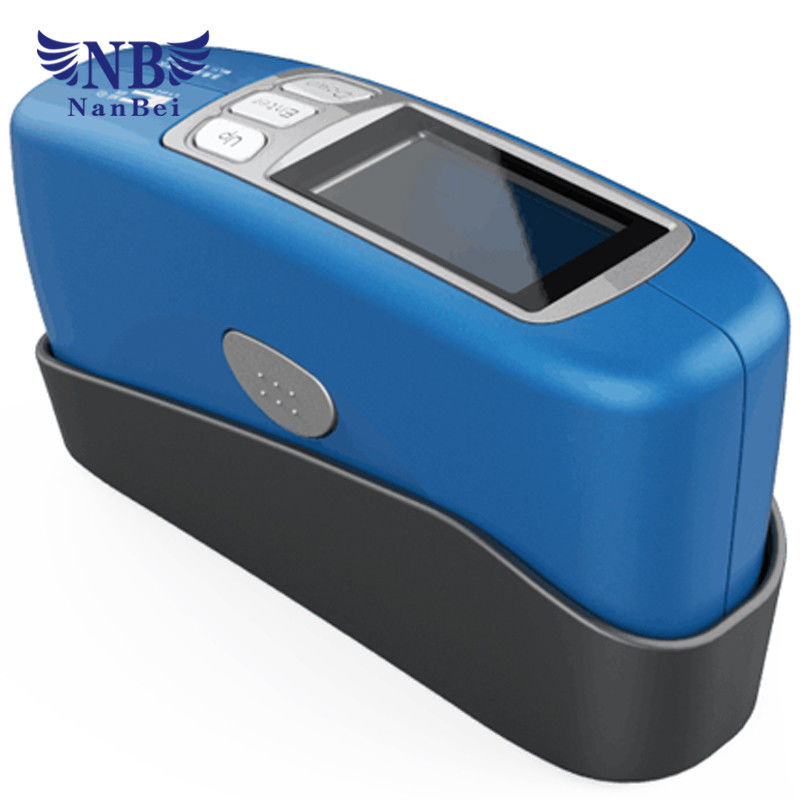

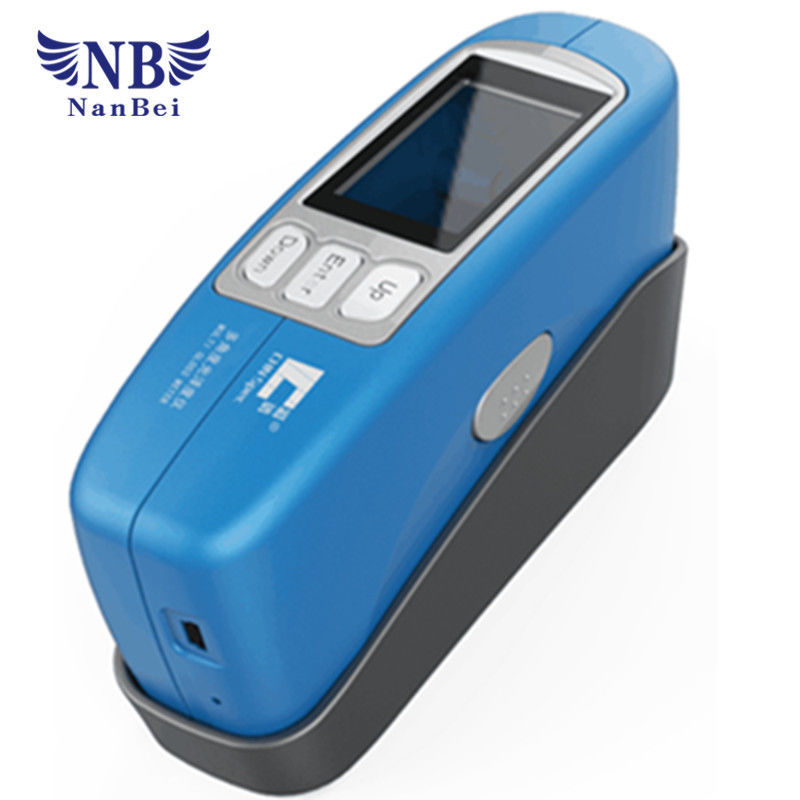

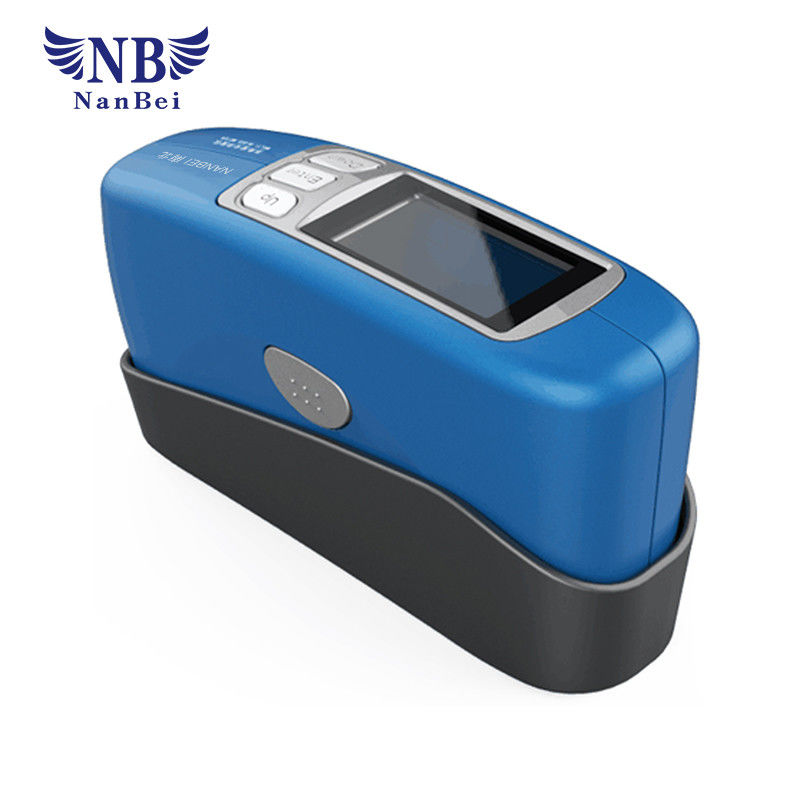

NBCS-380 Gloss Meter Multi Angles High Precision 20 Degree Test Angle





Brief introduction of Gloss Meter:

Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.





Features of Gloss Meter

1. High Precision

Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure highly precise of the measured data.

Our gloss meters conform to JJG 696 standard for first class gloss meters. Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.



2. Super Stability (Patent Right No.: ZL2012201796876)

Every gloss meter made by us has done the following test:

412 calibration tests;

43200 stability tests;

110 hours of accelerated aging test;

17000 vibration test



3. Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and do not cause allergy. This design is for better user experience



4. Large Battery Capacity

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.

NBCS-380 Gloss Meter Multi Angles High Precision 20 Degree Test Angle 0

Model CS-380
Test Angle 20°,60°,85°
Test light spot(mm)

20°:10*10

60°:9*15

85°:5*38

Test range

20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time Less than 1s
Data storage 100 standard samples; 10000 test samples
Size(mm) 165*51*77 (L*W*H)
Weight About 400g
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
Upper-PC Software Include
Working Temperature 0-40℃
Working Humidity <85%, no condensation
Accessories 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification
