products

Colorimeter Chemical Analysis Equipment Plastic Cement Weaving And Dyeing

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBCS-200
Minimum Order Quantity: 1set
Price: USD709-USD790/set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Type: CS-200 Testing Port Diameter: About 8mm
Measuring Range: L*:1-100 Measuring Time: About 0.5 Seconds
High Light:

chemical analysis machine

,

chemical analysis instrument


Product Description

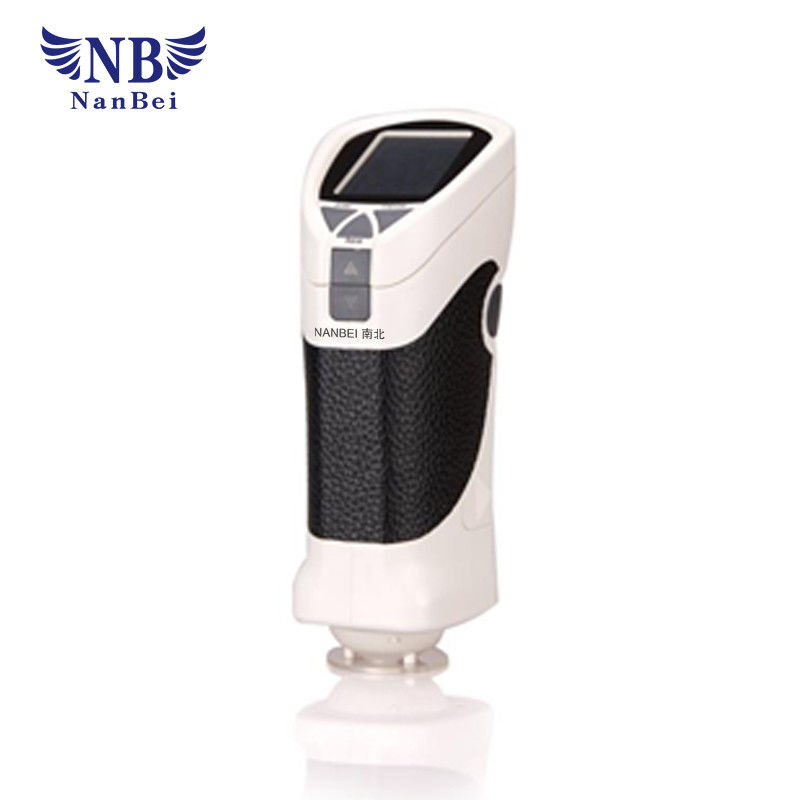

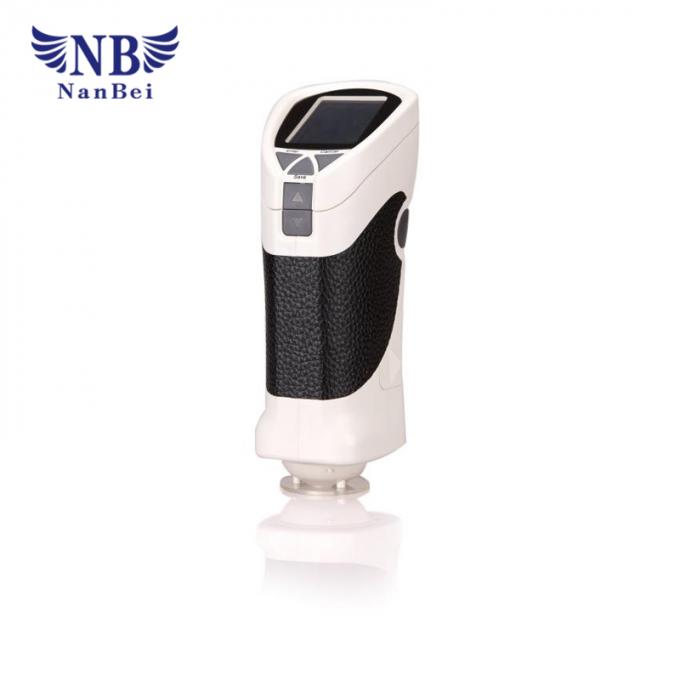

Colorimeter Chemical Analysis Equipment Plastic Cement Weaving And Dyeing





Brief introduction of Colorimeter:

Colorimeter is widely used in different industries such as plastic cement, printing, paint, weaving and dyeing. It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.





Features of Colorimeter:

1. Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability. Display accuracy is 0.01, repeated test accuracy △E deviation value is below 0.08.

2. Multiple color space display color values : L*a*b,L*c*h,Yxy

Being the most commonly used testing device, our colorimeter with built-in color display indicators transformation program, which makes our device could be used for color testing in many different industries. And it do not need convert the measurement data by manual so it greatly improve the work efficiency.

3. Can Test Degree of Whiteness and Yellowness

Degree of Whiteness: Hunter whiteness, Gantz whitness

Degree of Yellowness: YI

4. Ergonomic Design

Instrument girth radian designs according to human palm so we could test data for a long time with it. Superior leather design increases the friction in case of fingers sliding.

5. Free Color Management Software

6. Establish the Prototype Data L*a*b* by manually

7. The device could store 100 standard sample groups and every sample group could store 100 sample data.

8. Test different points on sample and get the average value. It is widely used for color control whose color is not uniform.

9. Advantages

NBCS-200 is an upgraded version of NBCS-10. It improves the testing accuracy and increase function for testing yellow and whiteness. It is the highest performance- price ratio device in domestic till now.

Colorimeter Chemical Analysis Equipment Plastic Cement Weaving And Dyeing 0



Type CS-200
Illumination system 8/d(8°/diffused illumination)
SCI
Testing Port Diameter About 8mm
Measuring conditions CIE 10° standard observer; CIE D65 light source
Measuring range L*:1-100
Repeatability Standard deviation within △E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average)
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
Measuring light source LED
languages Chinese, English

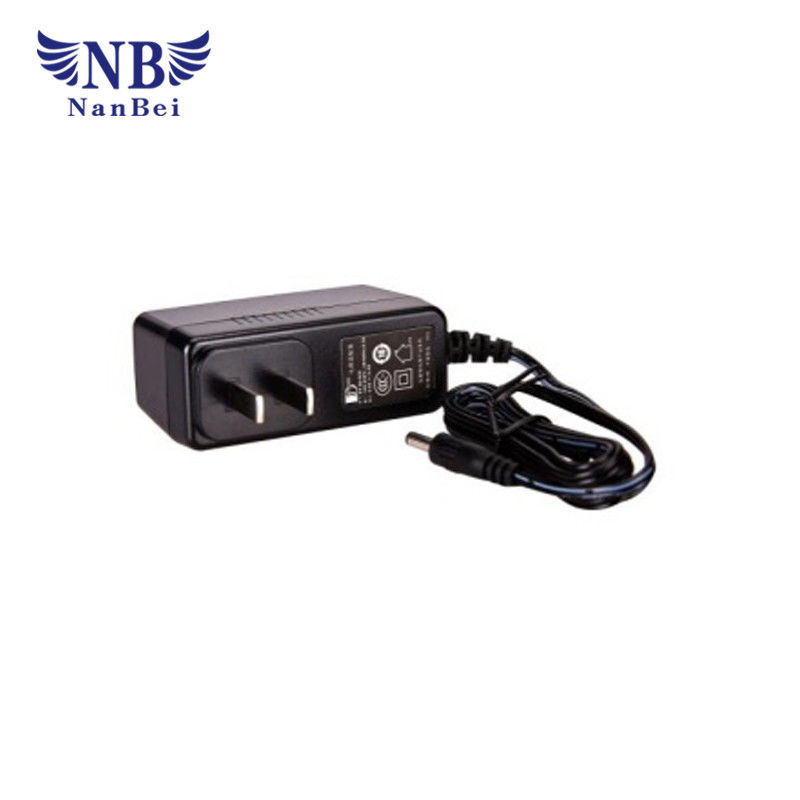

Power Four AA1.5V Alkaline battery or nickel-metal hydride batteries; Exclusive DC5V adapter

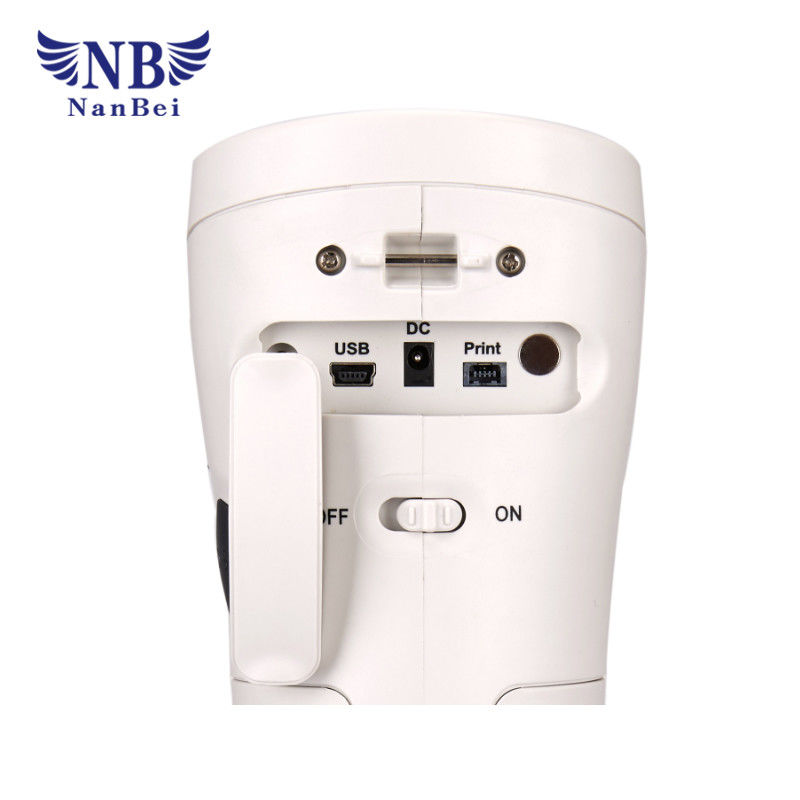

Port USB2.0 printer
Weight 550g
Size 77×86×210mm
