Transmitted Liquid Spectrophotometer For Liquid Transmittance / Chrominance

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBc
Minimum Order Quantity: 1set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Size Of Integrating Sphere: Φ40mm,Alvan Diffused Reflection Surface Coating Wavelength Range: 400-700nm
Wavelength Interval: 10nm Half Spectral Width: 5nm
Reflectivity Range: 0-200% Reflectivity Resolution: 0.01%
Observation Angle: 2°/10°
High Light:

chemical analysis machine

,

chemical analysis instrument


Product Description

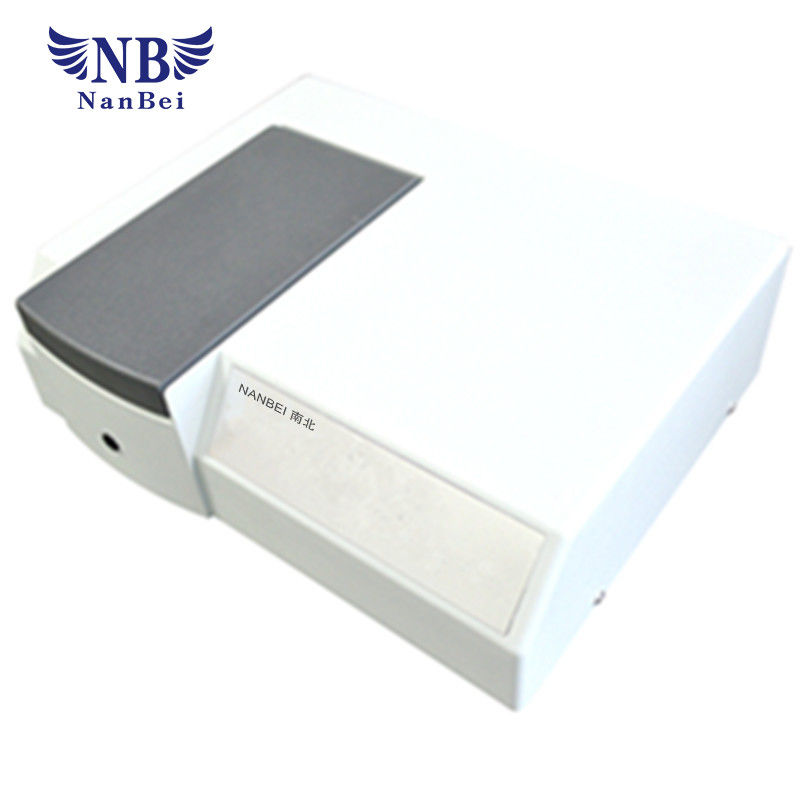

Transmitted Liquid Spectrophotometer For Liquid Transmittance / Chrominance





Brief introduction :

NBCS-810 Transmitted liquid Spectrophotometer is good performance and specially designed for testing the liquid transmittance, absorbance, concentration, chrominance and other parameters. The instrument adopts the measurement structure of D/0, integration of the full band LED composite light source, double beam optical system, ETC every-time calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value : △E*ab 0.015. Features of Tabletop Spectrophotometer:

1. D Structure

Our device adopts internationally agreed observe condition D/8 (Diffused lighting, 8

degrees observe angle) and SCI(specular reflection included)/SCE(specular reflection excluded).

2. It is suitable for testing the glass and liquid color

3. Adopt UV enhanced silicon photodiode

Expend the transmittance from 0~100% to 0~200%

4. Pt-Co and Gardner Index- Liquid Yellow Degree Characteristics

The unit of Pt-Co is Hazen to show the result. Every liter liquid contains 1mg Platinum with chloroplatinic acid and 2mg cobalt chloride hexahydrate is called one Hazen. Normally, the data is between 1-500. It is suitable for testing transparent liquid or brown liquid whose color similar to one unit Pt-Co calm chroma.

Gardner Color Code: Mix the cobalt chloride solution, ferric trichloride solution, potassium chloroplatinate solution in different proportion, we will get the standard color Chroma. Normally, the data is between 1-18. It is suitable for the liquid whose color is darker than Pt-Co color.

American Public Health Association (APHA): use K2PtCl6 mix with hydrochloric acid to make the standard color chroma and normally the data is between 1-500 which is same as Hazen.



5. Matching color analysis software

Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.

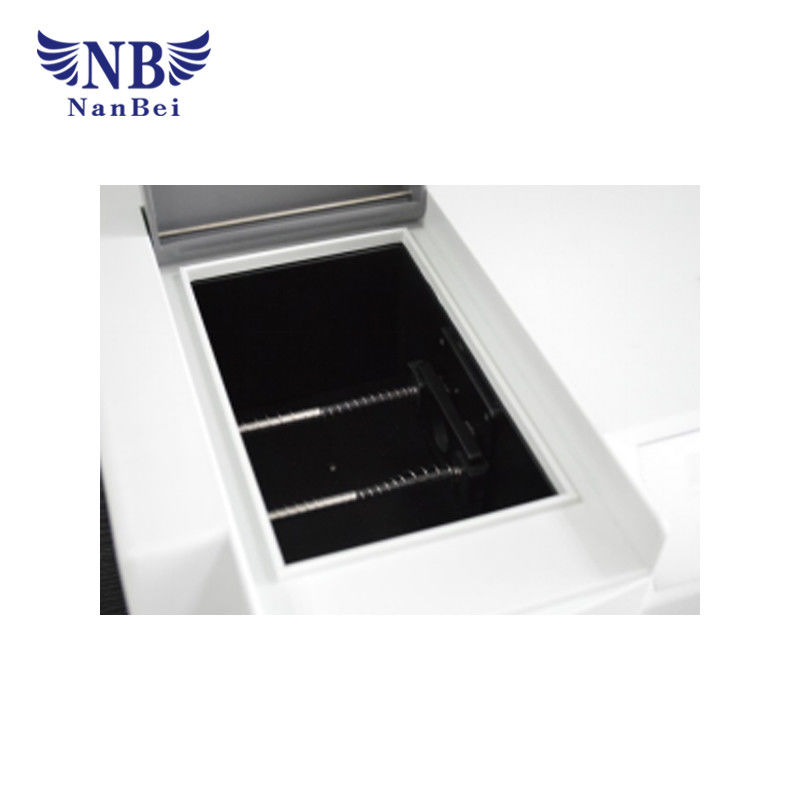

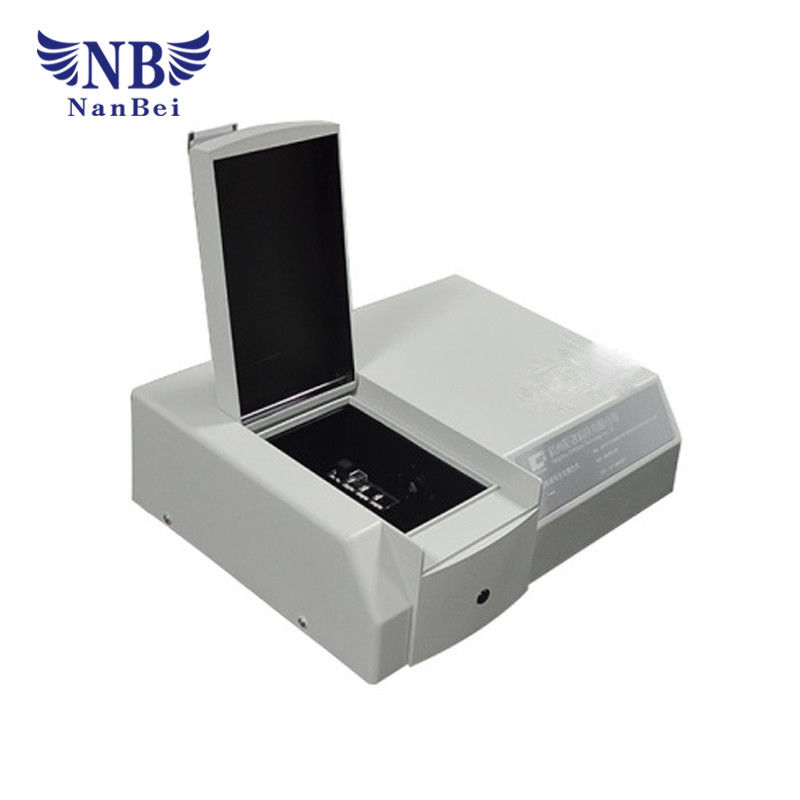

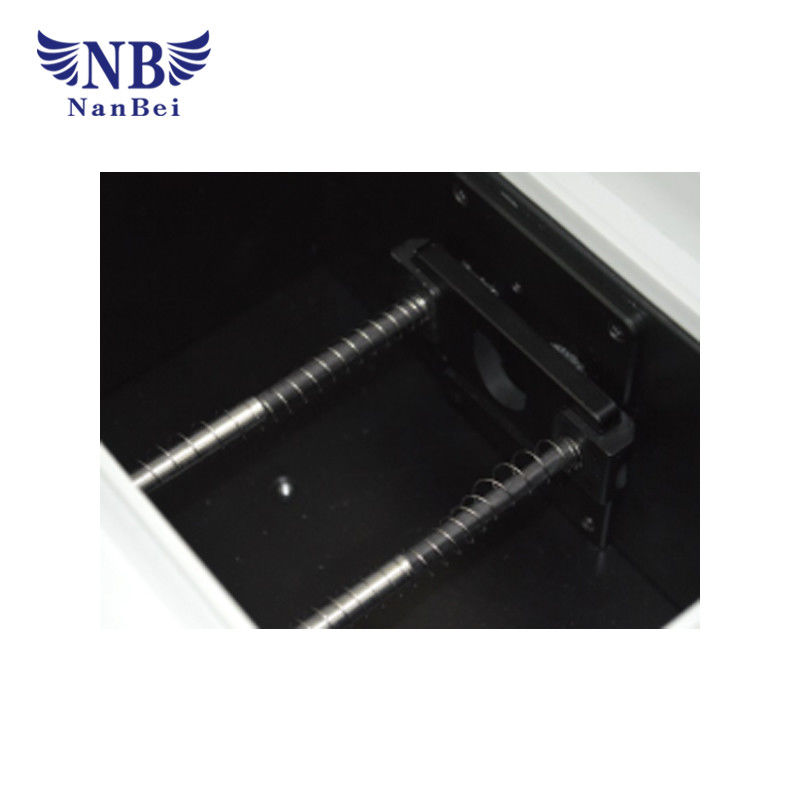

Transmitted Liquid Spectrophotometer For Liquid Transmittance / Chrominance 0Transmitted Liquid Spectrophotometer For Liquid Transmittance / Chrominance 1

Type NBCS-810
Illumination d/0(Diffused illumination, 0°viewing)
SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere Φ40mm,Alvan diffused reflection surface coating
Illumination Light source CLEDs(entire wavelength balanced LED light source)
Sensor dual light path sensor array
Wavelength range 400-700nm
Wavelength interval 10nm
Half spectral width 5nm
Reflectivity range 0-200%
Reflectivity resolution 0.01%
Observation angle 2°/10°
Measurement light source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

CWF,U30,DLF,NBF,TL83,TL84

Data being displayed Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports
Measurement time interval 2 seconds
Measurement time 0.5 seconds
Color space CIE-L*a*b,L*C*h,CIE-L*u*v, XYZ, Yxy, Transmittance, Hunterlab, Munsell MI, CMYK
Color difference formulas

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00

ΔEab(Hunter),555color classification

Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),

YI(ASTM D1925,ASTM E313-00,ASTM E313-73),

Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA, Pt-Co, Gardner

Repeatability light splitting reflectivity: standard deviation within 0.08%
color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum:0.03)
Interface USB
Data storage mass storage
Light source longevity 5 years, 1.5 million tests
Size 475*340*150mm(L*W*H)
Weight about 7kg
Work temperature range 0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range 25℃ to 55℃,relative humidity 80% or below(at 35°C ), no condensation

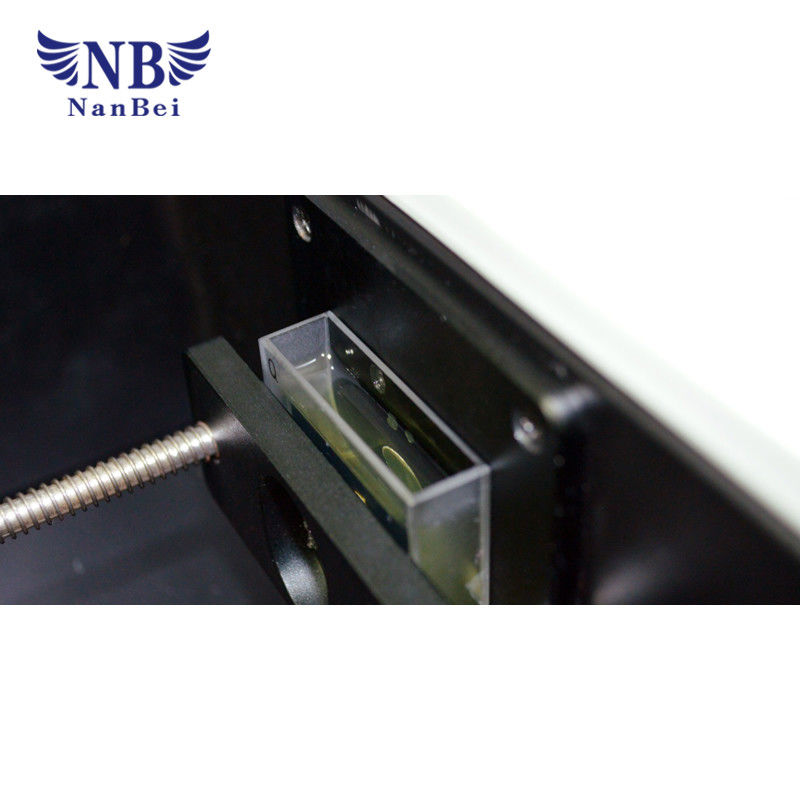

Standard accessories AC power line, color management software, drive software, USB cable, black calibration tube, 40*10mm cuvette
