Bench Top Chemical Analysis Equipment High Accuracy And Good Replicability

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBCS-820
Minimum Order Quantity: 1set
Price: USD10500-USD11306/set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Product Name: Tabletop Spectrophotometer Sensor: Dual Light Path Sensor Array
Wavelength Range: 400-700nm Wavelength Interval: 10nm
Half Spectral Width: 5nm Reflectivity Range: 0-200%
Reflectivity Resolution: 0.01% Observation Angle: 2degree;/10degree;
Measurement Time Interval: 2 Seconds
High Light:

chemical analysis machine

,

chemical analysis instrument


Product Description

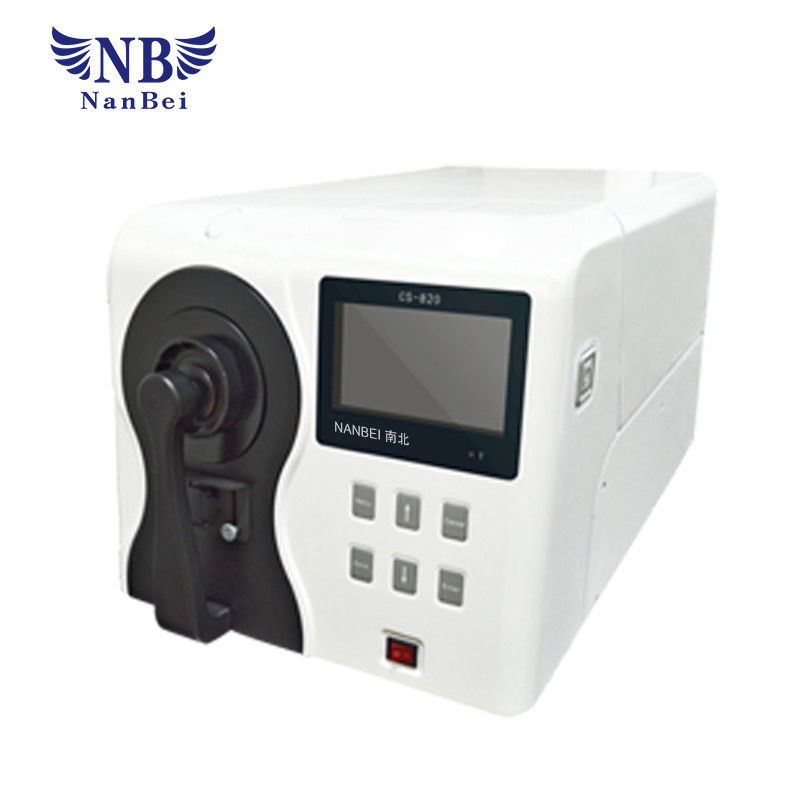

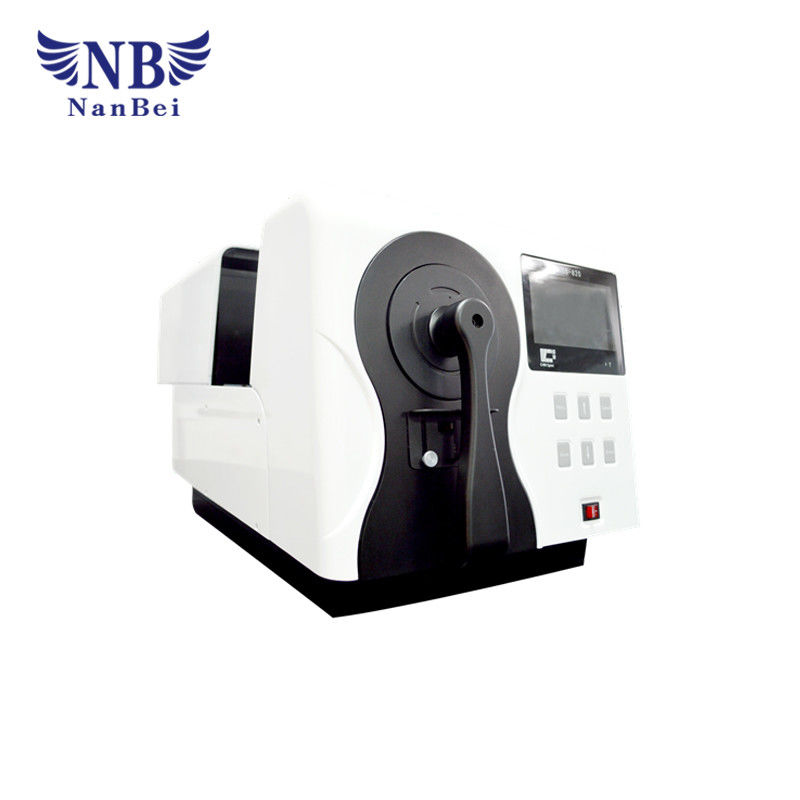

Bench Top Chemical Analysis Equipment High Accuracy And Good Replicability





Brief introduction Of Bench top spectrophotometer :

Bench top spectrophotometer NBCS-820 has the advantage of excellent inter-instrument agreement, high accuracy and good replicability. It could meet your requirement for both color quality control and color matching very easily.





Features of Bench top spectrophotometer:

1. Transmission D/0 Structure and Reflection D/8 Structure

2. Double Optical Paths Spectral Analysis Technology

It could get the measurement sample data and internal environment data at the same time to make sure the testing accuracy and stability for long time running.



3. Compatible with SCI/SCE Measurement

Adopt D/8 illuminant condition recommended by the CIE to meet the color testing requirement for different industries. It could measure with SCI and SCE to see the color data change more clearly.



4. Four Testing Calibers

It is easy to adjust the testing calibers. The largest caliber diameter reaches 25.4mm. It could test the sample with different sizes. NBCS-820 is not only suitable for testing the color of opacity sample, but also suitable for transparent or translucent sample’s transmittance and turbidity.



5. Large screen display and Stand-alone operation

It could finish the sample test without connecting with the computer. Large screen display to make sure customer could see the testing result directly and clearly and it will be more convenient to set the instrument status. The color quality management software and color match software are optional according to customer’s need.

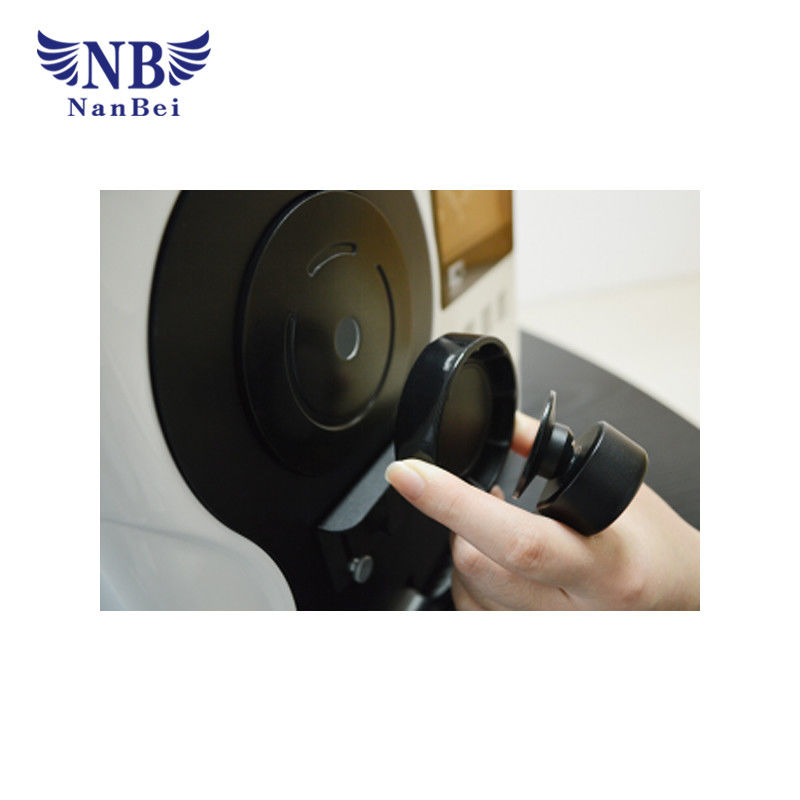

6. Unique Calibration Board Design

Fix the calibration board on the testing caliber to make sure the accuracy of the white calibration and guarantee the high accuracy for measurement.

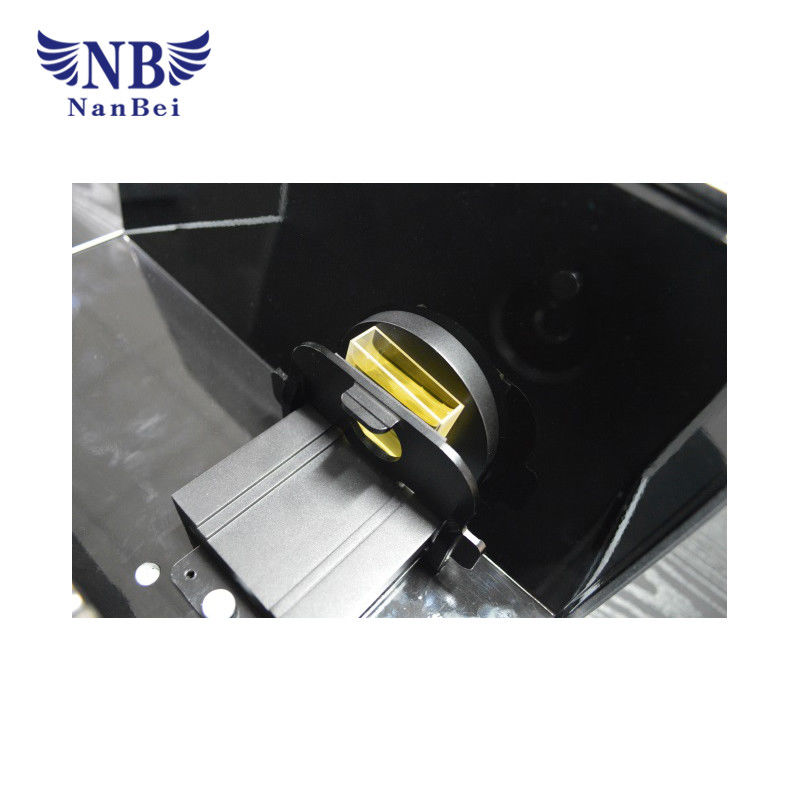

7. Flexible Test Fixture

It could fix the sample with different size and thickness on the testing port tightly in case of stray light entering to affect the testing accuracy.



Bench Top Chemical Analysis Equipment High Accuracy And Good Replicability 0

Type NBCS-820
Measurement Condition

Reflection: d/8(Diffused lighting, 8 degrees receiving)

Compatible with SCI/SCE Measurement ISO7724/1,DIN5033 Teil7,JIS Z8722 condition C,CIE No.15,ASTM E1164)

Transmission d/0(Diffused lighting, Vertical direction receiving)

Size of integrating sphere Φ15.2cm, Alvan diffused reflection surface coating
Illumination Light source CLEDs(entire wavelength balanced LED light source)
Sensor dual light path sensor array
Wavelength range 400-700nm
Wavelength interval 10nm
Half spectral width 5nm
Reflectivity range 0-200%
Reflectivity resolution 0.01%
Observation angle 2°/10°
Measurement light source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

CWF,U30,DLF,NBF,TL83,TL84

Data being displayed SPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, history data color simulation, manual input standard sample, generate measurement report
Measurement time interval 2 seconds
Reflection Aperture Large Aperture (LAV):2.54cm (=1inch)
Medium Aperture (MAV):1.5cm(=0.6inch)
Small Aperture (SAV):0.75cmx1.0cm(0.3inch x 0.4inch)
Very Small Aperture (VSAV):0.3cmx0.8cm(0.12inch x 0.31inch)
Color space CIE-L*a*b,L*C*h,CIE-L*u*v,XYZ,Yxy,Transmittance, Hunterlab, Munsell MI,CMYK, RGB,HSB
Color difference formulas

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00

ΔEab(Hunter),555color classification

Other colorimetric indices WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA, Pt-Co, Gardner
Repeatability light splitting reflectivity: standard deviation within 0.08%
color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum:0.03)
Interface USB
Data storage mass storage
Light source longevity 5 years, 1.5 million tests
Size 583*330*304mm(L*W*H)
Work temperature range 15℃-32℃ (60°F-90°F)
Relative Humidity 0℃ to 45℃,relative humidity 80% or below(at 35°C ), no condensation
Standard accessories AC power line, color management software, drive software, USB cable, black/white calibration tube, 40*10 cuvette, cuvette support, testing report
Optional 40x40 cuvette
