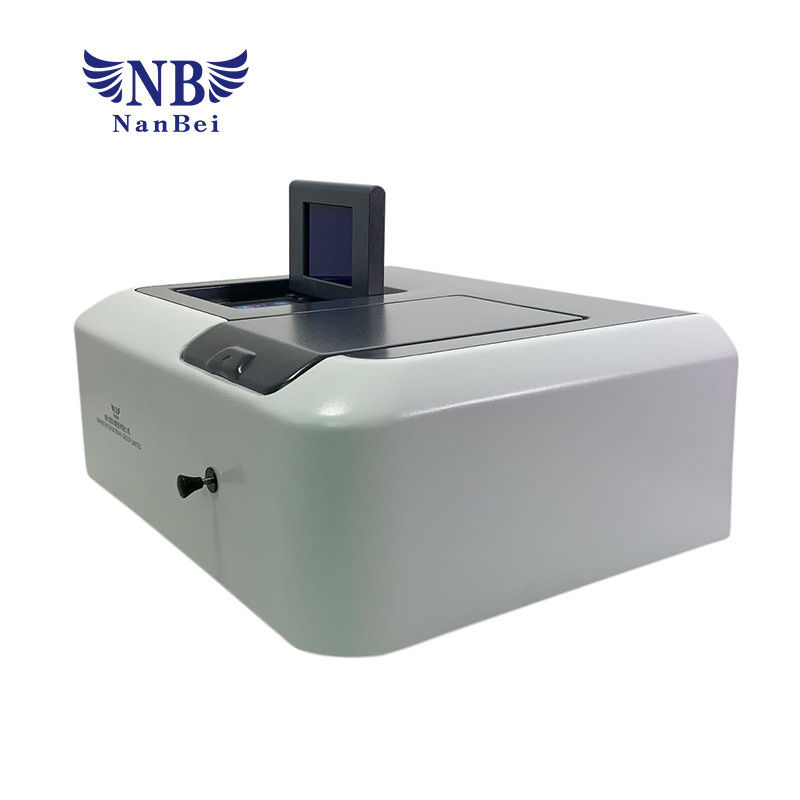

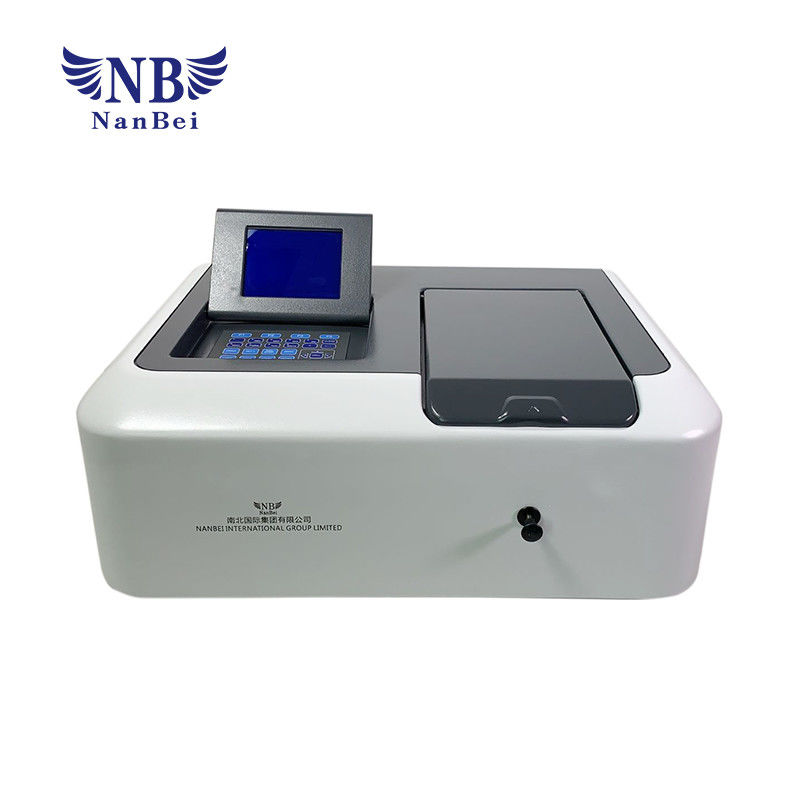

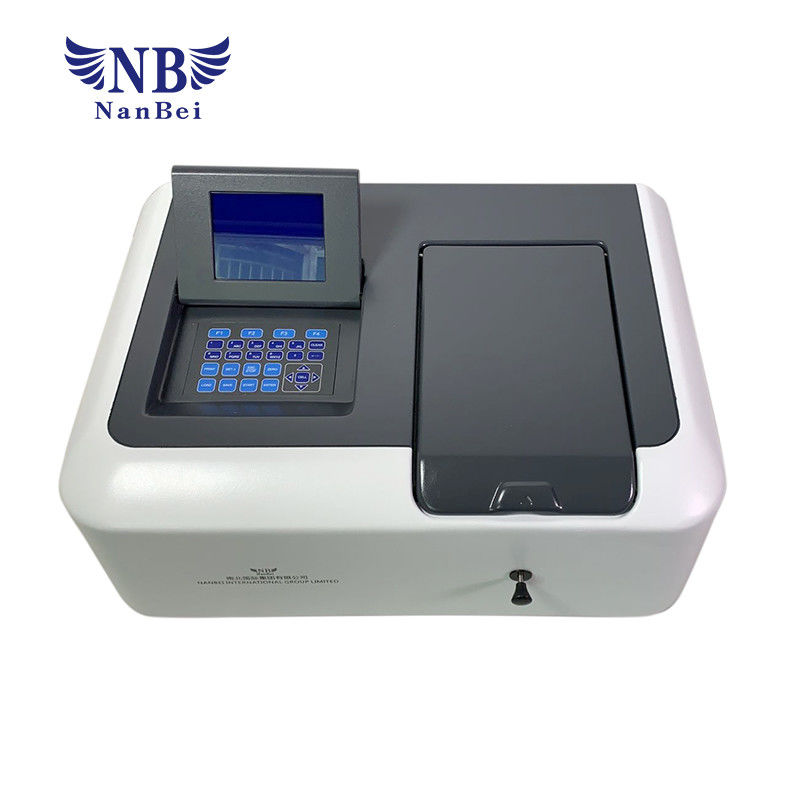

190～1100nm Double Beam UV Vis Spectrophotometer with PC Analysis Software
Characteristics of UV Vis Spectrophotometer
Good stability: The integrated structure design (8mm heat-treated aluminum alloy base) ensures long-term reliability and stability of the instrument.
● High Accuracy: Using grating micrometer level precision screw drive to ensure the accuracy of wavelength ＜±0.5nm；Transmittance of accuracy reaches ±0.3%.
● Convenience for use: 5.7 inch graphic LCD display. Spectrum curve be clear at a glance and easy to operate. There is quantitative analysis,qualitative analysis, kinetics test, DNA/RNA, multi- wavelength analysis in special purpose testing program.
● Service life durable: Imported Halogen lamp ensures the light source for up two years of life, receiver life for 20 years.
●Wide application fields: Autosampler, micro cell holder,Optional Equipped with Peltier/sipper unit, with Micro cell holder, with (5°incident angle) Reflectance measurement attachment etc. expands the application areas of more.
Function of products
●Photometric measurement: Convenience to measure samples in the specified wavelength absorbance and transmittance. Multi-wavelength detector is maximum simultaneous determination of 10 wavelengths.
●Quantitative measurement: Establish automatically standard curve, first- order first after we order the third order curve fitting. Optional method: Single wavelength calibration,Double wavelength calibration,Three point method,
●Qualitative measurement: Including scaling, smoothing, filtering, detecting peak-valley etc.
●Kinetics measurement: Calculate kinetics of enzyme reaction rate. There are scaling, smoothing, filtering, detecting peak-valley and finding the derivative in a variety of graph processing methods for your choice.
●DNA/RNA,Test function of protein calculates automatically the sample ratio and concentration.
Technical Data of UV Vis Spectrophotometer
| Model |
NU-T6PC |
| Optical System |
Single, Littrow,Grating 1200 line/mm |
| Wavelength Range |
190～1100nm |
| Spectral Bandwidth |
4nm |
| Wavelength Accuracy |
±0.5nm |
| Wavelength Repeatability |
±0.2nm |
| Photometric Accuracy |
±0.3%T；±0.002Abs(0~0.5Abs)；±0.004(0.5-1.0Abs)； |
| Photometric Repeatability |
±0.1%T；±0.001Abs(0~0.5Abs)；±0.002(0.5-1.0Abs)； |
| Stray Light |
≤0.05%T, @220nm/360nm |
| Noise Level |
±0.002Abs |
| Stability |
±0.002A/h@500nm |
| Baseline Flatness |
±0.002Abs |
| Baseline Dark Noise |
0.1%T |
| Photometric Range |
0～200℅T,-4～4A,0～9999C(0-9999F) |
| Light Source |
Tungsten＆Deuterium Lamp(Pre-aligned) |
| Scan Speed |
Hi,MED.,LOW.,MAX.3600nm/min |
| Display |
320×240 Dots Array Graphic LCD |
| System Language |
English |
| Output |
USB1.1 Connecting to computer＆Parallel port for printer |
| Power Requirement |
AC90～250V/ 50～60Hz
|
| Dimensions(L×W×H)(mm) |
550×400×210 |
| Weight |
23kg |

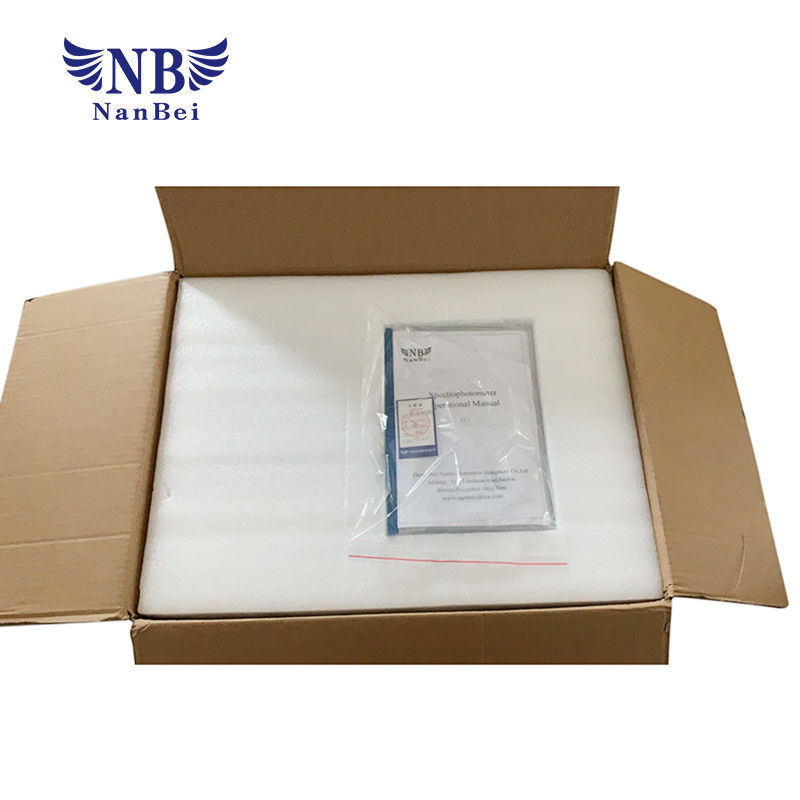

Packing List of UV Vis Spectrophotometer
| Description |
Quantity |
| Spectrophotometer |
1 |
| Mains Lead |
1 |
| Cuvettes |
4 Sets glass 2 Sets quartz |
| Computer advanced application software |
1 |
| Software manual |
1 |
| Dongle |
1 |
| Dust Cover |
1 |
| Manual |
1 |
