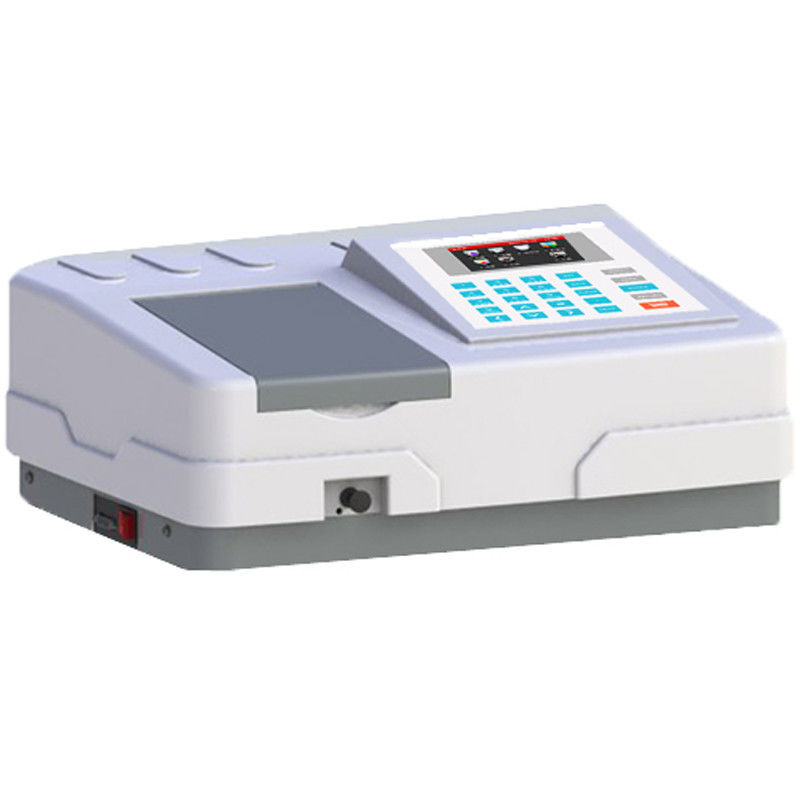

Double Beam, Grating 1200 lines/mm uv vis spectrophotometer with double beam analyzing

Brief introduction of A560:

Features:

●Large LCD screen(800*480 Dots) with 65 thousand true color and support U disk data saving

●Imported & Environmental Deuterium lamp, preventing from Ozone inhalation

● Data output: Data can be exported to U disk (USB Output)

● Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)

● Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light

●With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off protection

●With Si02 coating optical mirror, reducing the pollution from outside fully

Specifications:

Optical System Double Beam, Grating 1200 lines/mm

Wavelength Range 190-1100nm

Spectral Bandwidth 1nm,2nm

Wavelength Accuracy ± 0.3nm

Wavelength Repeatability ≤ 0.2nm

Photometric Accuracy ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.3% T (0-100% T)

Photometric Repeatability 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤ 0.1% T (0-100% T)

Stray Light ≤ 0.04% T @ 360nm; 220nm

Stability ±0.0003A / h @ 500nm

Baseline Flatness ± 0.0005A

Noise ± 0.0002Abs

Display 65 thousand true color 8 inch TFT LCD(480 *800)

Photometric Mode T, A, C, E

Photometric Range 0-200% T,-0.301-3.0A

Detector Silicon Photodiode

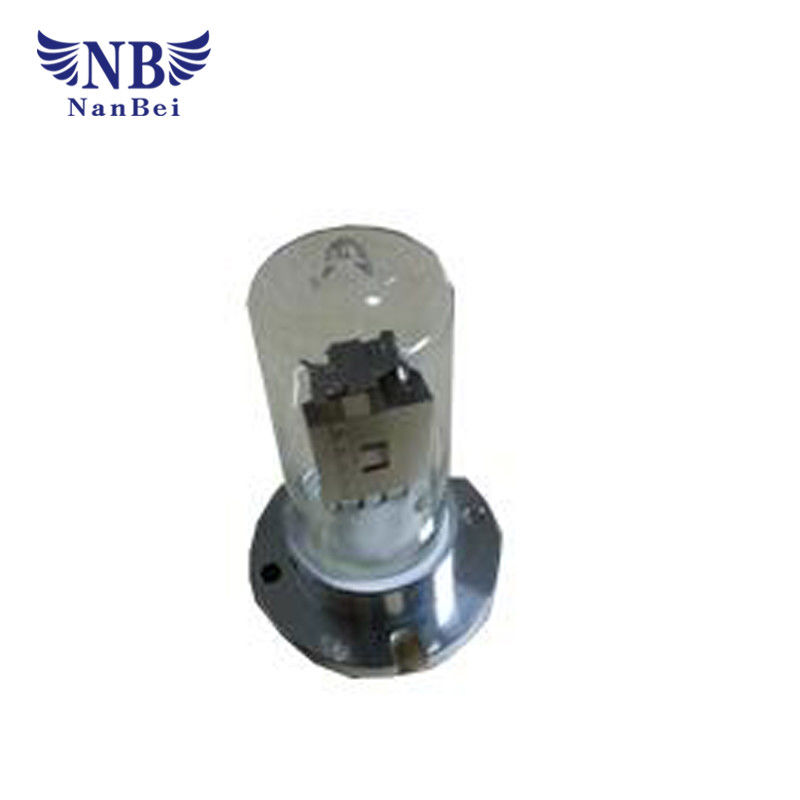

Light Source Deuterium Lamp, Tungsten Lamp

Input Membrane Keypad

Output USB2.0*2 Print and data output USB1.0 Connect PC

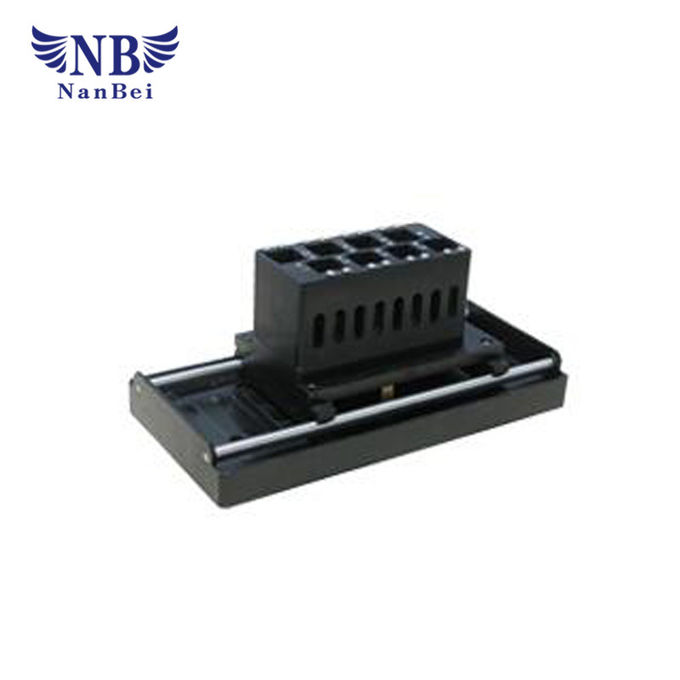

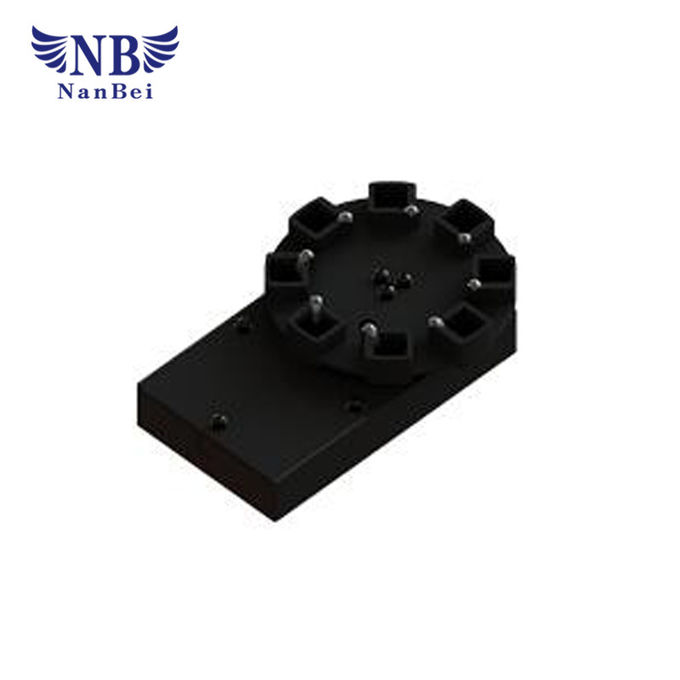

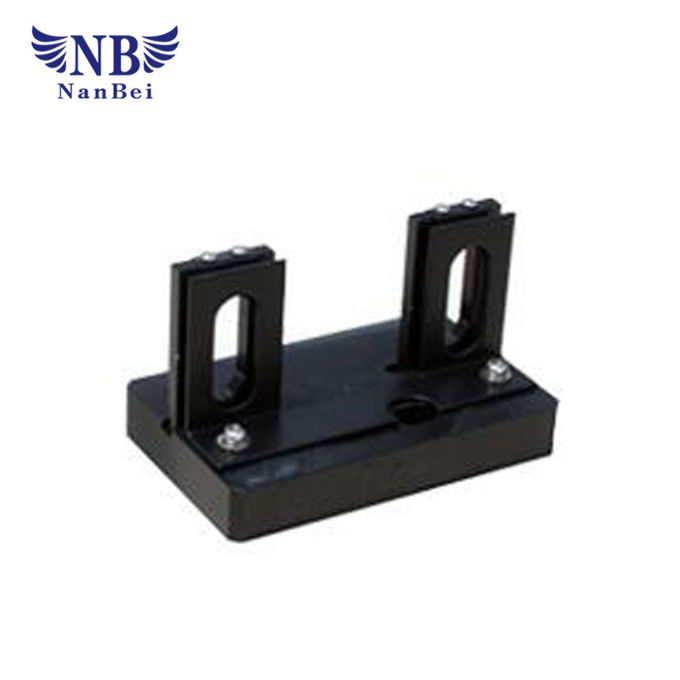

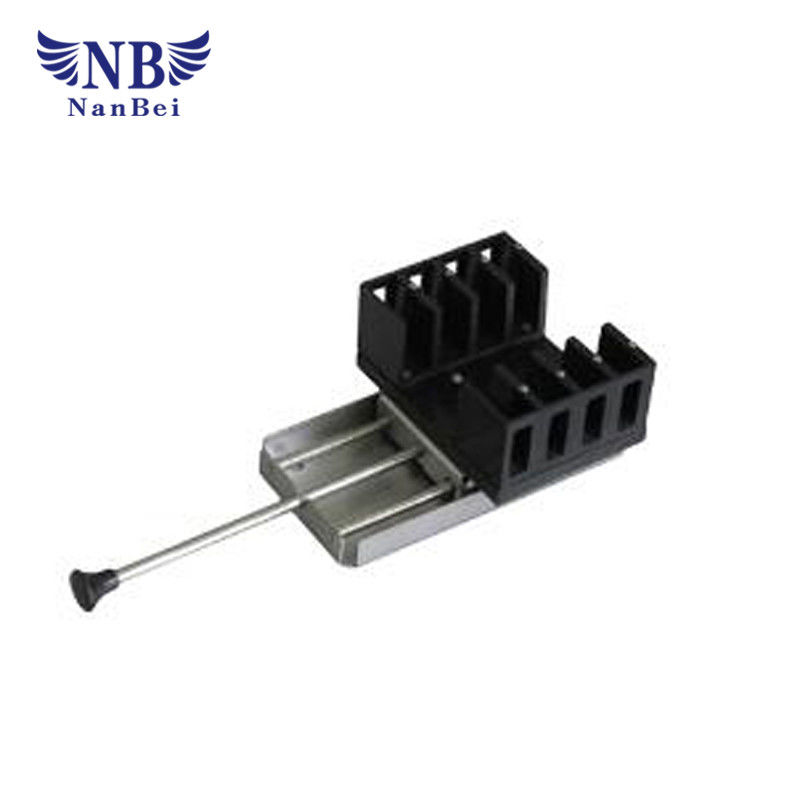

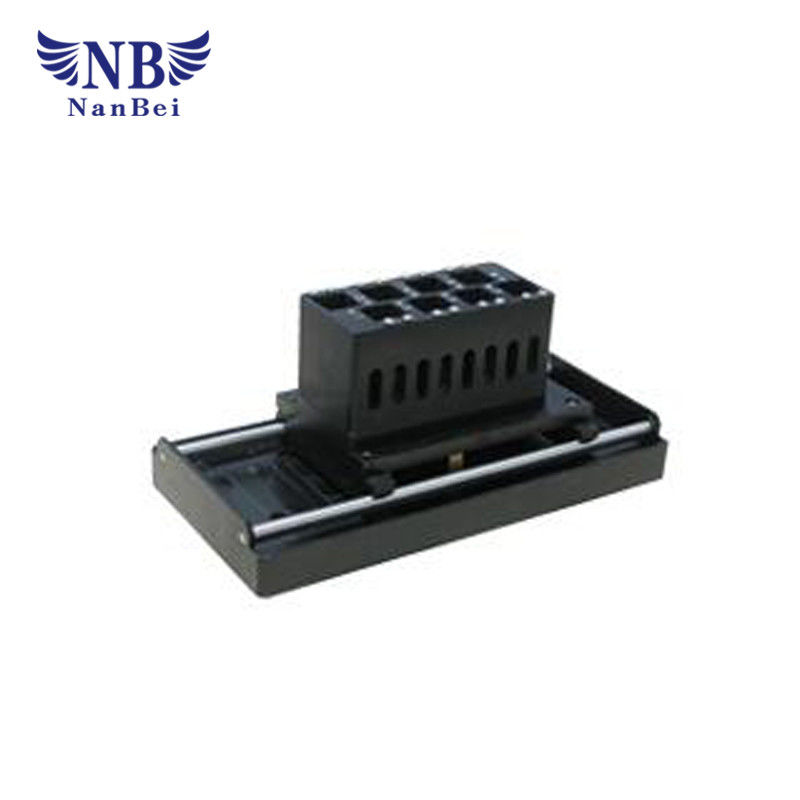

Compartment Optional 8 Auto Cell holder, Solid Sample Holder, Micro Cell Holder, 10-100mm Cell Holder
