Chemical Analysis Equipment - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NV-T5

Minimum Order Quantity:	1/set
Price:	1012usd
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500set/day

Detail Information

Model:	NV-T5	Name:	UV VIS Spectrophotometer
Wavelength Range & Spectral Bandwidth:	320～1100nm 4nm	MOQ:	1 Set
Optical System:	Single, Grating 1200 Lines/mm	Wavelength Accuracy:	±0.8nm
Wavelength Repeatability:	±0.2nm	Photometric Accuracy:	±0.3%T；±0.002Abs（0~0.5Abs）；±0.004（0.5-1.0Abs）
High Light:	1100nm UV VIS Spectrophotometer , 320nm UV VIS Spectrophotometer , 1100nm double beam spectrophotometer

Product Description

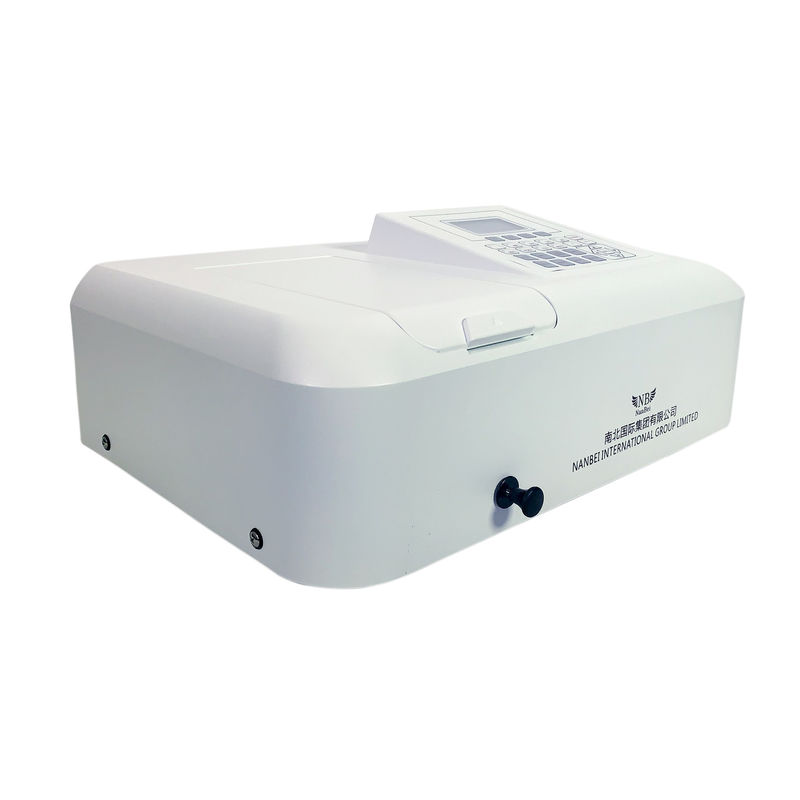

320-1100nm 4nm Wavelength Range UV Vis Spectrophotometer

RODUCT DETAILS FOR UV/VIS SPECTROPHOTOMETER NV-T5

Characteristics of Products

●High stability: Optimize the structure of the optical system and integrated aluminum alloy base structure, to ensure long-term stability and reliability of the instrument

●Intelligent degree is high: Dual CPU embedded system hardware design of super reliable,128*64 LCD display, rich instruction, without reading the manual, is simple and convenient to use; custom wavelength correction and automatic wavelength calibration function, replacing the artificial adjustment link; light source using time automatic accumulation, convenient view to understand, light source switch menu can be in the instrument does not use circumstances to choose to close, prolong the equipment service life.

●Menu functions: Photometric measurement model, quantitative analysis, qualitative analysis, dynamic test, multi wavelength test.

●Data processing is convenient: can store up to 1000 groups of experimental data, optional built-in and external printer output, or optional NANBEI spectrum analysis software package and connected to the computer, to achieve more data processing and analysis functions.

Model	NV-T5	NV-T5A	NV-T5AP
Optical System	Single, Grating 1200 lines/mm		Dual detector ratio detection
Wavelength Range	320～1100nm
Spectral Bandwidth	4nm	2nm	2nm
Wavelength Accuracy	±0.8nm		±0.5nm
Wavelength Repeatability	±0.2nm		±0.2nm
Photometric Accuracy	±0.3%T；±0.002Abs(0~0.5Abs)；±0.004(0.5-1.0Abs)；
Photometric Repeatability	±0.1%T；±0.001Abs(0~0.5Abs)；±0.002(0.5-1.0Abs)；
Stray Light	≤0.05%T, @220nm/360nm	≤0.05%T, @360nm
Noise Level	±0.002Abs
Stability	±0.002A/h@500nm
Photometric Range	0～200℅T,-0.301～3A,0～9999C(0-9999F)
Light Source	Tungsten＆Deuterium Lamp(Pre-aligned)
Display	128×64 Dots Array Graphic LCD
System Language	English
Output	USB U DISK
Power Requirement	AC90～250V/ 50～60Hz
Dimensions(L×W×H)	550×400×220
Weight	16kg

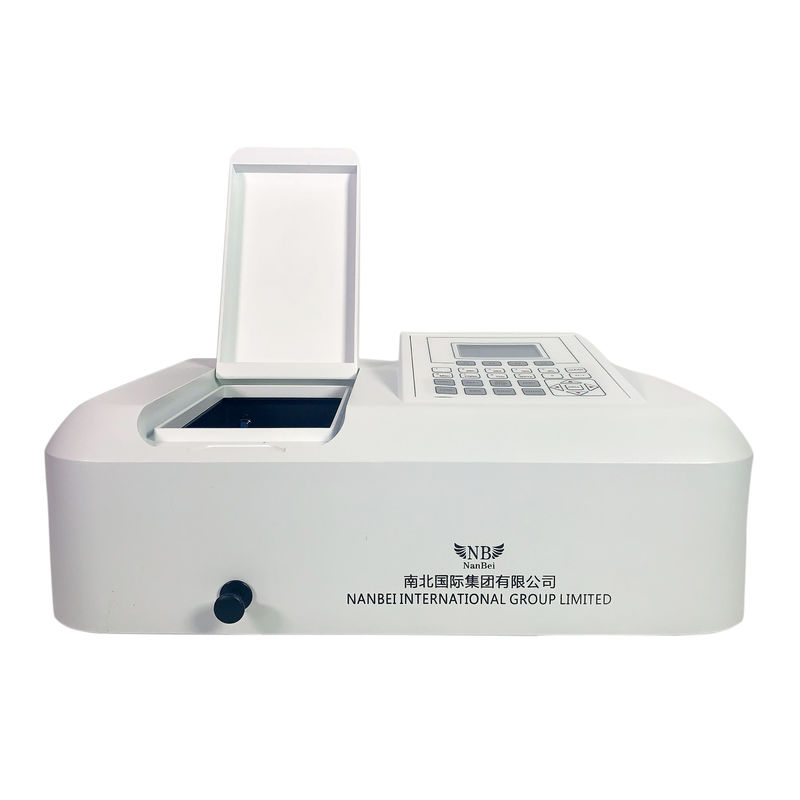

Single Double Beam 320nm 1100nm UV VIS Spectrophotometer 0

Function of products

●Photometric measurement: to facilitate the measurement of the absorbance, transmittance, concentration of the sample at a specified wavelength.

●Automatic quantitative measurement: to establish the standard curve, a first-order, zero order / two order and three order curve fitting, a variety of optional quantitative analysis standard curve method can store and call.

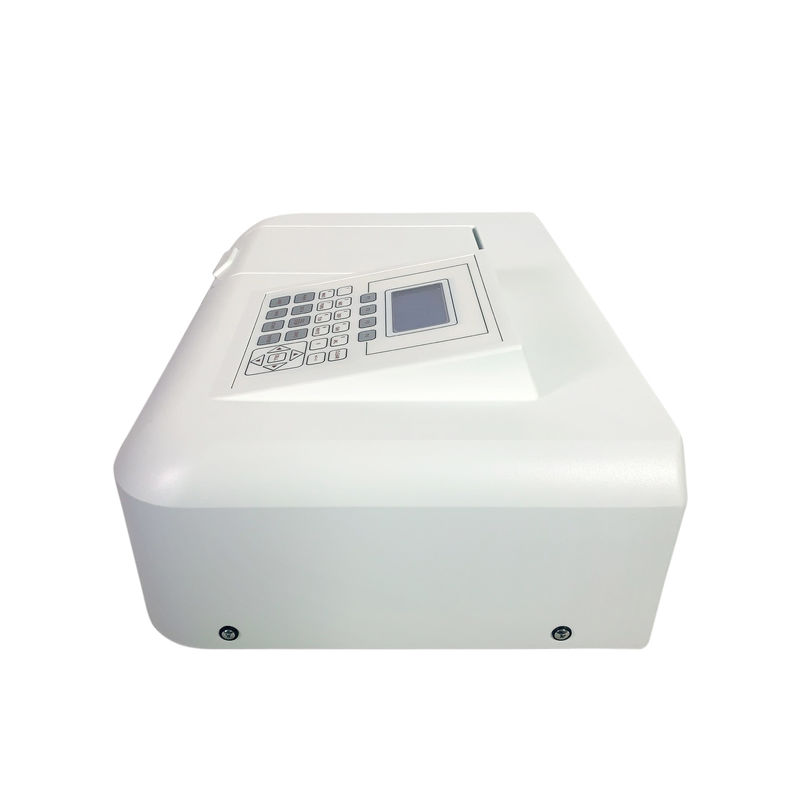

Single Double Beam 320nm 1100nm UV VIS Spectrophotometer 1

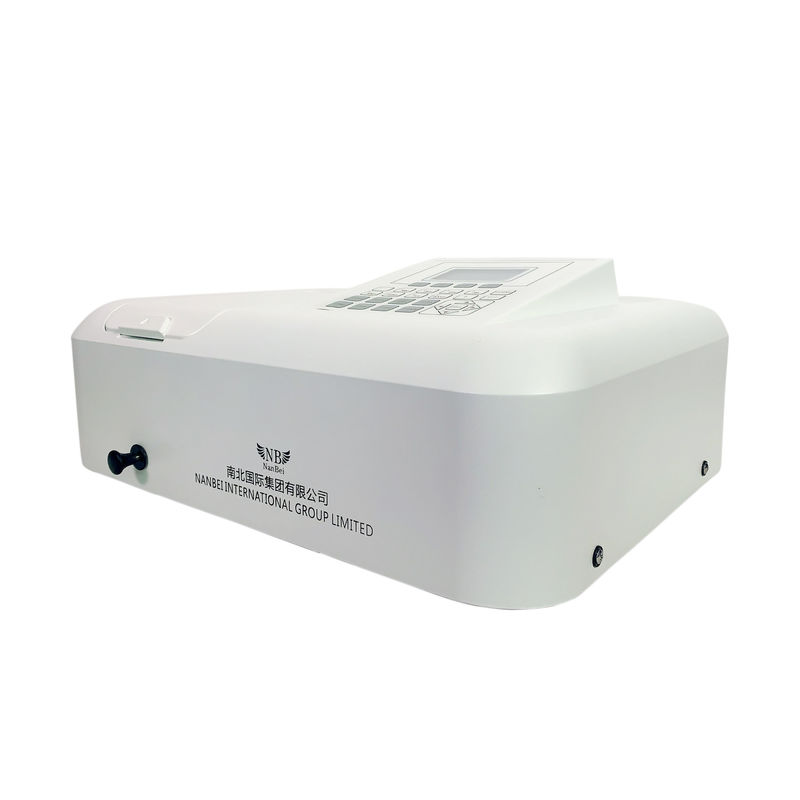

Standard Accessories: Single Double Beam 320nm 1100nm UV VIS Spectrophotometer 2

User manual	1piece
Power cable	1piece
1 cm 4 slot manual cuvette holder	2piece
1 cm standard quartz cuvette	1set (2pieces)
1 cm standard glass cuvette	1set (4pieces)
Dust cover	1 piece
Packinglist	1piece
