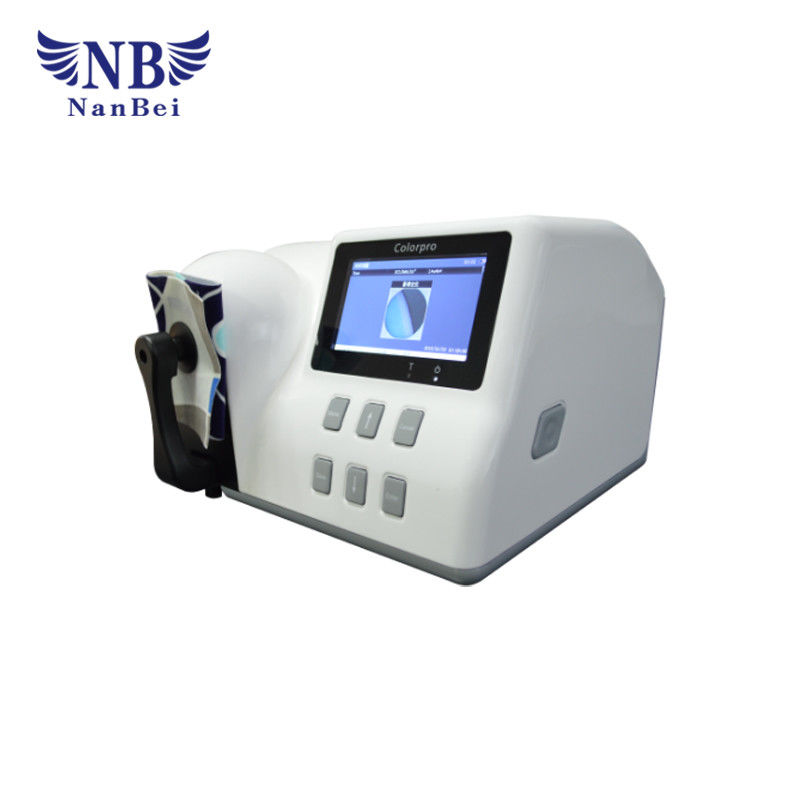

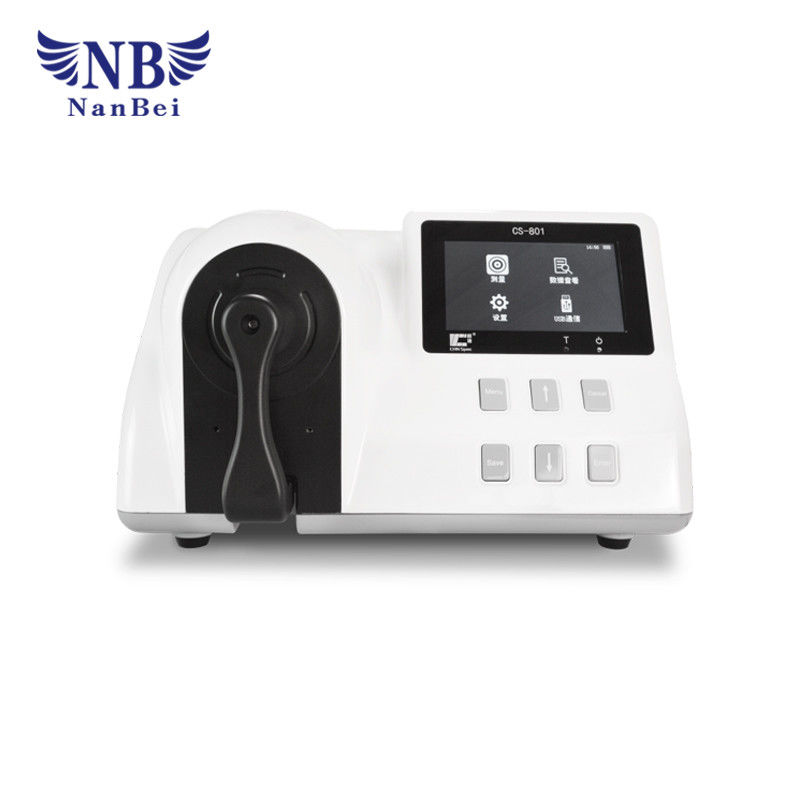

Tabletop Spectrophotometer 10nm Wavelength Interval With Test Caliber Sideward

Brief introduction of Tabletop Spectrophotometer:

CS-801 is a high performance spectrophotometer with test caliber sideward. The instrument adopts the geometric conditions of D/8 lighting and observation of CIE recommendations, integration of the full band LED composite light source, double beam optical system, ETC every-time calibration technology, spectral reflectance standard deviation within 0.08, maximum of colorimetric values ΔE*ab is 0.03, to provide all the necessary color formula. It could be widely used for coating, printing, textile, meet plastic, food, medicine, automobile field to meet customers' measurement requirement.

Features of Tabletop Spectrophotometer:

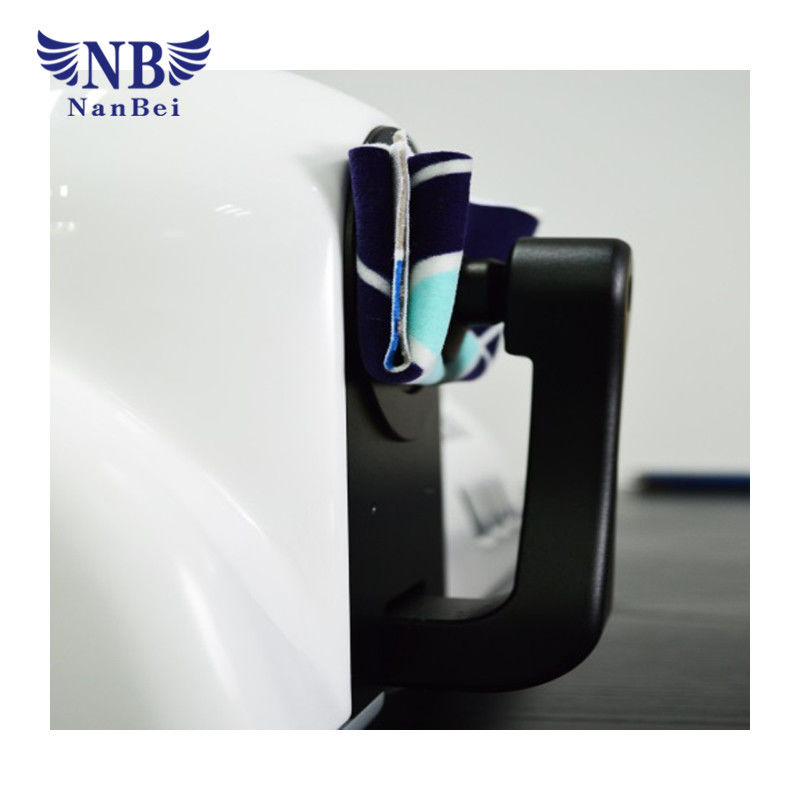

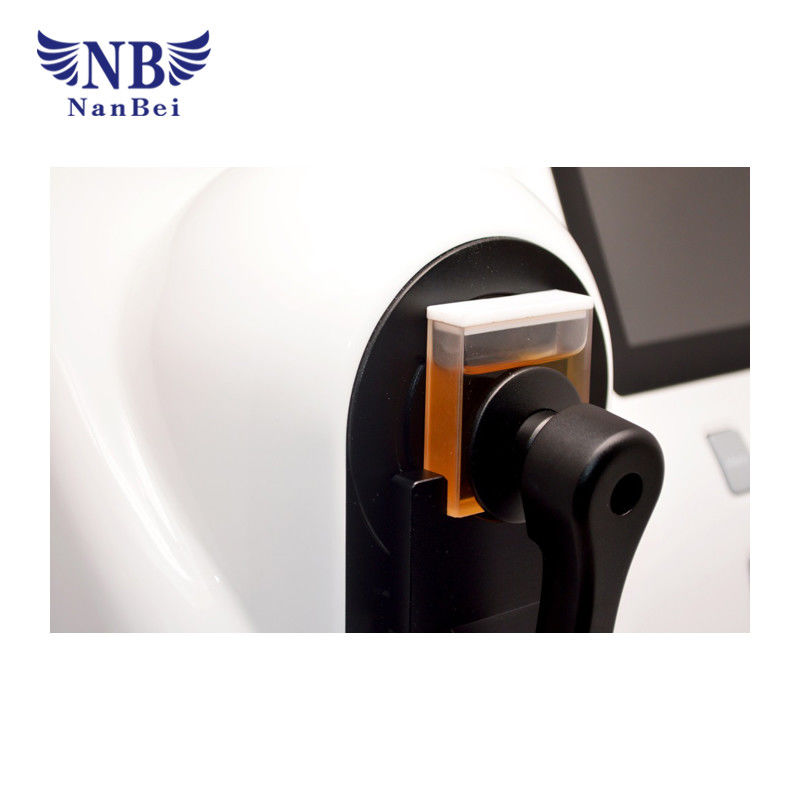

1. Its test caliber is in the sideward, it will be more convenient to fix the sample. Solid samples (steel, cloth) can be placed directly on the measurement port. Paste objects can be placed in a petri dish, and then placed in the measurement port. It is very suitable for powder material testing in case of material falling into the integrating sphere to affect the testing accuracy.

2. D8 Structure

Our device adopts internationally agreed observe condition D/8 (Diffused lighting, 8 degrees observe angle) and SCI(specular reflection included)/SCE(specular reflection excluded).

3. Can Measure SCI and SCE at the same time

4. ETC Technology (Every Test Calibration)

5. Color Analysis Software

Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.
