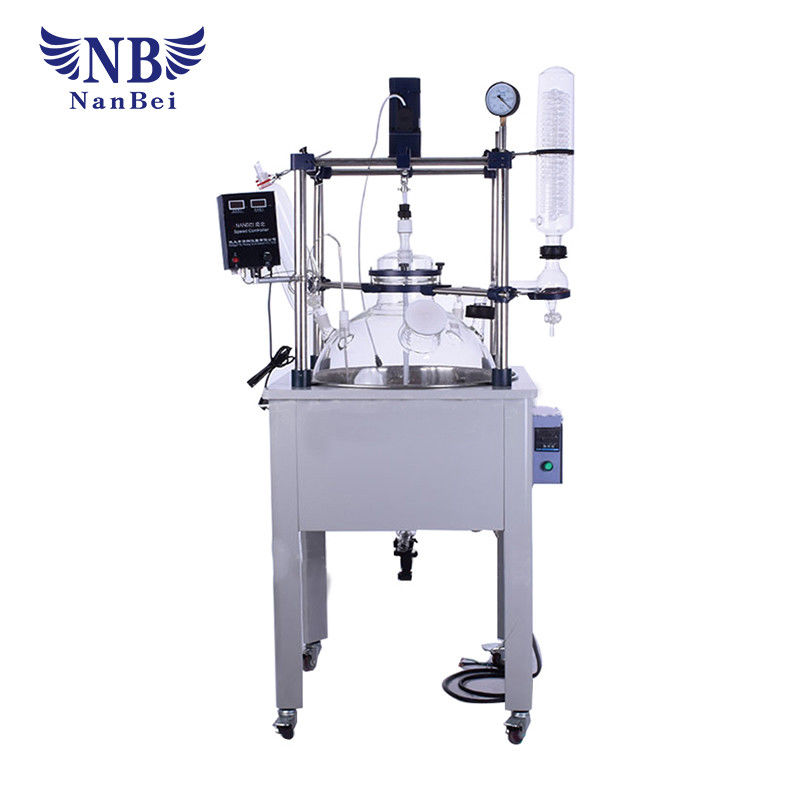

Chemical Vacuum Glass Reactor

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NFY-10L
Minimum Order Quantity: 1set
Packaging Details: 500 set/per day
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Name: Glass Reactor Glass Material: GG-17
Frame Material: 304 SUS Pipe Material: 304 SUS
Move Mode: Brake Type Universal Angle Wheel Reaction Bottle Volume: 10 Liters
Port Of Reaction Bottle: 4 Vacuum Degree: 0.098Mpa
Discharge Distance To Underground: 450mm Stiring Speed: 0-450rpm
High Light:

stirred tank reactor


lab chemical reactor

Product Description


Liquid Chemical Glass Reactor 304 SUS Frame Material 0.098Mpa Vacuum Degree

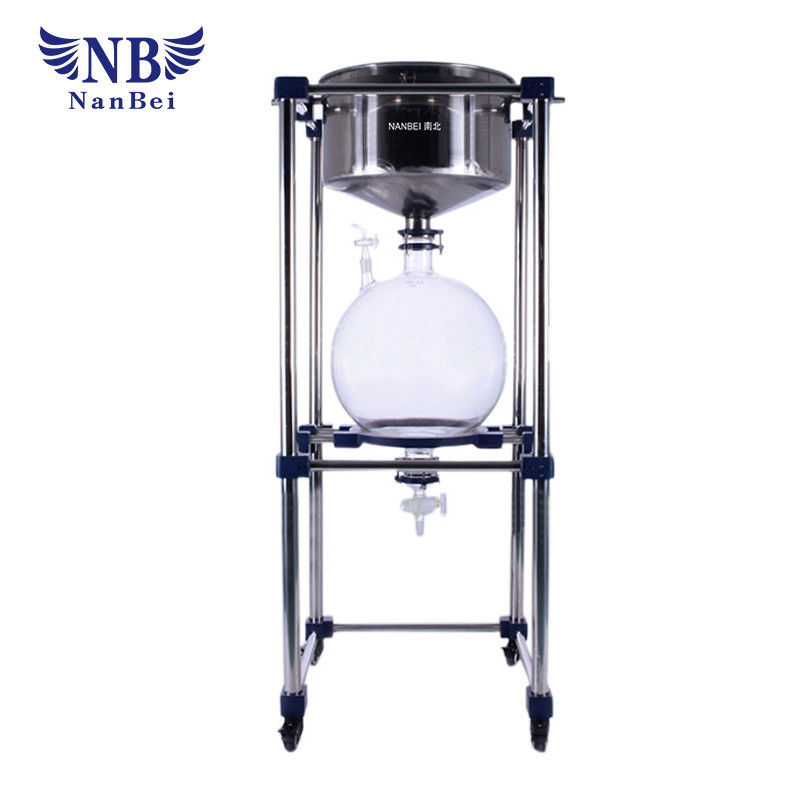

Liquid separator

The glass separator series products are mainly used for normal temperature reaction. The raw materials are uniformly stirred by the principle of constant speed stirring, so that the materials are fully reacted in the kettle body. After the reaction is completed, the stirring system is turned off. After the materials are clarified and layered, the glass is placed. The material valve is layered separately. And the contact parts with materials are all made of high borosilicate glass and polytetrafluoroethylene material with high temperature resistance and corrosion resistance. It is especially suitable for the reaction of biological products which are easy to decompose and degenerate. It is not easy to react with various materials, and it is not easy to react with various materials. Produce a chemical reaction.


The glass dispenser is conventionally 1-200 liters. It is available in a conventional spherical body and a cylindrical body. Various specifications can be customized according to customer requirements.

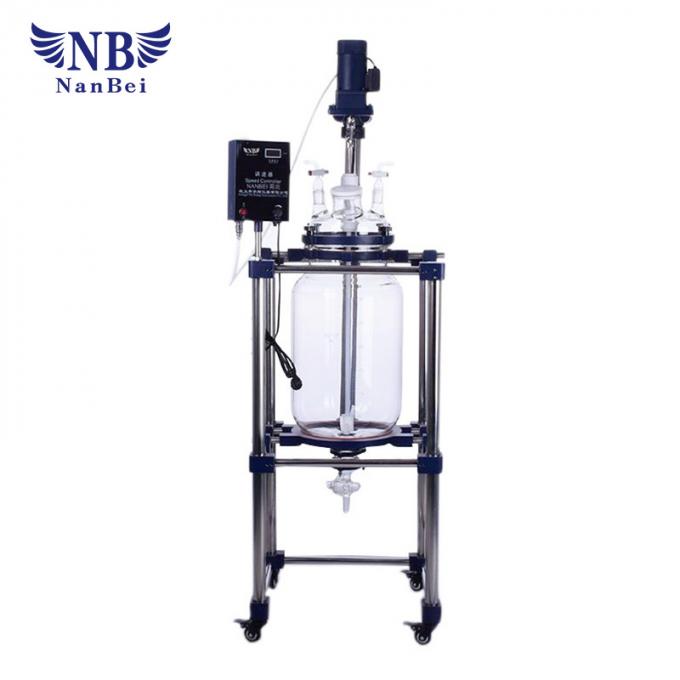

Chemical Vacuum Glass Reactor 0

Basic specification

Model NFY-10L NFY-20L NFY-30L NFY-50L NFY-100L
Glass Material GG-17 GG-17 GG-17 GG-17 GG-17
Frame Material 304 SUS 304 SUS 304 SUS 304 SUS 304 SUS
Pipe material 304 SUS 304 SUS 304 SUS 304 SUS 304 SUS
Move mode Brake type universal angle wheel Brake type universal angle wheel Brake type universal angle wheel Brake type universal angle wheel Brake type universal angle wheel
Reaction bottle volume 10 liters 20 liters 30 liters 50 liters 100 liters
Port of reaction bottle 4 4 4 4 3
discharge distance to underground 450mm 450mm 450mm 450mm 450mm
Vacuum degree 0.098Mpa 0.098Mpa 0.098Mpa 0.098Mpa 0.098Mpa
Stiring speed 0-450rpm 0-450rpm 0-450rpm 0-450rpm 0-450rpm
Stirrer diameter 12mm 12mm 12mm 12mm 12mm
Stirrer power 90W1/3 90W1/3 120W1/3 120W1/3 250W1/3
Voltagte 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Dimnesion(mm*mm*mm) 490*490*1400 480*490*1400 490*490*1450 490*490*1500 610*610*2200
Packing weight(KG) 60kg 60kg 67kg 70kg 90kg

Configuration list

Speed mode Electronic stepless speed regulation
Motor configuration Low speed booster motor, speed ratio 3:1
Speed display mode LCD display
Sealing method PTFE assembly seal,¢70 flange stirrer port
Feeding device 34# Piston valve
Pressure reducing device 34# Pressure reducing valve
Discharge method Glass discharge port,¢80 flange
Stirring connection Universal joint connection
Stir bar anchor type SUS stirrer with PTFE
Body bracket Tray type
Reaction bottle cylinder
Explosion proof Explosion-proof inverter, explosion-proof motor EX180W 0-1400RPM
Frame part spray PTFE
Sealing part Ceramic bearing, mechanical seal


Company Introduction

Chemical Vacuum Glass Reactor 1

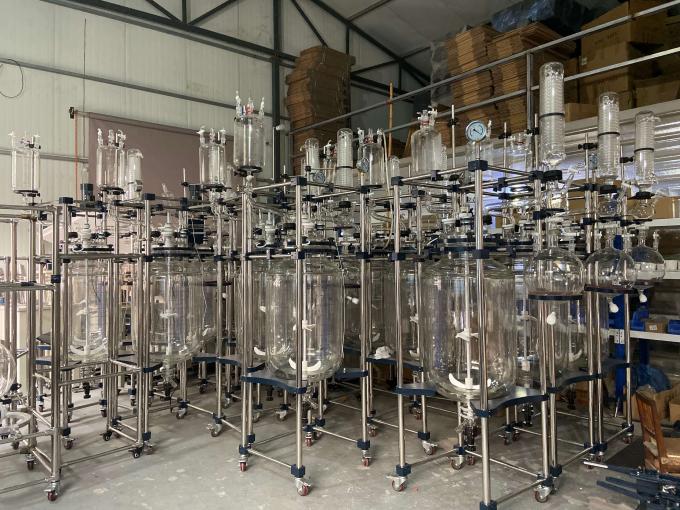

Factory Show

Chemical Vacuum Glass Reactor 2

Chemical Vacuum Glass Reactor 3

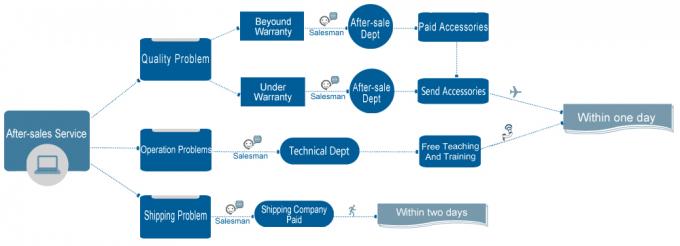

Our Services
