NANBEI Chemical Stainless Steel Glass Reactor

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBF
Minimum Order Quantity: 1set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Glass Material: GG-17 Pot Shell Material: Spraying Antiseptic Shell
Inner Port Material: Stainless Steel Moving Mode: Brake Type Universal Corner Wheel
Temperature Range: -80 To 250degree Vacuum: 0.098Mpa
Stirring Speed: 0-450rpm Stir Rod Diameter: 15mm
High Light:

lab chemical reactor


jacketed glass reactor

Product Description

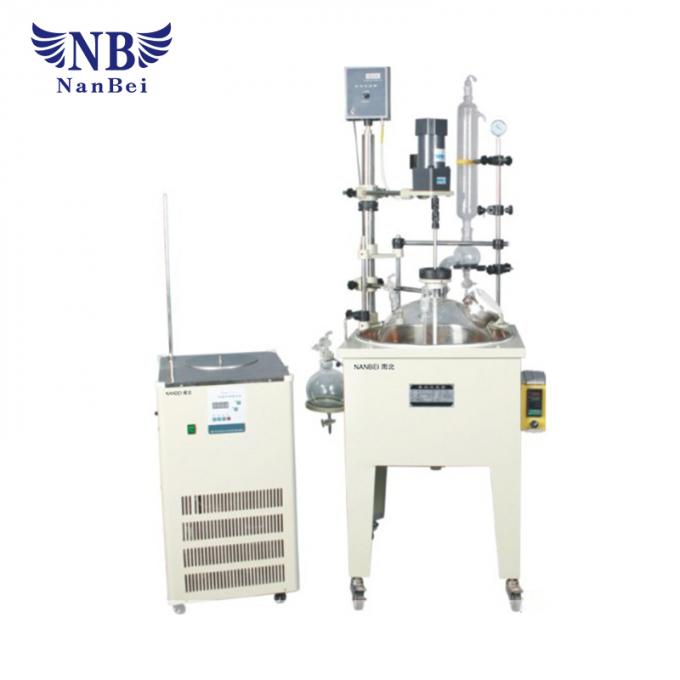

NANBEI Chemical Glass Reactor Stainless Steel Inner Port Material



Single Layer Glass Reactor

Single-layer glass reactors are mainly used in the testing and production of pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant temperature heating and constant speed stirring to uniformly stir the raw materials, so that the materials can fully react, evaporate, separate, and recover the solvent in the kettle body, and all the parts in contact with the materials are resistant. High temperature, corrosion resistant borosilicate glass and PTFE materials are especially suitable for the reaction of easily decomposing denatured biological products, and are not easy to react with various materials.

NANBEI Chemical Stainless Steel Glass Reactor 0

Working principle

Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the material in the kettle is uniformly heated and evaporated at high speed by the intelligent constant temperature water (oil) bath. The solvent vapor produced in the solution is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser.


The single-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L, 200L. 10 to 10 liters are equipped with universal casters for easy movement, and have a lower discharge function and a kettle. Temperature display function.


This product can be used together with the vacuum pump to improve work efficiency; it can be used together with the low-temperature coolant circulating pump to improve the recycling efficiency. Customers are advised to purchase matching equipment.

Name Single layer glass reactor
Volume 10L 20L 30L 50L 100L
Glass material GG-17
pot shell material Spraying antiseptic shell
Pot shell size(mm) 540*440*860 640*540*890 690*590*920 740*640*960 640*640*1200
Inner port material Stainless steel
Inner port size(mm) 350*220 450*250 500*280 550*320 550*650
Moving mode Brake type universal corner wheel
Shape of reactor body Ball type Cylindrical type
Port No. of reactor cover 7 6
Distance between discharge to floor 450mm
Temperature range .-80 to 250degree
Vacuum 0.098Mpa
Stirring speed 0-450rpm
Stir rod diameter 15mm
Stir motor 90W1/3 120W1/3 250W1/3
Heating power 3KW 5KW 8KW
Overall size (mm*mm*mm) 600*440*1900 700*540*1950 750*590*2160 800*640*2200 730*630*2600
Package size (mm*mm*mm) 1100*620*790 1220*620*790 1220*660*860 1440*720*890 1900*780*870
Gross weight(KG) 63 70 80 90 120


Company Introduction

NANBEI Chemical Stainless Steel Glass Reactor 1

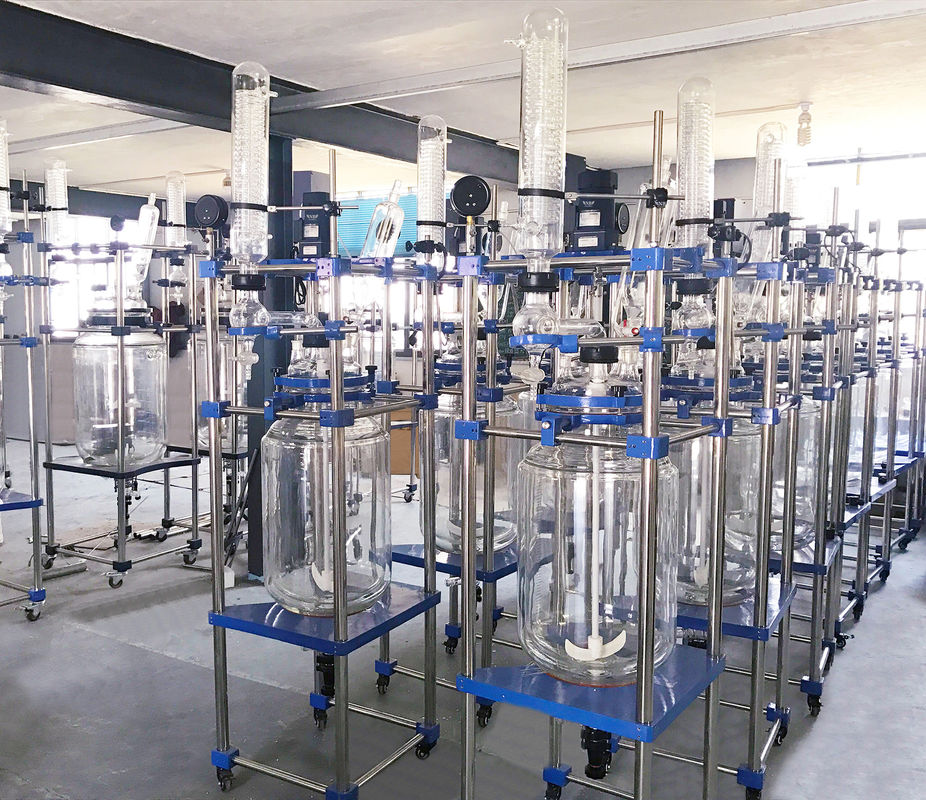

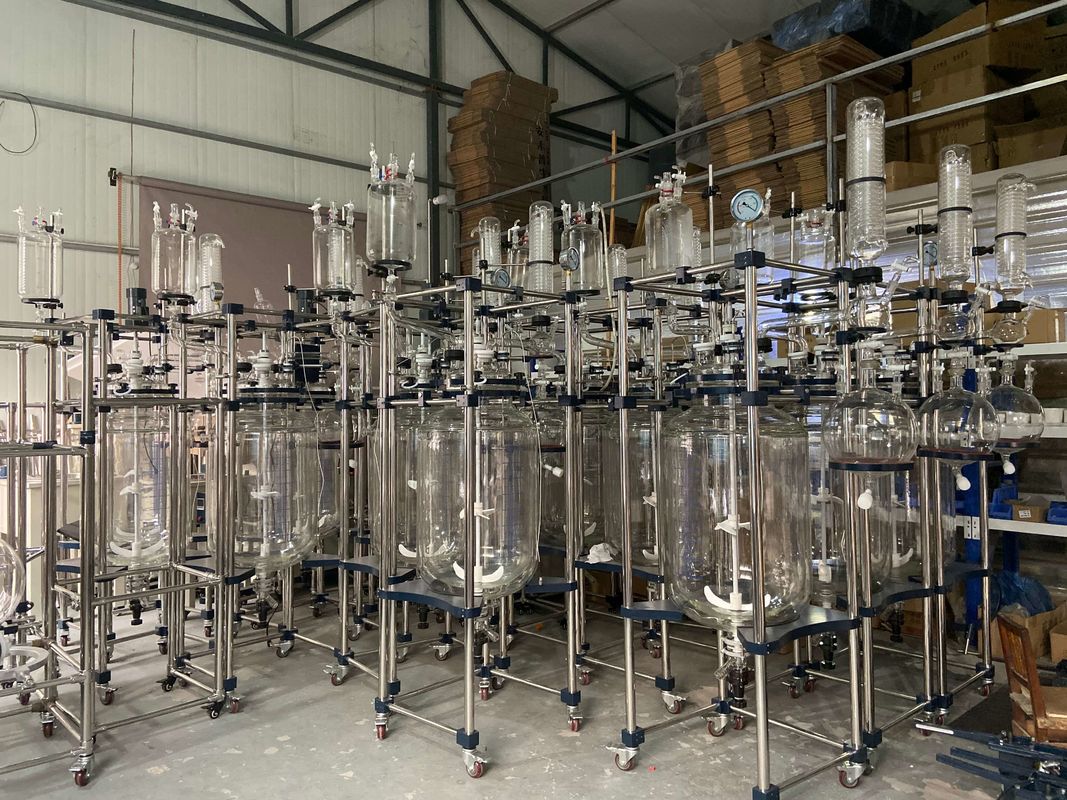

Factory Show
