10L Lab Chemical Vacuum Double Layer Mixing Glass Reacor

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NB-10L
Minimum Order Quantity: 1set
Price: USD1400-USD1850/set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Glass Material: Gg-17 Moves: Brake Caster
Frame Material: 304 Stainless Steel Reaction Bottle Capacity: 10L
Jacketed Capacity: 6L Discharger Port Distance To Ground: 450mm
Vacuum Degreee: -0.098MPa Stirring Speed: 0-450rpm
Stirring Diameter: 12mm Stirring Power: 90W1/3
Voltage(V/Hz): 220V/50Hz Name: 10L Chemical Reacor
High Light:

lab chemical reactor

,

jacketed glass reactor


Product Description



10L Lab Chemical Mixing Reacor , Lab Vacuum Double Layer Glass Reactor





Brief introduction of double glass reactor:

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.

Features of NANBEI chemical reactor:

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250℃ for high temperature experiments, and limit temperature of -60℃ for low temperature experiments.

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

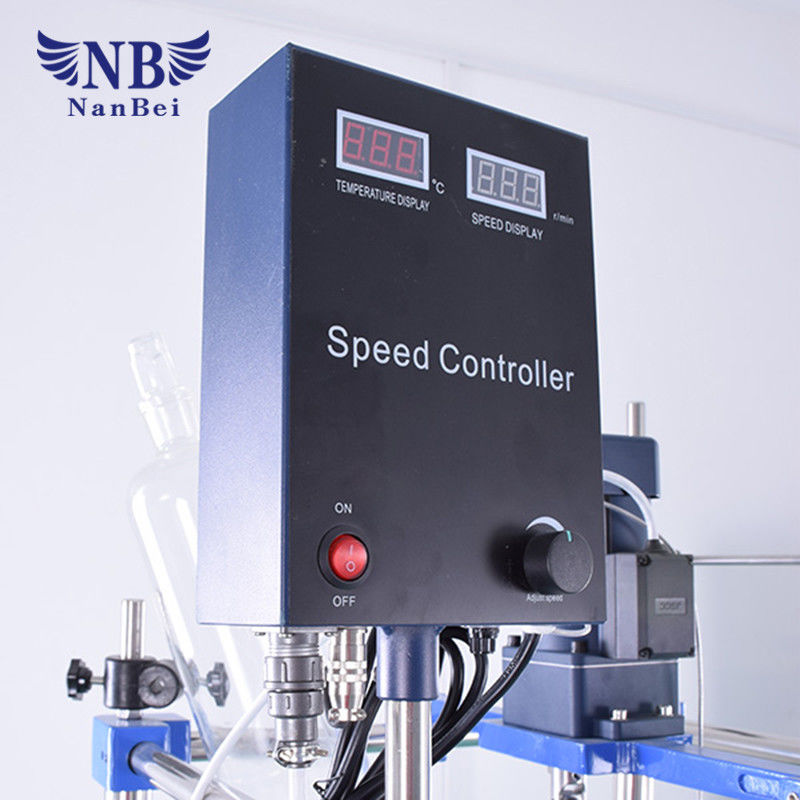

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

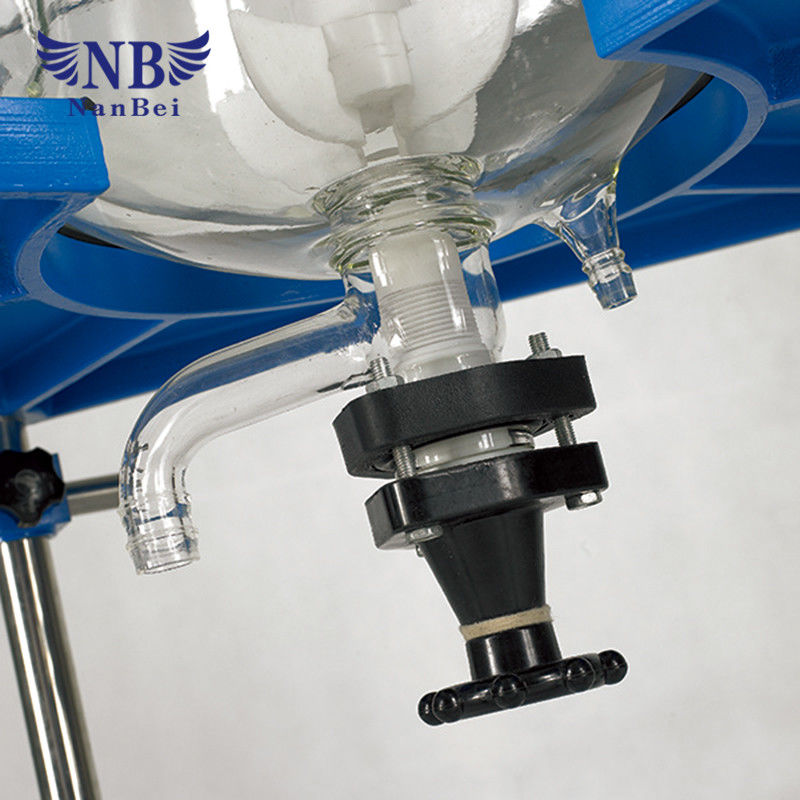

7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

10L Lab Chemical Vacuum Double Layer Mixing Glass Reacor 0

Model NB-10L
Glass Material GG-17
Frame Material 304 Stainless steel
Moving mode Brake type universal corner wheel
Reaction bottle capacity 10L
Jacketed Capacity 6L
Flanged out of the oil circulation port Low feed high outlet
Reaction bottle cover port 6ports
Discharger port distance to ground 450mm
Temp. range -80-250°C
Vacuum 0.098Mpa
Stirring speed 0-450rpm
Stirring diameter 12mm
Stirring power 90W
Voltage(V/Hz) 220V/50Hz
Dimension(mm) 520*520*2000
Packing size(mm) 1370*590*800
Packing weight(KG) 68
