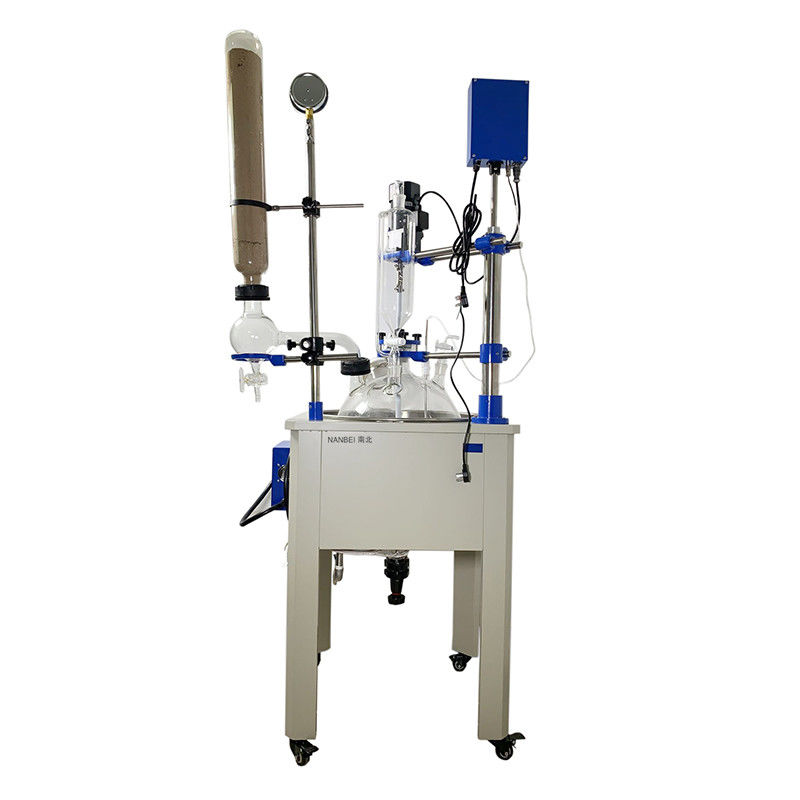

Explosion Proof Single Layer 30L Chemical Glass Reactor

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE/ISO/SGS
Model Number: NBF-30L
Minimum Order Quantity: 1/set
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000
Detail Information
Name: NBF-30L Glass Material: GG-17
Pot Shell Material: Spraying Antiseptic Shell 690*590*920mm Inner Port Material: Stainless Steel 500*280mm
Moving Mode: Brake Type Universal Corner Wheel Volume: Ball Type 30L
High Light:

30L Chemical Glass Reactor

,

Single Layer Chemical Glass Reactor

,

30L single layer glass reactor


Product Description

30L explosion proof single layer glass reactor with heating



Feature and Description of  single layer glass reactor

Brief Introduction:

Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

Explosion Proof Single Layer 30L Chemical Glass Reactor 0

Working principle of single layer glass reactor

Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.



Product Features of single layer glass reactor

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs)

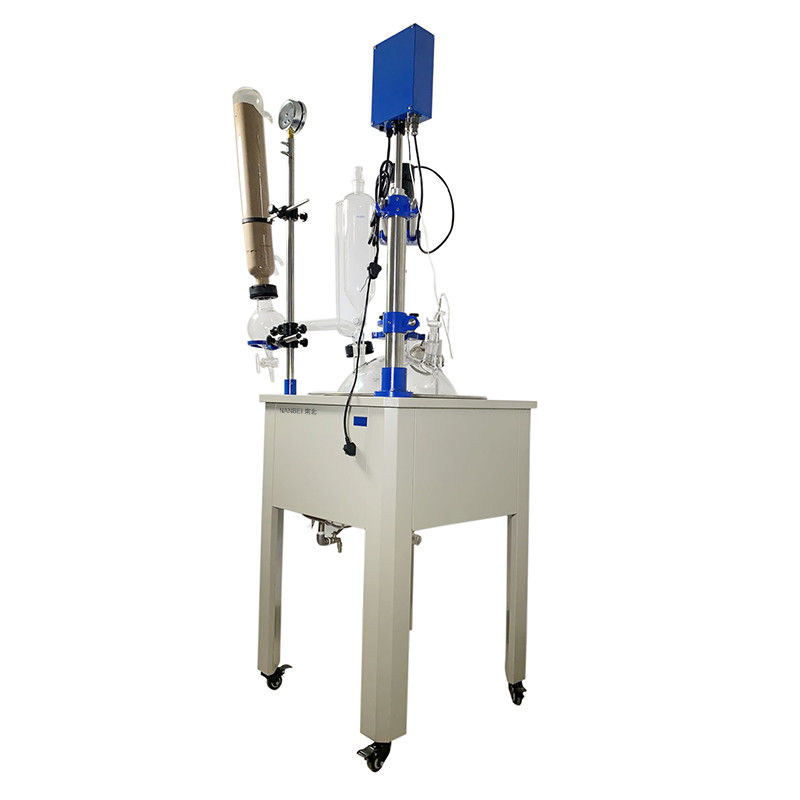

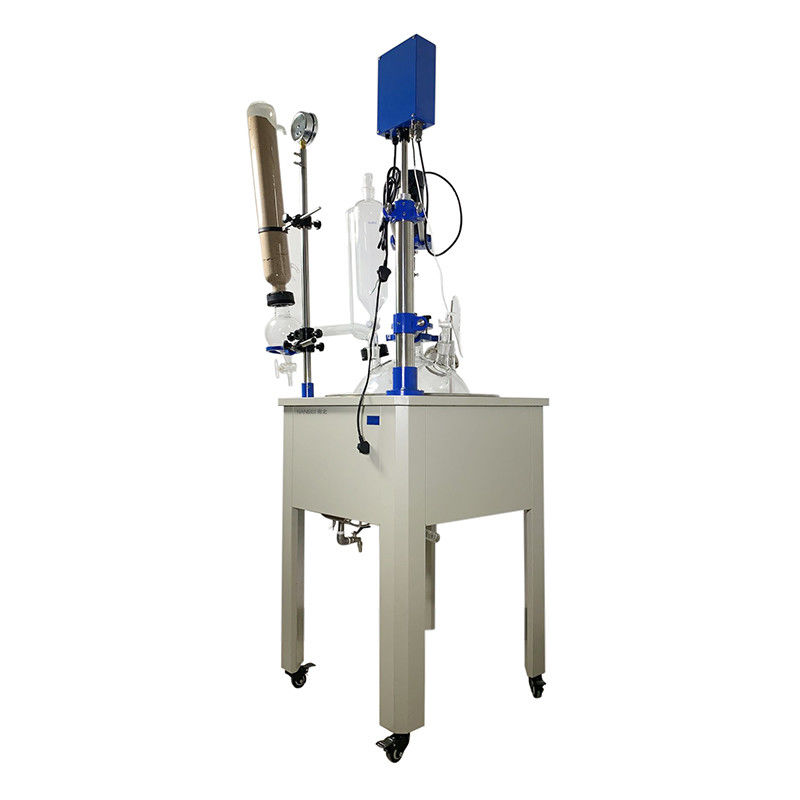

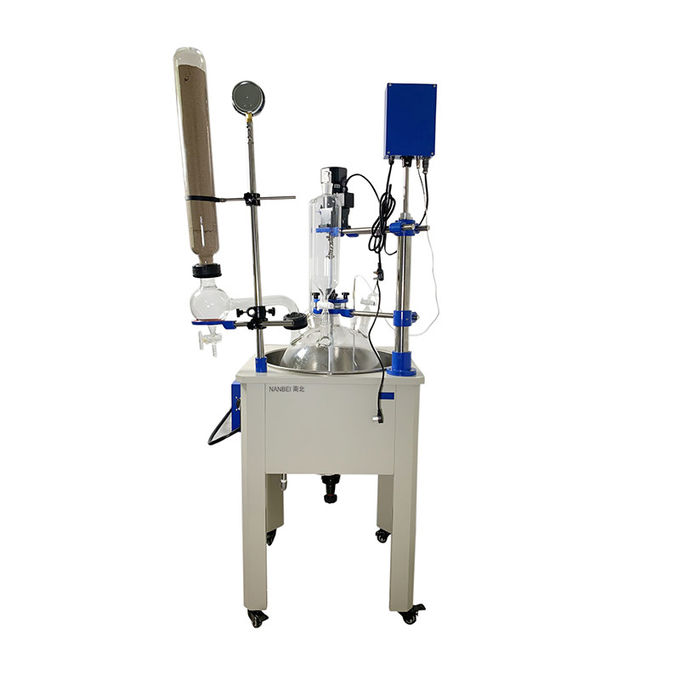

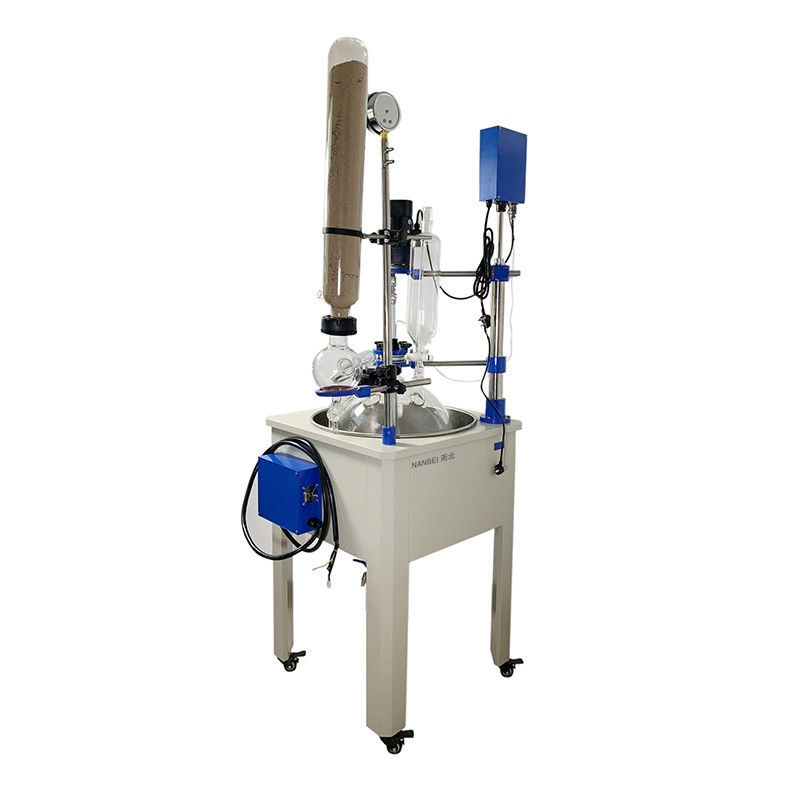

Explosion Proof Single Layer 30L Chemical Glass Reactor 1Explosion Proof Single Layer 30L Chemical Glass Reactor 2Explosion Proof Single Layer 30L Chemical Glass Reactor 3



Basic specification Name NBF-30L
Glass material GG-17
pot shell material Spraying antiseptic shell 690*590*920mm
Inner port material stainless steel 500*280mm
Moving mode Brake type universal corner wheel
Volume Ball type 30L
Port No. of reactor cover 7
Distance between discharge to floor 450mm
Temperature range .-80 to 250degree
Vacuum 0.098Mpa
Stirring speed 0-450rpm
Stir rod diameter 12mm
Stir power and voltage 120W1/3 220V/50Hz
Heating power and voltage 8KW 380V/50Hz
Overall size (mm*mm*mm) 750*590*2160
Package size (mm*mm*mm) 1220*660*860
Gross weight(KG) 85
Configuration list Speed display mode Electronic stepless speed regulation
Motor Low speed booster motor, speed ratio 3: 1
Speed display mode LCD digital display
Temperature display digital display
Seal PTFE seal, ¢70 flange stir port
Condenser Vertical high efficiency double reflux condenser 120*640mm, standard 40#
Reflux (distillation) device Return bend with feeding switch, 50# ball mill port
Drop adding device 2L Constant pressure funnel, 34 standard
Pressure release device standard 34# pressure release valve
Temperature tube standard 24#
Solid adding (cleaning) port ¢120 flange port with PTFE cover
Discharge glass discharge valve, ¢80 flange port
Vacuum display mode Vacuum gauge
Mixing connection universal joint link
Stir rod Anchor type, Stainless steel rod with PTFE
