Eyepiece: | 10X,16X | Total Magnification: | 10X,16X |
---|---|---|---|
Diopter Adjustment Range: | ±7D | Work Distance: | 80mm |
Slit Width: | 0~10mm,Continuously Adjustable | Input Power: | 18VA |
High Light: |
Hand Held Slit Lamp Microscope,Slit Lamp Microscope,Hand Held portable slit lamp |

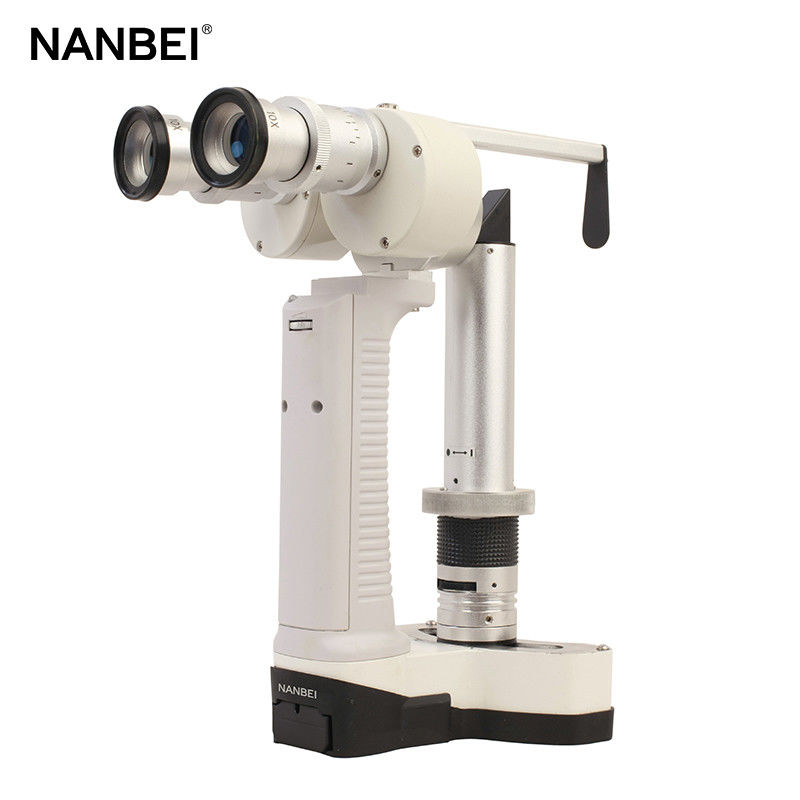

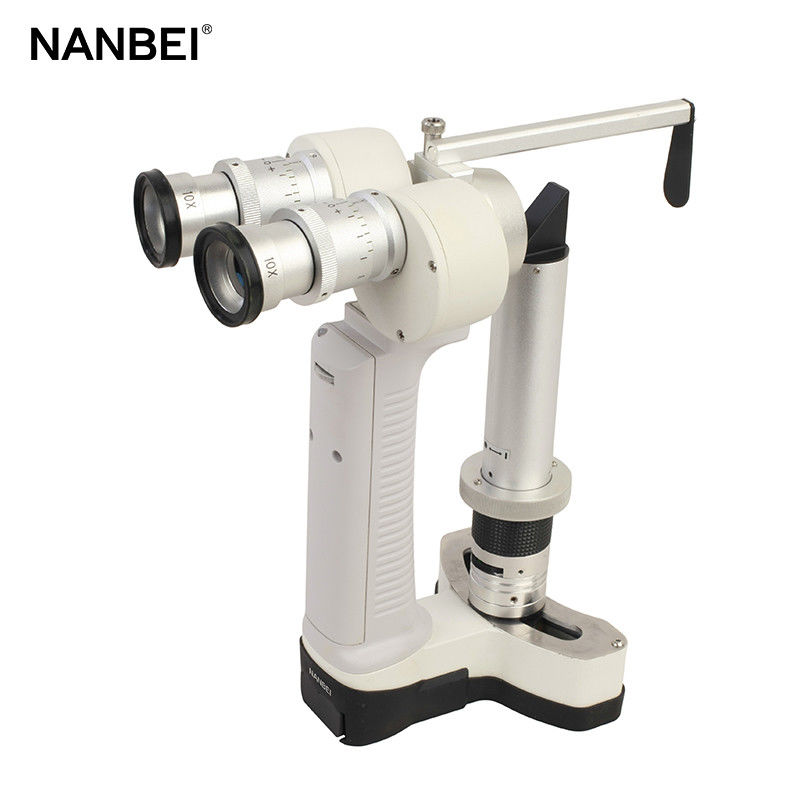

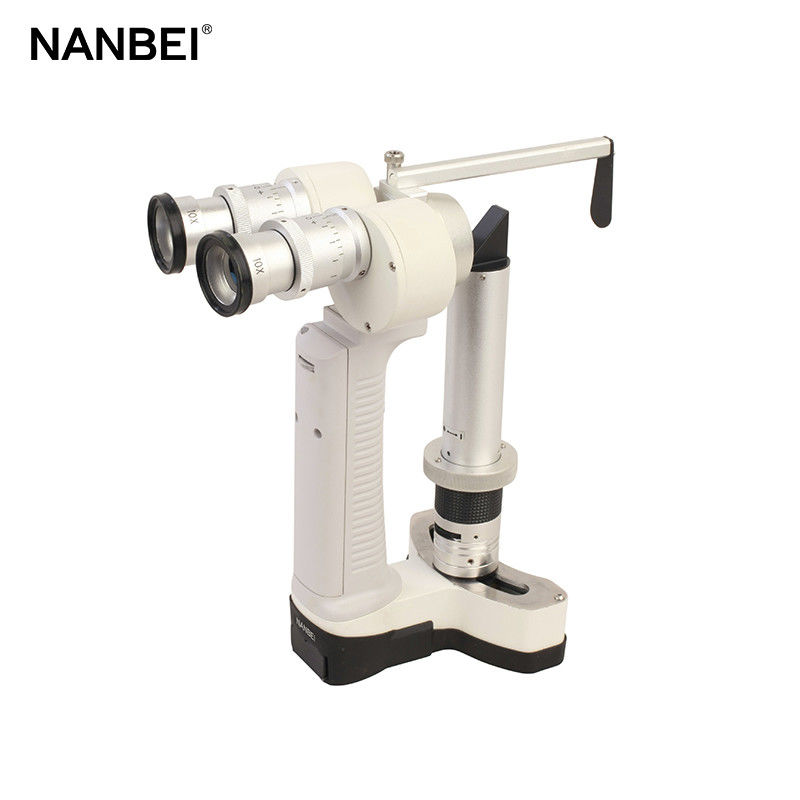

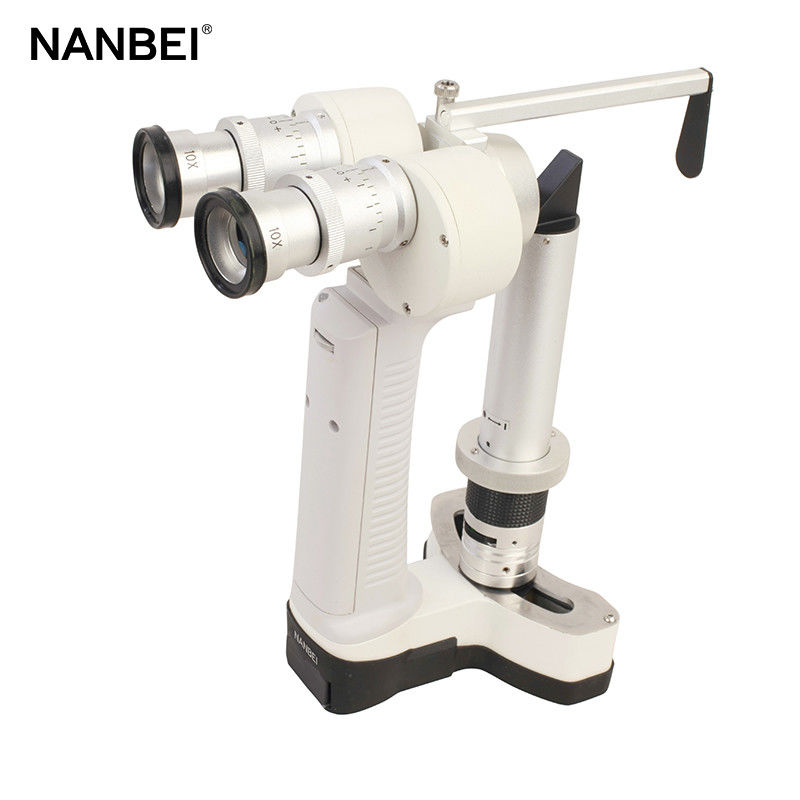

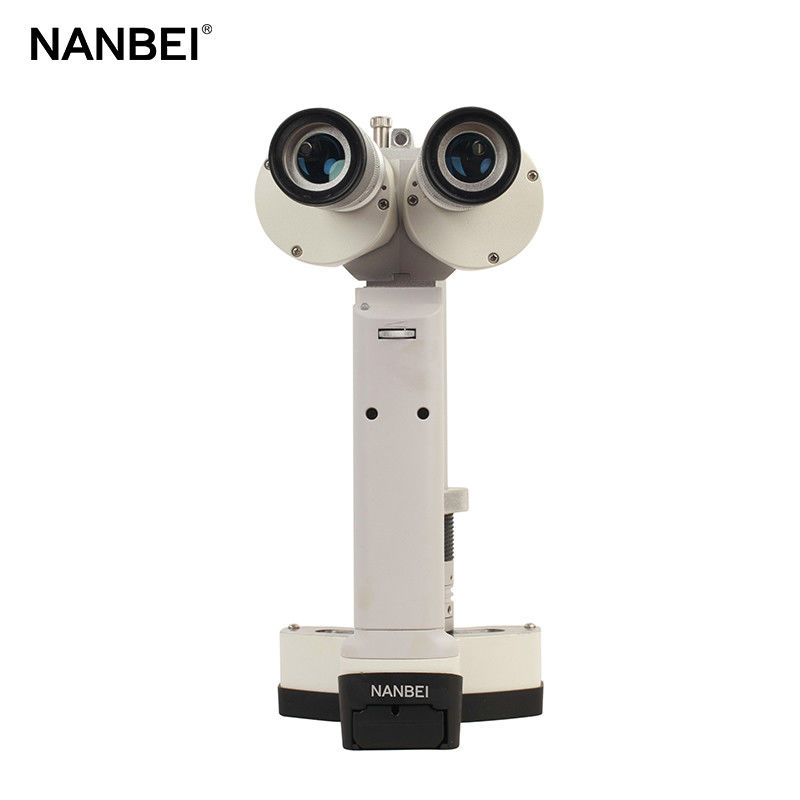

Hand-held Slit Lamp Microscope
The slit lamp microscope is the most frequently used optical device in ophthalmology. The slit lamp microscope can clearly observe the eyelids, conjunctiva, sclera, cornea, anterior chamber, iris, pupil, lens and the anterior 1/3 of the vitreous, and can determine the location, nature, size and depth of the lesion. If equipped with accessories, the inspection scope will be more extensive.
The slit lamp microscope is composed of an illumination system and a binocular microscope. It can not only make the superficial lesions be observed very clearly, but also can adjust the focus and the width of the light source to make an "optical section" so that the lesions of deep tissues can also be clearly displayed.
Specifications:
● Eyepiece | 10X,16X |
● Total magnification | 10X,16X |
● Diopter adjustment range | ±7D |
● Work distance | 80mm |
● Slit Width | 0~10mm,Continuously adjustable |
● Filters | Green, cobalt blue, color temperature transformation angle |
● Slit Angle | Horizontal circumference ±30. |
● Slit Illumination | White LED |
● Input Voltage | AC 100~240V 60~50Hz |
● Input power | 18VA |
● Package dimensions | 195×105×230mm |
● Gross weight | About 750g (including battery) |
