Laboratory Instruments - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB-FlatSpin

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SET PER MONTH

Detail Information

Work Plate Material:	PET	Motor Type:	Motorless
Motor Output Power:	3W	Power:	5W
Heating Output:	470W	Speed Range:	15-1500rpm
Protection Class:	IP65	Weight:	0.3kg
High Light:	Thin Magnetic Stirrer Hot Plate Digital , Motorless Magnetic Stirrer Hot Plate Digital , Motorless lab heater stirrer

Product Description

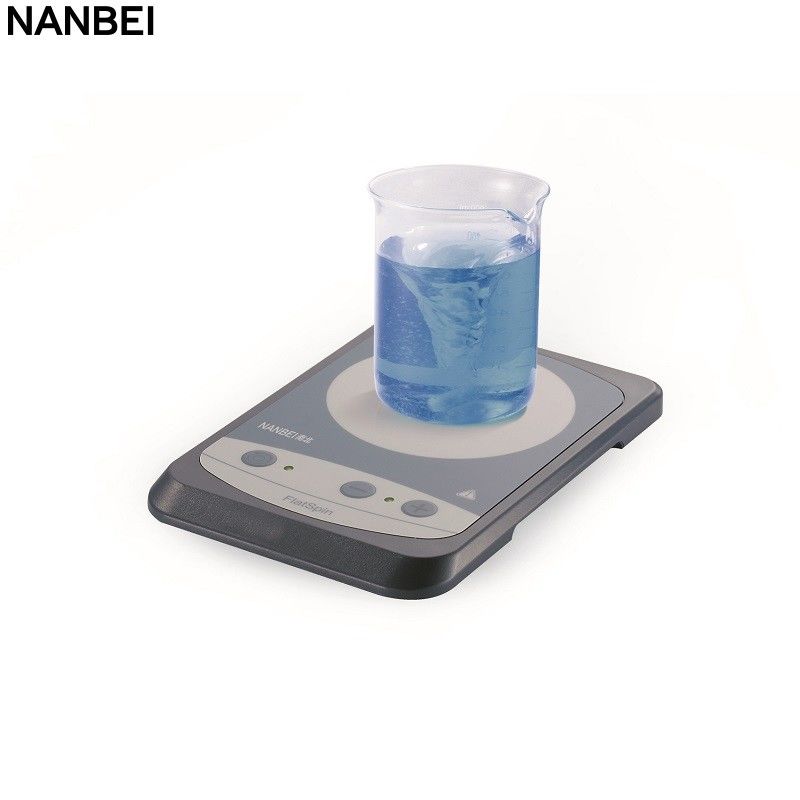

Laboratory Ultra thin magnetic stirrer Instrument

Key Specifications/Special Features about magnetic stirrer:

Magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used for stirring or simultaneously heating and stirring low-viscosity liquid or solid-liquid mixture. The basic principle is to use the principle of repulsion of the same sex and attraction of the opposite sex of the magnetic field, and use the magnetic field to push the magnetic stirrer placed in the container to rotate in a circle, so as to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, and the temperature conditions required by the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements

Ultra Thin Laboratory Instrument Magnetic Stirrer Hot Plate Digital 0

Key Features about magnetic stirrer:
• A wide range of speed from 15 to 1500rpm
• Automatic reverse rotation for excellent mixing
• Protection class (IP65)
• PET top provides excellent chemical resistance
• Ultra silence and vibration-free

Specifications	NANBEI FlatSpin
Work plate dimension	φ90mm
Work plate material	PET
Motor type	Motorless
Motor output power	3W
Power	5W
Heating output	470W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity[H2O]	0.8L
Max. magnetic bar[length]	40mm
Speed range	15-1500rpm
Speed setting	button
Protection class	IP65
Dimension [W x D x H]	175x120x15mm
Weight	0.3kg
Permissible ambient temperature and humidity	5-40°C,80%RH
Temperature display	scale
Heating temperature range	Room temp.-120°C

Order Info

Cat. No.

Power supply

Ultra-flat Compact magnetic stirrer,

USA plug,100V-240V/50Hz/60Hz

Cn plug,100V-240V/50Hz/60Hz

Euro plug,100V-240V/50Hz/60Hz

UK plug,100V-240V/50Hz/60Hz
