Laboratory Instruments - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB20-Pro/NB40-Pro/NB70-Pro

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SET PER MONTH

Detail Information

Speed Display:	LCD	Torque Display:	LCD
Overload Protection Display:	LED Lights	Chuck Range Diameter:	0.5-10mm
Protection Class:	IP21
High Light:	IP21 Digital Magnetic Stirrer , Overhead Digital Magnetic Stirrer , IP21 digital hot plate stirrer

Product Description

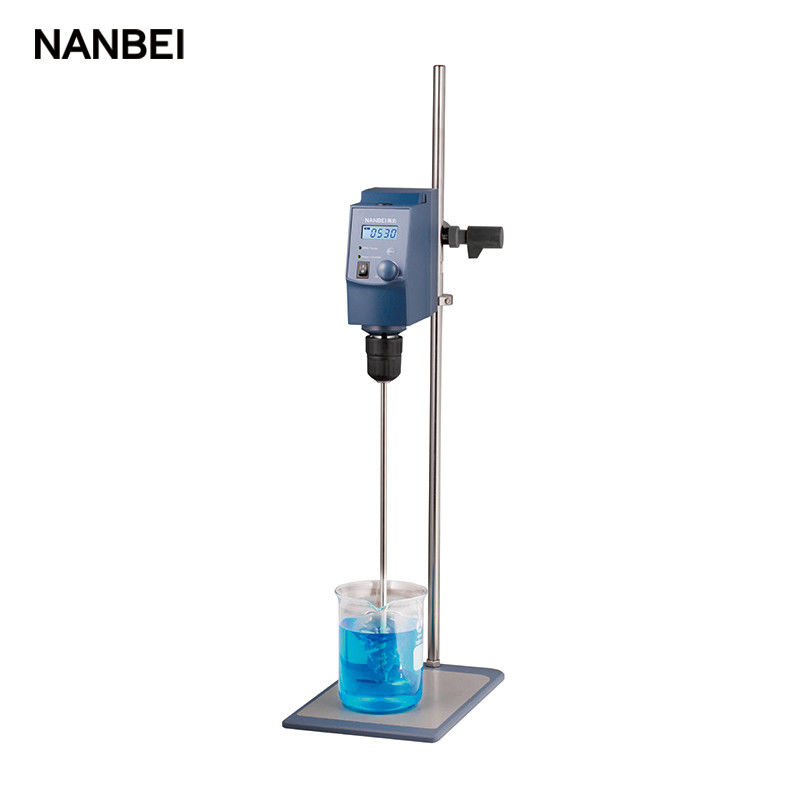

LCD Lab Overhead Magnetic Electric Stirrer

Key Specifications/Special Features:

Main functions: Stirring, homogenizing, mixing, dispersing, mostly used as a mixture material to prevent material precipitation.
The main application areas involved are: laboratories in higher education institutions, scientific research institutes, water plants, sewage treatment plants, water supply/drainage, environmental protection, petroleum, chemical, metallurgy, light industry, pharmacy, electric power, papermaking, printing and dyeing industries, laboratory

20L Lab Electric Stirrer NB20-Pro

Key Features:
* High reliability and outstanding performance.
* LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.
* Brushless DC motor for long life, maintenance free and explosion proof * Torque trend display for real-time information on viscosity ,changes.
* Safety circuits allow for safe stop function in anti-stall or overload conditions.
* Smooth operation prevents accidental spillage and splashing.
* Provides constant speed even with changes in viscosities of the samples.
* Remote function provide PC control and data transmission.
* Availability of auto-restart function in case of power loss for overnight operations.

40L Lab Electric Stirrer NB40-Pro

Key Features:
* High reliability and outstanding performance.
* LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.
* Brushless DC motor for long life, maintenance free and explosion proof * Torque trend display for real-time information on viscosity changes.
* Safety circuits allow for safe stop function in anti-stall or overload conditions.
* Smooth operation prevents accidental spillage and splashing.
* Provides constant speed even with changes in viscosities of the samples.
* Remote function provide PC control and data transmission.
* Availability of auto-restart function in case of power loss for overnight operations.

70L Lab Electric Stirrer NB70-Pro

Key Features:
* High reliability and outstanding performance.
* LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 1100rpm with control accuracy of ±3rpm.
* Brushless DC motor for long life, maintenance free and explosion proof * Torque trend display for real-time information on viscosity changes.
* Safety circuits allow for safe stop function in anti-stall or overload conditions.
* Smooth operation prevents accidental spillage and splashing.
* Provides constant speed even with changes in viscosities of the samples.
* Remote function provide PC control and data transmission.
* Availability of auto-restart function in case of power loss for overnight operations.

Specifications	NB20-Pro	NB40-Pro	NB70-Pro
Max. stirring quantity[H2O]	20L	40L	70L
Motor type	brushless DC motor	brushless DC motor	brushless DC motor
Motor input power	60W	120W	180W
Motor output power	50W	100W	160W
Voltage	100-240V, 50/60 Hz	100-240V, 50/60 Hz	100-240V, 50/60 Hz
Power	70W	130W	200W
Speed range	50-2200rpm	50-2200rpm	50~1100rpm
Speed display accuracy	±3rpm	±3rpm	±10rpm
Speed display	LCD	LCD	LCD
Torque display	LCD	LCD	LCD
Time settings range			0-99h59min
Overload protection display	LED lights	LED lights	LED lights
Max. torque	40Ncm	60Ncm	300Ncm
Viscosity max.	10000mPas	50000mPas	100000mPas
Chuck range diameter	0.5-10mm	0.5-10mm	0.5-10mm
Dimension[WxHxD]	83x220x186mm	83x220x186mm	83x220x186mm
Weight	2.8kg	2.8kg	3.2KG
Protection class	IP21	IP21	IP21
Permissible ambient temperature and humidity	5-40°C, 80%RH	5-40°C, 80%RH	5~40℃,80%
Data connector	RS232	RS232	RS232

Overhead Stirrer
Cat. No.	P/N	Descriptions	Power supply
8033100100	NB20-Pro	LCD Digital Overhead Stirrer , Max. stirring quantity 20L, with 18900071 & 18900258 free	USA plug,100V-220V/50Hz/60Hz Cn plug,100V-220V/50Hz/60Hz Euro plug,100V-220V/50Hz/60Hz UK plug,100V-220V/50Hz/60Hz
8033200100	NB40-Pro	LCD Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L, with 18900071 & 18900258 free	USA plug,100V-220V/50Hz/60Hz Cn plug,100V-220V/50Hz/60Hz Euro plug,100V-220V/50Hz/60Hz UK plug,100V-220V/50Hz/60Hz

Accessories
Cat. No.	Descriptions
18900258	Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device Grey
18900131	Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device
18900071	Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
18900072	Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
18900073	Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
18900074	Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304 stainless steel
18900075	Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
18900076	Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
18900077	Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
18900078	Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
18900330	Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevent the liquid spills)
