Laboratory Instruments - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	B20-S/NB40-S

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SET PER MONTH

Detail Information

High Light:	Overhead Electric Magnetic Stirrer , 2200rpm Electric Magnetic Stirrer , 50rpm hotplate stirrer digital

High Light:

Overhead Electric Magnetic Stirrer

2200rpm Electric Magnetic Stirrer

50rpm hotplate stirrer digital

Product Description

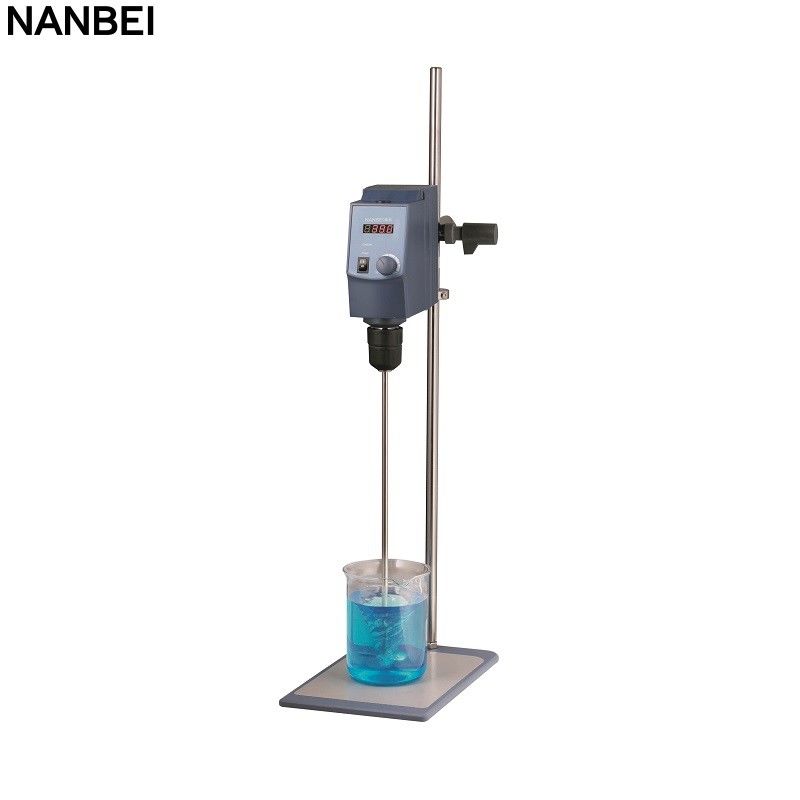

Laboratory LCD Overhead Magnetic Electric Stirrer Instrument

Key Specifications/Special Features:

Main functions: Stirring, homogenizing, mixing, dispersing, mostly used as a mixture material to prevent material precipitation.
The main application areas involved are: laboratories in higher education institutions, scientific research institutes, water plants, sewage treatment plants, water supply/drainage, environmental protection, petroleum, chemical, metallurgy, light industry, pharmacy, electric power, papermaking, printing and dyeing industries, laboratory

Lab Electric Stirrer NB20-S(20L)

Key Features:
High reliability and outstanding performance.
A wide range of speed from 50 to 2200rpm.
Brushless DC motor for long life, maintenance free and explosion proof.
LED screen for monitoring actual speed.
Safety circuits allow for safe stop function in anti-stall or overload conditions.

Lab Electric Stirrer NB40-S(40L)
Key Features:
High reliability and outstanding performance.
A wide range of speed from 50 to 2200rpm.
Brushless DC motor for long life, maintenance free and explosion proof.
LED screen for monitoring actual speed.
Safety circuits allow for safe stop function in anti-stall or overload conditions.

Specifications	NB20-S	NB40-S
Max. stirring quantity[H2O]	20L	40L
Motor type	brushless DC motor	brushless DC motor
Motor input power	60W	120W
Motor output power	50W	100W
Voltage	100-240V, 50/60 Hz	100-240V, 50/60 Hz
Power	70W	130W
Speed range	50-2200rpm	50-2200rpm
Speed display accuracy	±3rpm	±3rpm
Speed display	LED	LED
Overload protection display	LED light	LED light
Max. torque	40Ncm	60Ncm
Viscosity max.	10000mPas	50000mPas
Chuck range diameter	0.5-10mm	0.5-10mm
Dimension[WxHxD]	83x220x186mm	83x220x186mm
Weight	2.8kg	2.8kg
Protection class	IP42	IP42
Permissible ambient temperature and humidity	5-40°C, 80%RH	5-40°C, 80%RH

Overhead Stirrer
Cat. No.	P/N	Descriptions	Power supply
8033100200	NB20-S	LED Digital Overhead Stirrer , Max. stirring quantity 20L. NB20-S package4 OS20-S main body 8033100200 +Universal plate stand18900258 +Crossed stirrer18900071	USA plug,100V-220V/50Hz/60Hz Cn plug,100V-220V/50Hz/60Hz Euro plug,100V-220V/50Hz/60Hz UK plug,100V-220V/50Hz/60Hz
8033200200	NB40-S	LED Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L. NB40-S package3,NB40-S main body 8033200200 +Universal plate stand18900258 +Crossed stirrer18900071	USA plug,100V-220V/50Hz/60Hz Cn plug,100V-220V/50Hz/60Hz Euro plug,100V-220V/50Hz/60Hz UK plug,100V-220V/50Hz/60Hz

Accessories
Cat. No.	Descriptions
18900258	Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device Grey
18900131	Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device
18900071	Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
18900072	Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
18900073	Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
18900074	Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304stainless steel
18900075	Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
18900076	Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
18900077	Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
18900078	Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
18900330	Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevent the liquid spills)
