Brushless DC Motor Hotplate Magnetic Stirrer Laboratory Instrument LCD Display

Basic Information
Place of Origin: Zhengzhou
Brand Name: NANBEI
Certification: CE,ISO,SGS
Model Number: NB-H-ProA
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SET PER MONTH
Detail Information
Work Plate Material: Aluminum Motor Type: Brushless DC Motor
Speed Display: LCD Temperature Display: LCD
Motor Rating Input: 18w Motor Rating Output: 10w
Protection Class: IP21
High Light:

DC Motor Hotplate Magnetic Stirrer


Brushless Hotplate Magnetic Stirrer


Brushless hot plate mixer

Product Description

Laboratory Brushless DC motor Hotplate Magnetic Stirrer Instrument


Key Specifications/Special Features:

Magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used for stirring or simultaneously heating and stirring low-viscosity liquid or solid-liquid mixture. The basic principle is to use the principle of repulsion of the same sex and attraction of the opposite sex of the magnetic field, and use the magnetic field to push the magnetic stirrer placed in the container to rotate in a circle, so as to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, and the temperature conditions required by the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements.
Brushless DC Motor Hotplate Magnetic Stirrer Laboratory Instrument LCD Display 0Brushless DC Motor Hotplate Magnetic Stirrer Laboratory Instrument LCD Display 1

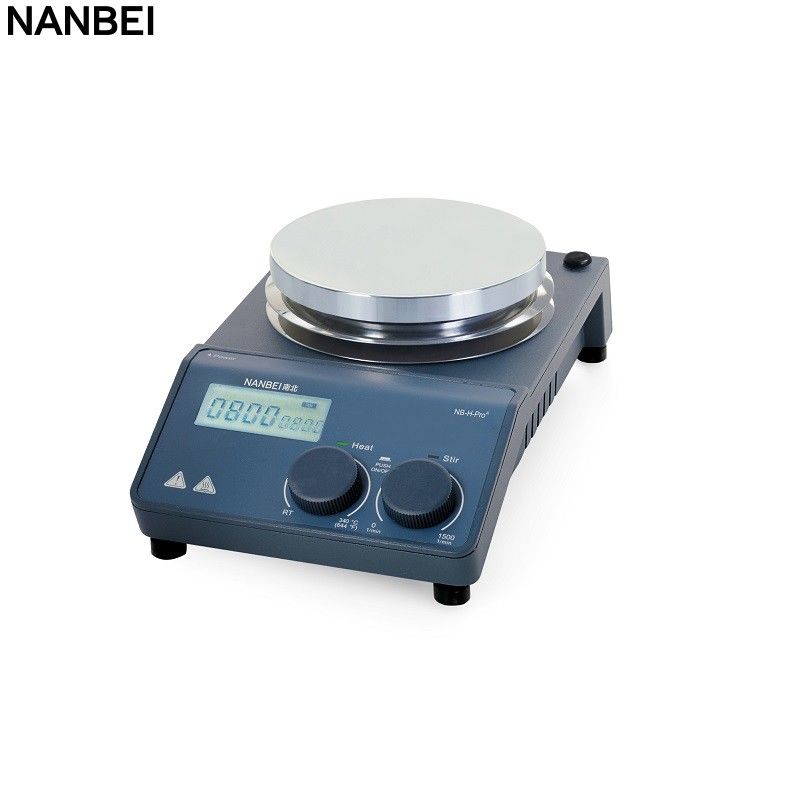

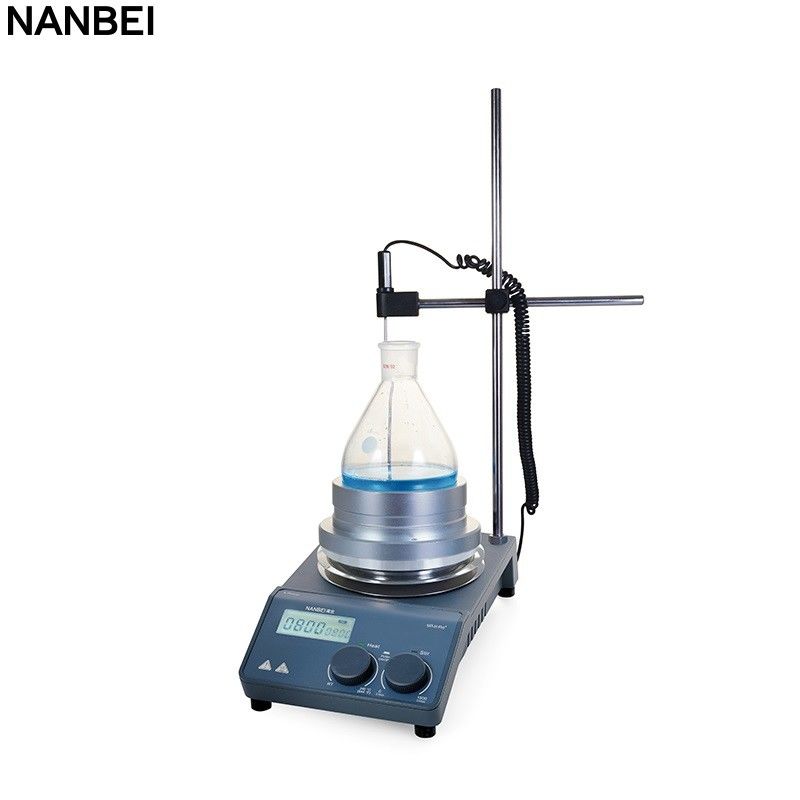

NB-H-ProA Hotplate Magnetic Stirrer

• Digital control with max. temperature at 340℃,max speed up to 1500rpm.
• Aluminum alloy work plate with flat plane provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
• High-resolution LCD display shows actual temperaturesand speed.
• PID controller ensures a precise and steady heating process.
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
• Brushless DC motor enables more powerful speed control.
• Three heating modes for selected ( fast heating, standard heating and stable heating ).
• Remote control function through RS232 interface provides PC control and data transmission.

Specifications NB-H-ProA
Work plate dimension φ135mm(5inch)
Work plate material Aluminum
Motor type Brushless DC motor
Heating temperature range Room temp.-340℃, increment 1℃
Temperature display accuracy ±0.1℃
Heating power 600w
Speed range 100-1500rpm resolution±1rpm
Max. stirring quantity[H2O] 20L
Speed display LCD
Temperature display LCD
Motor rating input 18w
Motor rating output 10w
Max. magnetic bar[length] 80mm
Temperature control accuracy ±1°C(<100℃) ±1%(>100℃)
External temperature sensor PT1000 (accuracy ±0.2℃)
Over temperature protection 420℃
"Hot" warning 50℃
Data connector RS232
Protection class IP21
Voltage 100~120/200-240V 50/60Hz
Power 650w
Dimension[WxDxH] 280×160×100mm
Weight 2.8kg
