10 Channel Heated Magnetic Stirrer Laboratory Instrument 1100rpm

Basic Information
Place of Origin: Zhengzhou
Brand Name: NANBEI
Certification: CE,ISO,SGS
Model Number: NB-H-S10/NB-M-S10
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SET PER MONTH
Detail Information
Work Plate Dimension: 180x450mm Motor Input Power: 12W
Motor Output Power: 4W Speed Display: Scale
Weight: 3.2kg
High Light:

10 Channel Heated Magnetic Stirrer

,

Magnetic Stirrer Laboratory Instrument

,

1100rpm Heated Magnetic Stirrer


Product Description

Laboratory 10 channel heated magnetic stirrer Instrument



Key Specifications/Special Features:

Magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used for stirring or simultaneously heating and stirring low-viscosity liquid or solid-liquid mixture. The basic principle is to use the principle of repulsion of the same sex and attraction of the opposite sex of the magnetic field, and use the magnetic field to push the magnetic stirrer placed in the container to rotate in a circle, so as to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, and the temperature conditions required by the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements.

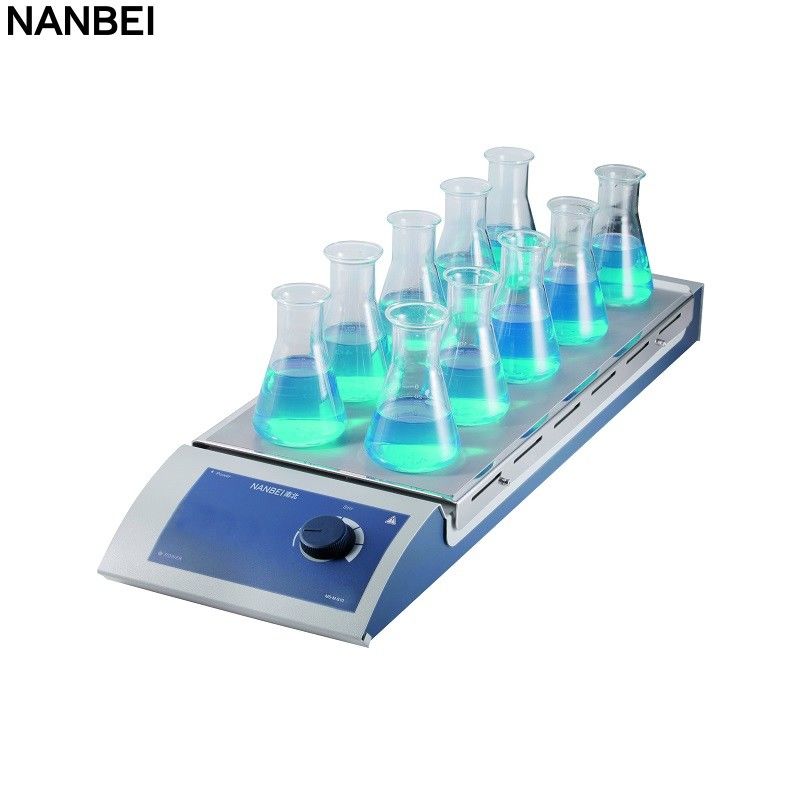

10 channel heated magnetic stirrer NB-H-S10
Key Features:
• Maintenance-free brushless DC motor
• Max speed 1100rpm
• Max.temperature 120°C
• Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance

10 Channel Heated Magnetic Stirrer Laboratory Instrument 1100rpm 0

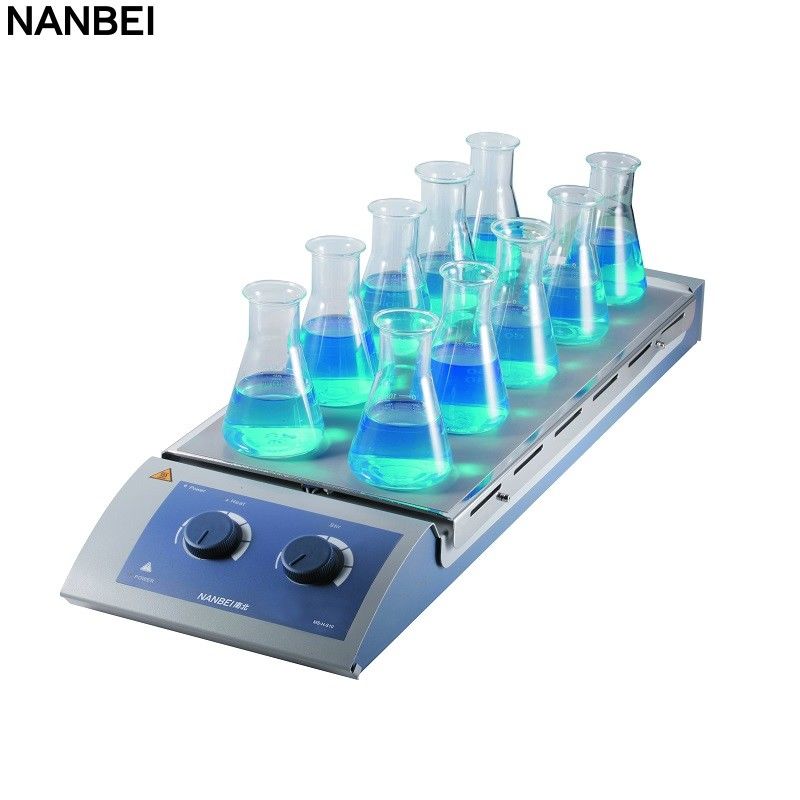

10-Channel magnetic stirrer NB-M-S10
Key Features:
• Maintenance-free brushless DC motor
• Speed range of 0-1100rpm
• Stainless steel work plate covered with silicone cushion, provides excellent performance of skid resistance

10 Channel Heated Magnetic Stirrer Laboratory Instrument 1100rpm 1

Specifications NB-H-S10 NB-M-S10
Work plate dimension 180x450mm 180×450mm
Work plate material Stainless steel with silicone Stainless steel with silicone coating
Motor type Brushless DC motor Brushless DC motor
Motor input power 12W 12W
Motor output power 4W 4W
Power 490W 20W
Heating output 470W
Voltage 100-120/200-240V 50/60Hz 100-120/200-240V,50/60Hz
Stirring positions 10 10
Max. stirring quantity[H2O] 0.4Lx10 0.4LX10
Max. magnetic bar[length] 40mm 40mm
Speed range 0-1100rpm 0-1100rpm
Speed display scale scale
Protection class   IP21
Dimension [W x D x H] 182×622×65mm 205×622×65mm
Weight 3.2kg 3.2kg
Permissible ambient temperature and humidity 5-40℃ 80%RH 5-40°C, 80%RH
Temperature display scale
Heating temperature range Room temp.-120°C
Over heat Protection 140°C
Order Info
Cat. No. P/N Descriptions Power supply
8030140000 NB-H-S10 10-Channel Classic Hotplate Magnetic Stirrer, stainless steel plate with silicone film,heating temperature up to 120°C

USA plug,100V-120V/50Hz/60Hz

Cn plug,200V-240V/50Hz/60Hz

Euro plug,200V-240V/50Hz/60Hz

UK plug,200V-240V/50Hz/60Hz

8030140013 NB-M-S10 10-Channel Classic Magnetic Stirrer, stainless steel plate with silicone film

USA plug,100V-120V/50Hz/60Hz

Cn plug,200V-240V/50Hz/60Hz

Euro plug,200V-240V/50Hz/60Hz

UK plug,200V-240V/50Hz/60Hz

Accessories
18900006 MSBAR10 Stirrer bar(10mm x 6mm),1pc/pk
18900007 MSBAR15 Stirrer bar(15mm x 8mm),1pc/pk
18900008 MSBAR20 Stirrer bar(20mm x 8mm),1pc/pk
18900009 MSBAR25 Stirrer bar(25mm x 8mm),1pc/pk
12500005 MSBAR30 Stirrer bar(30mm x 6mm),1pc/pk
18900011 MSBAR40 Stirrer bar(40mm x 8mm),1pc/pk
