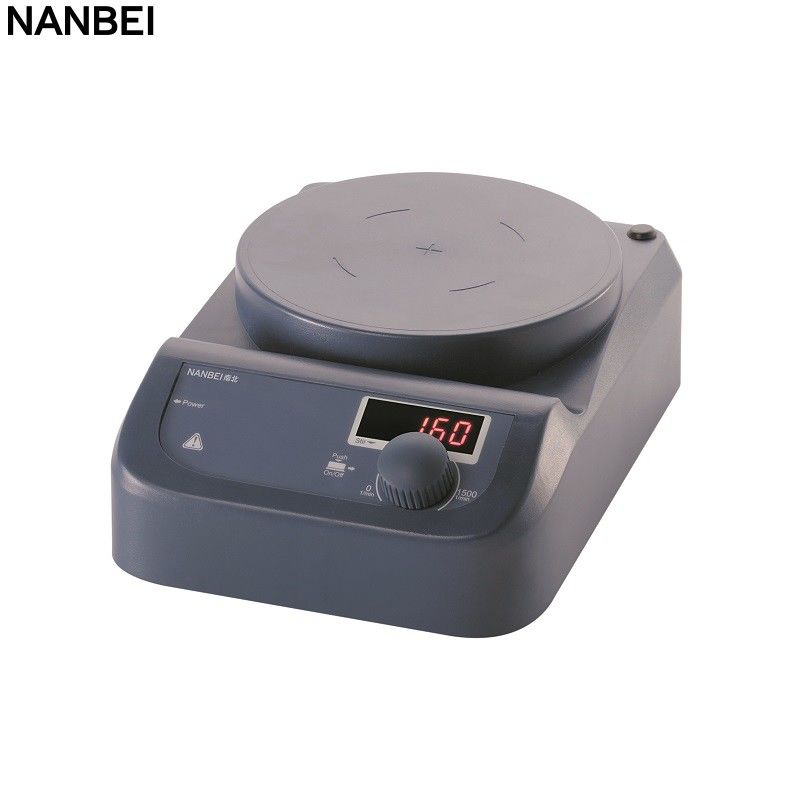

Laboratory Medical 135mm Magnetic Stirrer Hot Plate Instrument 5 Inch

Basic Information
Place of Origin: Zhengzhou
Brand Name: NANBEI
Certification: CE,ISO,SGS
Model Number: NB-PA
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SET PER MONTH
Detail Information
Work Plate Dimension: φ135mm(5inch) Work Plate Material: Nylon+GF
Motor Type: Brushless DC Motor Motor Input Power: 5W
Motor Output Power: 3W
High Light:

135mm Magnetic Stirrer Hot Plate


5 Inch Magnetic Stirrer Hot Plate


135mm magnetic stir plate

Product Description

Laboratory Medical Magnetic Stirrer Instrument


Key Specifications/Special Features:

Magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used for stirring or simultaneously heating and stirring low-viscosity liquid or solid-liquid mixture. The basic principle is to use the principle of repulsion of the same sex and attraction of the opposite sex of the magnetic field, and use the magnetic field to push the magnetic stirrer placed in the container to rotate in a circle, so as to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, and the temperature conditions required by the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements.
Laboratory Medical 135mm Magnetic Stirrer Hot Plate Instrument 5 Inch 0

NB-PA Magnetic Stirrer:

Key Features:
• Digital speed control within the range of 100-1500rpm
• Max. stirring quantity of H2O at 3L
• LED display shows speed
• Nylon+GF housing provides a good performance of chemical resistance

Specifications NB-PA
Work plate dimension φ135mm(5inch)
Work plate material Nylon+GF
Motor type Brushless DC motor
Motor input power 5W
Motor output power 3W
Power 15W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 1
Max. stirring quantity[H2O] 3L
Max. magnetic bar[length] 50mm
Speed range 0-1500rpm
Speed display LED
Protection class IP42
Dimension [W x D x H] 150×260×80mm
Weight 1.8kg
Permissible ambient temperature and humidity 5-40°C 80%RH
Order Info
Cat. No. P/N Descriptions Power supply
8030104200 NB-PA LED Digital Magnetic Stirrer, plastic plate

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz

18900006 MSBAR10 Stirrer bar(10mm x 6mm),1pc/pk
18900007 MSBAR15 Stirrer bar(15mm x 8mm),1pc/pk
18900008 MSBAR20 Stirrer bar(20mm x 8mm),1pc/pk
18900009 MSBAR25 Stirrer bar(25mm x 8mm),1pc/pk
12500005 MSBAR30 Stirrer bar(30mm x 6mm),1pc/pk
18900011 MSBAR40 Stirrer bar(40mm x 8mm),1pc/pk
12500004 MSBAR50 Stirrer bar(50mm x 8mm),1pc/pk
18900015 MARRM Stirrer bar remover, length of 200mm, 1pc/pk
