Motor Type: | Brushless DC Motor | Motor Input Power: | 5W |
---|---|---|---|
Motor Output Power: | 3W | Power: | 15W |
Speed Display: | LED | Protection Class: | IP42 |
High Light: |
Hotplate Stirrer Laboratory Instrument,7 Inch Magnetic Hotplate Stirrer,Medical LabMagnetic Hotplate Stirrer |

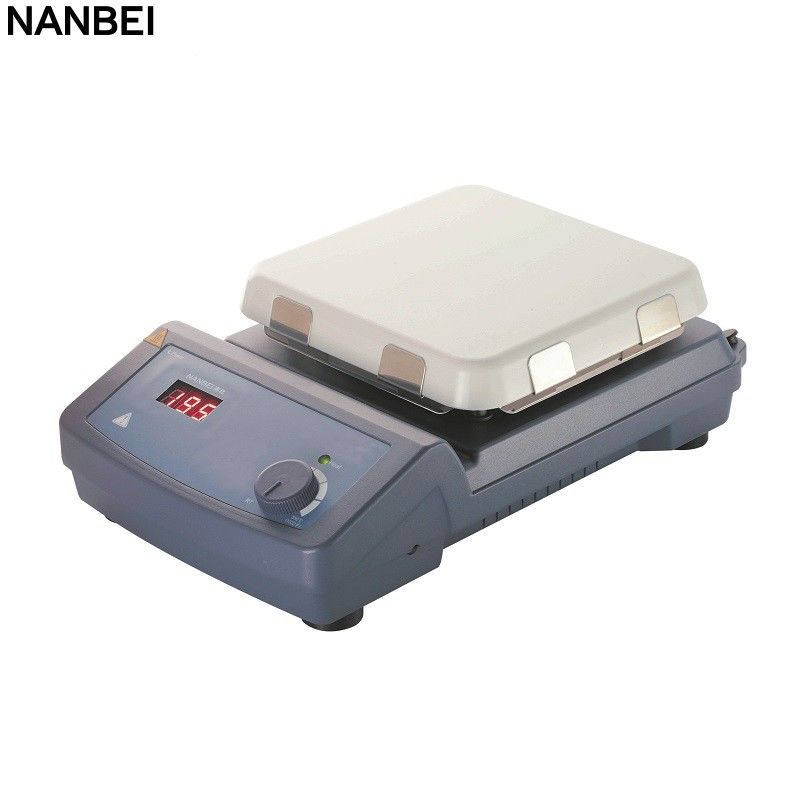

Laboratory Medical Lab Hotplate Instrument
Key Features:
• LED screen shows temperature
• Max. temperature up to 550°C
• Separate safety circuits with fixed safety temperature of 580°C
• External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.5°C
• Glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
• The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
Specification:
Specifications | NB550-S |
Work plate Dimension | 184x184mm(7 inch) |
Work plate material | Glass ceramic |
Power | 1010W |
Heating Power | 1000W |
Voltage | 100-120/200-240V,50/60Hz |
Heating position | 1 |
Heating temperature range | Room temp.-550°C,increment 5°C |
Control accuracy of work plate | ±10°C |
Safety temperature | 580°C |
Temperature display | LED |
Temperature display accuracy | ±1°C |
External temperature sensor | PT1000(±0.5°C) |
Heating warning | 50°C |
Protection class | IP21 |
Dimension [W x D x H] | 215x360x112mm |
Weight | 4.5kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Order Info
P/N | Descriptions | Power supply |
HP550-S | LED Digital 7’’ Square Hotplate,glass ceramic hotplate,heating temperature up to 550°C,with PT1000 for free (18900016),need to buy support clamp 18900017 |
USA plug,100V-120V/50Hz/60Hz Cn plug,200V-240V/50Hz/60Hz Euro plug,200V-240V/50Hz/60Hz UK plug,200V-240V/50Hz/60Hz |
