Intelligent 20L ASTM D445 Automatic Kinematic Viscometer Laboratory Instrument

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE/ISO/SGS
Model Number: SYD-265H
Minimum Order Quantity: 1/set
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000
Detail Information
Item: SYD-265H Intelligent Kinematic Viscometer Model: SYD-265H
Power Supply: AC(220±10%)V, 50Hz Bath Heating Power: 1700W
Temperature Range: Room Temperature~100.0℃ Temperature Control Accuracy: ±0.01℃
High Light:

ASTM D445 Automatic Kinematic Viscometer


20L Automatic Kinematic Viscometer


20L astm d445 viscometer

Product Description

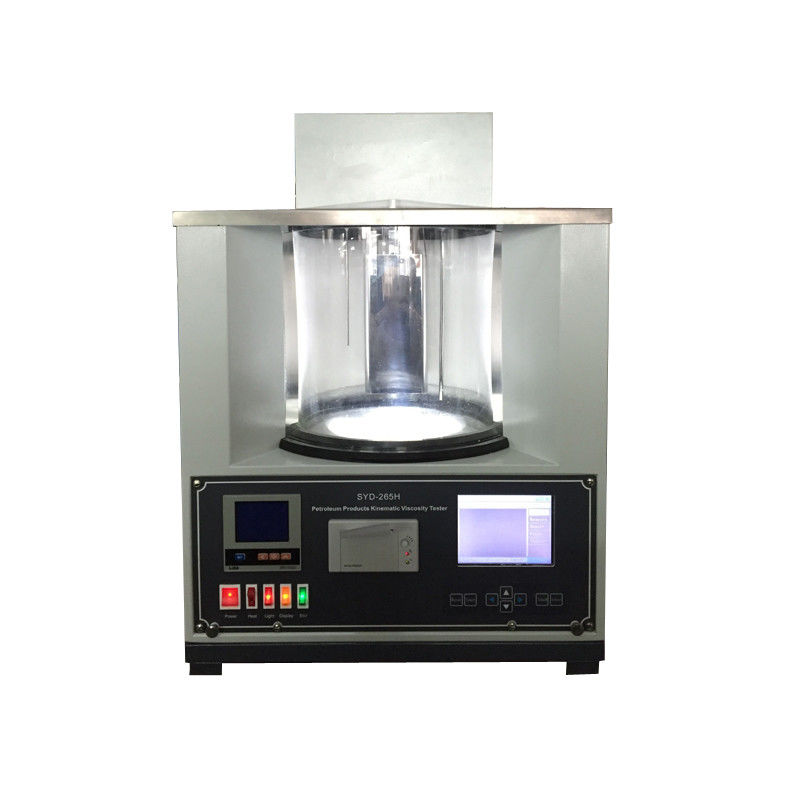

Lab using SYD-265H Intelligent Kinematic Viscometer


Brief introduction of SYD-265H Intelligent Kinematic Viscometer :

This instrument is designed and made as per the industry standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester, GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature

Features of NANBEI SYD-265H Intelligent Kinematic Viscometer :

I. Main technical features


1. Single chip microcomputer and colored LCD technology. High intelligence and automation.


2. Intelligent signal sampling, data measuring, parameters operating, and result output. All the operations are finished automatically.English man-machine conversation interface. Easy to operate.


3. The instrument is equipped with timing function. It can choose valid flowing time period and calculate arithmetic average automatically. It can also preset the viscosity coefficient , calculate the viscosity after the test and print the test results automatically.


4. It can do one test alone or doing two tests at one time by setting the parameters.High efficiency.


5. It has the parameters saving function. The instrument will automatically save the parameters of capillary tube diameter, coefficient and so on after these parameters being setted. When doing test with the same capillary, no need to set these parameters again.


6. It adopts desktop and all-in-one machine design. Convenient to use.


7. HS Code :9031809090

Intelligent 20L ASTM D445 Automatic Kinematic Viscometer Laboratory Instrument 0

Main technical specifications

Item SYD-265H Intelligent Kinematic Viscometer
Model SYD-265H
Power supply AC(220±10%)V, 50Hz
Bath heating power 1700W
Temperature range Room temperature~100.0℃
Temperature control accuracy ±0.01℃
Bath volume 20L
Timing range 0.0s~9999.9s
Timing accuracy ±0.05% within 60min
Amount of capillary viscometer tubes 4 capillary viscometers
Stirring motor Power 6W, rotating rate 1200RPM
Working condition ambient temperature-10℃~35℃, RH: ≤85%
Temperature sensor RTD, Pt100
Maximum power consumption 1800W
Capillary viscometers tubes(Pinkevitch viscometer) 7 pieces in total.The inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
Dimension 530mm×400mm×670mm
