Gas Torch CE 30m 75ml Conradson Carbon Residue Tester

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE/ISO/SGS
Model Number: SYD-268
Minimum Order Quantity: 1/SET
Delivery Time: 5-7DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000
Detail Information
Item: Conradson Carbon Residue Tester Porcelain Crucible: About 30m
Inner Iron Crucible: About (75±5)ml Outer Iron Crucible: About(190±10)ml With Cover
Supporter: Height: (250±10)mm Bore Diameter: Ф(130±5)mm Blowtorch: It Adopts Gas Torch
High Light:

75ml Conradson Carbon Residue Tester


30m Conradson Carbon Residue Tester


75ml micro carbon residue tester

Product Description

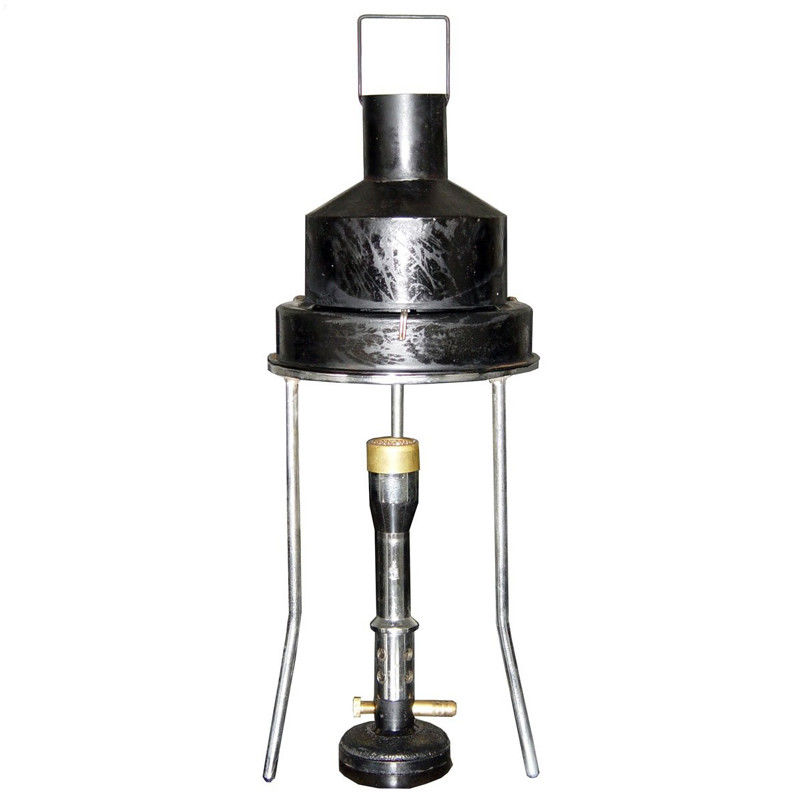

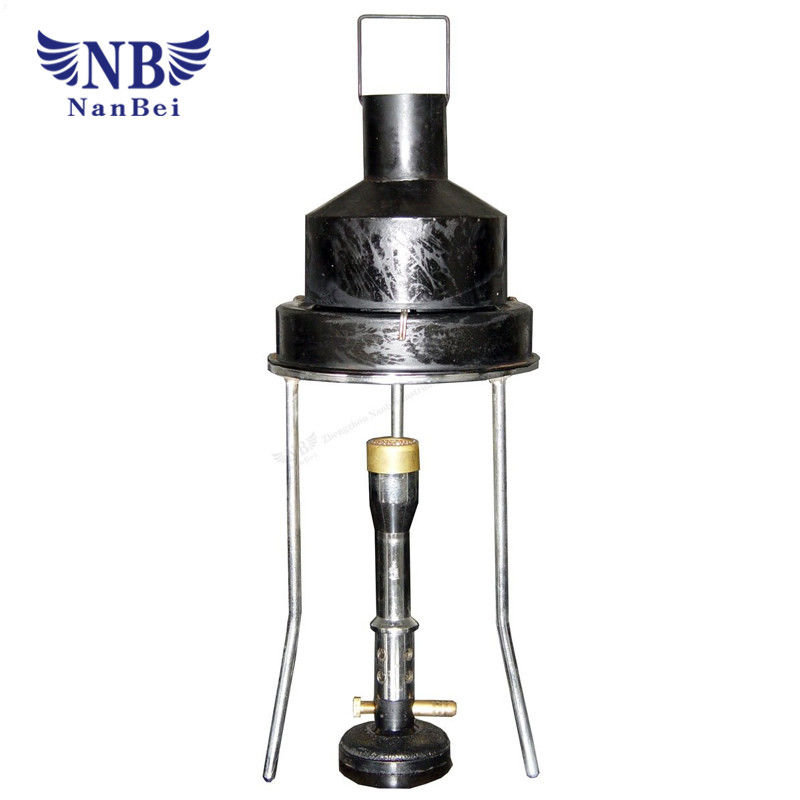

Gas torch Conradson Carbon Residue Tester with CE


Brief introduction of SYD-268 Conradson Carbon Residue Tester :


The instrument is designed and made as per national standard of People’s Republic of China GB/T268 Standard Test Method for Carbon Residue of Petroleum Products by Conradson Method. It is used to determine the amount of carbon residue of petroleum products after evaporation and pyrolysis, so as to check coke forming property of petroleum products.It can also meet requirements of ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.


Features of NANBEI SYD-268 Conradson Carbon Residue Tester:

I. Main technical features

1. The design can totally meet requirements of standard GB/T 268.


2. Simple design. Accessories complete. The test can be done as loon as equip civil gas.

Gas Torch CE 30m 75ml Conradson Carbon Residue Tester 0

Main technical specifications

Item Conradson Carbon Residue Tester
Model SYD-268
Porcelain crucible About 30m
Inner iron crucible About (75±5)ml
Outer iron crucible About(190±10)ml with cover
Supporter Height: (250±10)mm Bore diameter: Ф(130±5)mm
Flame shield Diameter of upper port:Ф(90±2)mm Diameter of lower port:Ф(82±2)mm
Round iron cover

The height of underpart is (50~53)mm.

The height of cone in the middle is (25±2)mm.

There is a piece of iron wire as the fire bridge on the top.

The height is (50±3)mm.It is regarded as the indicator of max height

Blowtorch It adopts gas torch
Overall dimension Ф130mm×400mm
Gross weight 9kg
Package Size 35*35*55cm
