PCR Laboratory - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE/ISO/SGS/TUV
Model Number:	GT-9612

Minimum Order Quantity:	1/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 set/per day

Detail Information

Model:	Gradient GT9612(A)GT6022(B) GT9632(C) GT3842(D)	Capacity:	96×0.2ml(A),60*0.5ml(B), 96×0.2ml+77×0.5ml(C) , 384well(D)
Temperature Range:	0～99.9℃	Heating Rate:	4℃/s
Cooling Rate:	3℃/s	Uniformity:	≤±0.3℃
Accuracy:	≤±0.2℃	Display Resolution:	0.1℃
High Light:	HIV 96 Well PCR Machine , 0.2ml 96 Well PCR Machine , 96×0.2ml rt pcr machine

Product Description

96 well PCR machine for lab use testing DNA RNA HIV COVID19

Brief introduction of GT9612 PCR machine:

Introduction of GT9612 PCR machine

This series product adopts 6 pieces custom-made US Marlow peltier, cycle times ＞200000. Steady performance function, easy operation, economic.

Features of NANBEI PCR:

Features:

1). The most advanced peltier-based semiconductor technology.

2). High-performance universal power supply.

3). Large 5.7-inch high-definition LCD display.

4). Bilingual curve graphical interface.

5). Power-down data protection.

6). Metal shell, solid, practical, beautiful and generous.

7). Stepless adjustable hot lid.

8). Lid can be positioned at any angle.

9). High sealing reaction zone to ensure stable and reliable experiment.

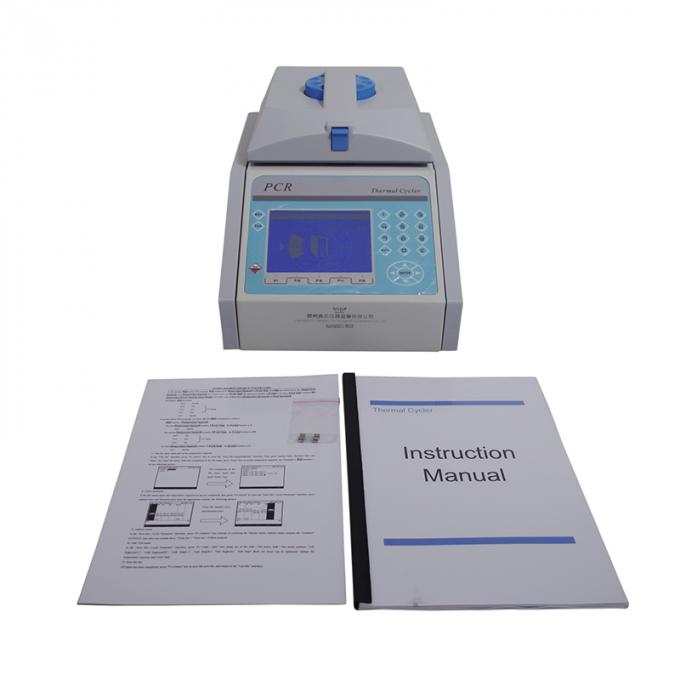

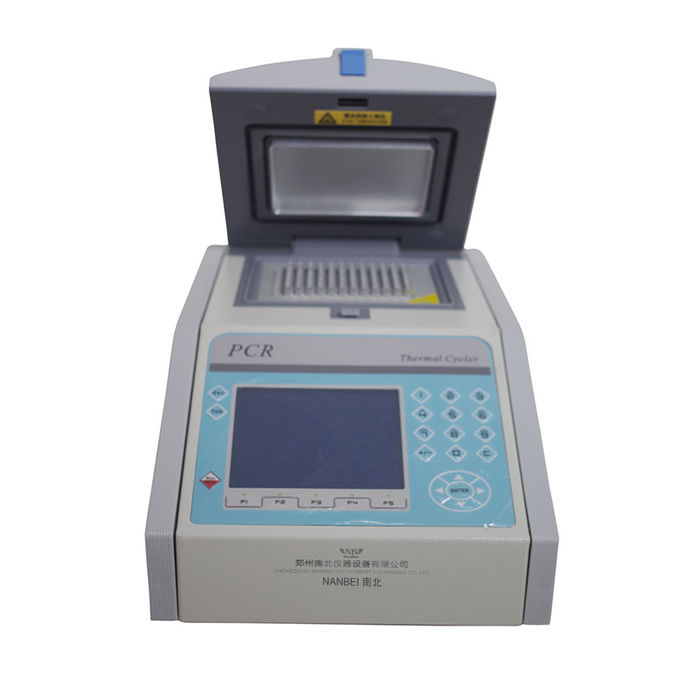

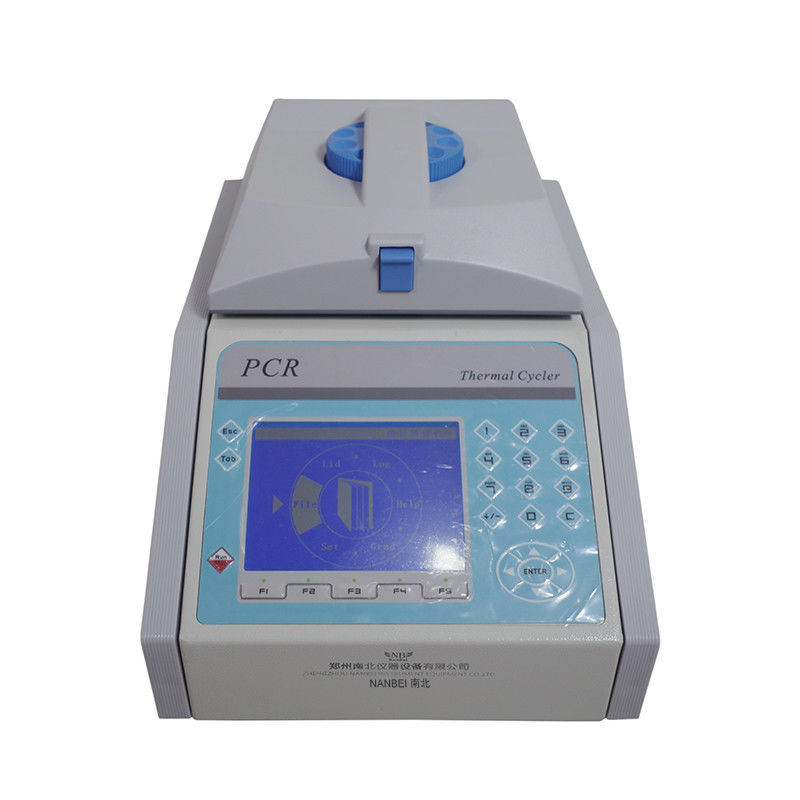

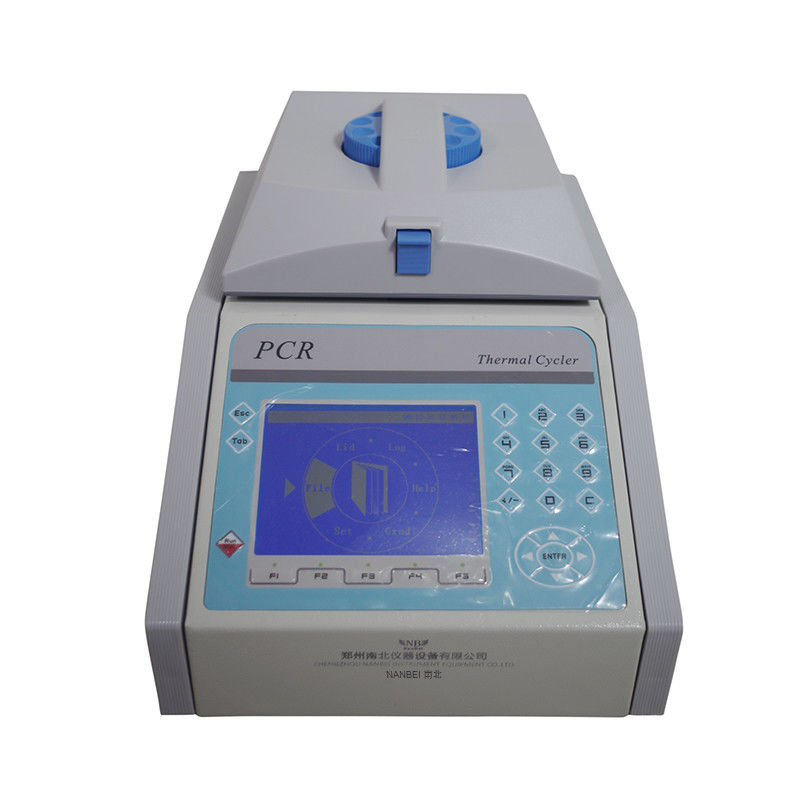

96 Well PCR Machine For Lab Use Testing DNA RNA HIV COVID19 TEST 1

Technical parameters of GT9612 PCR machine

Model	General GT9611(A)GT6021(B) GT9631(C)GT3841(D)	Gradient GT9612(A)GT6022(B) GT9632(C) GT3842(D)
Capacity	96×0.2ml(A),60*0.5ml(B), 96×0.2ml+77×0.5ml(C) , 384well(D)
Temperature Range	0～99.9℃
Heating Rate	4℃/s
Cooling Rate	3℃/s
Uniformity	≤±0.3℃
Accuracy	≤±0.2℃
Display Resolution	0.1℃
Temperature Control	BlockTube
Average Ramping Rate Adjustable	0.1～2.5℃
Gradient Uniformity	/	≤±0.3℃
Gradient Accuracy	/	≤±0.2℃
Gradient Temp. Range	/	30～99.9℃
Gradient Spread	/	1～30℃
Hot Lid Temperature	30～110℃
Hot Lid Height Adjustable	Stepless Adjustable
Number of Programs	200
Max. No. of Segment	9
Max. No. of Step	9
Max. No. of Cycle	99
Time Increment/Decrement	1 Sec ～ 9 Min 59 Sec
Temp. Increment/Decrement	0.1～9.9℃
Pause Function	Yes
Auto Data Protection	Yes
Graphical Display	Yes
Hold at 4℃	Forever
LCD	5.7inch,320×240 pels

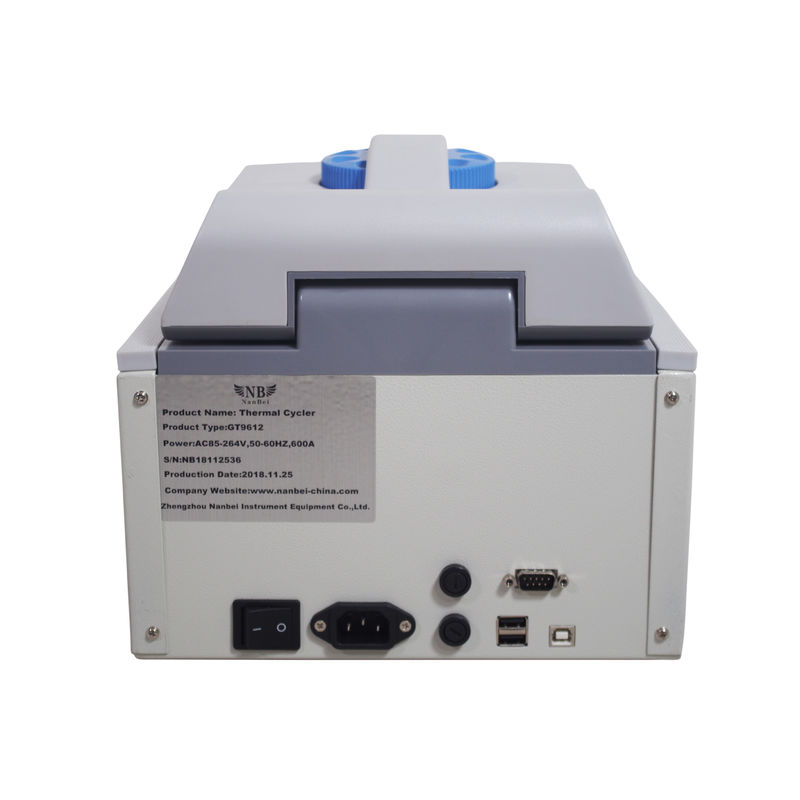

Communication	2USB2.0 , RS232
Dimensions	392mm×262mm×252mm (L×W×H)
Weight	10kg
Power Supply	85～264VAC , 50～60Hz , 600 W
