PCR Laboratory - Nanbei Instrument Limited

Place of Origin:	China
Certification:	CE,ISO,SGS

Minimum Order Quantity:	1/set
Price:	negotiate
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Cat.No.:	785931	Name:	Multifunctional Liquid Transfer Cap
Pipe Length:	50cm	Pipe Connect:	Aseptic Welding Heat-seal
Type:	Vacuum Erlenmeyer Flask	Application:	PCR Laboratory
High Light:	500ml PCR Laboratory , 90mm PCR Laboratory , 500ml Vacuum Erlenmeyer Flask

Product Description

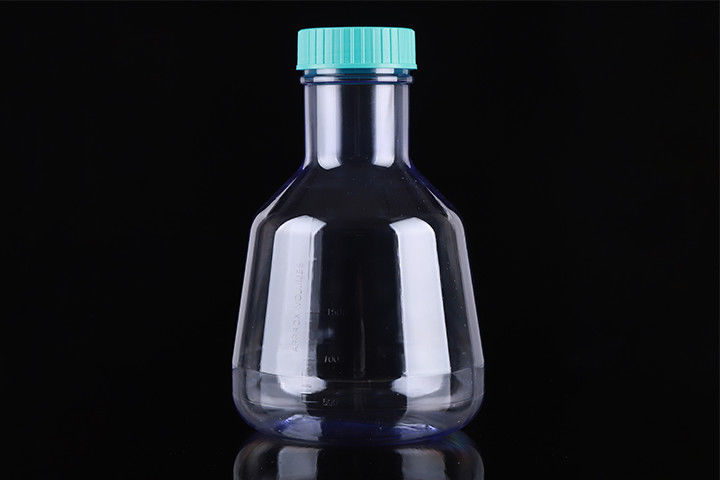

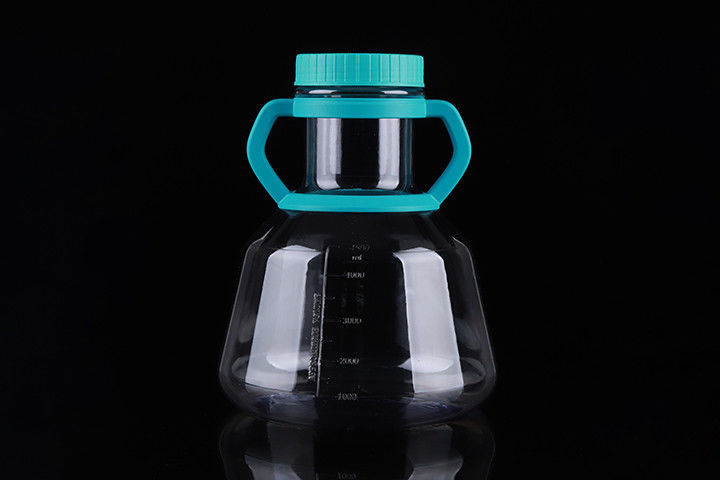

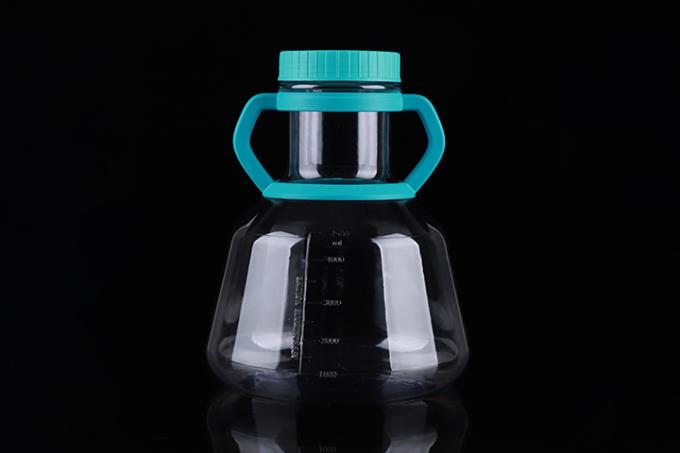

High Efficiency Erlenmeyer Flask

Ideal for shaker culture applications.

· PC bottle : High standard of transparency and clear scale, easy to observe. Sturdy,good for transport.
· Sterilized by E-Beam
· Nonpyrogenic
· Packaged in sterile bags

Tips:

· Recommended volume :30-40% of the bottle volume;
· Rotation speed suggestion: the starting speed is 75-125RPM, you can control the rotation speed according to the situation;
· The liquid shake shaker should pay attention to the water level, the gas shake shaker should pay attention to the temperature

Transfer Cap for Shake Flask

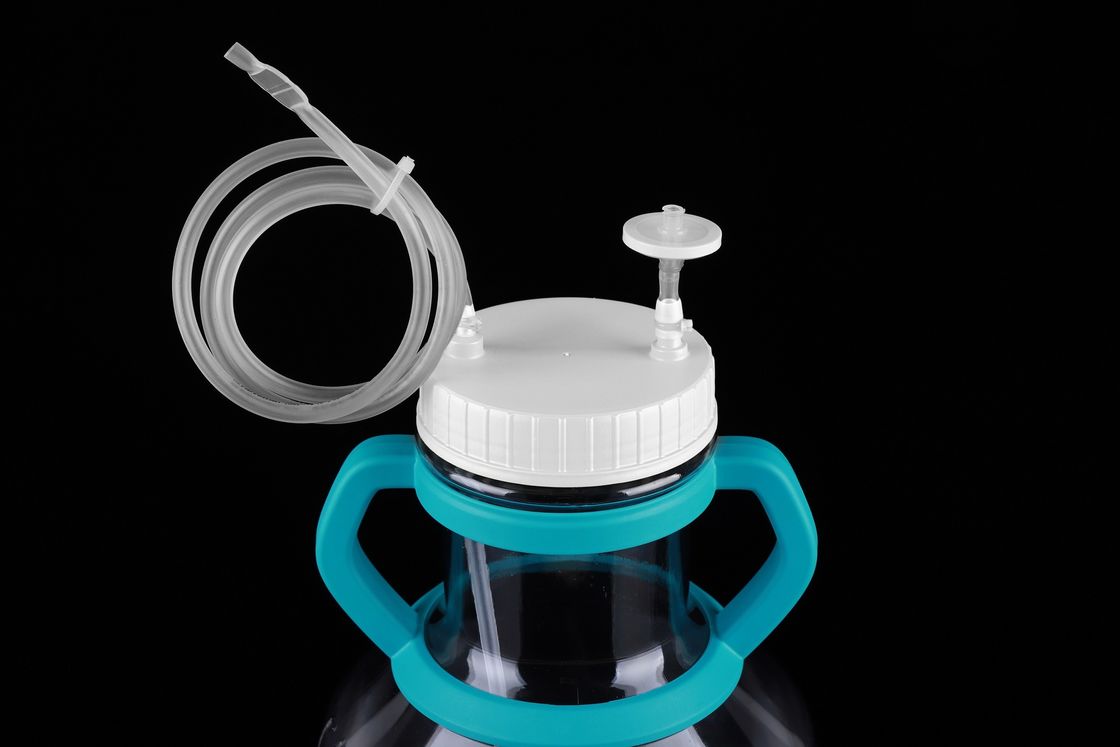

Two-Way Liquid Transfer Cap: The two-way transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet tubing with the required device. The liquid transfer is achieved by connection of a peristaltic pump between the shake flask and the device. Upon completion of the transfer, the transfer cap can be replaced with a vent cap for culture.

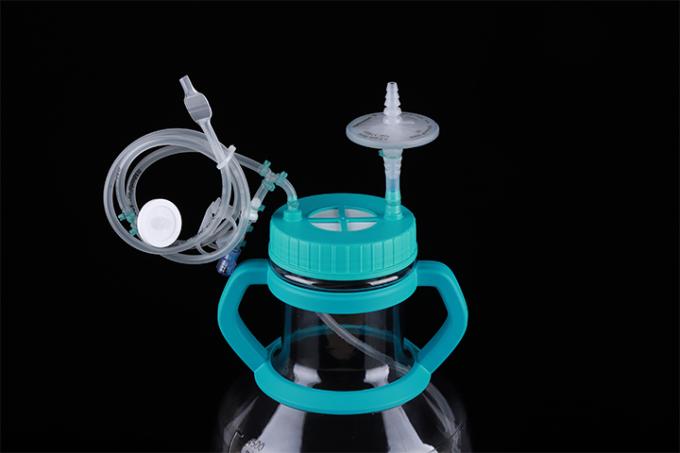

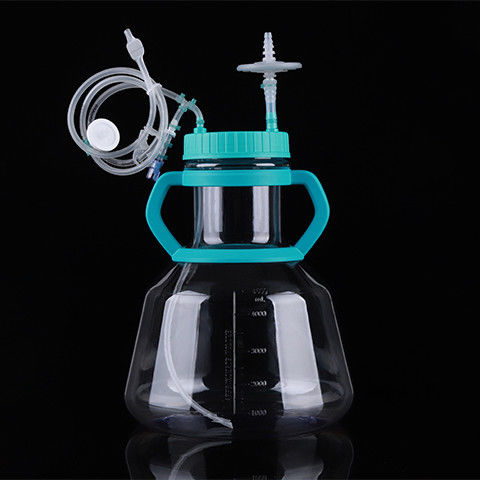

Multifunctional Liquid Transfer Cap: Unlike the two-way liquid transfer cap, the multifunctional transfer cap can be directly placed in an incubator for culture after the liquid transfer is completed. It can reach a large air flux. The sampling part is composed of a sampling nozzle and a one-way valve, which can prevent the liquid from flowing backwards during the sampling process and ensure the aseptic sampling. The liquid inlet tubing is provided with a PTFE needle filter, which solves the issue of liquid remaining in the tubing during the feeding process.

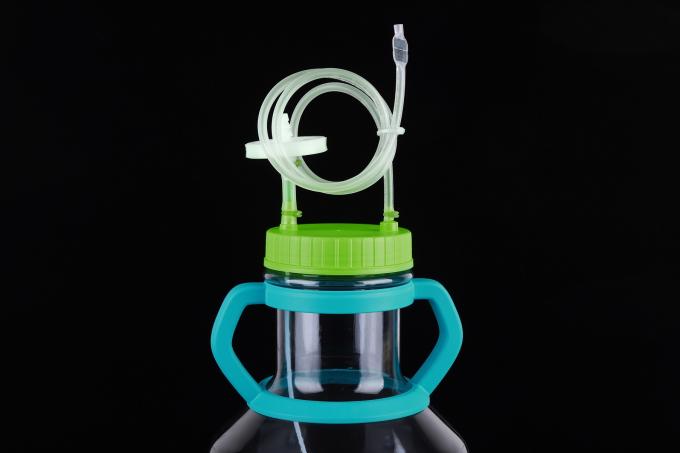

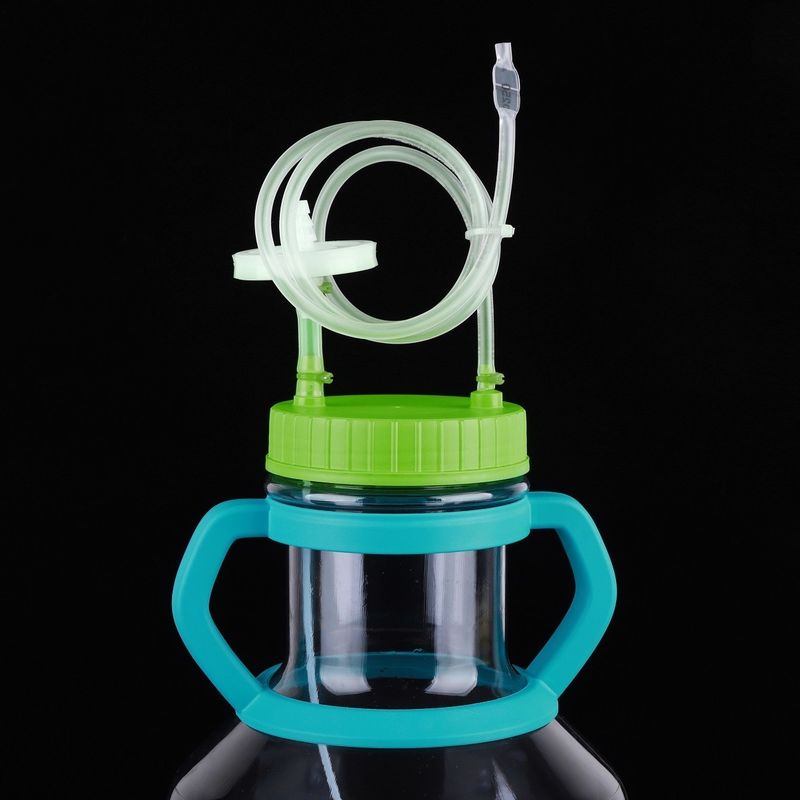

Inverted Liquid Transfer Cap: The inverted transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet tubing with the required device. When liquid transfer is required, the liquid is transferred under gravity with the inverted shake flask.

Cat.No.	Volume (L)	Cap Style	Size(mm)			/Case
Cat.No.	Volume (L)	Cap Style	Height	Bottleneck Diameter	Bottom Diameter	/Case
785101	2.0	Plug Seal Cap	213.5	67	162	4
785111	2.0	Vent Cap	213.5	67	162	4
786101	3.0	Plug Seal Cap	253.5	67	162	4
786111	3.0	Vent Cap	253.5	67	162	4
787001	5.0	Plug Seal Cap	285.5	90	230	4
787011	5.0	Vent Cap	285.5	90	230	4

Vacuum Erlenmeyer Flask 90mm 500ml PCR Laboratory 3

It is applicable to liquid transfer and culture during mass proliferation of bacteria and suspension cells.

1.Closed transfer reduces the risks of contamination during liquid transfer.
2.The cap is molded and connected in an integrated manner, reducing the risks of leakage and media residues.
3.A variety of tubing diameters are available and aseptic welding of liquid inlet tubing under normal conditions is supported.
4.High-quality materials and smooth inner wall of the tubing provide an excellent transfer performance.
5.Sterility level (SAL) is maintained at 10-6.
6.Endotoxin-free, and no ingredients of animal origin.
Vacuum Erlenmeyer Flask 90mm 500ml PCR Laboratory 4

Vacuum Erlenmeyer Flask 90mm 500ml PCR Laboratory 4

Cat.No.	Name	Information	Pipe length	Pipe connect	/pack	/case
785931	2L Multifunctional Liquid Transfer Cap	Thermoplastics pipes, pipe diameter :⅛" ID, ¼" OD	50cm	Aseptic welding heat-seal	1	4
786931	3L Multifunctional Liquid Transfer Cap	Thermoplastics pipes, pipe diameter:⅛" ID, ¼" OD	50cm	Aseptic welding heat-seal	1	4
787931	5L Multifunctional Liquid Transfer Cap	Thermoplastics pipes, pipe diameter :⅛" ID, ¼" OD	92cm	Aseptic welding heat-seal	1	4
785921	2L Two-Way Liquid Transfer Cap	Thermoplastics pipes, pipe diameter :⅛" ID, ¼" OD	50cm	Aseptic welding heat-seal	1	4
