Place of Origin: | China |
---|---|
Brand Name: | NANBEI |
Certification: | CE,ISO,SGS |
Model Number: | Cell BioFactory |
Minimum Order Quantity: | 50/set |
Packaging Details: | Wooden cases and cartons |
Delivery Time: | 5-7days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 set/per day |
Cat.No.: | 771001 | Layer: | 1 |
---|---|---|---|
Cap Style: | 2 Wide Vent Caps (with 16 Sterile Wide Plug Seal Caps Included Separately) | Cultivation Area (cm): | 647 |
Name: | Cell BioFactory | Material: | USP Class VI Grade Polystyrene |
High Light: |
1 Layer PCR Laboratory,Cultivation 647cm PCR Laboratory,1 Layer Cell BioFactory |
USP Class VI grade polystyrene material

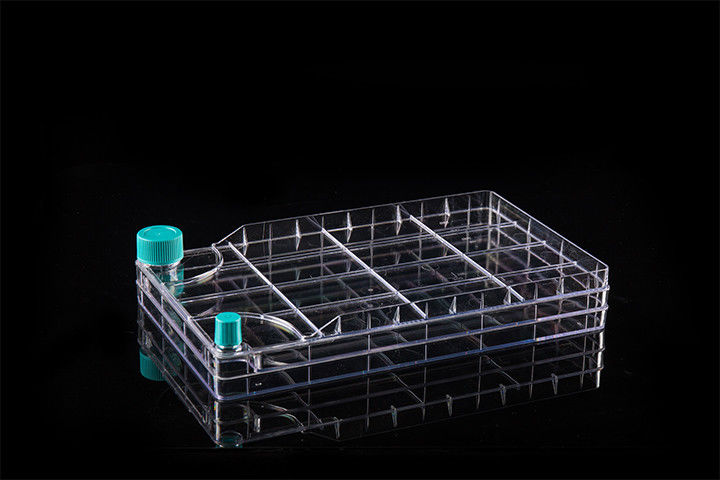

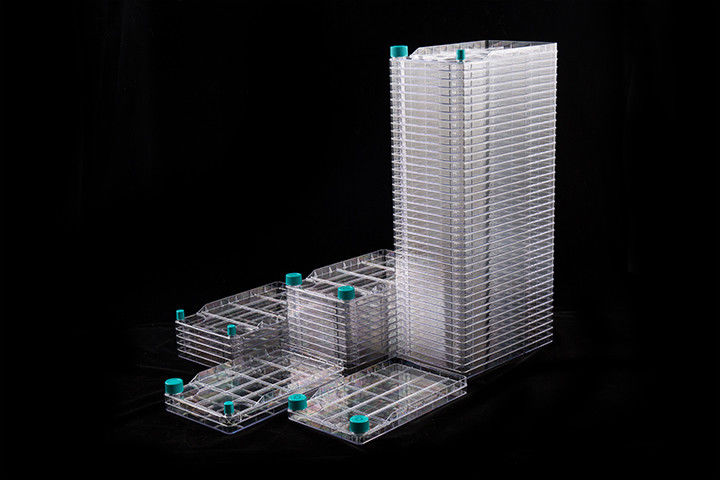

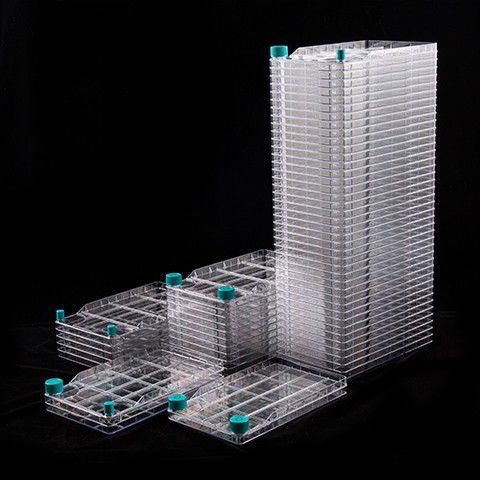

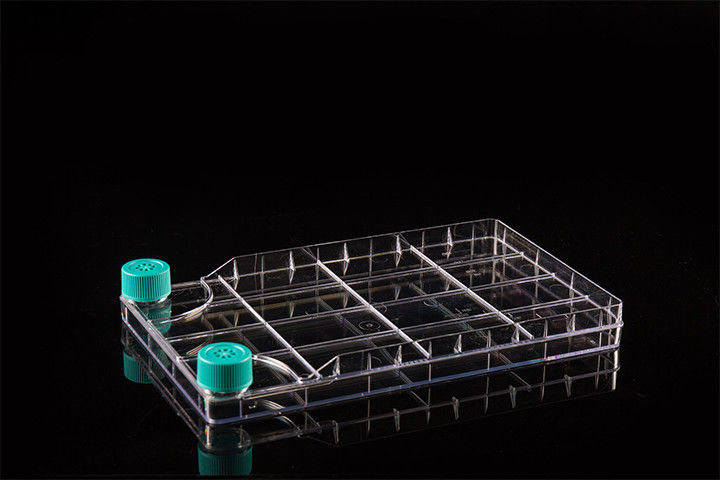

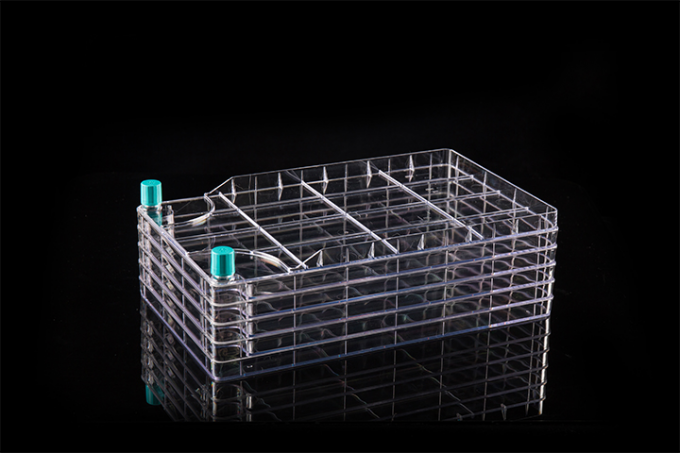

Nest BioFactory Systems are compact, multi-layer, single-use cell culture systems designed for easy scale-up cell culture applications, such as production of vaccines, monoclonal antibodies or pharmaceuticals. Versatile, easy-to-use systems for small scale research or commercial production with reduced contamination risk. Narrow mouth caps available for tubing solutions.
· Temperature Range: Approx.-86 to+64℃
· Sterilized by E-Beam SAL=10-6
· Nonpyrogenic
· Double-layer sterile bag
· TC treated , good for cell attachment and growth
· Clear lot number for batch traceability
· Ultrasonic welding without extrinsic ingredients. Excellent welding line design can avoid producing particles during welding. And make the bifactoy stronger.
· Vent caps with 0.22um hydrophobic filters for gas exchange without contamination.
· Wide mouth is applicable to pour culture medium directly. Narrow mouth is applicable to operate with the aseptic pipeline.
· Growth kinetics are the same as cells grow in the cell culture flasks. Applicable to large-scalely culture adherent cells.
· Large growing area. Just a single operate, you can cultivate a large number of cells and reduce contamination risk.
· Applicable to automatic machine. Standardize operations to reduce batch differences.
Recommendations:
Please be gently when use the biofactory to avoid air bubbles. Air bubbles will lead the culture medium flow from the upper layer to the lower layer.
Cat.No. | Layer | Cap Style |
Cultivation area (cm²) |
/Case |
771001 | 1 | 2 Wide Vent Caps (with 16 sterile wide plug seal caps included separately) |
647 | 8 |
771101 | 2 | 2 Wide Vent Caps (with 16 sterile wide plug seal caps included separately) |
1279 | 8 |
771204 | 5 | 2 Wide Vent Caps (with 8 sterile wide plug seal caps included separately) |
3175 | 4 |
771302 | 10 | 2 Wide Vent Caps (with 12 sterile wide plug seal caps included separately) |
6335 | 6 |
771403 | 40 | 2 Wide Vent Caps (with 4 sterile wide plug seal caps included separately) |
25295 | 2 |
772001 | 1 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with 8 sterile narrow vent caps & 8 sterile narrow plug seal caps included separately) |
647 | 8 |
772101 | 2 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with 8 sterile narrow vent caps & 8 sterile narrow plug seal caps included separately) |
1279 | 8 |
772204 | 5 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with 4 sterile narrow vent caps & 4 sterile narrow plug seal caps included separately) |
3175 | 4 |
772302 | 10 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with 6 sterile narrow vent caps & 6 sterile narrow plug seal caps included separately) |
6335 | 6 |
772403 | 40 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap (with 2 sterile narrow vent caps & 2 sterile narrow plug seal caps included separately) |
25295 | 2 |
773001 | 1 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap (with 8 sterile wide plug seal caps & 8 sterile narrow vent caps included separately) |
647 | 8 |
773101 | 2 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap (with 8 sterile wide plug seal caps & 8 sterile narrow vent caps included separately) |
1279 | 8 |
773204 | 5 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap (with 4 sterile wide plug seal caps & 4 sterile narrow vent caps included separately) |
3175 | 4 |
773302 | 10 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap (with 6 sterile wide plug seal caps & 6 sterile narrow vent caps included separately) |
6335 | 6 |
773403 | 40 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap (with 2 sterile wide plug seal caps & 2 sterile narrow vent caps included separately) |
25295 | 2 |
BioFactory Accessories (Click to see more)
Cat.No. | Description | /pack | /case |
740001 | Wide Mouth Seal cap for BioFactory | 1 | 10 |
740011 | Wide Mouth Vent cap for BioFactory | 1 | 10 |
740101 | Narrow Mouth Seal cap for BioFactory | 1 | 10 |
740111 | Narrow Mouth Vent cap for BioFactory | 1 | 10 |
740201 | Adaptor Cap Wide Mouth to Narrow Mouth | 1 | 10 |
740301 | Adaptor Cap Wide Mouth to 3/8 Inches(9.5 mm)hose | 1 | 10 |
741001 | Adaptor connector to 3/8 Inches(9.5 mm)hose | 1 | 10 |
742001 | Vent Filter,0.22 um,50 mm diameter | 1 | 10 |
743001 | Hose clamp for 12-18 mm diameter hose | 10 | 10 |
744001 | SPT-50 hose,Inner dia# 3/8 Inches(9.5 mm),Out dia# 5/8 Inches(15.9 mm),50 Inches/ 15 meters | 1 | 1 |
745001 | 740201*1,740301*1,741001*1,742001*1,743001*1,744001*1 | 1 | 1 |
746001 | C-Flex welding hose, Inner dia# 3/8 Inches(9.5 mm),Out dia# 5/8 Inches(15.9 mm),50 Inches/ 15 meters | 1 | 1 |
747001 | Connector(Inner Dia #3/8 ) for hose to hose connecting | 1 | 10 |
751001 | Y ShapeConnector for Inner Dia #3/8 Hose | 1 | 10 |
749001 | T ShapeConnector for Inner Dia #3/8 Hose | 1 | 10 |
750001 | Funnel for Wide Mouth, Upper Dia 60mm, Lower Dia 24mm | 1 | 10 |
