8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: RC-8
Minimum Order Quantity: 1set
Price: USD2540-USD2788/set
Packaging Details: Export Standard Packaging
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 sets per month
Detail Information
Speed Range: (20-200)Rpm Speed Accuracy: Plus Or Minus 2rpm
Temperature Range Ambient: +45.0 Degree Preset Timing Nine Points: (1-999)Min
Paddle Radial Run-out: Plus Or Minus 0.5mm Power: 220V/50Hz/1200W Or 110V/60Hz/1200W
Product Name: Disintegration Tester Weight: 45kg
Warranty: 12 Months Basket Assemblies: 6
High Light:

digital thickness tester

,

tablet hardness tester


Product Description

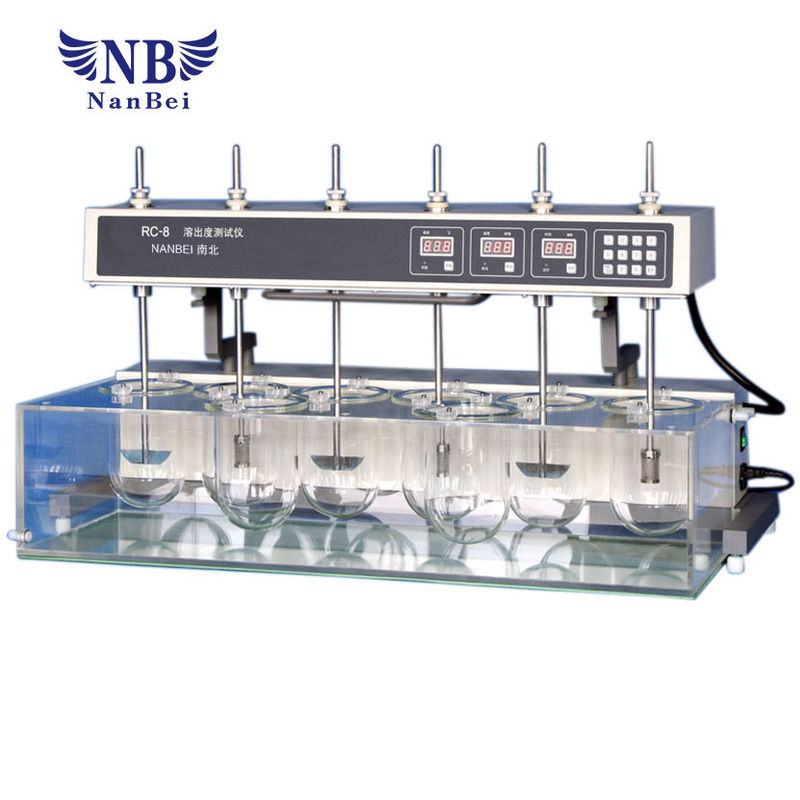

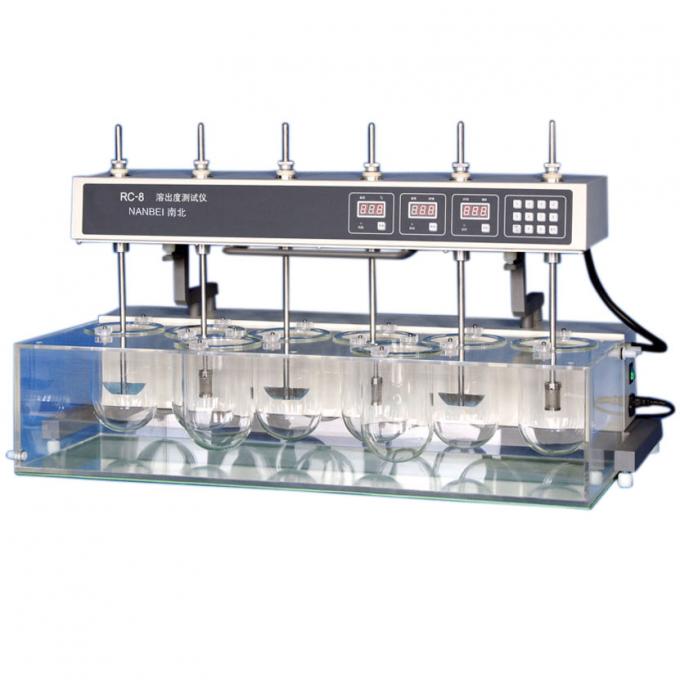

8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine





Pharmaceutical 8 vessels dissolution tester

Introduction
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010

Features:
It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.

The head part of the instrument can be artificially turned over smoothly and flexibly.

The basket units and paddle units are made of imported stainless steel (SUS316L).

The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.

A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.

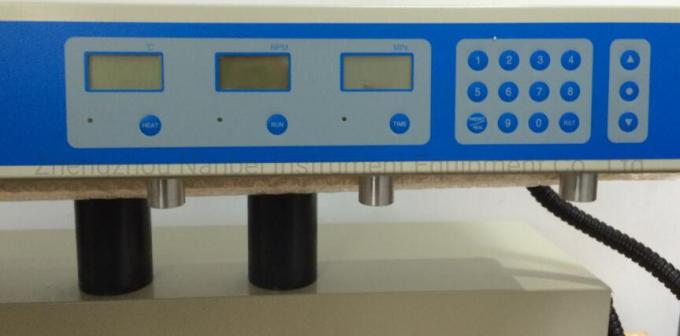

It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.

Automation: auto-test, auto-diagnose, auto-alarm.

It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.

Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:

Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient +45.0ºC
Temperature Stability ±0.3ºC
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (680*540*480)mm3

8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine 0

Automatic Medical 6 vessels dissolution tester

Introduction:
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010

Features:
It has six vessels and six poles arranged on one line.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:

Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient +45.0ºC
Temperature Stability ±0.3ºC
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (960*400*480)mm3



8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine 1

8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine 2

8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine 3

8 Vessels Dissolution Drug Testing Instrument , Pharmaceutical Tablet Test Machine 4
