Place of Origin: | China |
---|---|
Brand Name: | NANBEI |
Certification: | CE,ISO |
Model Number: | RD-1 |
Minimum Order Quantity: | 1set |
Price: | USD900-USD1053/set |
Packaging Details: | Export Standard Packaging |
Delivery Time: | 7-10days |
Payment Terms: | TT, LC, Paypal, Western Union, MoneyGram… |
Supply Ability: | 500 sets per month |
Product Name: | Melting Point Tester | Power: | 220V/50Hz/1200W Or 110V/60Hz/1200W |
---|---|---|---|
Weight: | 11kg | Warranty: | 12 Months |
Range Of Melting Point: | 50~270ºC | Usage Temperature: | 15~35ºC |
Range Of Preset Temperature: | 50~260ºC | Oil Bath: | Methyl Silicone Oil |
Oil Bath Cup: | 250ML High Beaker | ||
High Light: |
digital thickness tester,tablet thickness tester |

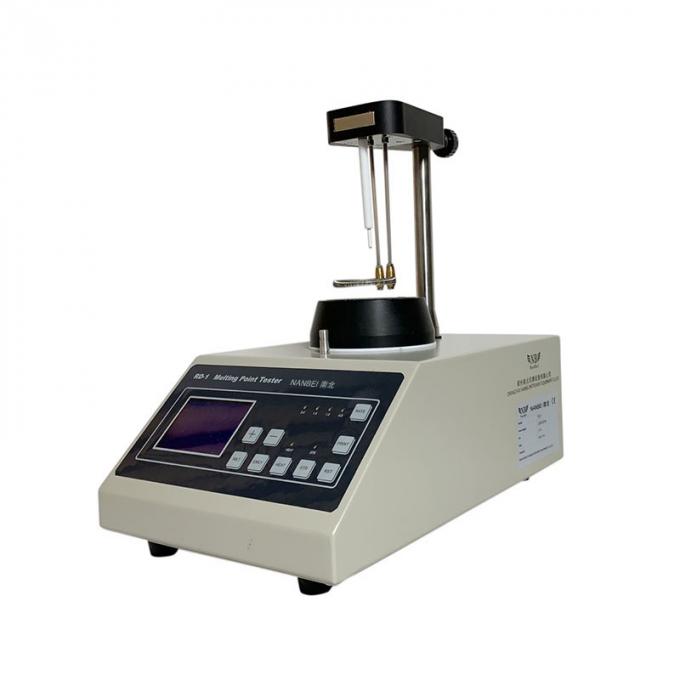

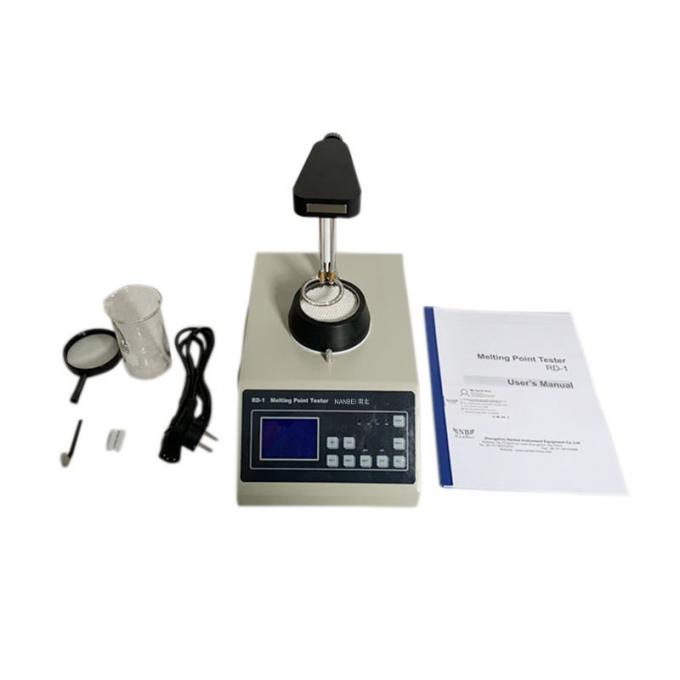

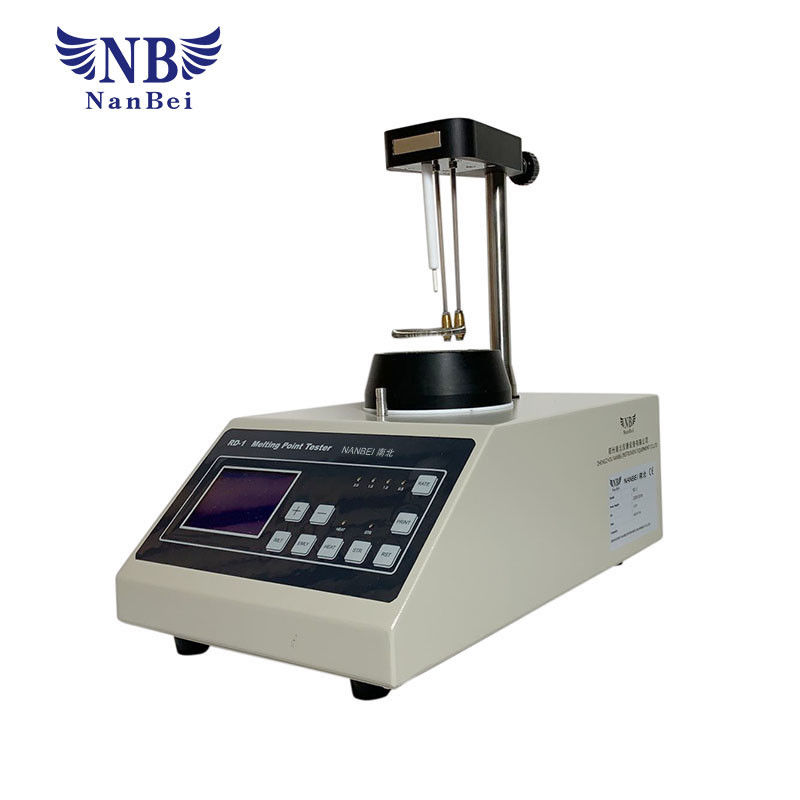

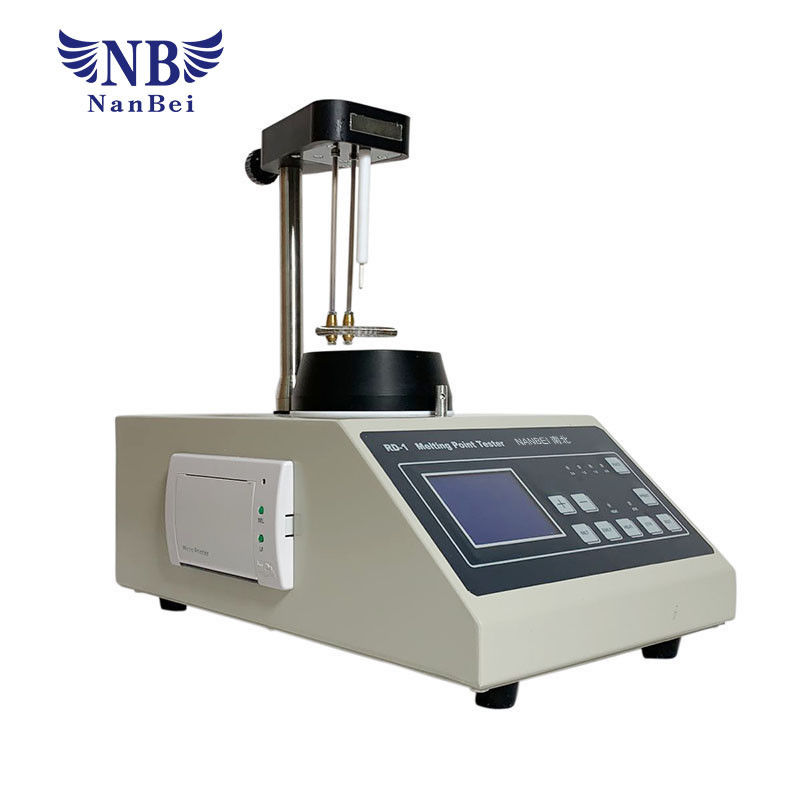

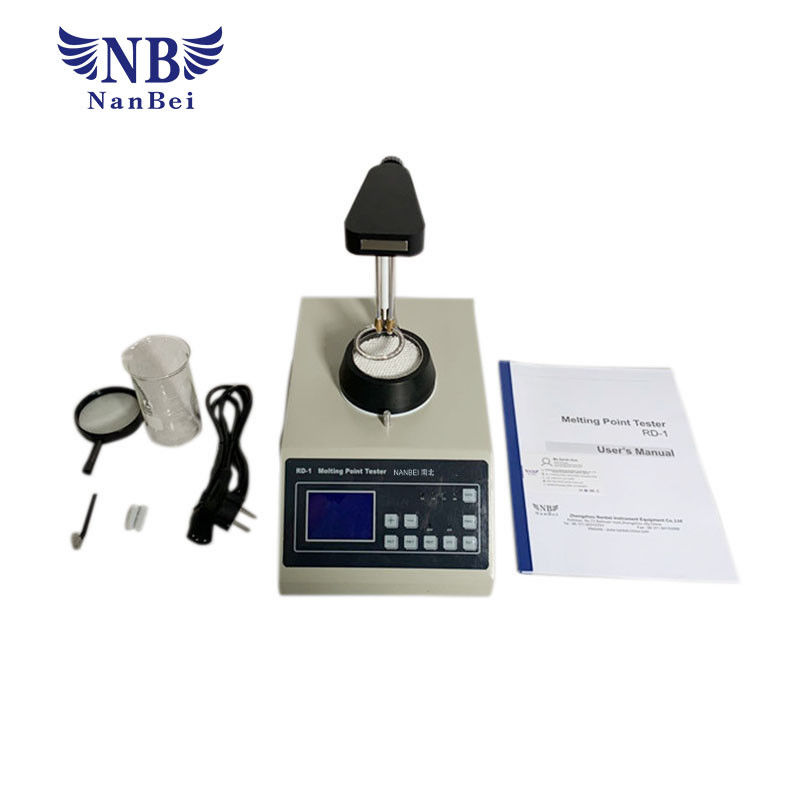

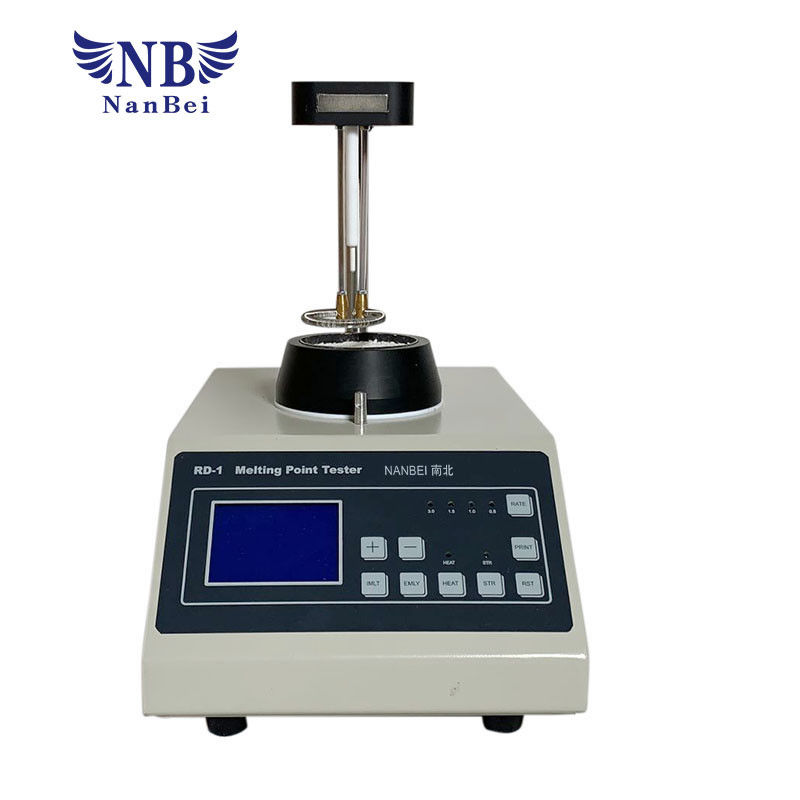

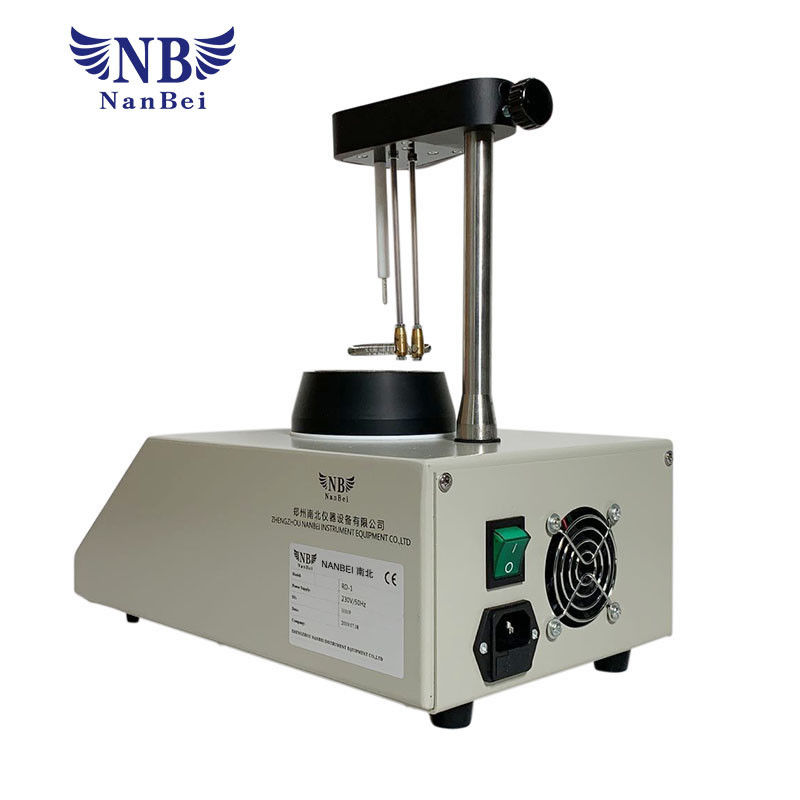

NANBEI Drug Testing Instrument For Melting Points Of Drug / Spice And Dye
Melting Point Tester for testing Melting points of drug, spice and dye
Introduction:
Melting point is the temperature of something turning to liquid from solid. Testing it is the main method to detect some characters such as purity etc. It is suitable for testing Melting points of drug, spice and dye etc.
Model:RD-1
Applicable standard:
National standard( Chinese codex ) /2010
Corporate standard(Thickness tester) Q/12XQ0185-2010
Features:
Testing the temperature with high-precision sensor. emending nonlinear error automatically.
Using auto frequency-conversion control technology, with high accuracy in controlling temperature and little linear error in heating speed.
Auto-memorizing and noting preset data and melt point, holding without power.
Auto magnetism stirrer, with the bath oil even in temperature.
Auto-preset temperature, auto-heat, display preset and real-time data alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm
Specifications:
Range of melting point | 50~270ºC |
Accuracy | <200ºC ,±0.5ºC or ≥200ºC ,±1.0ºC |
Usage temperature | 15~35ºC |
Range of preset temperature | 50~260ºC |
Oil bath | methyl silicone oil |
Oil bath cup | 250ML high beaker |
Rate | (0.5,1.0,1.5,3.0)ºC/min |
Accuracy of Rate | ≤10% |
Power of the heater | 200W |
Power | 220V/50Hz/500W |
Dimension | 320*180*290)mm3 |
