RC-8DS Drug Testing Instrument 8 Vessels Dissolution Tester ISO Certification

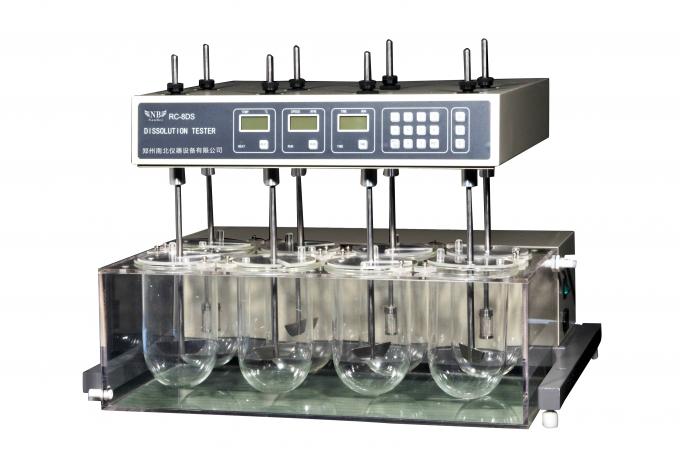

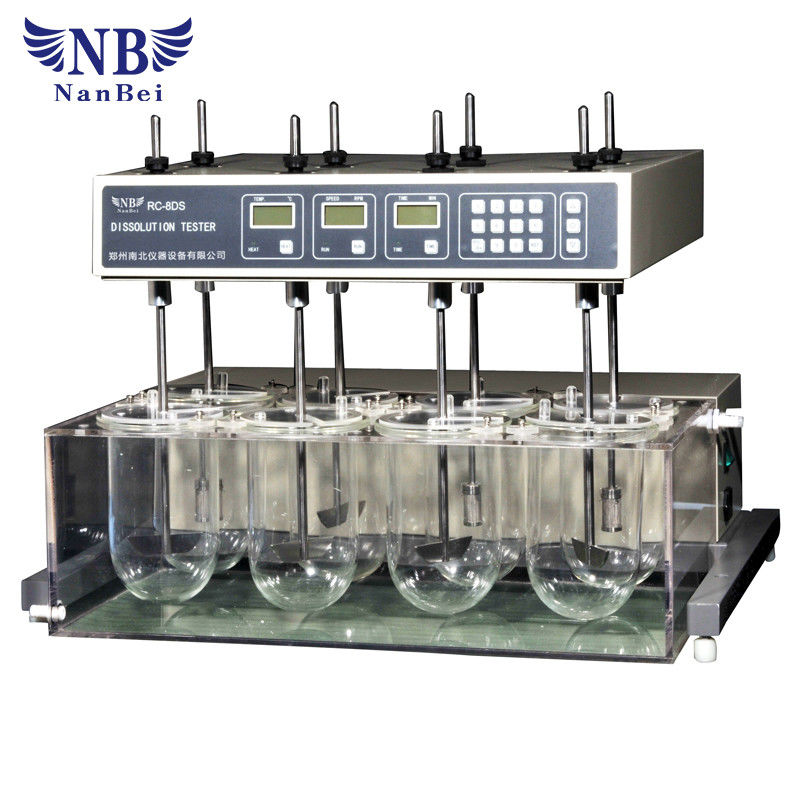

RC-8DS 8 Vessels Dissolution Tester
Features:
It has eight vessels and eight poles, with four vessels and four poles in front and other at back.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications:
| Model |
RC-8DS |
| Speed range |
(20~200)rpm |
| Speed accuracy |
±2rpm |
| Temperature range ambient |
+45.0ºC |
| Temperature Stability |
±0.3ºC |
| Preset timing nine points |
(1~999)min |
| Time accuracy |
±0.5mm |
| Paddle radial run-out |
±0.5mm |
| Basket radial run-out |
±1.0mm |
| Power |
220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension |
(680*540*480)mm3 |
RC-8D tablet test machine 8 Vessels Dissolution Tester
Features:
It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications:
| Model |
RC-8D |
| Speed range |
(20~200)rpm |
| Speed accuracy |
±2rpm |
| Temperature range ambient |
+45.0ºC |
| Temperature Stability |
±0.3ºC |
| Preset timing nine points |
(1~999)min |
| Time accuracy |
±0.5mm |
| Paddle radial run-out |
±0.5mm |
| Basket radial run-out |
±1.0mm |
| Power |
220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension |
(680*540*480)mm3 |
Pharmaceutical 8 vessels dissolution tester
RC-8 Introduction
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010
Features:
It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications:
| Model |
RC-8 |
| Speed range |
(20~200)rpm |
| Speed accuracy |
±2rpm |
| Temperature range ambient |
+45.0ºC |
| Temperature Stability |
±0.3ºC |
| Preset timing nine points |
(1~999)min |
| Time accuracy |
±0.5mm |
| Paddle radial run-out |
±0.5mm |
| Basket radial run-out |
±1.0mm |
| Power |
220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension |
(680*540*480)mm3 |
